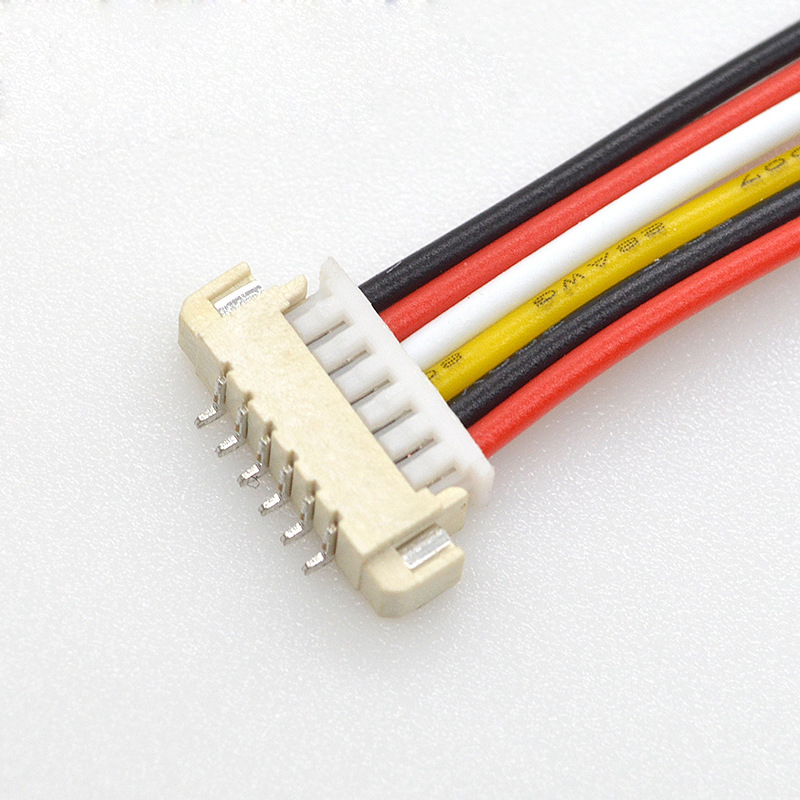

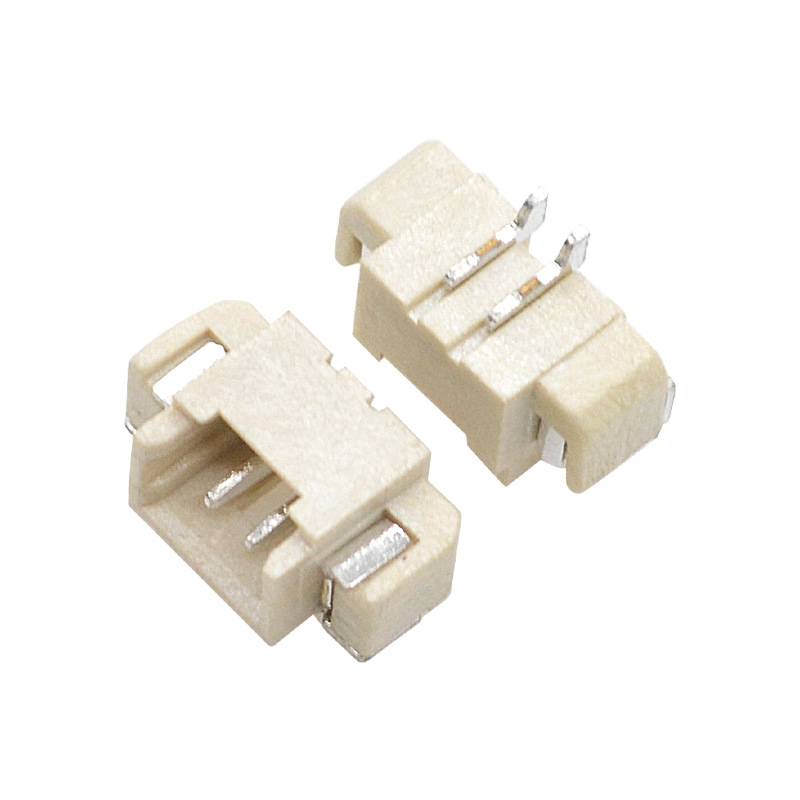

MX1.25 wire to board Connector Header Surface Mount right angle SMT

Product Descriptions :

Product name : Connector Header sure face mount SMT right angle 7 position 0.049″ (1.25mm)

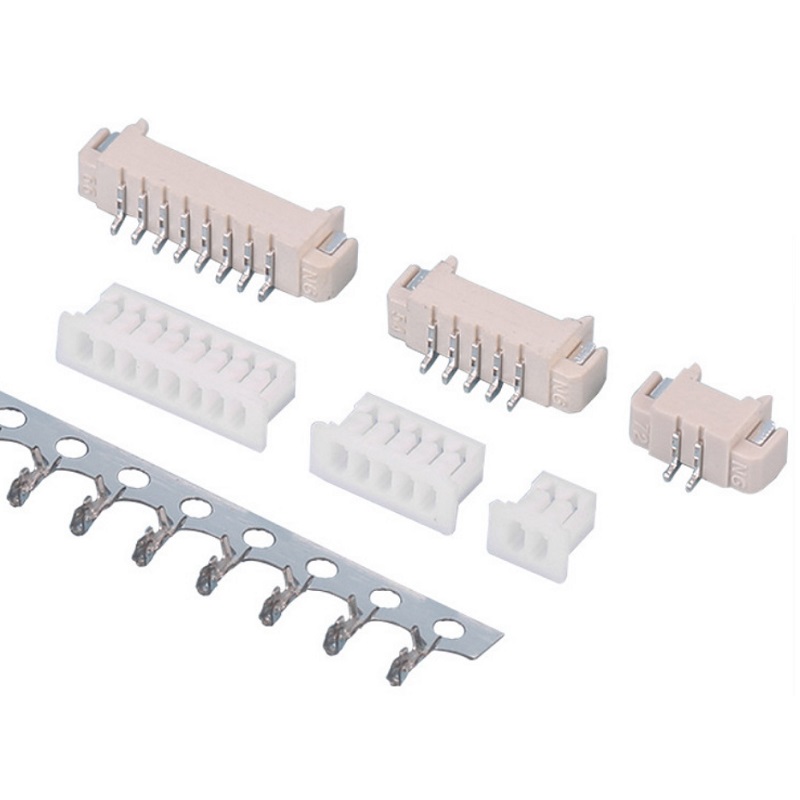

1.25mm Pitch Miniature Crimping Connector

Model: 1.25T-1-WT-nA

Features : Horizontal type through hole

Applicable wire : 2630 : 26 to 30 AWG

3032 : 30 to 32 AWG

Position Numbers : 02pin to 16pin customized as buyer’s request

Style : Board to Cable/Wire

Contact Type : Outer Shroud Contact

Fastening Type: Push-Pull

Current Rating (Amps) : 1A AC DC (AWG #32)

Voltage Rating: 150V AC/DC, 29.9V AC/DC

Contact Resistance: Initial Value 30mΩ Max

Insulation Resistance: 500MΩMin

Dielectric Strength: AC 500V for 1min

Working Temp : -25°C~+85°C

Package : Tape & Reel (TR)

Replacement part: DF13A-14P-1.25H(76),125SH-A-08-TR-SMT,DF13A-2P-1.25H(76),125SH-A-09-TR-SMT,DF13A-10P-1.25H(76),DF13A-8P-1.25H(75),DF13A-6P-1.25H(21),DF13A-15P-1.25H(75),125SH-A-06-TR-SMT,125SH-A-04-TR-SMT,DF13A-5P-1.25H(75),DF13-12P-1.25H(75),DF13A-12P-1.25H(75),DF13-10P-1.25H(21),DF13-15P-1.25H(75),DF13-9P-1.25H(76),DF13-15P-1.25H(76),DF13-12P-1.25H(76),DF13A-12P-1.25H(76),10114830-10102LF

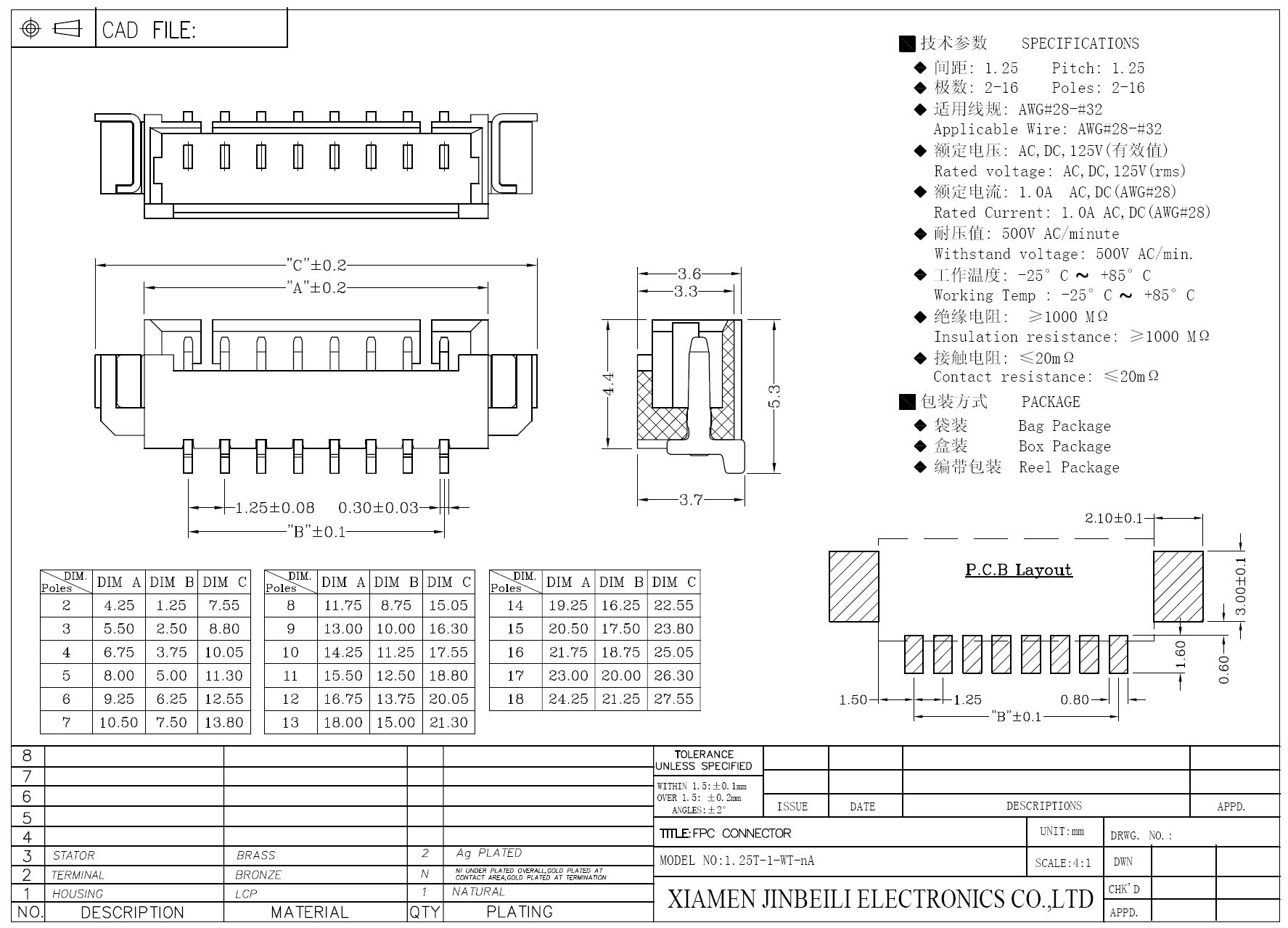

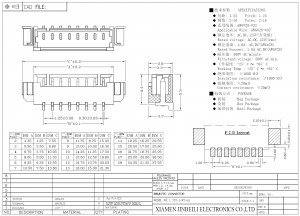

Datasheets :
