Short Description:

MX1.25 board to wire Connector Header through hole vertical DIP 2pin to 16pin

1.25mm Pitch Miniature Crimping Connector

Replacement part :M30-6100646,M30-6100346,M30-6100446,1734598-8,1734598-3,DF13-9P-1.25DSA,1-1734598-5,DF13-15P-1.25DSA(76),DF13-12P-1.25DSA(76),10114829-11106LF,1-1734598-2,10114829-10105LF,10114829-10110LF,10114829-10108LF,10114829-10102LF,1-1734598-0,1734598-6,DF13-8P-1.25DSA(76),10114829-10103LF,1734598-4,10114829-10106LF,125SH-B-03-TS,0530471310,0530471410,0530471110,125SH-A-03-TS,0530471010,125SH-A-04-TS,DF13-10P-1.25DSA

Send email to us Download as PDF

Product Detail

Product Tags

Product Descriptions :

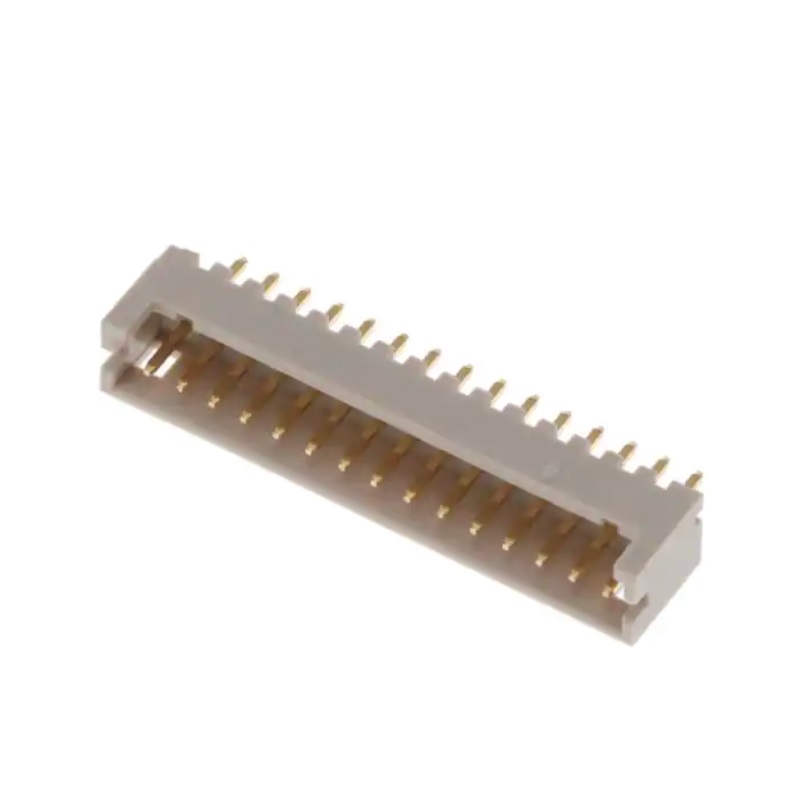

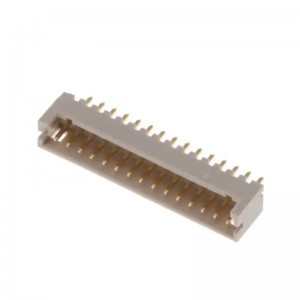

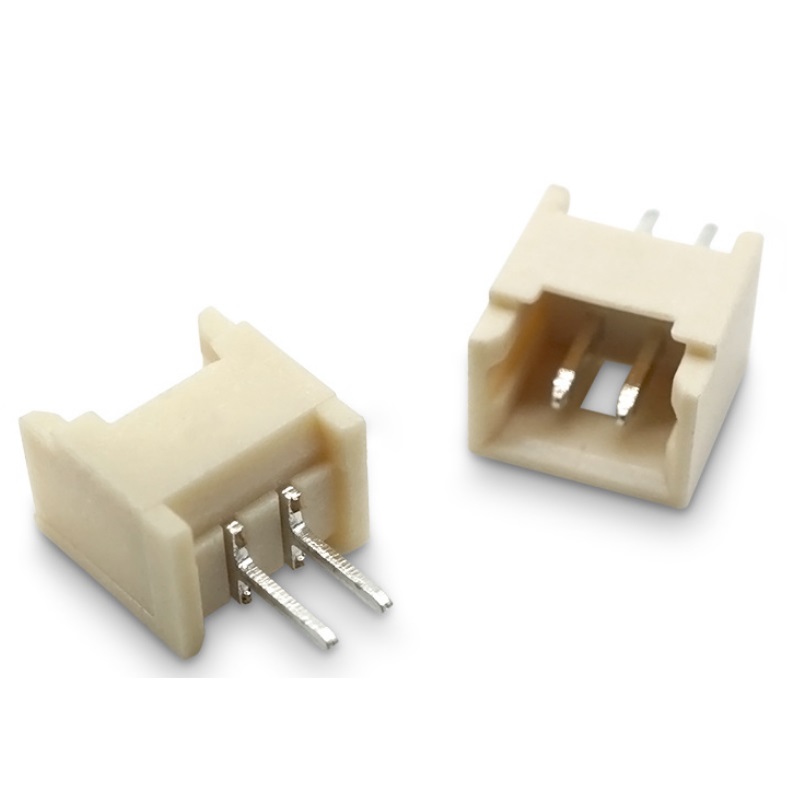

Product name : Connector Header Through Hole 10 position 0.049″ (1.25mm)
DF13 series 1.25mm Pitch Miniature Crimping Connector

Model: MX1.25-nA

Features : Horizontal type through hole

Applicable wire : 2630 : 26 to 30 AWG

3032 : 30 to 32 AWG

Position Numbers : 02pin to 16pin customized as buyer’s request

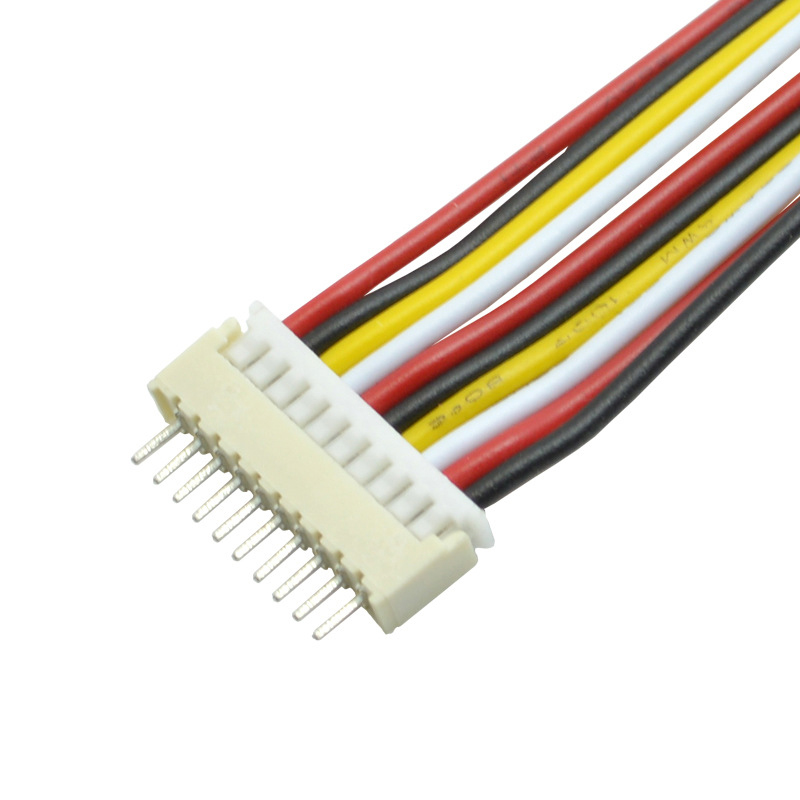

Style : Board to Cable/Wire

Contact Type : Outer Shroud Contact

Fastening Type: Push-Pull

Current Rating (Amps) : 1A AC DC (AWG #32)

Voltage Rating: 150V AC/DC, 29.9V AC/DC

Contact Resistance: Initial Value 30mΩ Max

Insulation Resistance: 500MΩMin

Dielectric Strength: AC 500V for 1min

Working Temp : -25°C~+85°C

Package : Tape & Reel (TR)

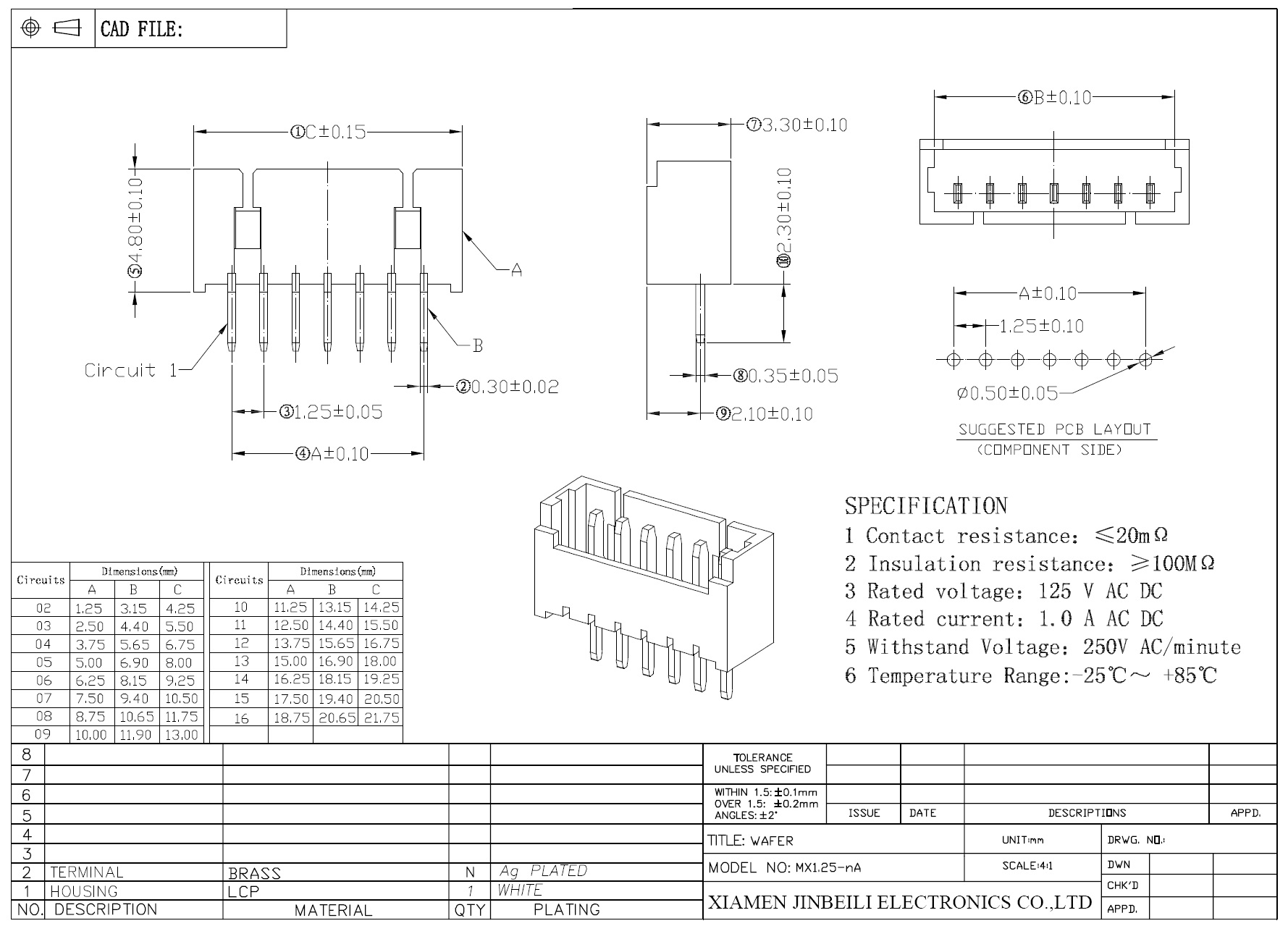

Datasheets :
