SPDT Right Angle Through-Hole Push Button Switch

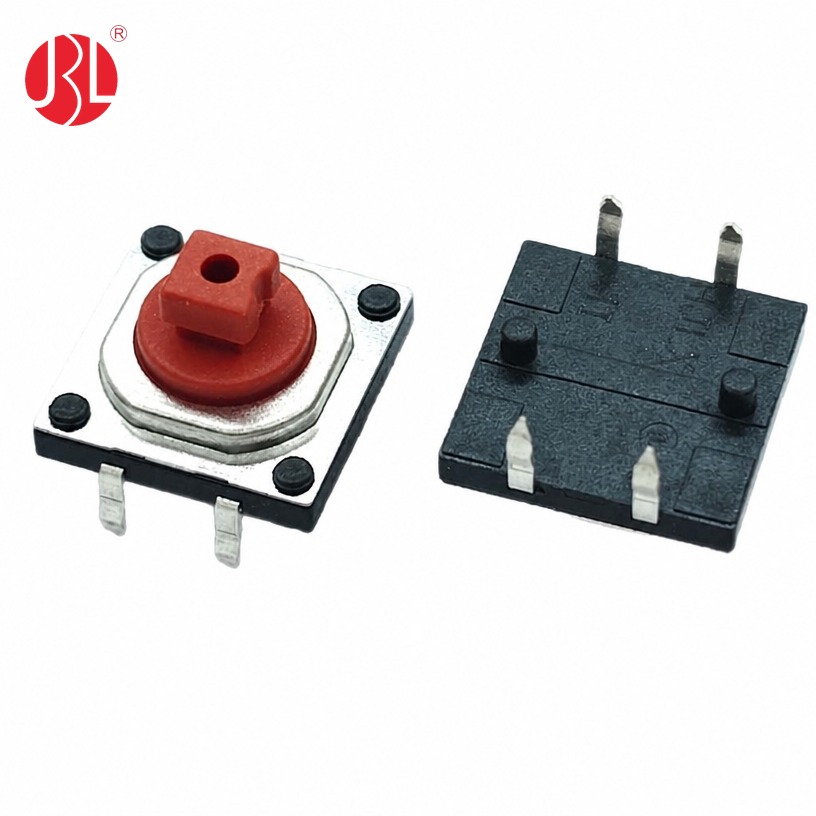

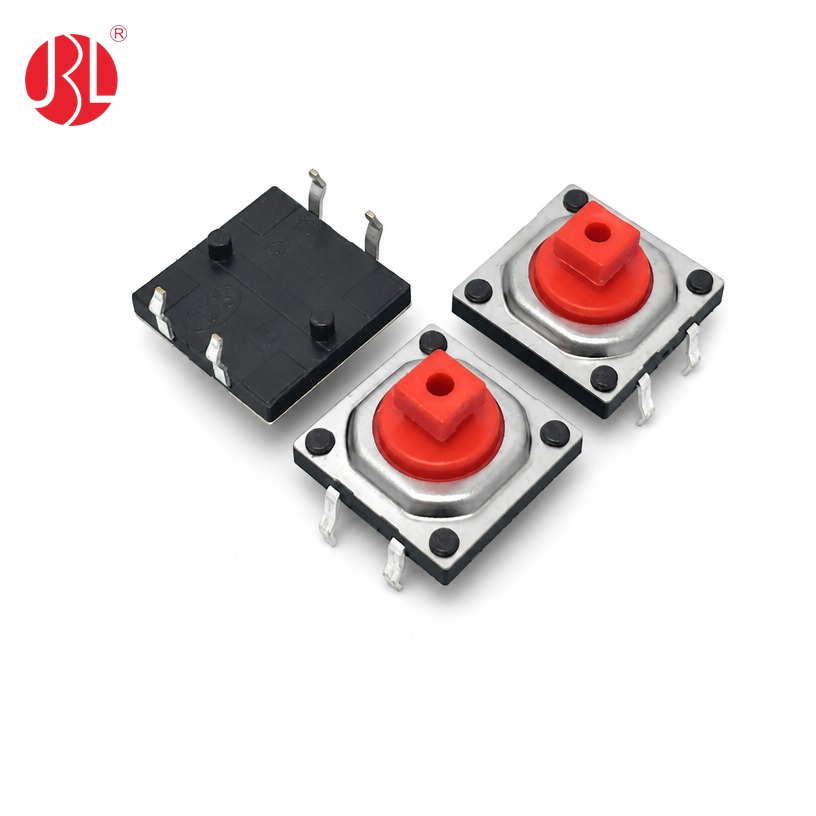

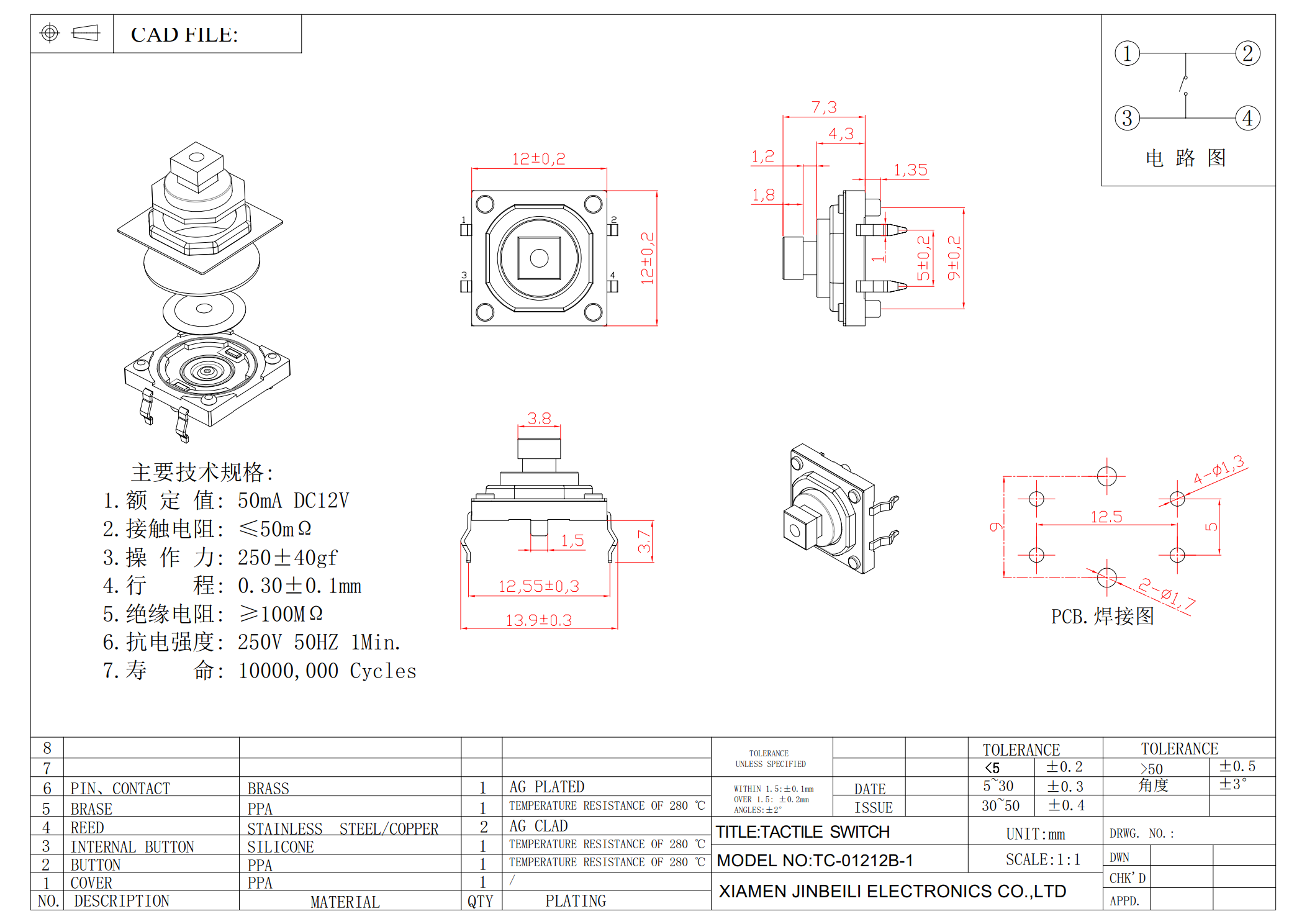

Jinbeili TC-01212B-1 12 × 12mm Through-Hole Tactile Switch

The Jinbeili TC-01212B-1 is a reliable 12 × 12 mm tactile switch designed for PCB-mounted control applications in home appliances, washing machines, consumer electronics, and other electronic equipment. This compact push switch features a through-hole mounting design, 4 pins, SPST contact configuration, and normally open (NO) operation.

The switch is equipped with two board guides, helping improve PCB positioning and assembly stability. Its actuator height is 7.3 mm above the PCBA, while the insulation housing has a 6.4 mm height and is manufactured from durable PPA insulation material.

The TC-01212B-1 provides a short 0.3 mm travel and is available with 160 gf or 250 gf operating force options, allowing customers to select the preferred button feel and operating force for their application. The electrical rating is DC 12V, 50mA, making it suitable for low-power control and signal circuits.

For applications requiring extended durability, the operating life can be customized according to customer requirements, with options of up to 3,000,000 operating cycles. A 1,000,000-cycle version can also be developed based on the required specification.

The Jinbeili TC-01212B-1 tactile switch is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory, supporting controlled production and consistent quality.

This 4-pin through-hole tactile switch is an ideal solution for manufacturers searching for a 12mm tactile switch, PCB push button switch, normally open SPST tactile switch, appliance control switch, or durable switch for washing machines and consumer electronics.

What is the Jinbeili TC-01212B-1 tactile switch?
The TC-01212B-1 is a 12 × 12 mm, 4-pin, SPST normally open tactile switch with through-hole PCB mounting and two board guides. It is designed for home appliances, washing machines, consumer electronics, and other PCB control applications.

Can this tactile switch work for 1,000,000 cycles?
Yes. The operating life can be customized according to customer requirements. A 1,000,000-cycle version is available, with customized lifetime options of up to 3,000,000 cycles.

Can it be processed with wave soldering?
Yes. As a through-hole tactile switch, it is suitable for PCB assembly using appropriate wave-soldering processes. Manual soldering may also be possible. Please provide your soldering profile for confirmation of recommended processing conditions.

Can the actuator height above the PCB be changed?
Yes. The standard actuator height is 7.3 mm above the PCBA, but customized mechanical dimensions and actuator heights can be evaluated according to your application requirements.

What is the waterproof level?
IP67 Rated

What is the travel of this tactile switch?
The TC-01212B-1 has a 0.3 mm travel and is available with 160 gf or 250 gf operating force options.

Can you make this tactile switch in a surface-mount version?
Yes. A surface-mount device (SMD/SMT) tactile switch version may be available or customized according to your PCB layout and application requirements. Please provide your PCB footprint, required dimensions, actuator height, operating force, and electrical specifications for engineering evaluation. We can evaluate a suitable 12 × 12 mm surface-mount tactile switch solution based on your requirements.
