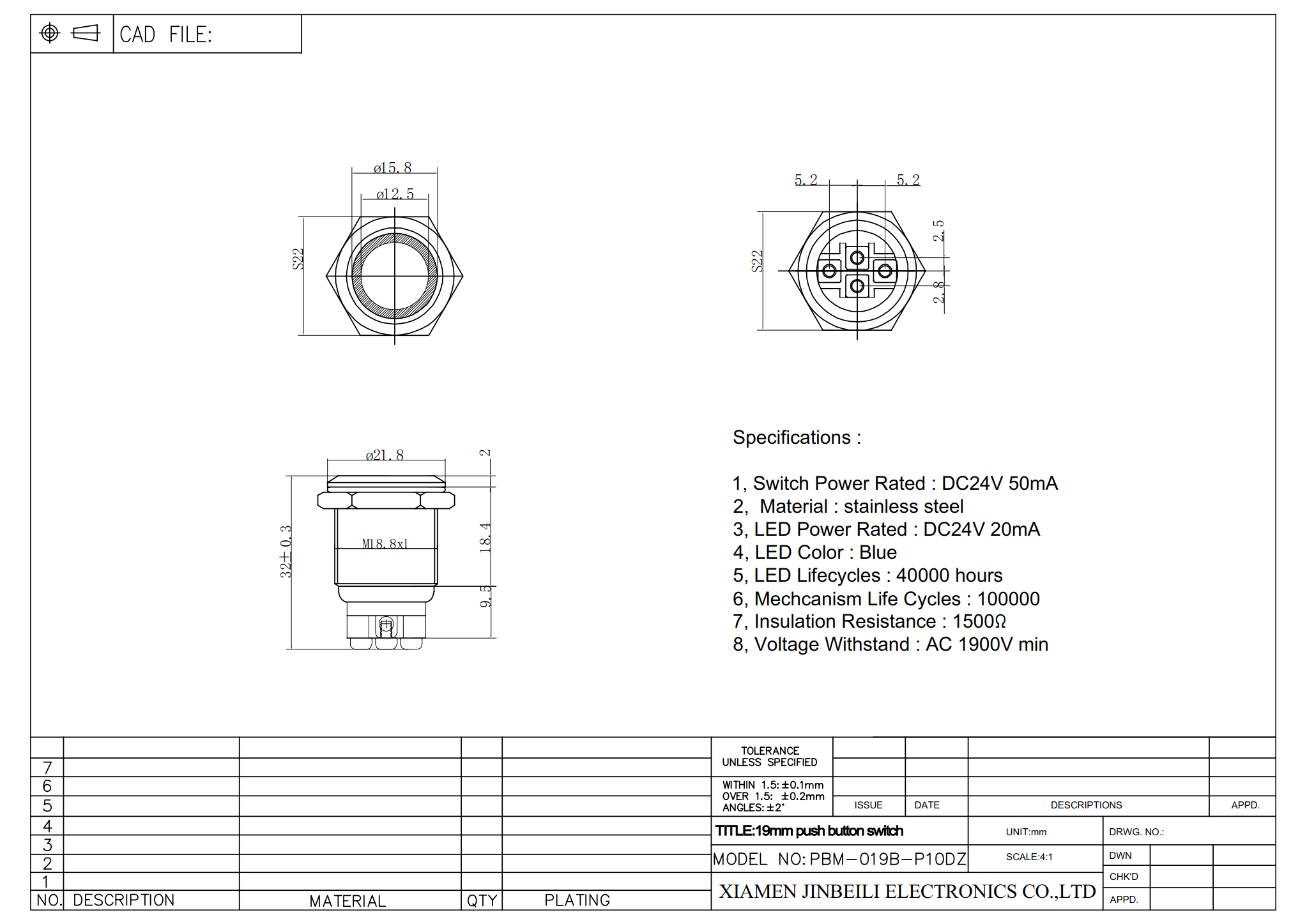

PBM-019B-P10DZ 19mm LED Anti Vandal Switch Screw Terminals

This robust, 19mm flat-head push button switch is engineered for durability and versatility, ideal for industrial, automotive, and public-use applications. Designed as an anti-vandal switch, it features a tamper-resistant construction with a bulkhead panel mount design, ensuring secure installation in panels up to 5mm thick. The screw terminals simplify wiring, offering reliable electrical connections.

Illumination Features:

Ring LED Options: Choose from Red, Green, Blue, White, or Yellow LED colors to match visual requirements.
Voltage Flexibility: Operates with LED voltages from 3V to 12V, accommodating diverse power systems.
Customization:

The switch body can be black oxided for a sleek, corrosion-resistant finish or customized in other colors to align with branding or environmental aesthetics.
Key Specs:

Size: 19mm diameter, flat-head profile.
Mounting: Bulkhead panel mount with threaded nut for secure attachment.
Terminals: Screw terminals for easy, secure wiring.
Ratings: Rated for 2A at 250VAC, with an IP65 sealing rating (when properly mounted) to resist dust and water.
Ideal for control panels, machinery, kiosks, and outdoor equipment, this switch combines ruggedness, visibility, and adaptability. Its anti-vandal design ensures longevity in high-traffic or harsh environments.
