DP4T Mini Slide Switch Surface Mount Vertical

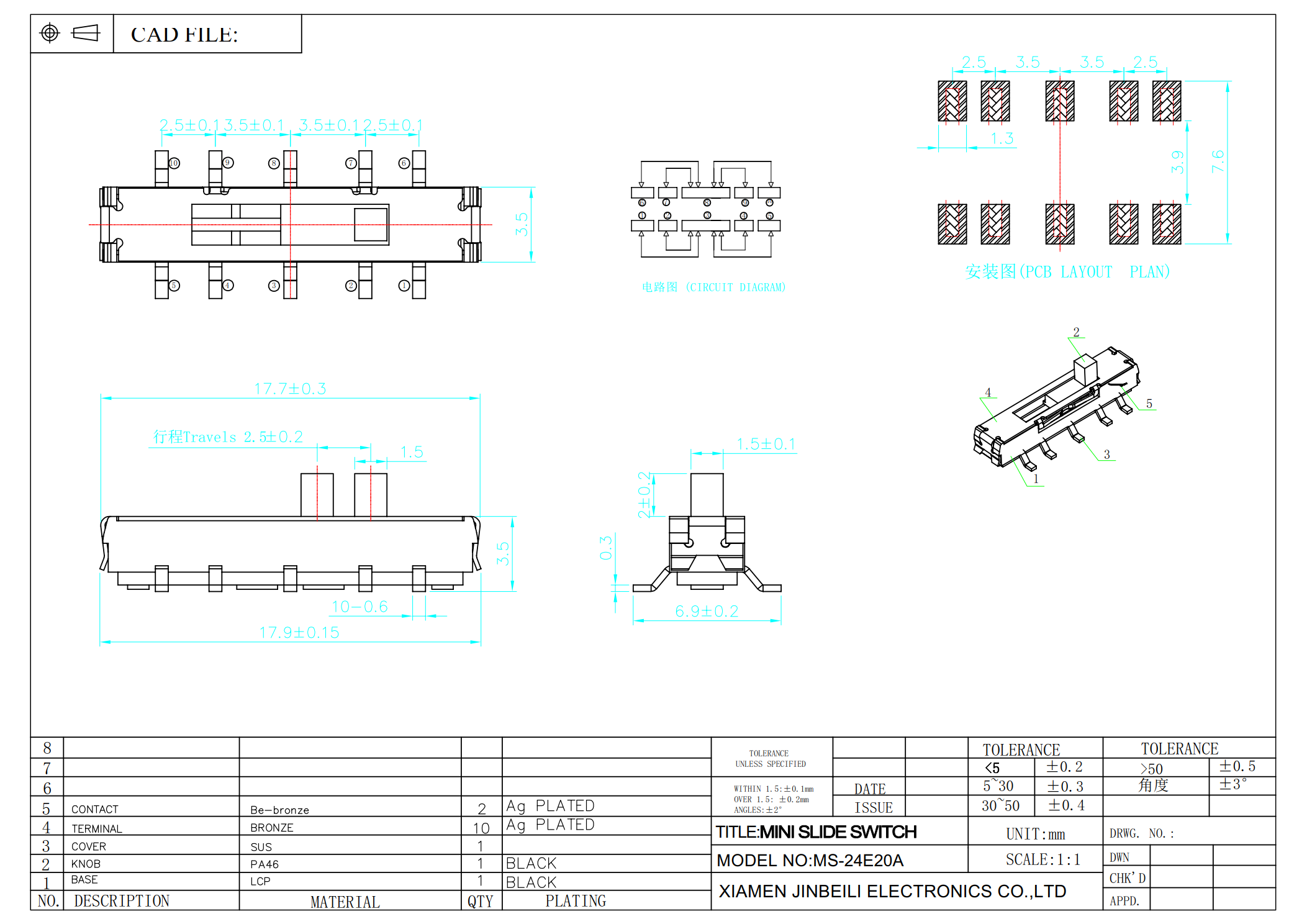

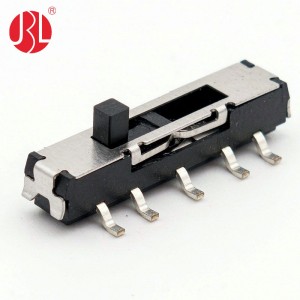

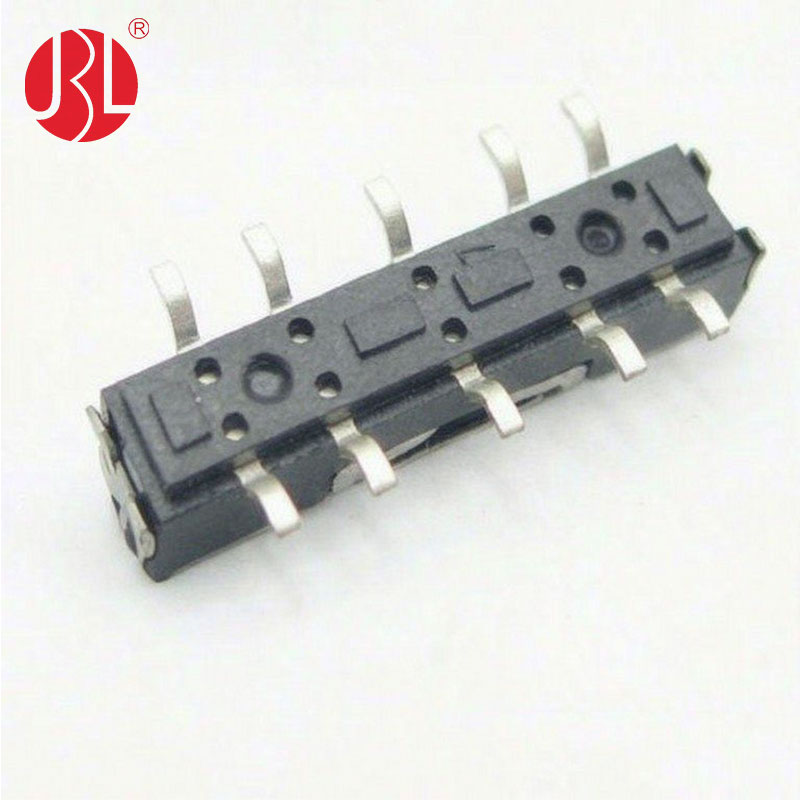

The Jinbeili MS-24E20A DP4T Mini Slide Switch is a compact surface-mount vertical slide switch designed for reliable circuit selection and mode switching in consumer electronics and space-constrained electronic devices. Its 17.7 × 3.5 mm outline and 2.5 mm actuator travel provide a compact solution for PCB applications where board space is limited.

This mini slide switch features a DP4T (Double Pole Four Throw) contact configuration, allowing two circuits to be switched between four selectable positions. The switch is designed for reflow soldering, making it suitable for automated SMT/PCB assembly and high-volume electronic manufacturing.

The standard actuator length is available in 2 mm, 2.5 mm, 3 mm, and 4 mm options, allowing customers to select the actuator size according to their enclosure and operating requirements. The actuator is made from PA46, while the insulation housing uses LCP material. The contacts and terminals are made from bronze for reliable electrical connection and mechanical performance.

The DP4T mini slide switch is rated at DC 30V, 0.3A, making it suitable for low-power switching and signal-control applications. Custom mechanical configurations can be evaluated according to specific PCB and enclosure requirements.

The switch is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory, supporting consistent production quality and controlled manufacturing processes.

Frequently Asked Questions

Can you make the actuator as long as 5 mm?
Yes. A 5 mm actuator can be evaluated as a customized option. However, a longer actuator has a higher risk of being bent or broken during operation, transportation, or assembly. We recommend confirming the mechanical requirements before customization.

Do you have 2P4T mini slide switch in a surface-mount right-angle version instead of vertical?

Yes, we have SMD right angle. Part Number : MK-24D20  .Here is link : https://www.jbl-ec.com/mk-24d20-2p4t-mini-slide-switch-smd-right-angle-product/

Do you have 2P3T and 2P6T mini slide switches?
Yes. 2P3T and 2P6T mini slide switch configurations can be evaluated or customized according to the required electrical and mechanical specifications.

Is this mini slide switch RoHS compliant?
Yes. The switch is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory.

Is this slide switch suitable for reflow soldering?
Yes. This is a surface-mount slide switch designed for reflow soldering, making it suitable for automated SMT production.
