Snap In Panel Mount USB C Female to USB C Male Cable

Short Description:

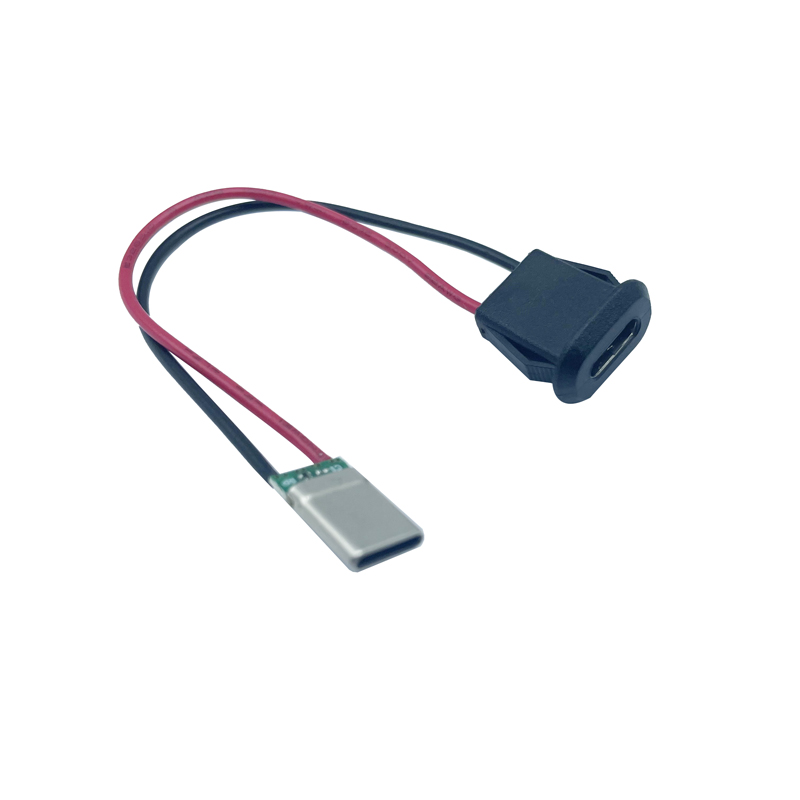

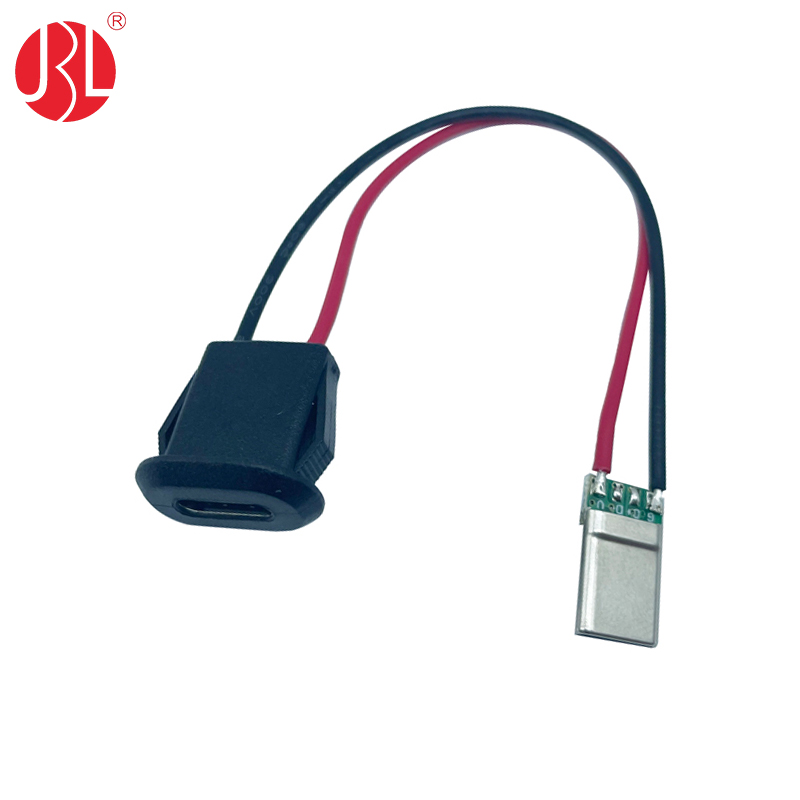

Snap In Press Fit Panel Mounting USB Type C Jack to USB Type C Plug Charging Cable

Item: USB C Male to Female Cable

Wires Dimensions options: 22AWG, 24AWG

Mounting: Panel Mounting

Wires Length Options: 50mm, 100mm, 150mm, 200mm, 250mm, 300mm

USBC Configuration Options 1: GND, Vbus

USBC Configuration Options 2: GND, Vbus, D+, D-

USBC Configuration Options 3: GND, Vbus, D+, D-, SUB1, SUB2

USBC Configuration Options 4: GND, Vbus, D+, D-, CC1, CC2

Send email to us Download as PDF

Product Detail

Product Tags

Our custom USB C Jack to USB C Male connector features a snap-in press fit panel mount design, making it easy to install and secure. The USB C jack offers flexible configurations to suit various applications:

Configuration Option 1: GND and Vbus for basic power delivery.
Configuration Option 2: Adds D+ and D- for data transfer.
Configuration Option 3: Includes SUB1 and SUB2 pins for additional functionality.
Configuration Option 4: Features CC1 and CC2 for high-speed data transfer and power delivery up to 100W.

iPhone 15/16 Compatibility：We are able to Customize with 56kΩ pull-up resistors on Vbus or a PD trigger circuit (2x 5.1kΩ resistors) between CC1/CC2 and GND to enable 5V/2A charging for iPhone 15/16

The straight USB C male connector mates seamlessly with the jack, ensuring a reliable connection. Wire dimensions of 24AWG and 22AWG are available, capable of handling currents up to 3A. Wire length options range from 50mm to 300mm, providing versatility for different cable management needs. This custom USB C connector solution is ideal for a wide range of electronic devices and applications.
