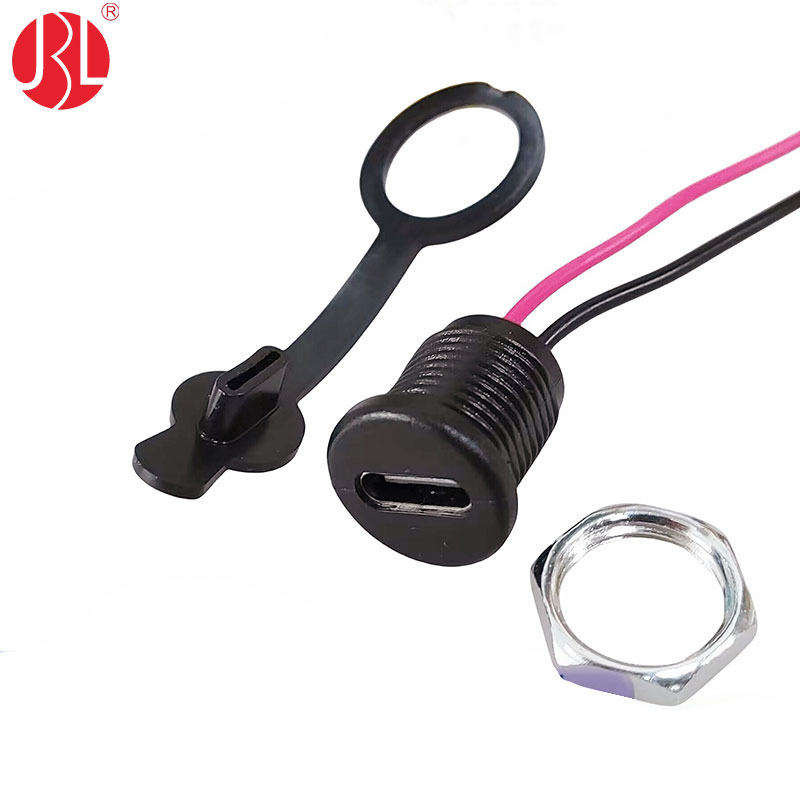

This rear bulkhead panel mount USB Type-C female connector is designed for secure, durable, and professional-grade installations in a wide range of electronic applications. Featuring an M11 threaded coupling, it enables easy and reliable mounting from the rear side of a panel, providing a clean front-facing appearance while ensuring strong mechanical stability. This bulkhead design is ideal for enclosures, industrial equipment, and custom devices that require robust and space-efficient connectivity. Rated at DC 30V and 3A, the connector delivers dependable performance for both power delivery and data transmission.

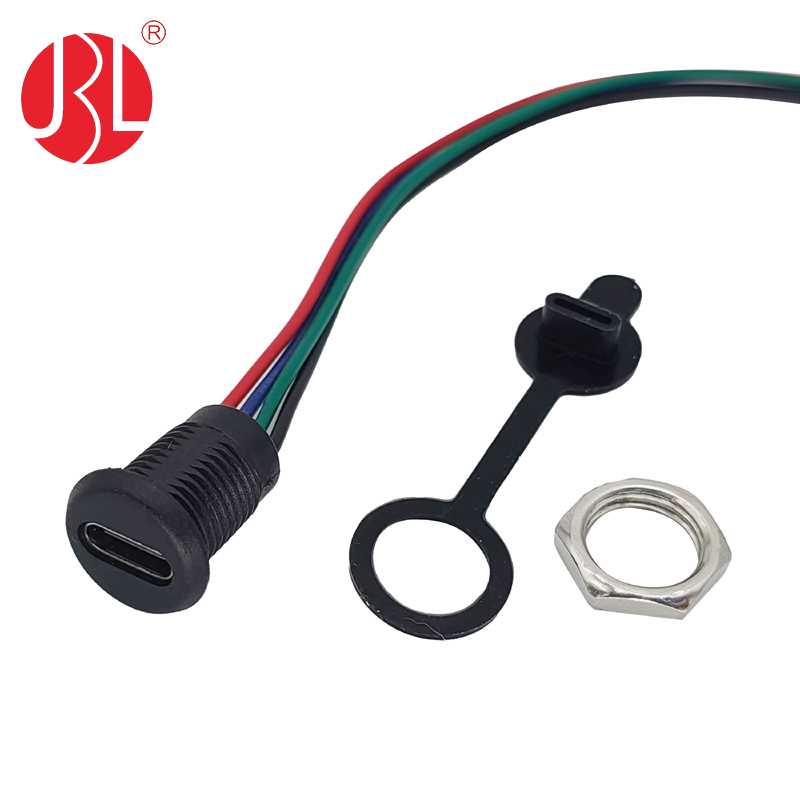

To meet diverse application needs, this USB Type-C jack is available in multiple pin configuration options. Option 1 provides a basic power interface with VBUS and GND. Option 2 (4-pin) supports USB 2.0 functionality with VBUS, GND, D+, and D-. Option 3 (6-pin) includes VBUS, GND, D+, D-, and CC1/CC2 for USB Type-C configuration channel support. Option 4 (6-pin) offers VBUS, GND, D+, D-, and SUB1/SUB2, while Option 5 (6-pin) combines VBUS, GND, D+, D- with merged SUB and CC signals, allowing flexible customization for specific circuit designs.

The connector can be manufactured with or without integrated resistors. For standard USB Type-C detection, it can include dual 5.1kΩ pull-down resistors. Additionally, pull-up resistor options of 10kΩ, 22kΩ, or 56kΩ (CC to VBUS) are available to support charging compatibility with modern smartphones, including iPhone 15, 16, and 17. For advanced power applications, an optional integrated Power Delivery (PD) trigger circuit can be implemented, enabling selectable output voltages such as 9V, 12V, or 24V. Supported PD controller IC options include IP2721, CH224K, and FUSB302, offering flexible power negotiation solutions.

Flexible wiring options further enhance adaptability. Cable lengths can be customized from 50mm to 1000mm, with wire gauge options including 22AWG, 24AWG, and 26AWG depending on current capacity and installation requirements. The assembly can also be configured as a USB Type-C female-to-male cable by adding a USB Type-C plug on the opposite end.

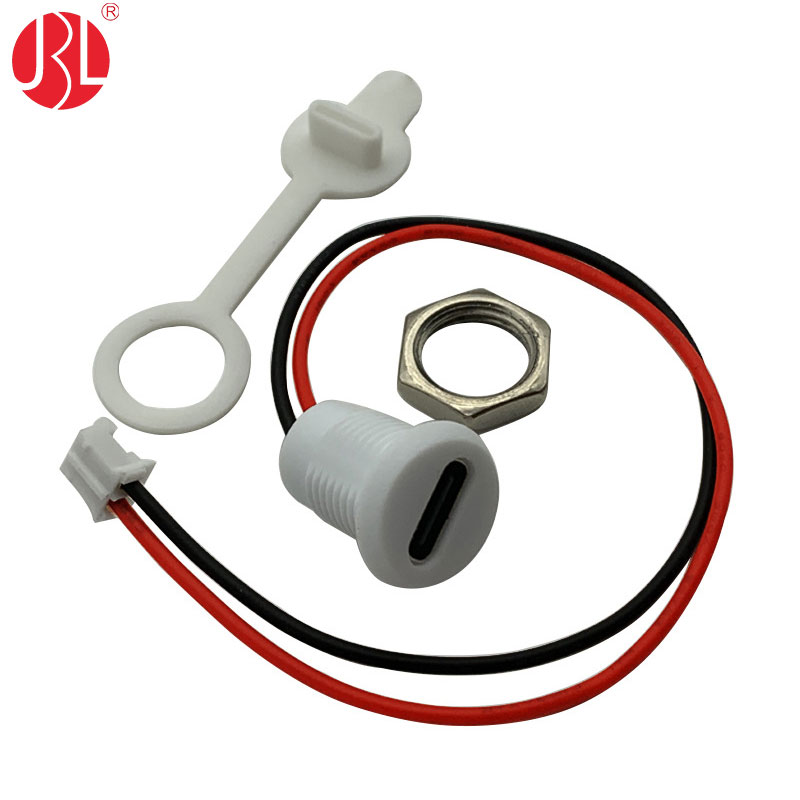

For seamless integration with PCB assemblies, the connector can be terminated with a variety of crimp connectors, such as JST PH, JST XH, or Molex 2.0mm pitch series. This makes it an ideal choice for OEM applications, industrial systems, and custom electronic designs requiring reliable performance, flexible configuration, and clean panel mounting.

FAQs :

Q1: Can you please share STEP file of the USB C female connector ?

A1: Of course, kindly contact me : sales08@jblec.com

Q2: Do you also have M12 bulkhead USB C connector ?

A2: yes, here is M12 : https://www.jbl-ec.com/usb-20c-f-02hl142-m12-thread-panel-mount-usb-type-c-jack-cable-product/

Q3: Are you able to provide samples for quick testing before mass production?

A3: of course, we are able to make samples for testing purpose quickly. But there would be 30USD setup cost generated.

Q4: Are you able to provide samples for quick testing before mass production?

A4: of course, we are able to make samples for testing purpose quickly. But there would be 30USD setup cost generated.

Q5: Can you make this USB C connector by combing signal pins A8 B8 together ?

A5: yes, we can. We are able to combine USB C A8 B8 or A5 B5 for special usage
