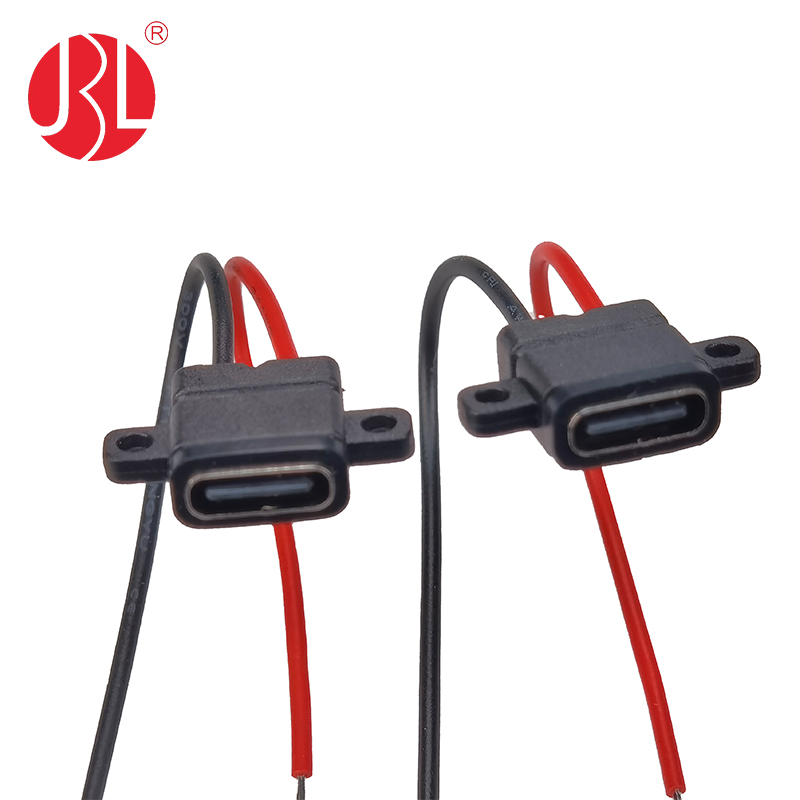

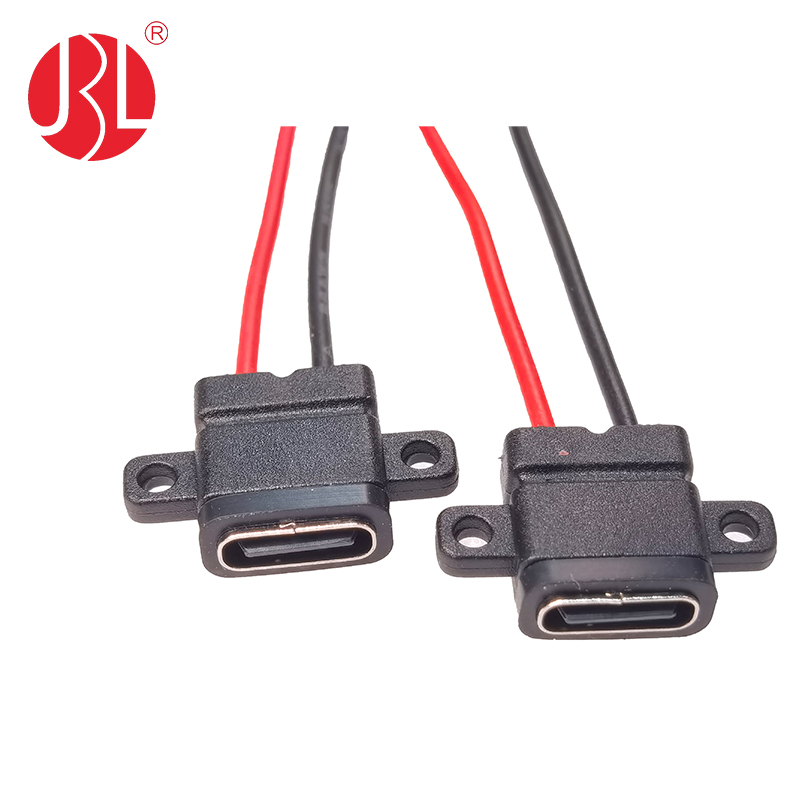

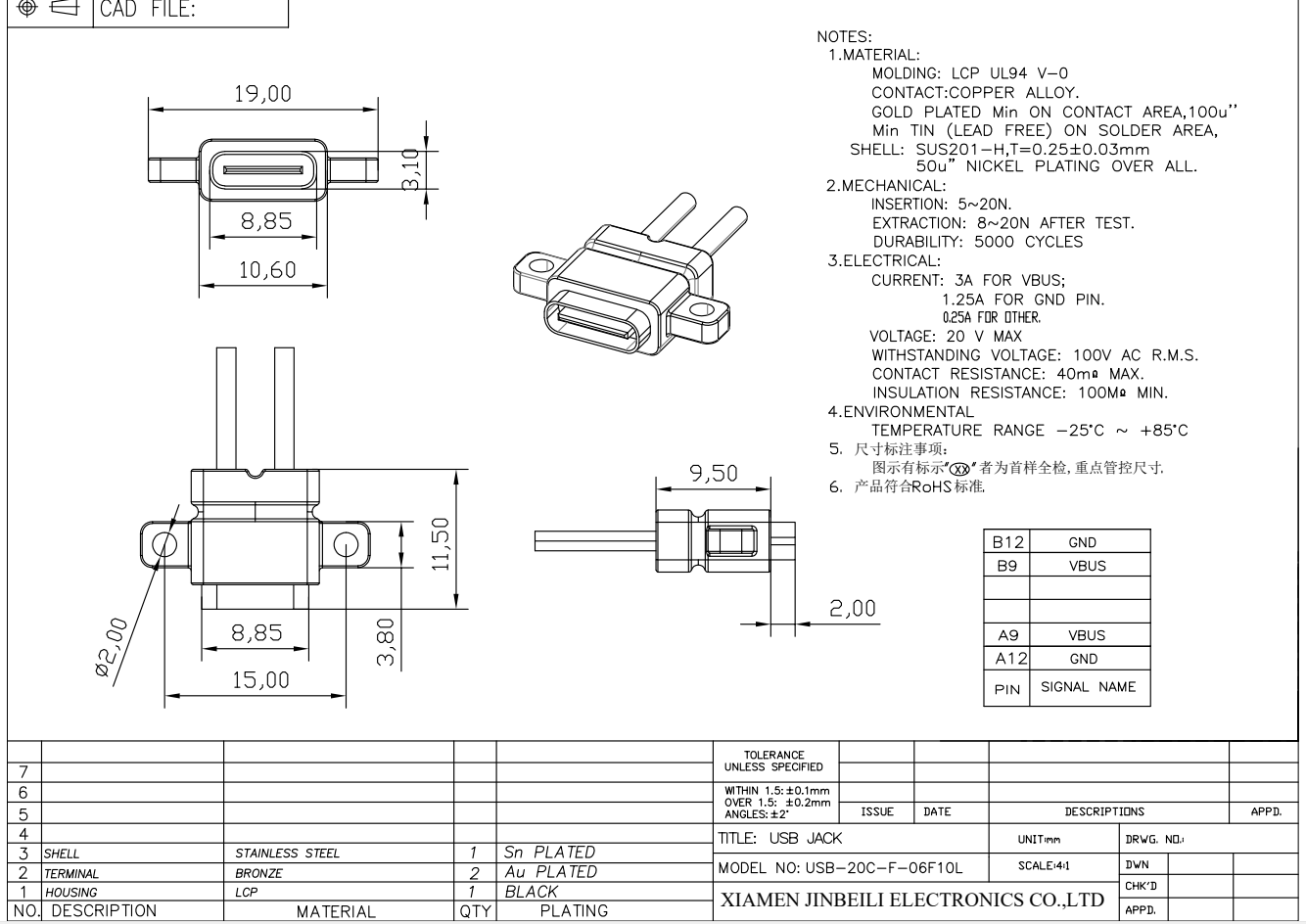

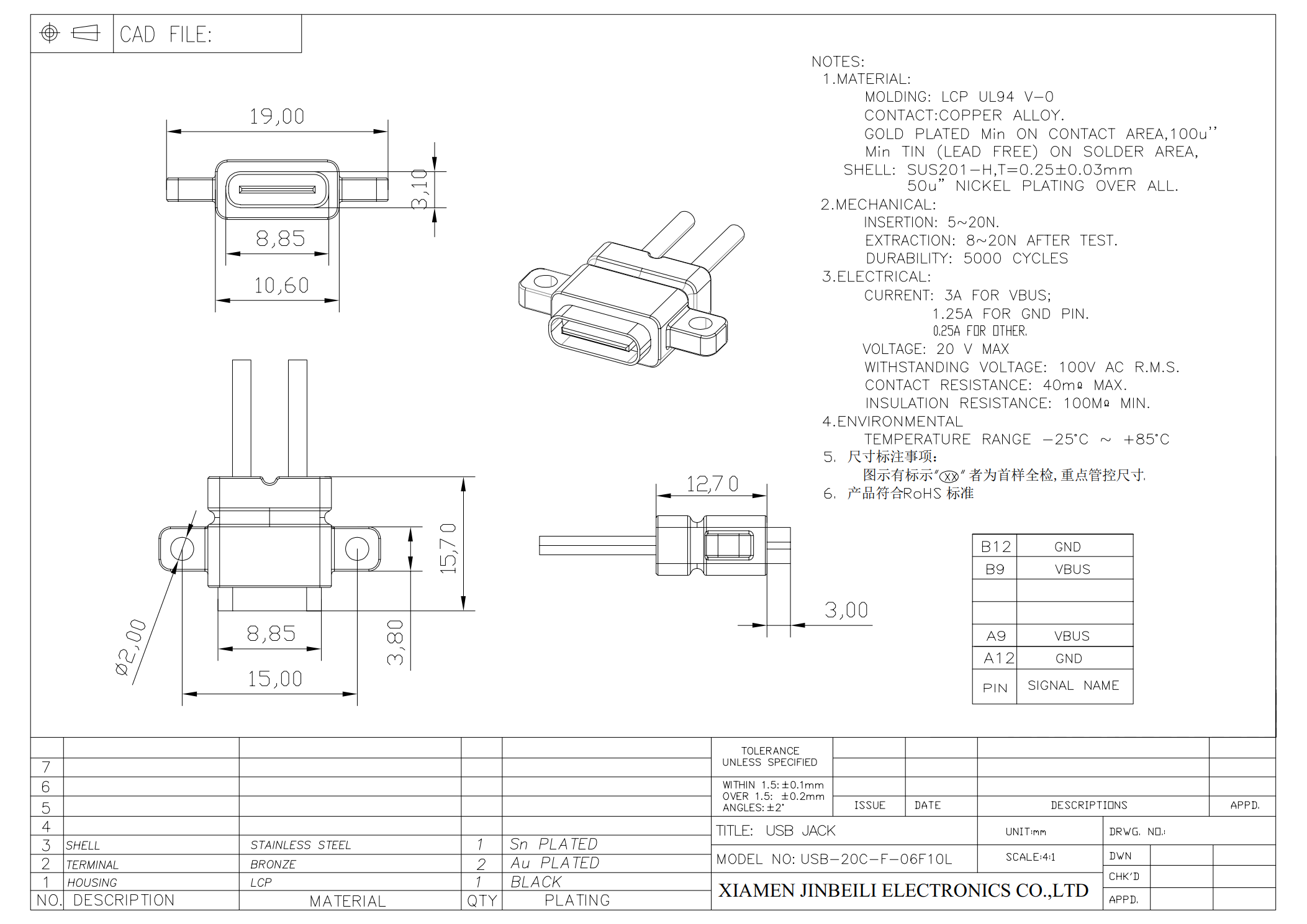

This screw-locking panel mount USB Type-C female connector is designed for secure and reliable integration in a wide range of electronic applications. Unlike standard panel connectors, this model features a unique right-angle screw mounting design, where the mounting screws are positioned perpendicular to the USB Type-C jack. This configuration allows flexible installation in tight or unconventional spaces while maintaining a straight USB-C insertion direction. The connector uses M2.0 screw holes, ensuring a firm and vibration-resistant attachment to panels or enclosures. An integrated O-ring gasket provides IPX7 waterproof protection, making it suitable for outdoor or moisture-prone environments. Rated at DC 30V and 3A, it delivers dependable performance for both power and data transmission.

To meet diverse design requirements, this USB Type-C jack is available in multiple pin configurations. Option 1 provides a basic power interface with VBUS and GND. Option 2 (4-pin) supports USB 2.0 functionality with VBUS, GND, D+, and D-. Option 3 (6-pin) includes VBUS, GND, D+, D-, and CC1/CC2 for USB Type-C configuration channel support. Option 4 (6-pin) offers VBUS, GND, D+, D-, and SUB1/SUB2, while Option 5 (6-pin) combines VBUS, GND, D+, D- with merged SUB and CC signals for customized applications.

The connector can be supplied with or without integrated resistors. For standard USB Type-C detection, it can include two 5.1kΩ pull-down resistors. It also supports pull-up resistor options of 10kΩ, 22kΩ, or 56kΩ (CC to VBUS), enabling compatibility with charging requirements for modern smartphones, including iPhone 15, 16, and 17. For advanced power applications, an optional built-in Power Delivery (PD) trigger circuit can be integrated, supporting selectable output voltages such as 9V, 12V, or 24V. Available PD controller IC options include IP2721, CH224K, and FUSB302.

Flexible cable configurations are available to suit different installation needs. Wire lengths can be customized from 50mm to 1000mm, with conductor sizes including 22AWG, 24AWG, and 26AWG depending on current capacity and flexibility requirements. The assembly can also be configured as a USB Type-C female-to-male cable by adding a USB Type-C plug on the opposite end.

For easy integration with PCB assemblies, the connector can be terminated with crimp connectors such as JST PH, JST XH, or Molex 2.0mm pitch series, making it ideal for OEM designs, industrial equipment, and custom electronics requiring secure mounting, environmental protection, and high flexibility.

livery (PD) trigger circuit can be integrated, supporting selectable output voltages such as 9V, 12V, or 24V. Available PD controller IC options include IP2721, CH224K, and FUSB302.

Flexible cable configurations are available to suit different installation needs. Wire lengths can be customized from 50mm to 1000mm, with conductor sizes including 22AWG, 24AWG, and 26AWG depending on current capacity and flexibility requirements. The assembly can also be configured as a USB Type-C female-to-male cable by adding a USB Type-C plug on the opposite end.

For easy integration with PCB assemblies, the connector can be terminated with crimp connectors such as JST PH, JST XH, or Molex 2.0mm pitch series, making it ideal for OEM designs, industrial equipment, and custom electronics requiring secure mounting and high flexibility.
