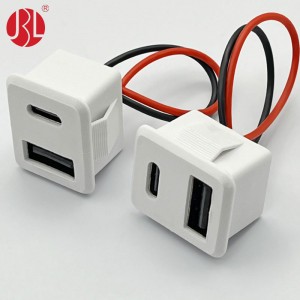

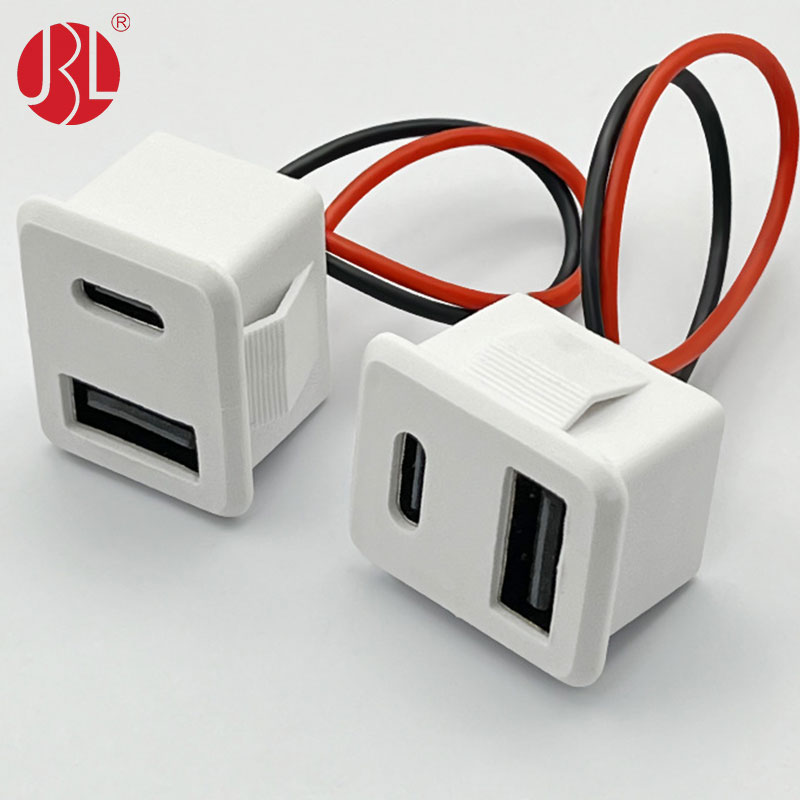

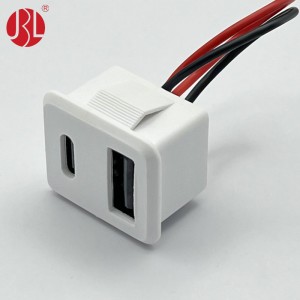

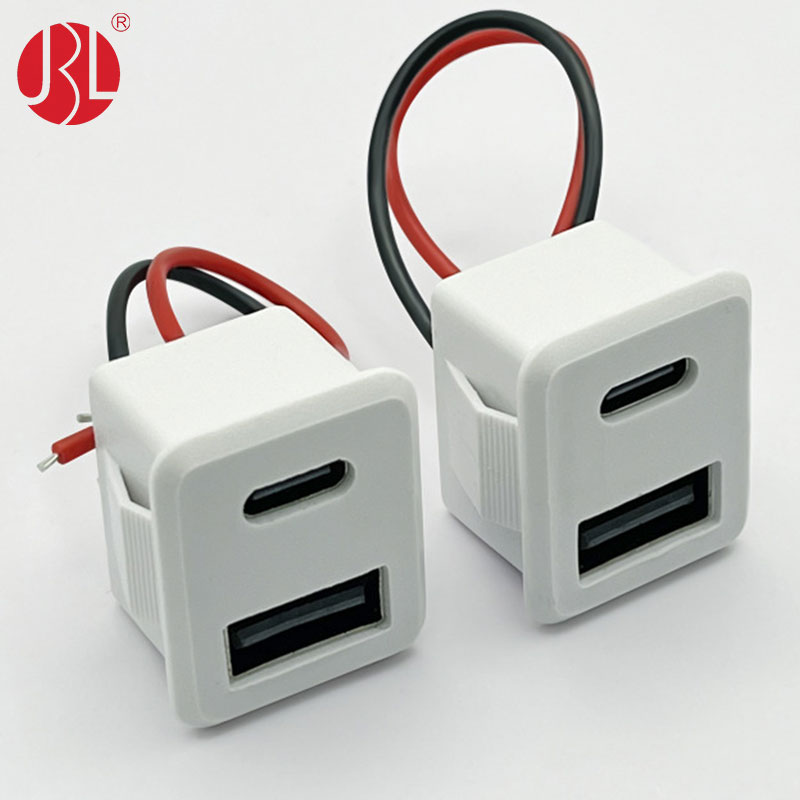

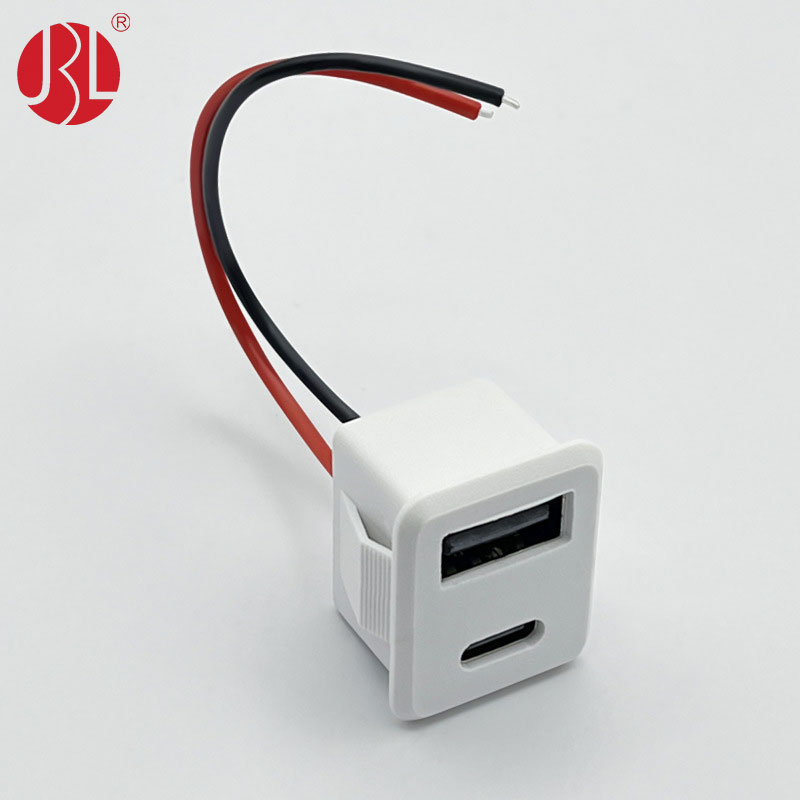

Stacked USB Type-A + USB Type-C Snap-In Panel Mount Connector

The Jinbeili stacked USB Type-A and USB Type-C connector is a new-design panel-mount USB connector that combines one USB Type-A port and one USB Type-C port in a compact, integrated assembly. Featuring a convenient snap-in panel-mount design, this connector can be quickly installed into compatible panels without additional mounting hardware, making assembly easier for equipment manufacturers and OEM applications.

The USB connector is available with white or black USB port color options. It is rated at DC 24V, 3A and can be supplied with 24 AWG or 22 AWG wires, depending on the required current capacity and installation requirements. Standard wire lengths can be customized from 50 mm to 1000 mm.

For easier installation, the wire termination at the opposite end can be supplied with stripped and tinned wire ends or assembled with a compatible crimp connector, such as a JST PH connector, JST XH connector, or Molex connector.

The USB Type-C jack can also be customized with different charging and CC configurations. Options include two 5.1 kΩ resistors between the CC lines and GND, a USB-C PD trigger circuit configured for 9V, 12V, or 24V output, or 22 kΩ or 56 kΩ resistor configurations between VBUS and the CC lines for compatibility with specific charging designs.

This stacked USB Type-A + USB Type-C panel-mount connector is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory. It is suitable for washing machines, home appliances, consumer electronics, industrial equipment, charging interfaces, and customized electronic control systems.

Frequently Asked Questions

Can you provide free samples for testing?
It depends . if we have ready-made , we will proivde free samples.

Is this USB Type-C jack available with two 5.1 kΩ resistors?
Yes. The USB-C connector can be supplied with two 5.1 kΩ pull-down resistors connected from CC1 and CC2 to GND, depending on the required USB-C configuration.

Can this USB Type-C connector support fast charging?
Yes. Fast-charging capability depends on the internal configuration and connected power source. We can provide a USB-C PD trigger circuit with options such as 9V, 12V, or 24V, subject to engineering requirements.

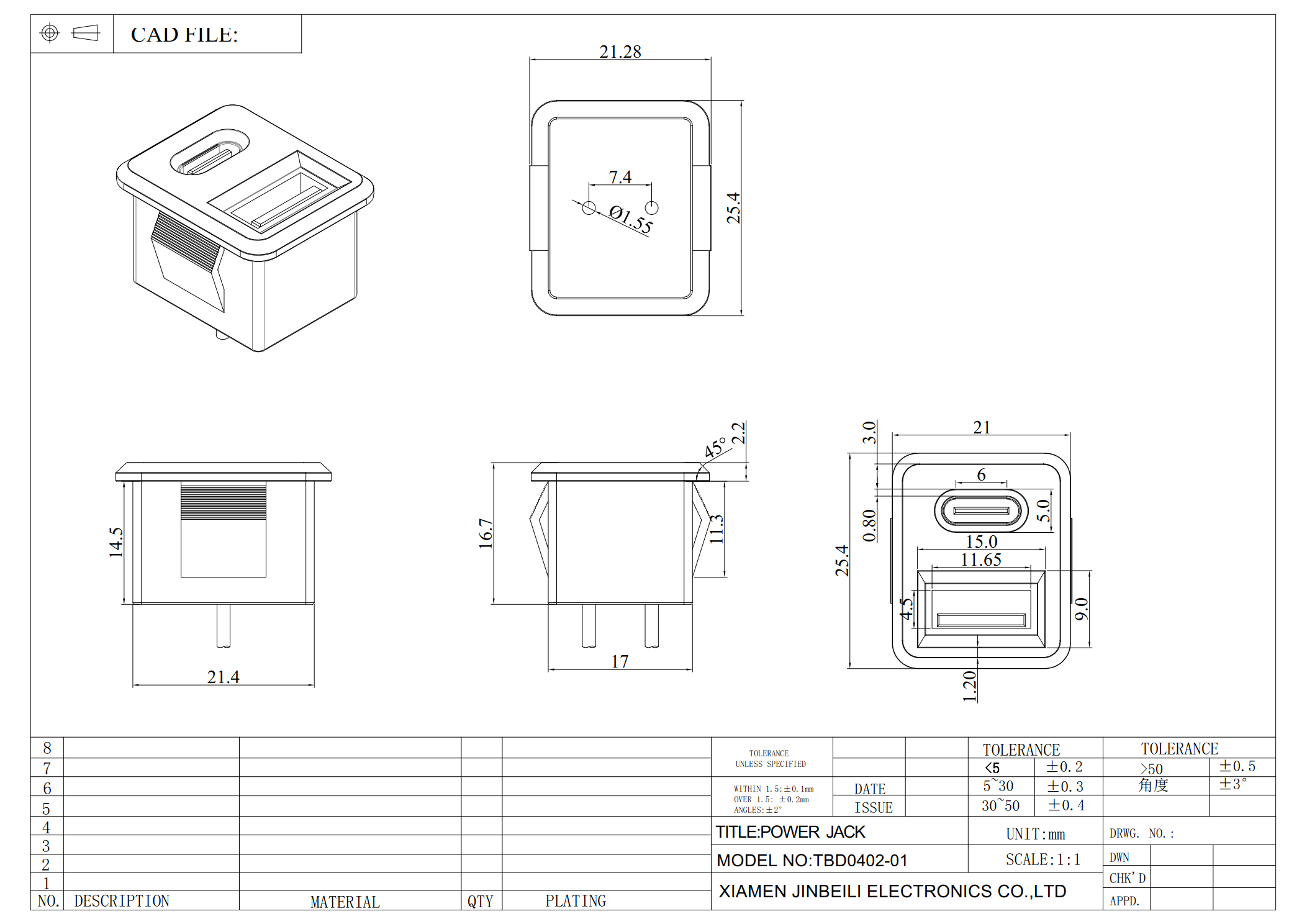

Can you provide a STEP file for this USB connector?
Yes. A 3D STEP file can be provided to support mechanical design, panel layout, and installation evaluation.

Can the wire length and connector termination be customized?
Yes. We can customize 50–1000 mm wire lengths, wire gauges, stripped and tinned ends, or crimp connector terminations according to your assembly requirements.

Can you customize a USB Type-C + Micro USB combo connector?
Yes. We can customize a combo connector integrating a USB Type-C jack and a Micro USB jack according to your mechanical dimensions, panel-mount requirements, wire configuration, and electrical specifications. Please provide your drawing, required dimensions, or application details for engineering evaluation. Additional tooling costs may apply for a customized USB Type-C + Micro USB combo connector, depending on the design and tooling requirements.
