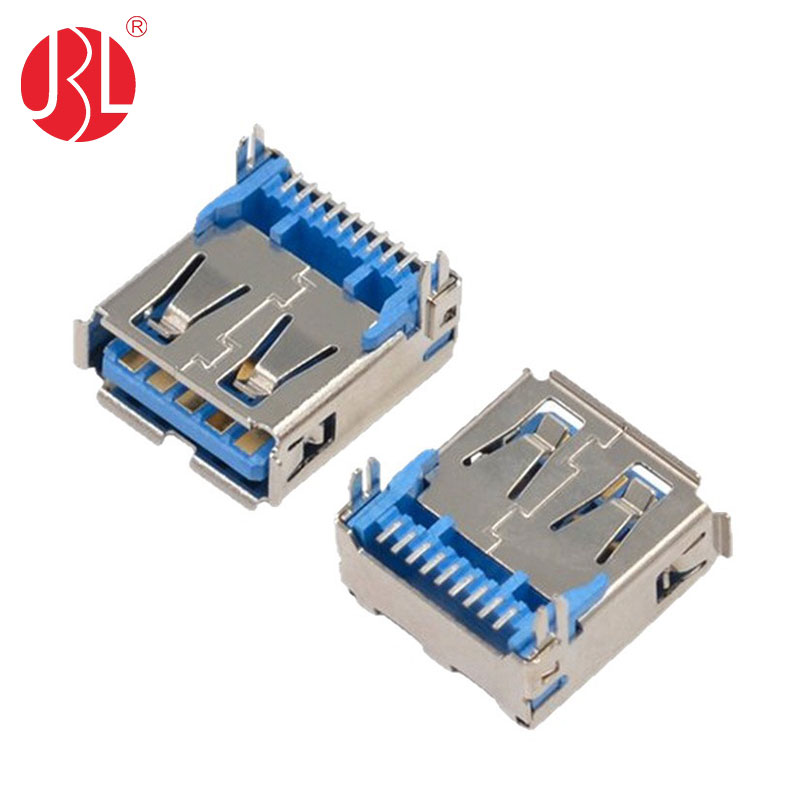

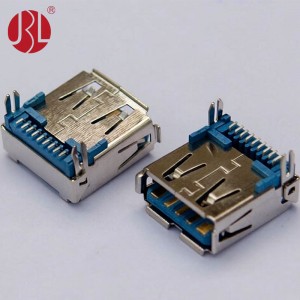

This USB 3.0 Type A female jack (receptacle) is a high-performance connectivity solution engineered for reliable high-speed data and power delivery. Designed in a 9-pin (9P) configuration, this connector adheres strictly to the SuperSpeed USB 3.0 standard, enabling data transfer rates up to 5 Gbps while maintaining full backward compatibility with USB 2.0 and 1.1 devices.

Mechanical and Electrical Specifications:

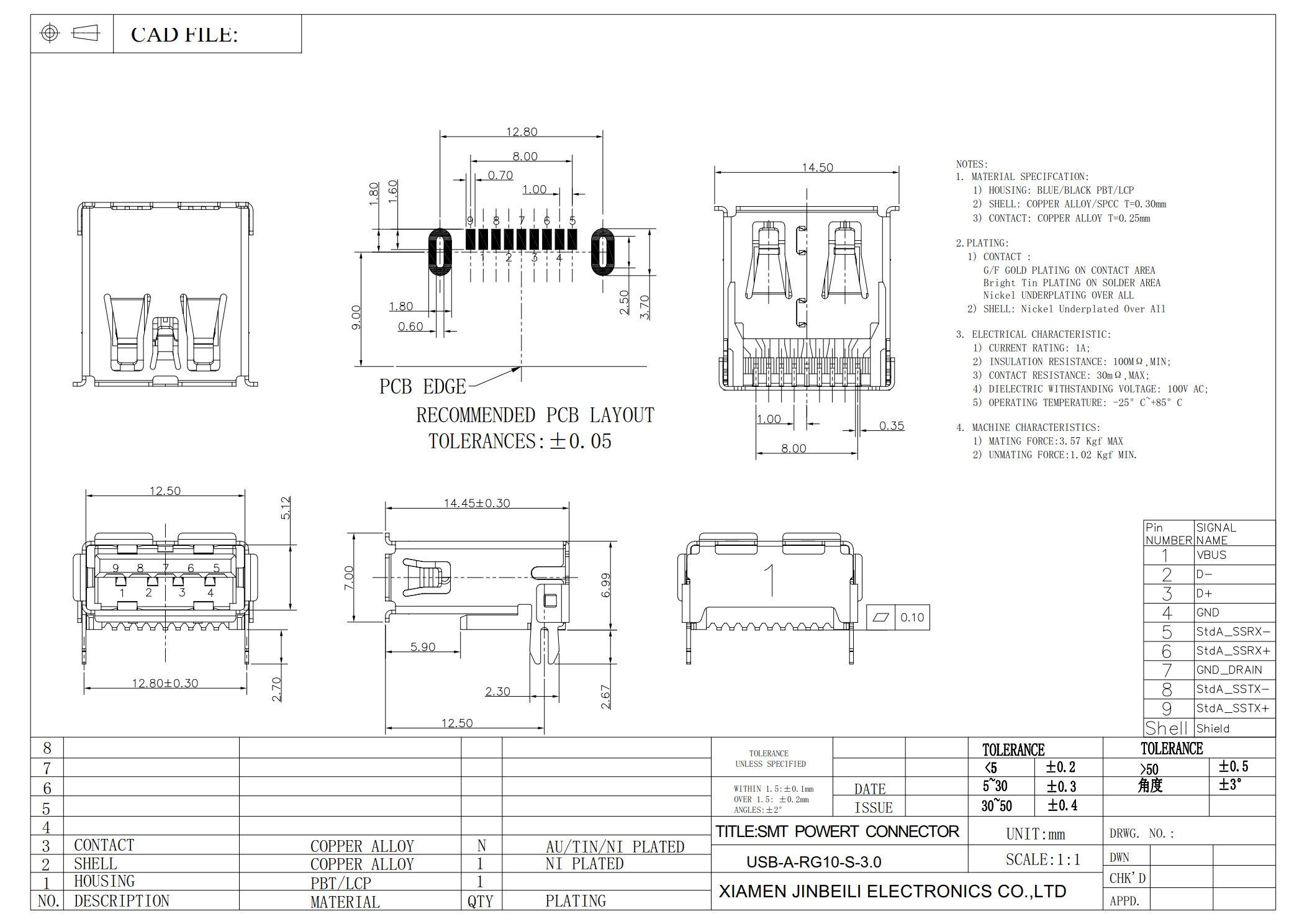

The jack features a right-angle orientation with a hybrid Surface Mount (SMD) and Through Hole (THT) mounting design. This specific combination provides superior mechanical retention to the PCB during the assembly process and ensures durability in high-vibration environments. It is rated at DC 30V with a maximum current capacity of 1.8A on the power pins (VBUS).

Pinout Configuration:
The contact arrangement follows the standard USB 3.0 pinout:

• Pins 1-4 (Front): VBUS (+5V Power), D- (Data -), D+ (Data +), and GND (Ground) for legacy USB 2.0 connectivity.
• Pins 5-9 (Rear): StdA_SSRX−, StdA_SSRX+, GND_DRAIN, StdA_SSTX−, and StdA_SSTX+. These are dedicated to the SuperSpeed transmit and receive differential pairs required for 5 Gbps operation.

Quality and Equivalency:
This component is manufactured to have identical dimensions and specifications as the Assmann WSW Components AUSB3-AFN-PSR1. As a direct functional equivalent, it mirrors the performance of that industry-standard part, featuring a shielded design to minimize EMI/RFI interference, a wide operating temperature range, and a robust cycle life. It is the ideal choice for motherboards, external hard drive enclosures, and industrial control panels requiring a reliable USB 3.0 standard-A interface.
