2.5mm Audio Jack Surface Mount Right Angle

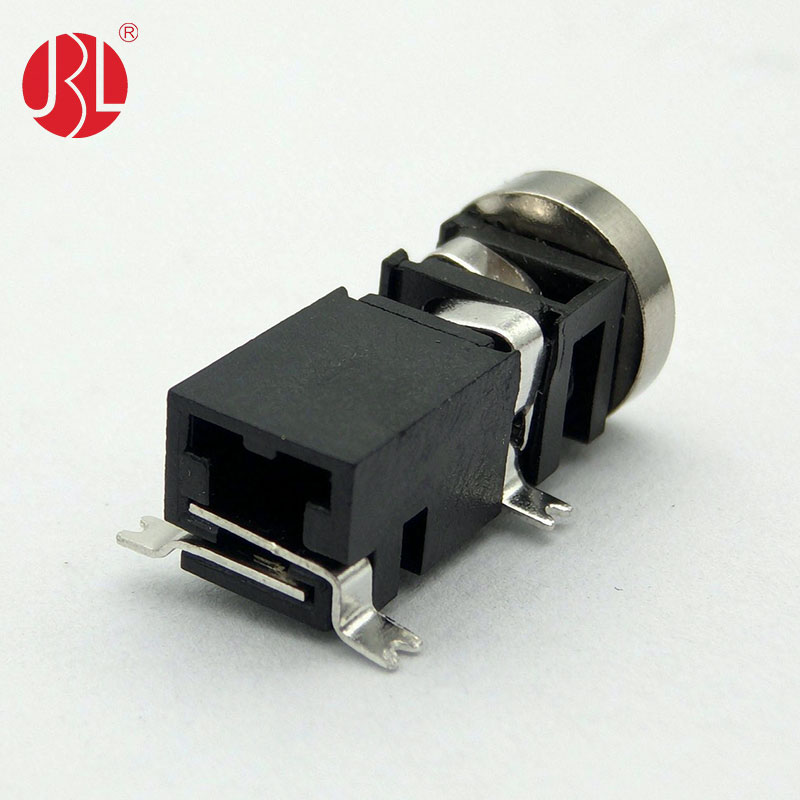

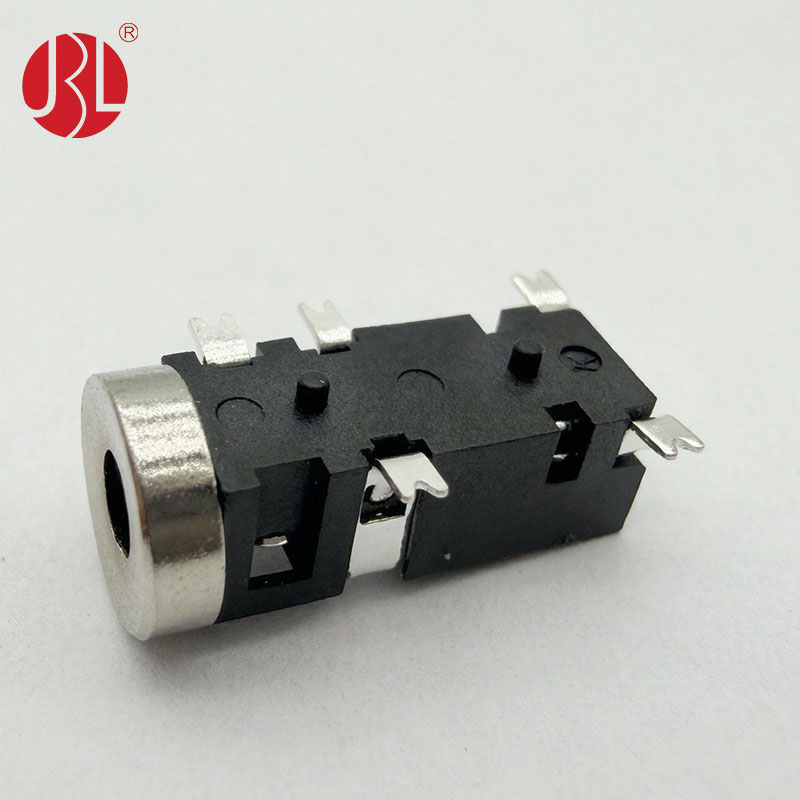

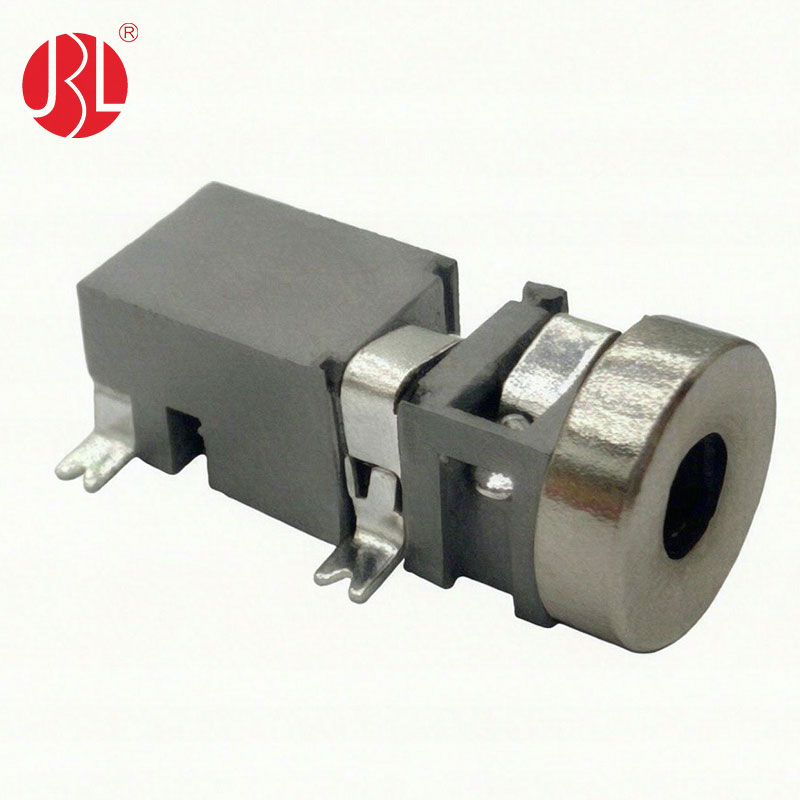

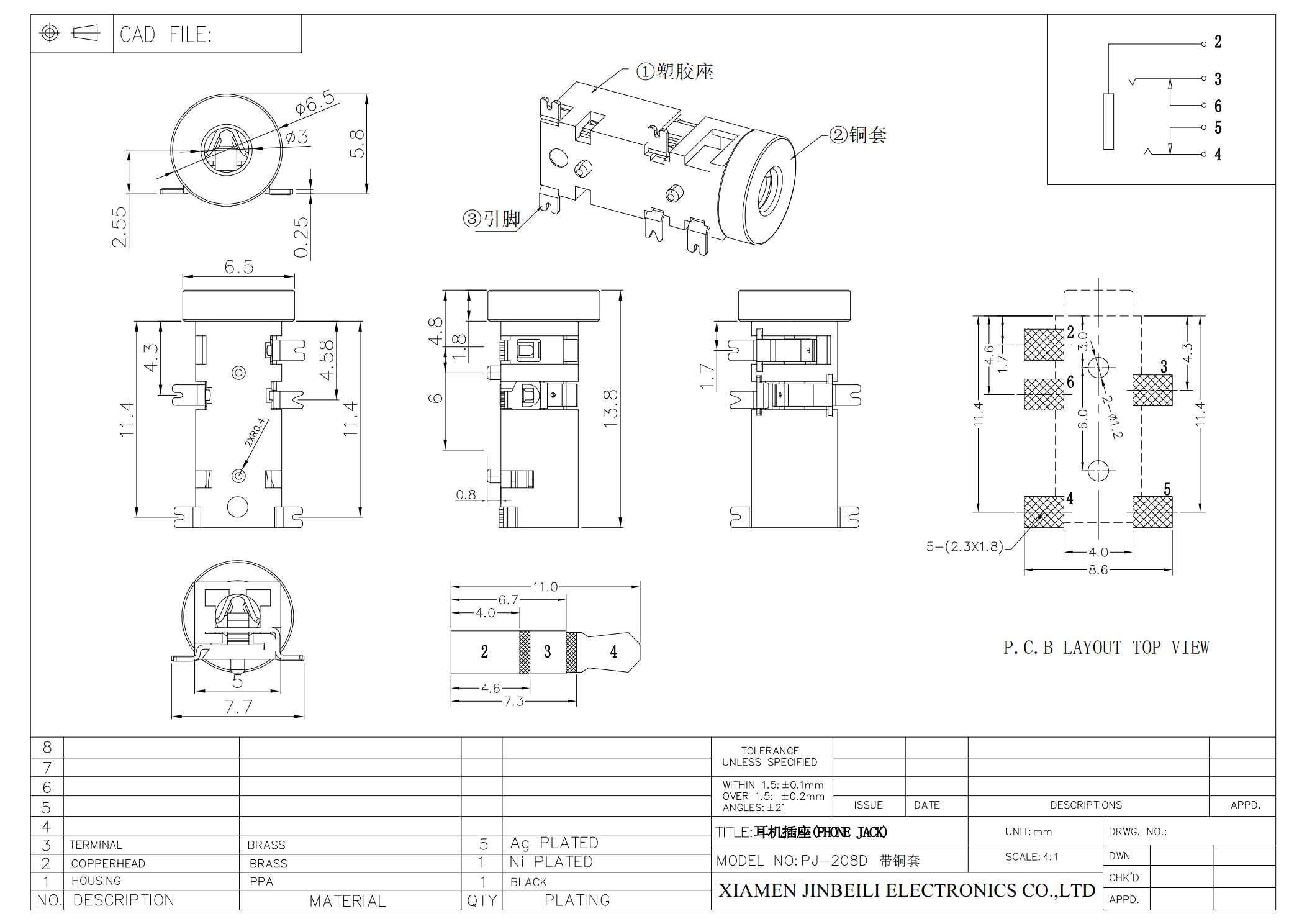

The Jinbeili PJ-208D 2.5mm Audio Jack is a compact surface-mount right-angle TRS audio jack designed for reliable audio connectivity in consumer electronics and space-constrained PCB applications. This 3-pole 2.5mm audio jack features a TRS (Tip-Ring-Sleeve) configuration and a normally closed switching design with two integrated switches: a tip switch and a sleeve switch.

The right-angle SMT design allows the audio jack to be mounted horizontally along the edge of a PCB, making it suitable for portable electronic devices and compact consumer electronics. As a surface-mount component, it is designed for automated PCB assembly and can be integrated into standard SMT production processes.

The audio jack opening, also called the jack head, is made from brass material to provide good mechanical strength, durability, and resistance to repeated plug insertion and removal. The housing is manufactured from PPA material, providing reliable electrical insulation and mechanical stability.

The normally closed switching configuration allows the audio jack to provide additional circuit-control functionality when an audio plug is inserted. The tip switch and sleeve switch can be used to detect plug insertion or control associated circuits, depending on the customer’s circuit design.

This 2.5mm SMT audio jack is suitable for applications requiring a compact and durable PCB audio interface, including consumer electronics, portable electronic devices, audio equipment, communication devices, and other compact electronic products.

The audio jack is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory, supporting consistent manufacturing quality and controlled production.

Frequently Asked Questions

Do you have a waterproof 2.5mm audio jack with SMT mounting?
Yes. Here is link of phone jack IP67 rated : https://www.jbl-ec.com/pj-25005a-2-5mm-audio-jack-ip-rated-through-hole-right-angle-product/

Is this 2.5mm audio jack RoHS compliant?
Yes. The product is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory.

Is this a TRS 3-pole 2.5mm audio jack?
Yes. It is a 3-pole TRS 2.5mm audio jack with Tip, Ring, and Sleeve connections.

Does the audio jack have switches?
Yes. This model has two normally closed switches: one tip switch and one sleeve switch.

What material is used for the audio jack head?
The jack opening/head is made from brass for enhanced durability during repeated plug insertion and removal.
