Low Profile IP67 Illuminated Tactile Switch

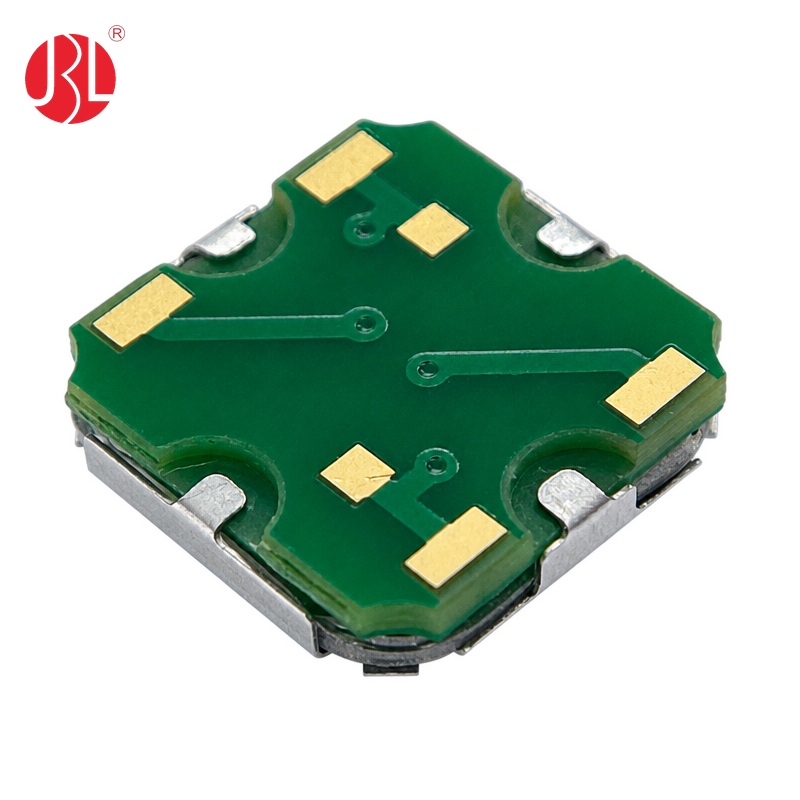

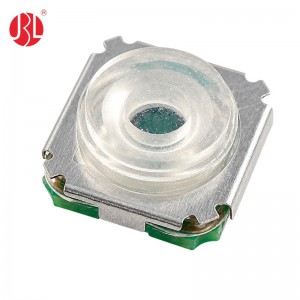

The Jinbeili TDF-01010 H3.95 Low Profile Illuminated Tactile Switch is a compact 10 × 10 mm LED tactile switch designed for consumer electronics and applications requiring both tactile feedback and visual indication. This IP67-rated waterproof illuminated tactile switch combines a tactile switching function with integrated LED illumination in a super low-profile design.

With an actuator height of only 3.95 mm above the PCBA, approximately 4 mm total height, this low-profile tactile switch is suitable for compact products where PCB space and vertical clearance are limited. The switch has a 0.75 mm travel and a relatively firm 680 gf operating force, providing a clear and positive tactile operating feel.

The switch is rated at DC 28V, 50mA and is available with single-color or dual-color LED illumination. Available LED colors include red, blue, green, white, yellow, orange, and other colors can be evaluated according to customer requirements. LED voltage options include DC 3.3V and DC 5V.

The actuator is made from soft silicone material, providing a comfortable pressing surface and distinctive tactile operation. The IP67 waterproof rating makes this illuminated tactile switch suitable for applications requiring protection against dust and temporary water immersion, when properly integrated into the finished product.

This 10×10mm low-profile LED tactile switch is suitable for consumer electronics, control panels, portable electronic devices, smart devices, and other electronic equipment requiring illuminated button operation.

The switch is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory, supporting consistent quality and controlled production.

Frequently AskedQuestions

What LED colors can this illuminated tactile switch offer?
Both single-color and dual-color LED versions are available. Single-color options include red, blue, green, white, yellow, and orange, with other colors available for customization.

Is this tactile switch IP67 waterproof?
Yes. The switch is IP67 rated, making it suitable for applications requiring a higher level of protection against dust and water.

What is the actuator height above the PCB?
The actuator height is 3.95 mm above the PCBA, making this a super low-profile tactile switch with approximately 4 mm height.

What LED voltage options are available?
The LED can be configured for DC 3.3V or DC 5V, depending on the required LED configuration and circuit design.

What are the main electrical and mechanical specifications?

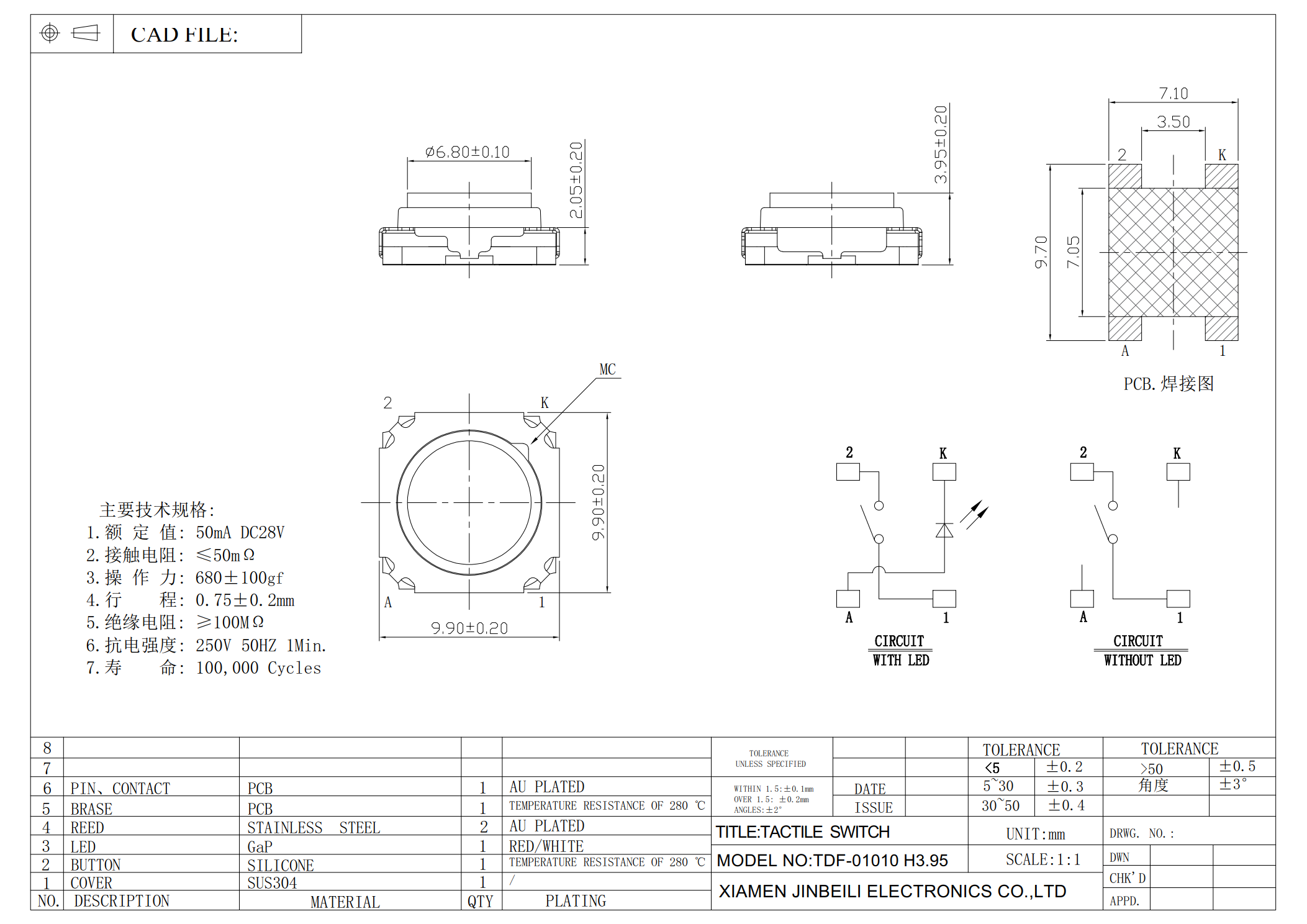

The switch has a 10 × 10 mm outline, DC 28V 50mA rating, 680 gf operating force, 0.75 mm travel, soft silicone actuator, and IP67 waterproof rating.

Can the LED color or configuration be customized?
Yes. Single-color and dual-color LED configurations can be customized according to the required color, voltage, and application.
