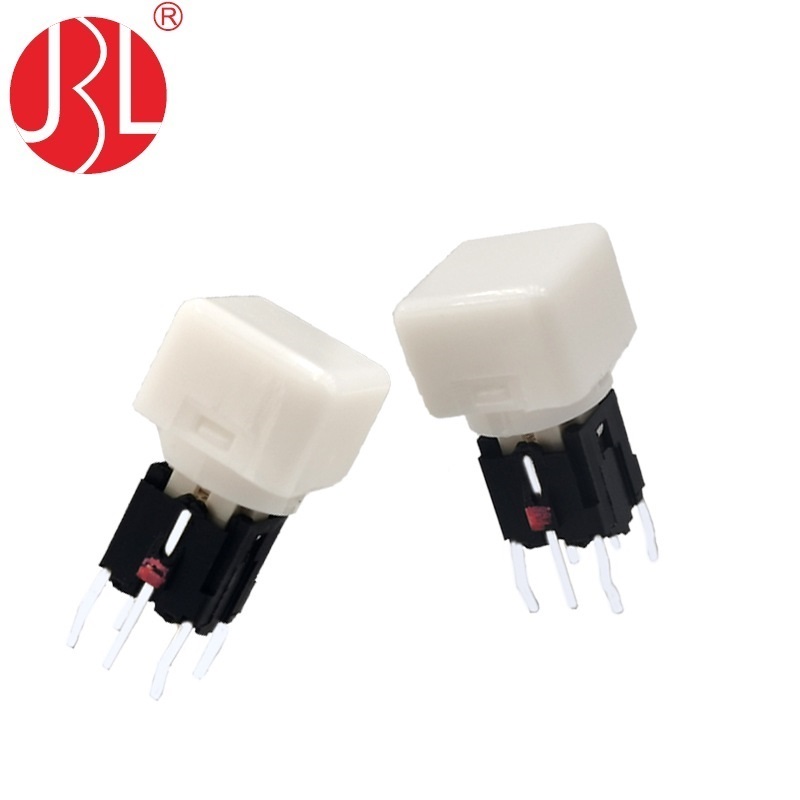

TD01-305 Illuminated LED Tactile Switch with Keycap Through Hole

Short Description:

6x6mm Illuminated Tactile Switch RGB 15.5mm Actuator Through Hole

Item: Illuminated Tact Switch

Mount: Through Hole

LED Color Options: Red, Yellow, Green, Blue, White, Red Yellow, Red Green, Red Blue...

Power Rated: DC12V 50mA

Actuator Height Off PCB: 15.6mm

Send email to us Download as PDF

Product Detail

Product Tags

Introducing our premium illuminated tact switch, designed for optimal performance and visual appeal. This through-hole switch operates at DC 12V and 50mA, making it ideal for a variety of electronic applications.

Key Features:

Compact Design: Featuring a switch outline of 6mm x 6mm and a keycap size of 9mm x 9mm, this switch is perfect for modern devices where space is limited.
Elevated Actuator: With an actuator height of 15.6mm off the PCB, it provides easy accessibility and a tactile feel for enhanced user interaction.
Illumination Options: Available in both single LED and double LED color configurations, adding a vibrant touch to your designs.
Versatile LED Color Selection: Choose from a wide array of colors, including Red, Blue, Green, White, Yellow, and combinations such as Red/Green, Red/Yellow, and Red/Blue, allowing for customization to meet your project needs.

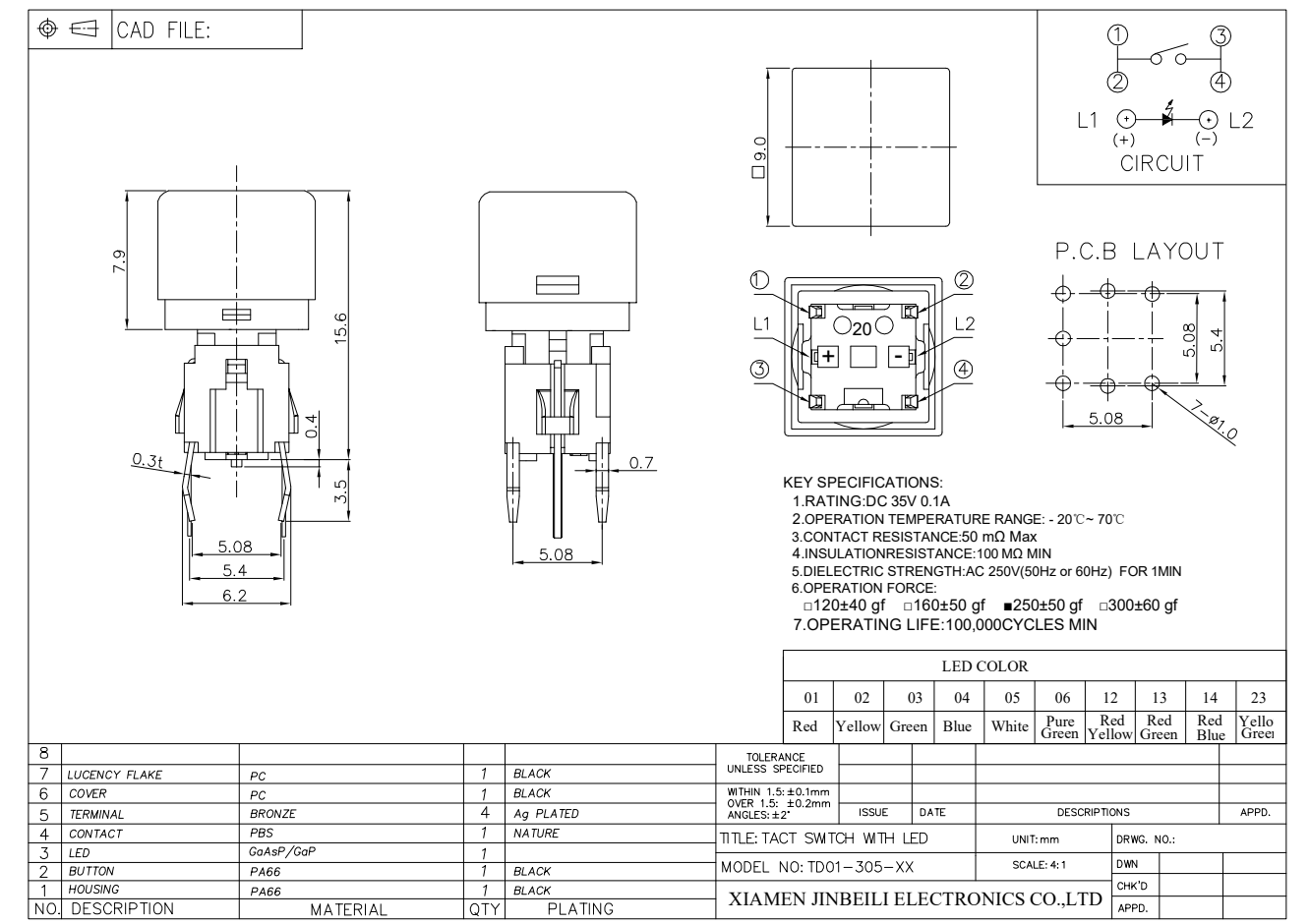

Datasheets :
