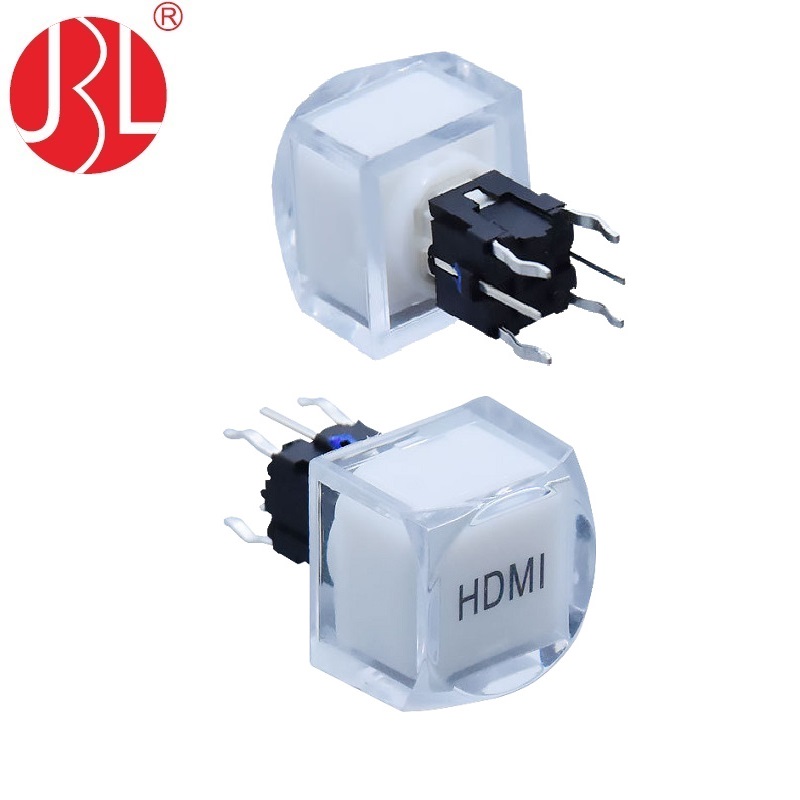

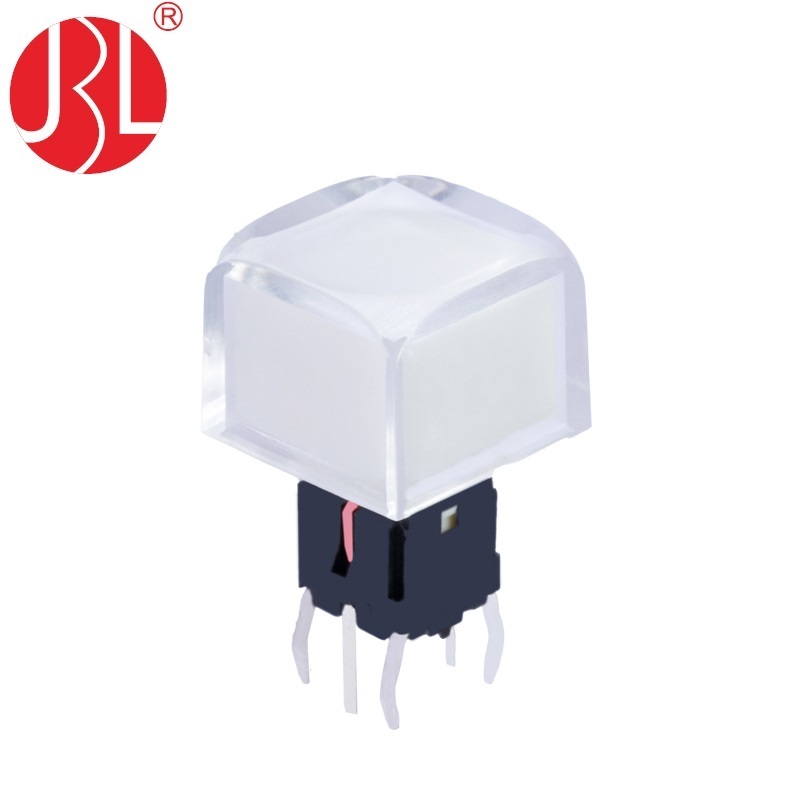

TD01-3011 Illuminated LED Tactile Switch with Keycap Through Hole

Short Description:

LED Tactile Switch THT Hole 6*6mm with Switch Cap

Item: Illuminated Tact Switch

Mount: Through Hole

LED Color Options: Red, Yellow, Green, Blue, White, Red Yellow, Red Green, Red Blue...

Power Rated: DC12V 50mA

Actuator Height Off PCB: 17mm

Send email to us Download as PDF

Product Detail

Product Tags

Introducing our high-quality illuminated tact switch, designed to enhance user interaction and visibility in various electronic applications. This through-hole switch operates at DC 12V and 50mA, ensuring reliable performance.

Key Features:

Compact Dimensions: The switch has a compact outline of 6mm x 6mm, with a keycap measuring 12mm x 12mm, making it ideal for modern devices where space is essential.
Elevated Actuator: With an actuator height of 17mm off the PCB, this switch provides excellent accessibility and a satisfying tactile response for users.
Illumination Options: Available in both single LED and double LED configurations, adding a striking visual element to your design.
Diverse LED Color Choices: Choose from a variety of colors, including Red, Blue, Green, White, Yellow, and combinations like Red/Green, Red/Yellow, and Red/Blue, allowing for customization to fit your project needs.
