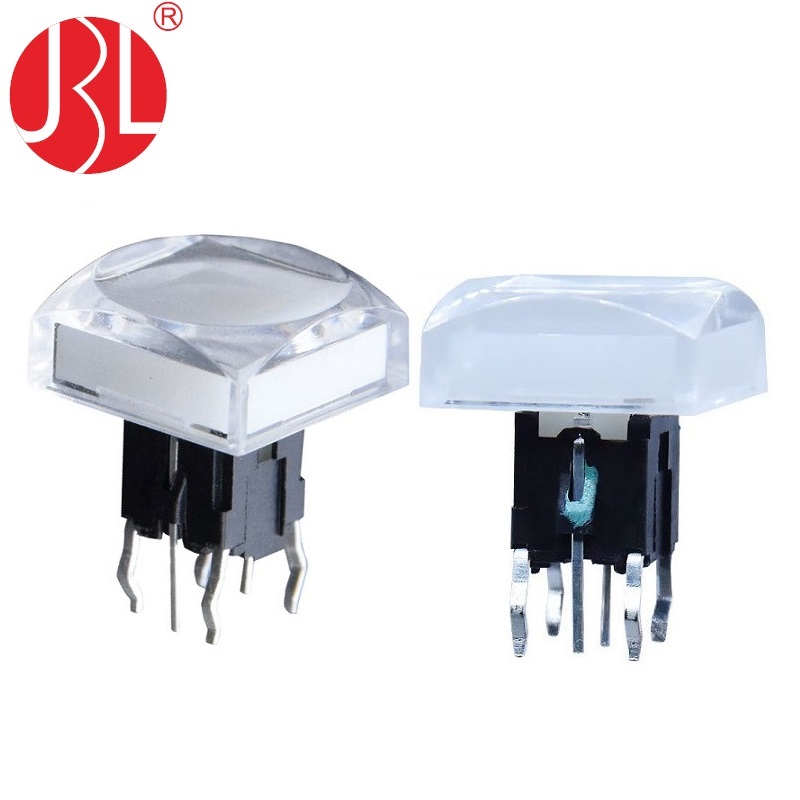

TD01-3012 Illuminated LED Tactile Switch with Keycap Through Hole

Short Description:

LED Tactile Switch THT Hole 6*6mm with Translucent Switch Cap

Item: Illuminated Tact Switch

Mount: Through Hole

LED Color Options: Red, Yellow, Green, Blue, White, Red Yellow, Red Green, Red Blue...

Power Rated: DC12V 50mA

Actuator Height Off PCB: 11.8mm

Send email to us Download as PDF

Product Detail

Product Tags

Introducing our versatile illuminated tact switch, designed for enhanced user interaction and visibility in a wide range of electronic applications. This through-hole switch operates at DC 12V and 50mA, providing reliable performance for your projects.

Key Features:

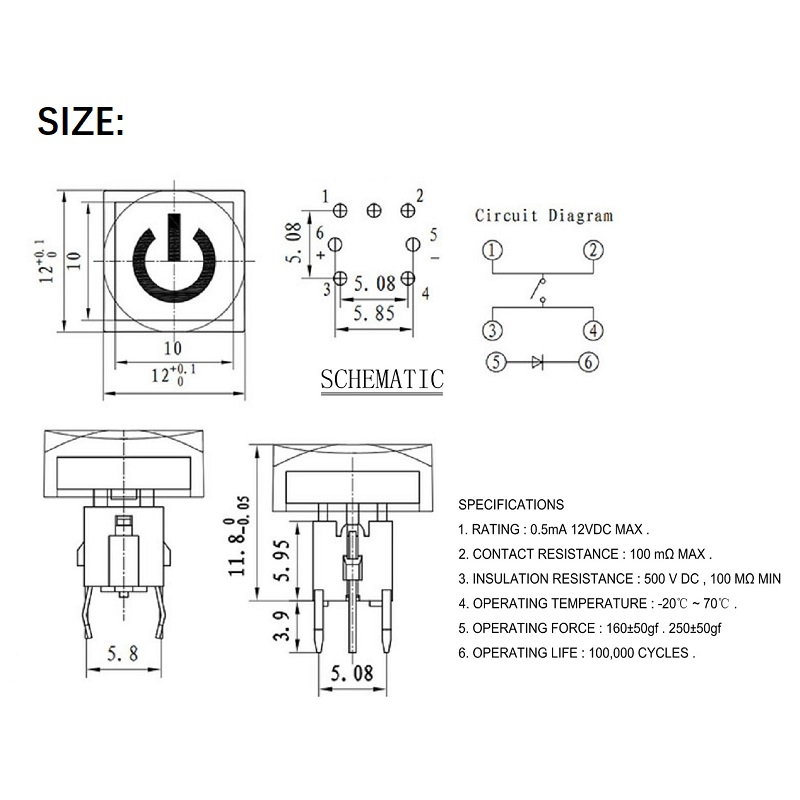

Compact Outline: The switch features a compact outline of 6mm x 6mm, paired with a keycap dimension of 12mm x 12mm, making it ideal for modern devices with limited space.
Optimal Actuator Height: With an actuator height of 11.8mm off the PCB, it ensures easy accessibility and a satisfying tactile feedback for users.
Illumination Options: Available in both single LED and double LED configurations, adding a vibrant visual element to your designs.
Extensive LED Color Choices: Select from a variety of colors, including Red, Blue, Green, White, Yellow, and combinations such as Red/Green, Red/Yellow, and Red/Blue, offering customization to meet your specific project needs.
