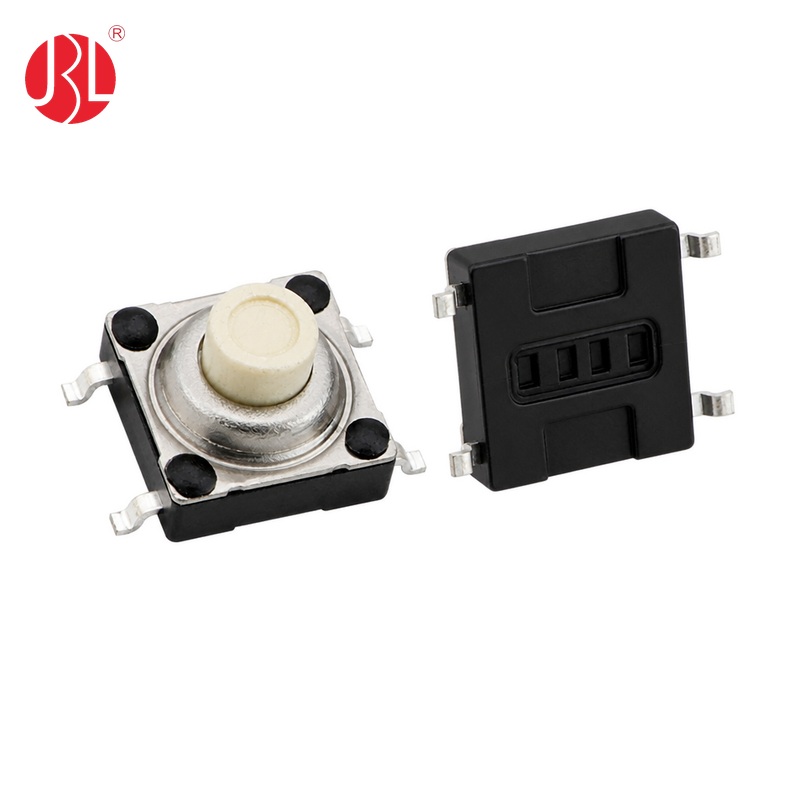

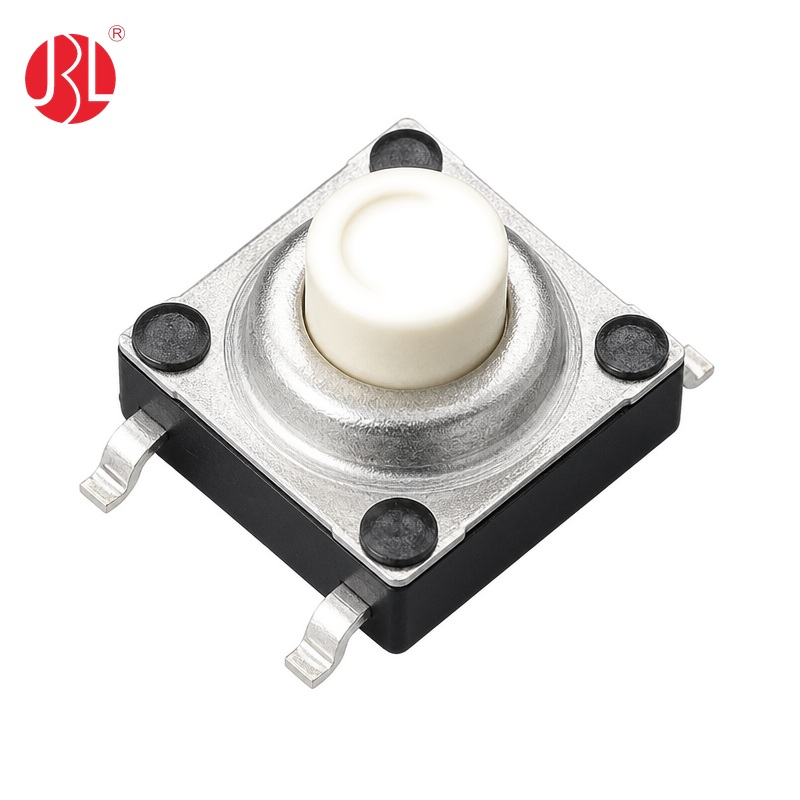

Jinbeili TS-07108 IP67 Waterproof Tactile Switch

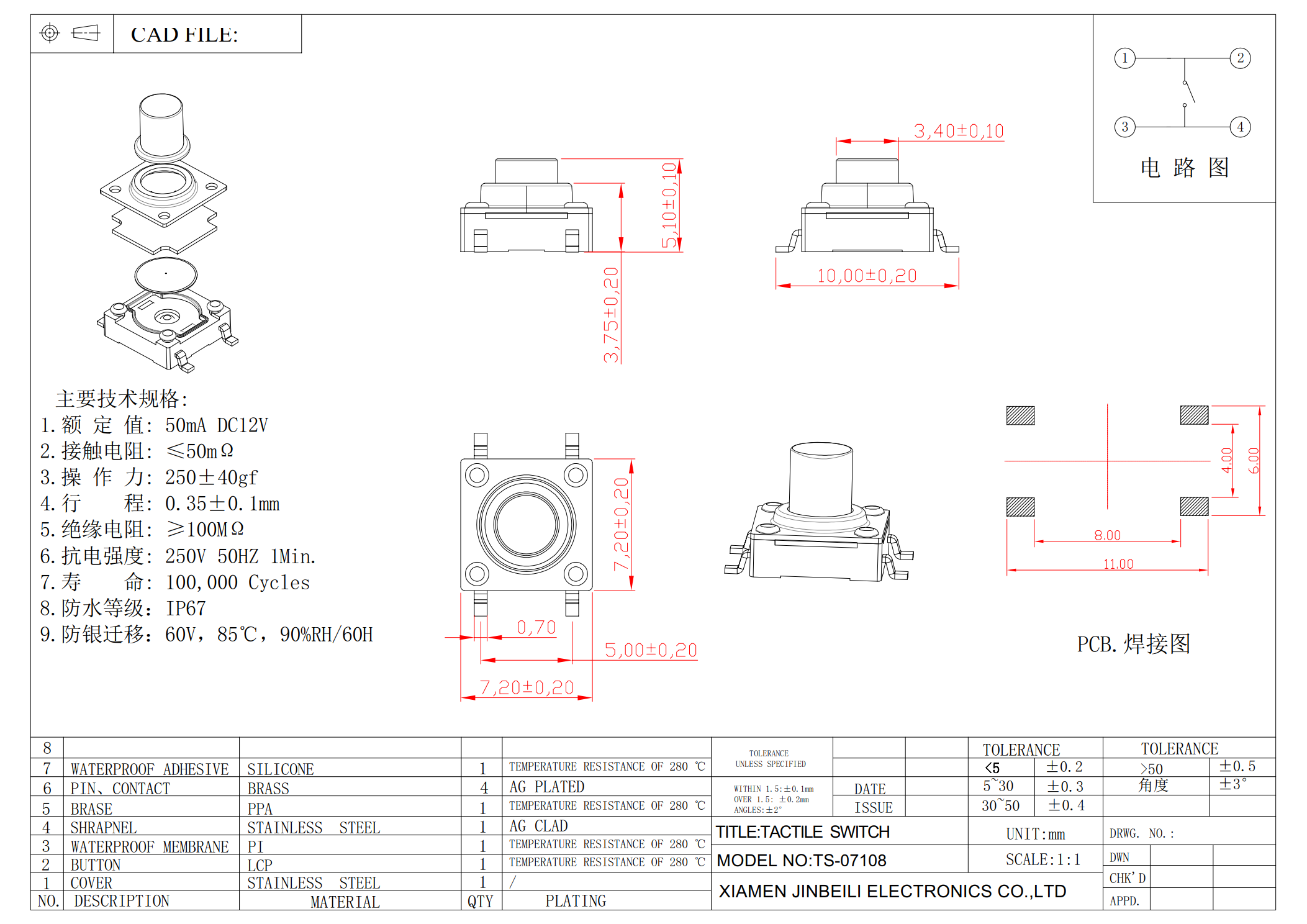

The Jinbeili TS-07108 is a compact IP67-rated waterproof tactile switch designed for reliable PCB control applications in consumer electronics, industrial equipment, control panels, and other electronic devices requiring water and dust protection. It features an SPST normally open (NO) contact configuration and a compact 7.2 × 7.2 mm outline.

This waterproof tactile switch is available with 4.3 mm or 5.1 mm actuator height above the PCB, providing flexibility for different enclosure and button-height requirements. It has a 0.35 mm travel and is available with 160 gf or 250 gf operating force options, allowing customers to select the desired tactile feel.

The TS-07108 is rated at DC 12V, 50mA and provides a minimum operating life of 100,000 cycles. The insulation housing is made from PPA, while the actuator is made from LCP, providing suitable insulation, mechanical strength, and dimensional stability for electronic applications.

The Jinbeili TS-07108 has identical dimensions and specifications to selected CIT Relay and Switch models, including STS5.0LF260QG, STS5.0LF200QG, STS4.3LF200QG, STS7.0LF200QG, and STS7.0LF260QG, as well as CTS Electrocomponents 225FMVAAR. Therefore, it can be evaluated as an alternative or replacement tactile switch for applications using these specifications.

The TS-07108 is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory, supporting controlled production and consistent quality.

Frequently Asked Questions

Can you make the actuator height above the PCB 6 mm?
Yes. The standard actuator heights are 4.3 mm and 5.1 mm above the PCB, while a 6 mm actuator height can be evaluated as a customized option according to your mechanical requirements.

What is the waterproof level of the TS-07108?
The TS-07108 is IP67 rated waterproof, providing protection against dust and temporary water immersion when properly installed in the finished product.

Is this tactile switch RoHS compliant?
Yes. The TS-07108 is RoHS and REACH compliant.

Do you have a waterproof 6 × 6 mm tactile switch?
Yes. we have. you can find 6*6 waterproof switch in our website,  Here is link : https://www.jbl-ec.com/waterproof-tact-switches/

Can you make the operating life up to 1,000,000 cycles?
Yes. The standard TS-07108 has a minimum life of 100,000 cycles, and a 1,000,000-cycle version can be evaluated or customized according to the required application and test conditions.

Can the TS-07108 replace CIT Relay and Switch or CTS Electrocomponents tactile switches?
Yes. Because the TS-07108 has identical dimensions and specifications to the listed CIT Relay and Switch models and CTS 225FMVAAR, it can be evaluated as an alternative source or replacement. Customers should verify mechanical fit, electrical requirements, and qualification requirements before production.
