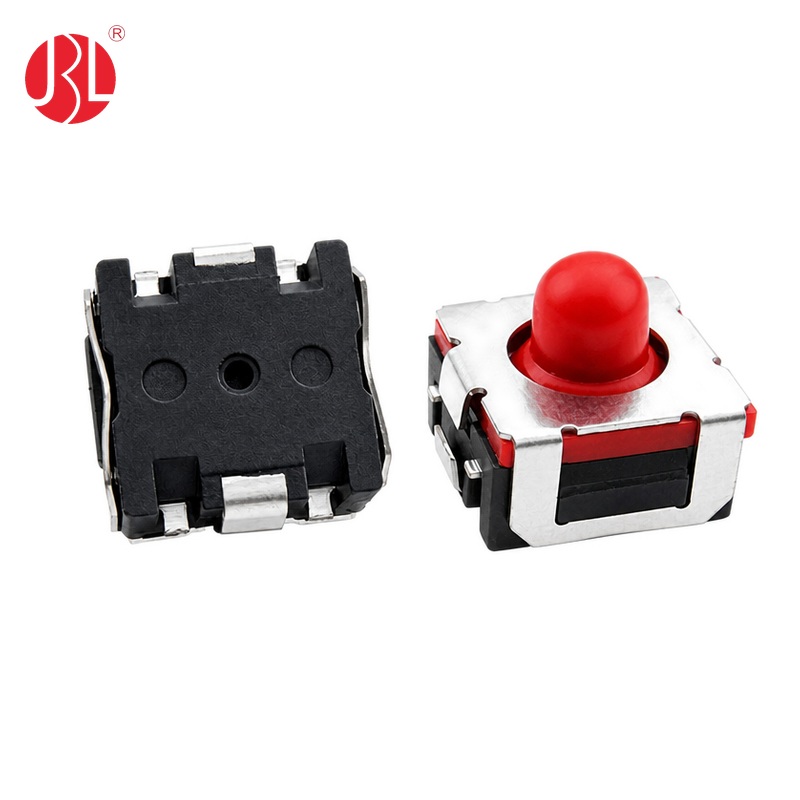

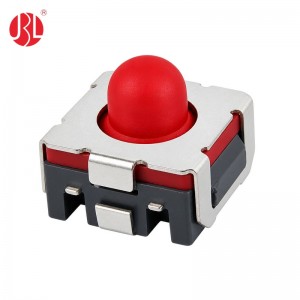

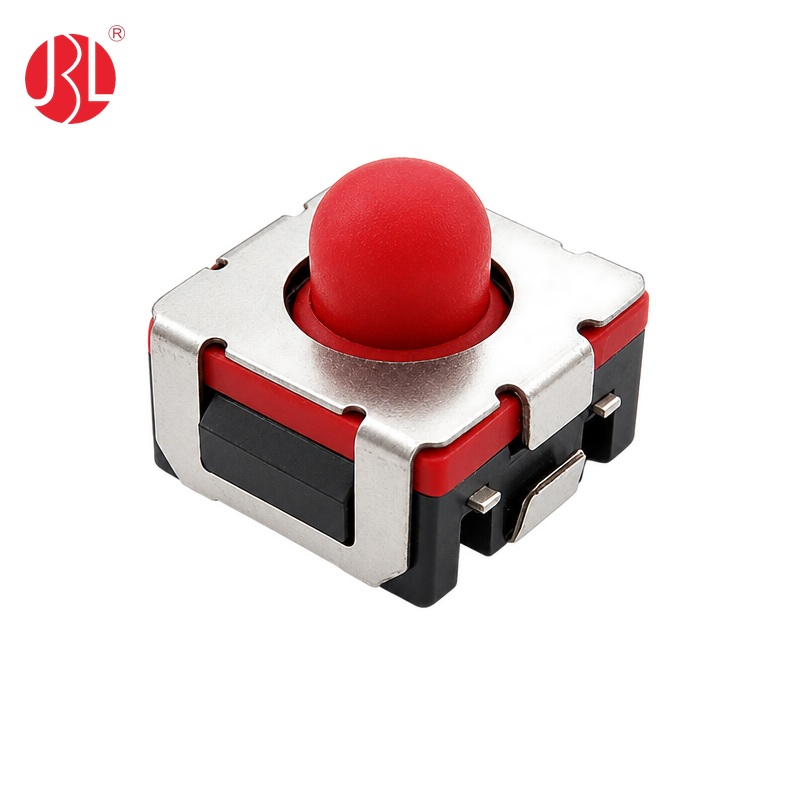

5.4 × 5.3mm IP67 Waterproof Tactile Switch

The Jinbeili 5.4 × 5.3 mm Waterproof Tactile Switch is a compact IP67-rated tactile switch designed for reliable switching in consumer electronics and other applications requiring water and dust protection. It features an SPST normally open (NO) contact configuration, 2 pins with J-hook leads, and a compact design suitable for space-constrained PCB applications.

The switch is available with 3.85 mm or 4.34 mm actuator height above the PCB, providing flexibility for different enclosure and button-height requirements. It has a 0.7 mm travel and offers 350 gf or 500 gf operating force options, providing a firm tactile operating feel.

The tactile switch is rated at DC 12V, 50mA and has an operating life of 300,000 cycles. Its IP67 waterproof rating makes it suitable for applications where protection against dust and temporary water immersion is required when properly integrated into the finished product.

This switch has identical dimensions and specifications to selected Alps Alpine tactile switch models, including SKSUBCE010 and SKSUBBE010. Therefore, it can be evaluated as an alternative or replacement for Alps Alpine SKSUBCE010 and SKSUBBE010 in compatible applications. Customers should verify mechanical fit, electrical performance, and qualification requirements before mass production.

The switch is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory, supporting consistent quality and controlled manufacturing.

Frequently Asked Questions

Is this tactile switch IP67 rated?
Yes. This is an IP67-rated waterproof tactile switch, designed to provide dust protection and protection against temporary water immersion when properly installed.

Can it be an alternative to Alps Alpine SKSUBCE010?
Yes. The switch has identical dimensions and specifications to Alps Alpine SKSUBCE010 and SKSUBBE010, making it suitable for evaluation as an alternative or replacement.

Do you have larger-dimension waterproof tactile switches?
Yes. we have.  Here is link of waterproof tactile switches : https://www.jbl-ec.com/waterproof-tact-switches/

Can you make the actuator height above the PCB 5 mm?
Yes. The standard actuator heights are 3.85 mm and 4.34 mm, and a 5 mm actuator height can be evaluated as a customized option based on your mechanical requirements.

What are the main specifications?

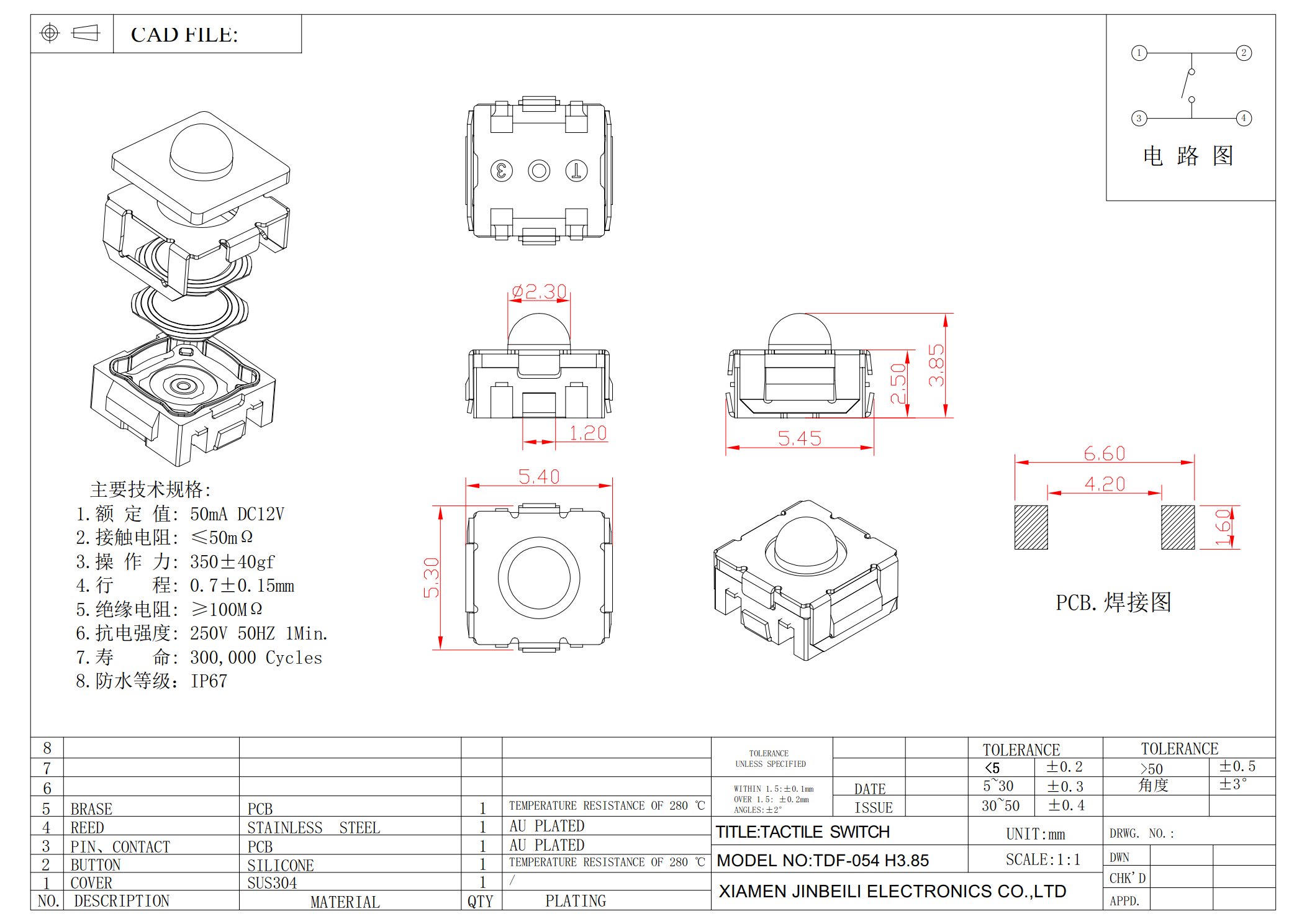

The switch has a 5.4 × 5.3 mm outline, SPST normally open contacts, 2 J-hook leads, DC 12V 50mA rating, 0.7 mm travel, 350 gf/500 gf operating force, 300,000-cycle life, and IP67 waterproof protection.
