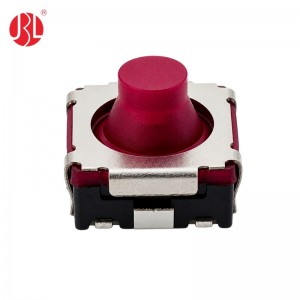

6.2 × 6.1mm IP67 Waterproof Tactile Switch
The Jinbeili IP67 Waterproof Tactile Switch is a compact 6.2 × 6.1 mm tactile switch designed for reliable control applications in consumer electronics and automotive electronics. Featuring an IP67 waterproof rating, this switch provides protection against dust and temporary water immersion when properly integrated into the finished product.

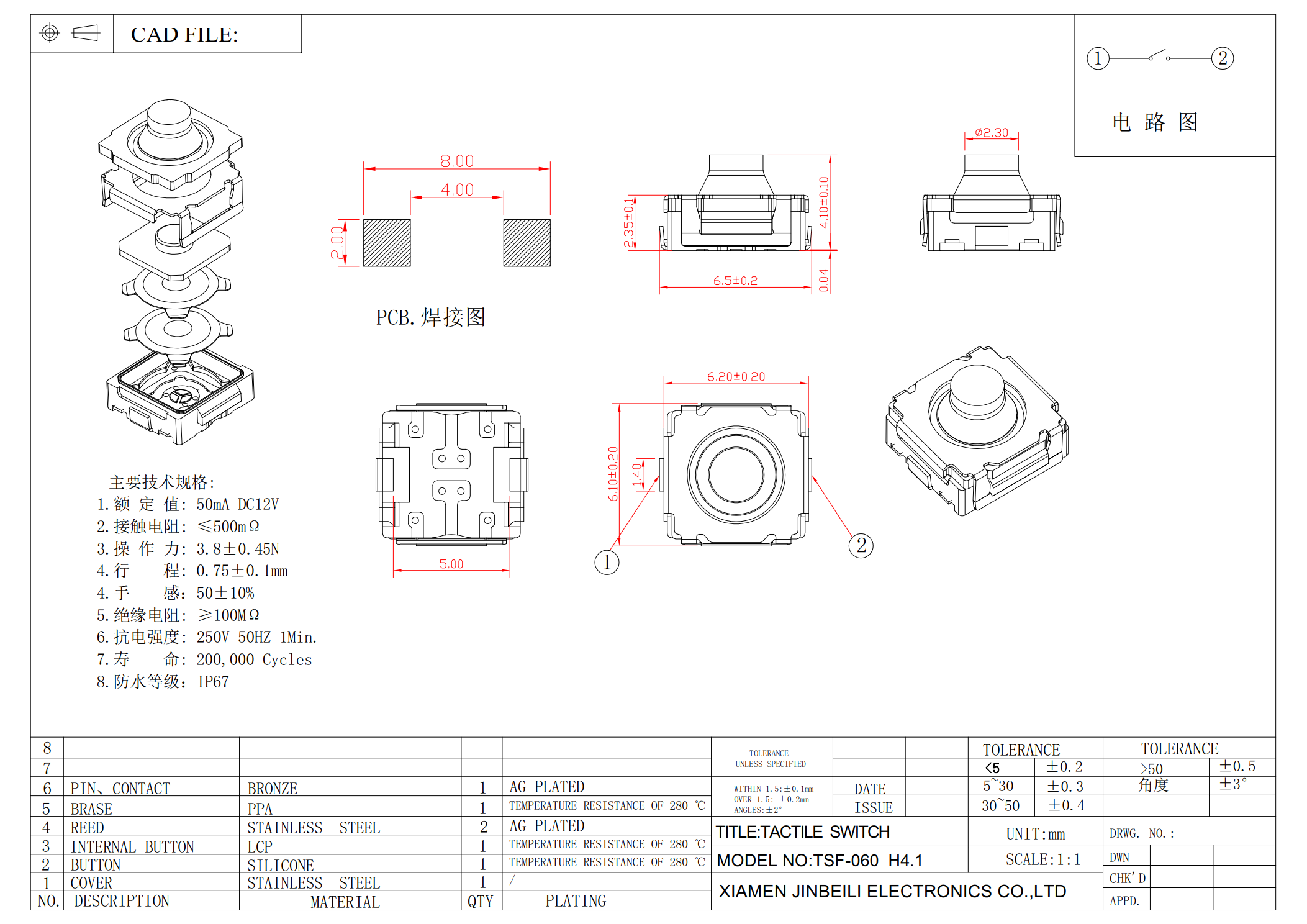

The switch has a compact 4.1 mm actuator height above the PCB and uses a soft silicone actuator for comfortable and reliable button operation. The actuator is available in multiple colors, including green, blue, red, and orange, allowing manufacturers to match different product designs and user-interface requirements.
This waterproof tactile switch is rated at DC 12V, 50mA and offers 300 gf or 380 gf operating force options. Its 0.75 mm travel provides a clear and positive tactile response, while the rated operating life is 200,000 cycles, making it suitable for applications requiring repeated button operation.
The Jinbeili switch has identical dimensions and specifications to selected Alps Alpine SKTR Series switches, including SKTRAEE010, SKTRAFE010, and SKTRAGE010. Therefore, it can be evaluated as an alternative or replacement for Alps Alpine SKTR Series tactile switches in compatible applications. Customers should verify mechanical fit, electrical performance, and qualification requirements before mass production.
The switch is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory, supporting consistent manufacturing quality and controlled production.
FAQs
Is this tactile switch IP67 rated?
Yes. This is an IP67-rated waterproof tactile switch, designed for applications requiring protection against dust and temporary water immersion when properly installed.
Can this switch work as well as an Alps Alpine switch?
Yes. The switch has identical dimensions and specifications to the specified Alps Alpine SKTR Series models, including SKTRAEE010, SKTRAFE010, and SKTRAGE010. It can therefore be evaluated as an alternative or replacement. Performance should be verified through application testing before mass production.
Can this switch be used in automotive applications?
Yes. The switch is suitable for automotive electronics, consumer electronics, control panels, and other applications requiring a compact waterproof tactile switch.
What actuator colors are available?

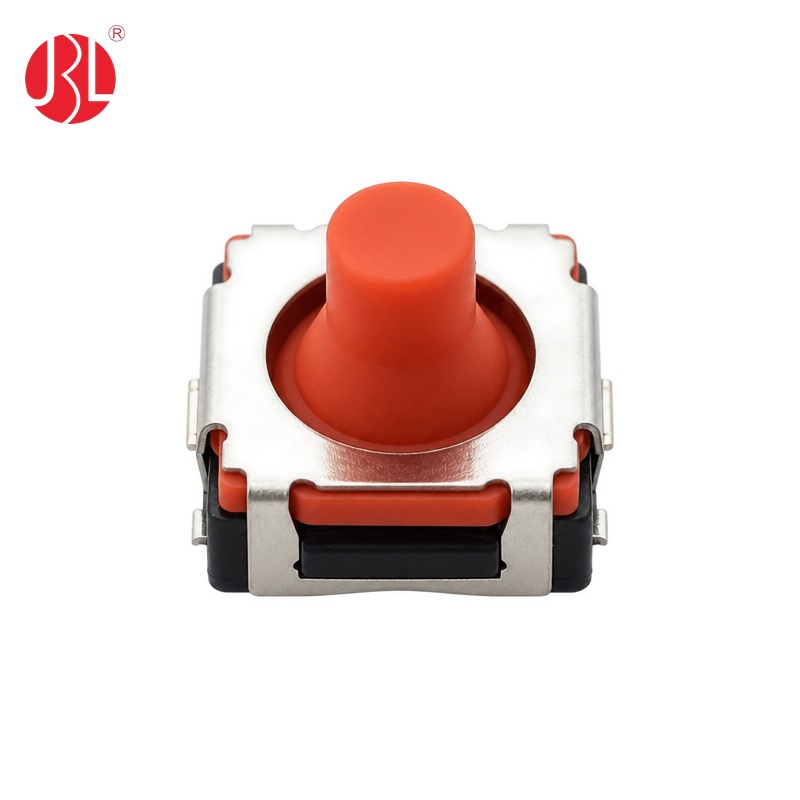

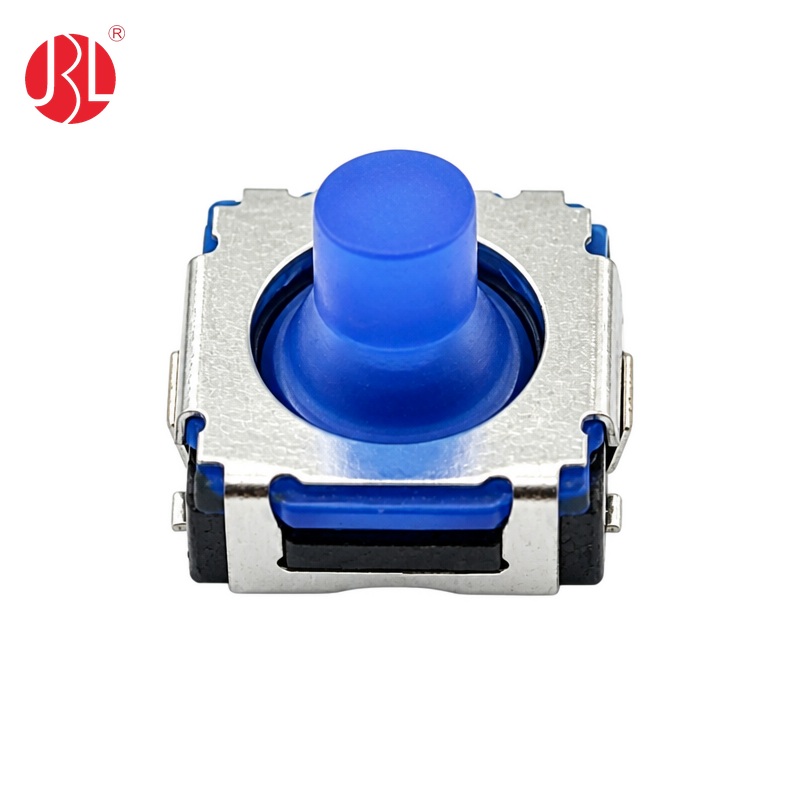

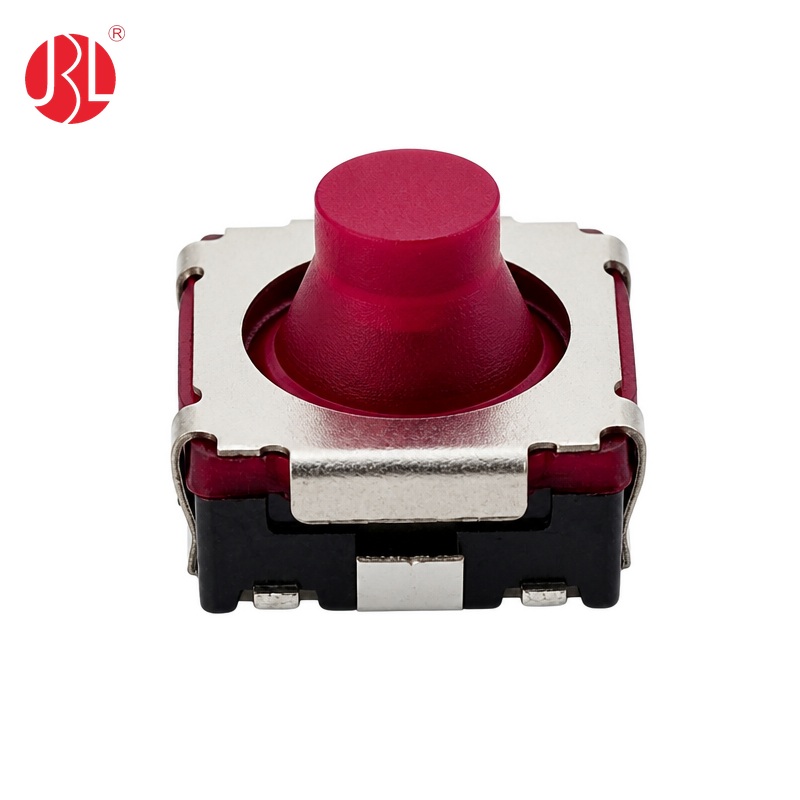

The silicone actuator is available in green, blue, red, and orange. Other colors may be evaluated for customized applications.
What is the actuator height above the PCB?
The actuator height is 4.1 mm above the PCB.
What are the operating force and travel?
The available operating forces are 300 gf and 380 gf, with a 0.75 mm travel.
Is the switch RoHS compliant?
Yes. The switch is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory.
