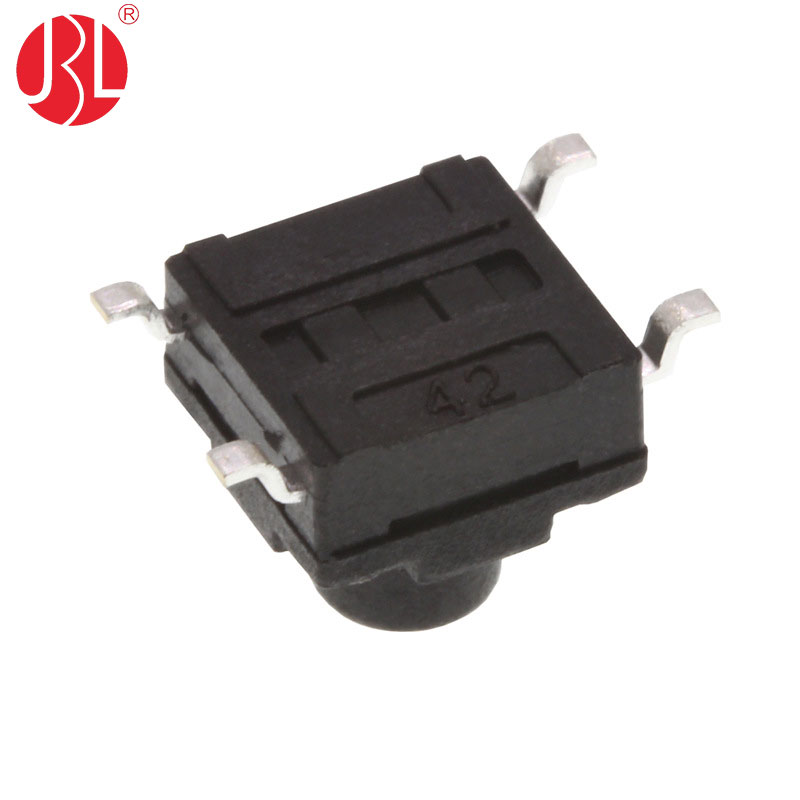

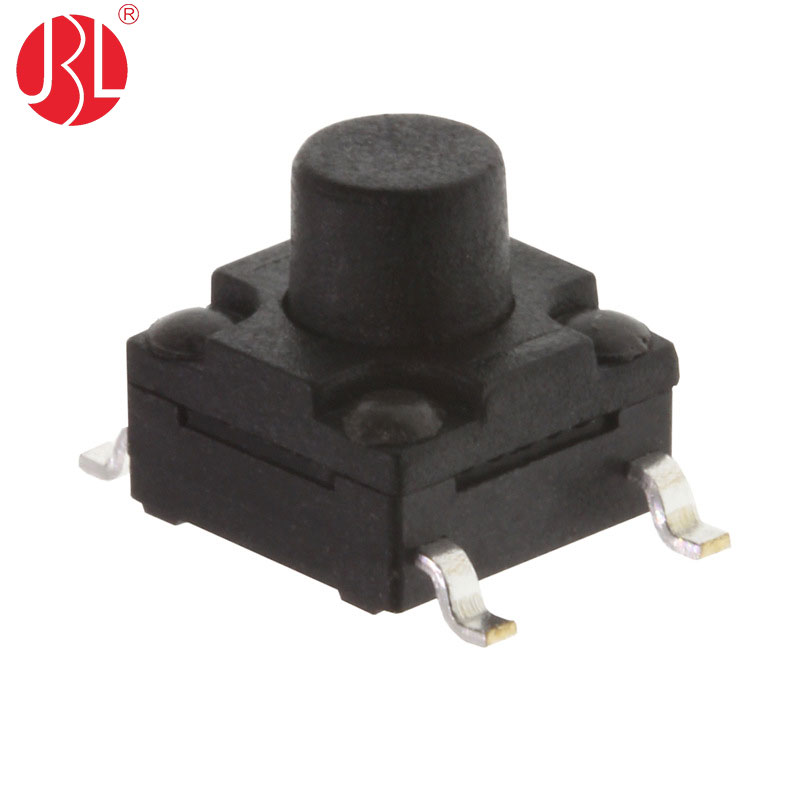

High-Durability IP67 Sealed Surface Mount Tactile Switch

Engineered for reliability in demanding environments, this Surface Mount Vertical Tactile Switch delivers exceptional performance with a rugged IP67 waterproof and dustproof rating. This sealing ensures complete protection against immersion in water and ingress of fine particulates, making it the ideal solution for outdoor equipment, industrial controls, marine electronics, and automotive interior applications where exposure to moisture or contaminants is a concern.

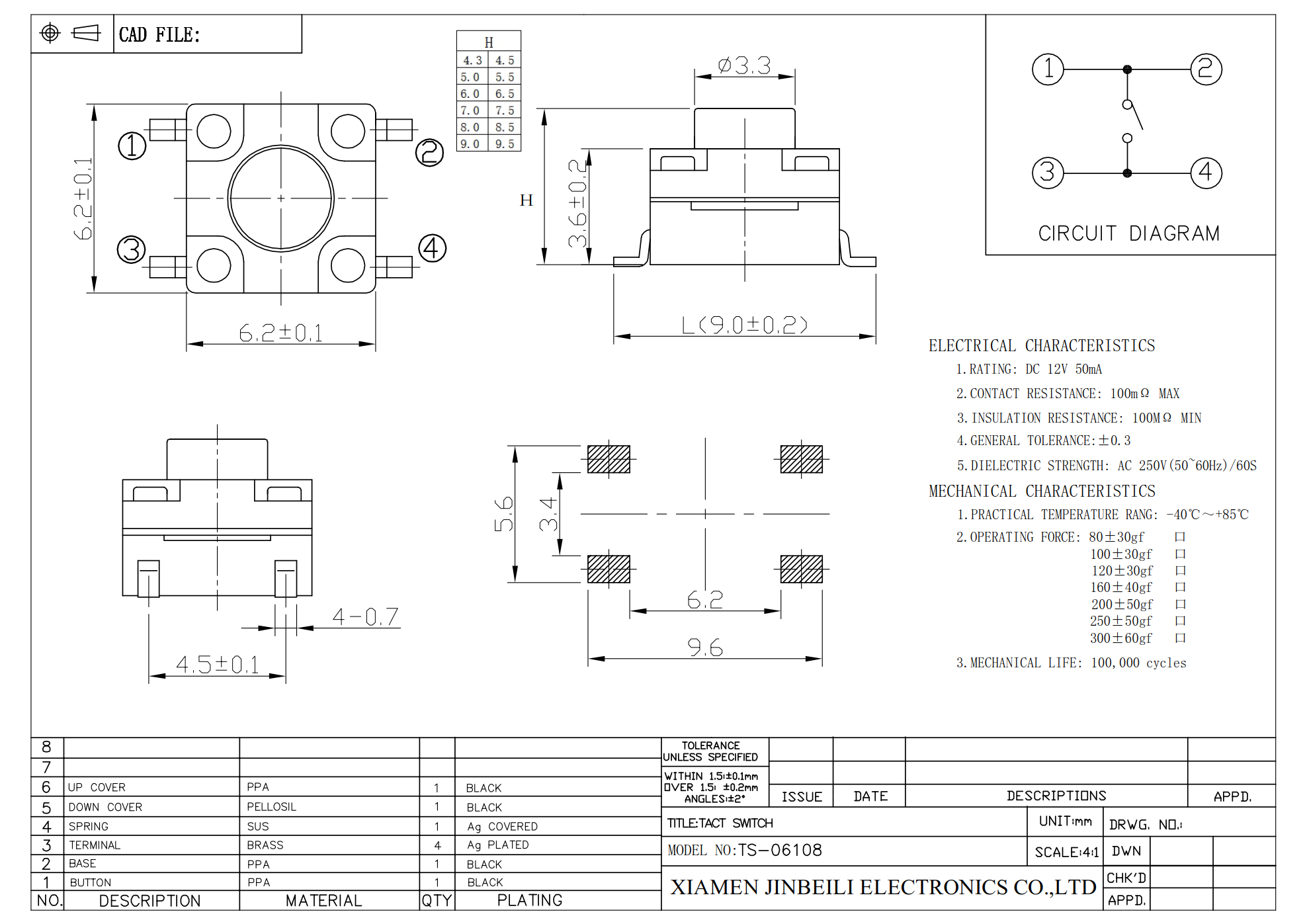

Despite its compact 6.2mm x 6.2mm outline, this switch offers versatile design flexibility with a wide range of actuator height options. Available from 4.3mm up to 18mm (measured from the PCB), it allows engineers to achieve the perfect tactile feel and actuation point for varying panel thicknesses and user interface designs. The actuator is constructed from durable materials to withstand repeated use, providing a distinct, crisp tactile feedback that assures the user of a successful activation.

To accommodate diverse user preferences, the switch is offered in two distinct operating force options: a lighter 160gf for applications requiring minimal effort and reduced finger fatigue, and a firmer 250gf for environments where a more positive feel is needed to prevent accidental presses. Electrically rated at DC12V 50mA, this Normally Open (N.O.) momentary switch ensures safe and reliable signal transmission in low-power circuits.

Built with longevity in mind, the switch features a PA46 insulation housing, known for its superior heat resistance and mechanical strength. The electrical path is secured by a brass terminal with a reliable plating process and a bronze contact mechanism, guaranteeing low contact resistance and excellent corrosion resistance over a long operational life. This combination of premium materials and robust sealing makes this tactile switch a premier choice for next-generation electronic designs.

RFQ:

Question 1 : Can you please provide a waterproof tactile switch Through Hole version ?

Answer 1: Of course.  Here is the link : https://www.jbl-ec.com/tc-00108-ip67-waterproof-tactile-switch-6-1×6-1mm-dip-through-hole-dc12v-0-05a-product/

Question 2: Can you please provide free samples of the waterproof tact switch for testing purpose

Answer 2: Of course. We provide free samples for testing
