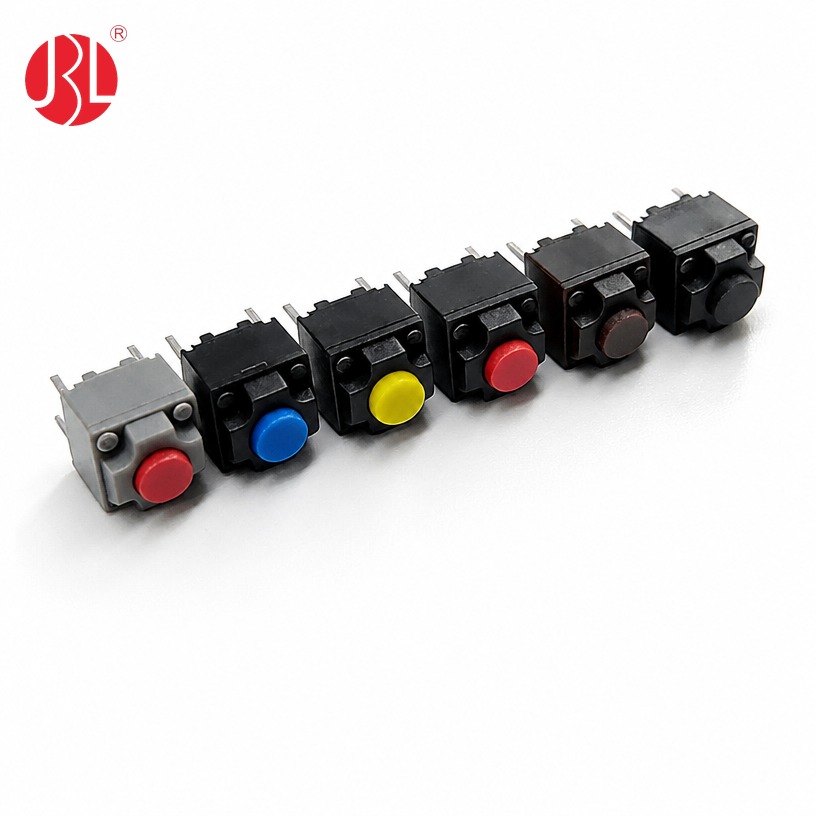

Jinbeili TC-00106D Silent Tactile Switch

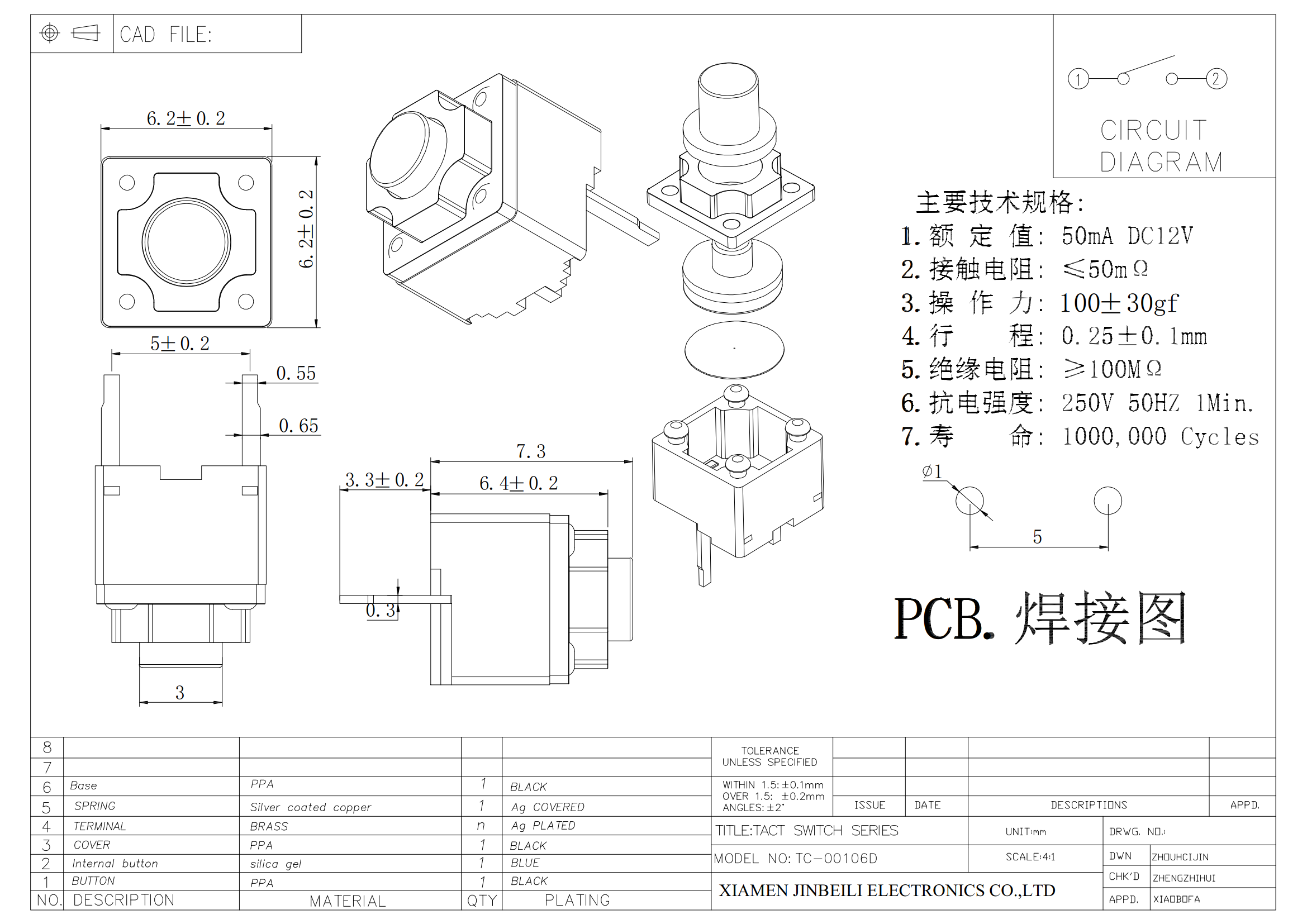

The Jinbeili TC-00106D is a compact, silent tactile switch designed for reliable human-machine interface applications such as computer mice, gaming mice, game controllers, control panels, and consumer electronics. This is a through-hole, 2-pin SPST normally open (NO) tactile switch with a compact 6.2 × 6.2 mm outline and a standard 7.3 mm actuator height above the PCBA.

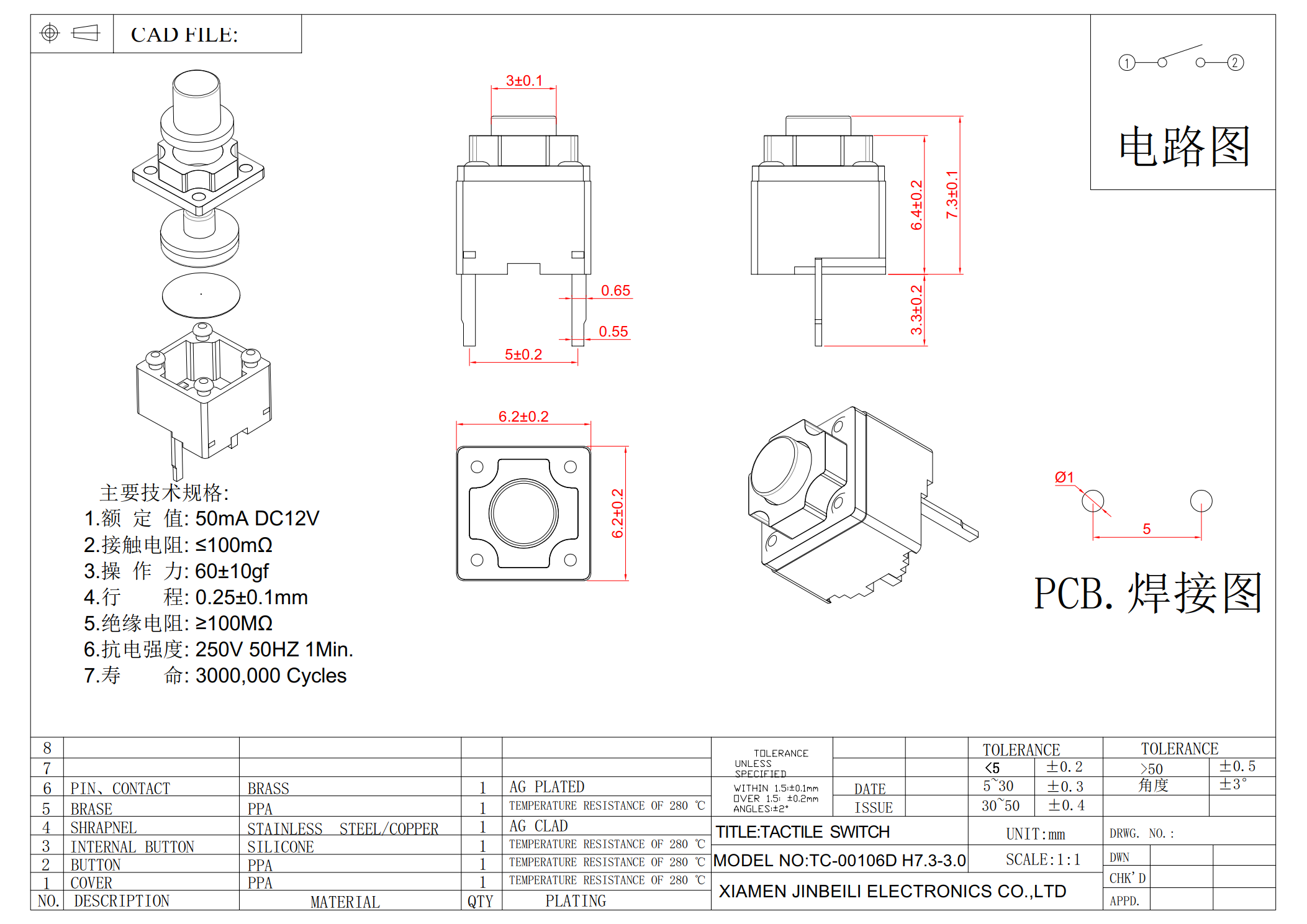

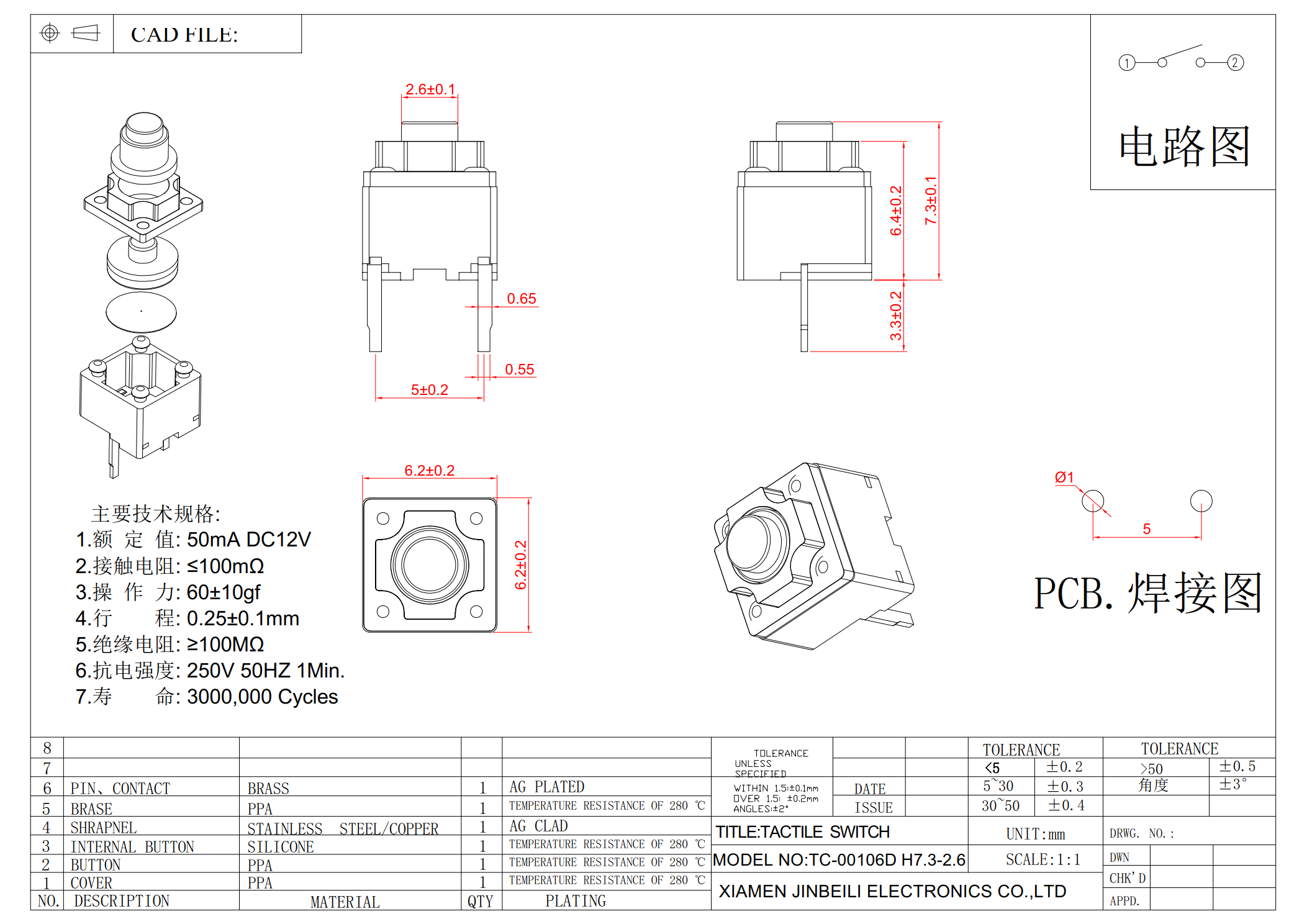

The tactile switch features a 2.5 mm operating travel and 60 gf operating force, providing a clear and comfortable tactile feel. Two actuator diameter options are available: 2.6 mm and 3.0 mm. The insulation housing is 6.4 mm high and made from PPA material for reliable electrical insulation and mechanical performance.

The Jinbeili TC-00106D is rated at DC 12V, 50mA. Its operating life can be customized according to application requirements, with up to 3,000,000 cycles available. This makes the switch suitable for applications requiring long-term and repeated button operation.

The switch is RoHS and REACH compliant. Jinbeili’s factory is ISO 9001 and IATF 16949 certified, supporting consistent manufacturing quality and production control.

The TC-00106D can be customized for different actuator configurations, operating-life requirements, and mechanical dimensions. It is a suitable solution for silent tactile switch, through-hole tactile switch, 2-pin tactile switch, SPST normally open switch, mouse switch, and game controller switch applications.

Looking for a silent through-hole tactile switch for a mouse, game controller, or other electronic control application? The Jinbeili TC-00106D is a 2-pin SPST normally open tactile switch with a compact 6.2 × 6.2 mm body, 7.3 mm actuator height above PCBA, 2.5 mm travel, and 60 gf operating force.

Can the TC-00106D achieve 1,000,000 cycles?
Yes. The operating life can be customized according to your application requirements. A 1,000,000-cycle version can be provided, and the design can be customized for up to 3,000,000 cycles.

Can this tactile switch be processed with wave soldering?
The TC-00106D is a through-hole component designed for PCB mounting. Wave-soldering compatibility can be confirmed according to the customer’s PCB process, soldering temperature, and production requirements.

Can the actuator height above the PCB be changed?
Yes. Actuator height and other mechanical dimensions can be customized according to your application and assembly requirements. Please provide your required PCB-to-actuator height or mechanical drawing for engineering evaluation.

What are the applications of this tactile switch?

Game controller, Mouse Switch, and other consumer electronics
