The Jinbeili TSF-065 Dustproof Tactile Switch is a compact 6.5 × 6.5 mm tactile switch designed for reliable switching in consumer electronics, automotive electronics, control panels, and other applications requiring water and dust protection. With an IP67 waterproof and dustproof rating, the switch is suitable for applications where environmental protection is required.

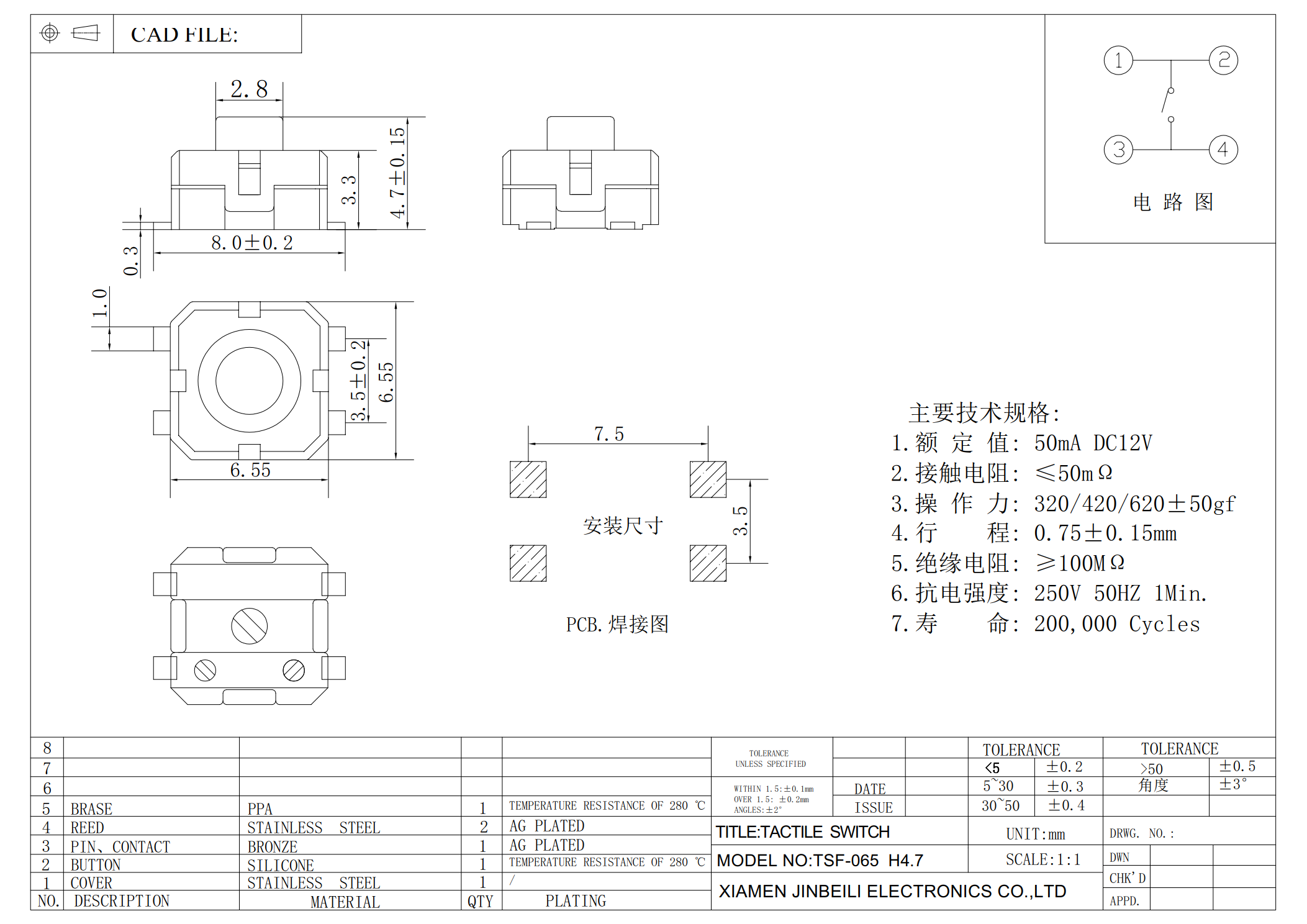

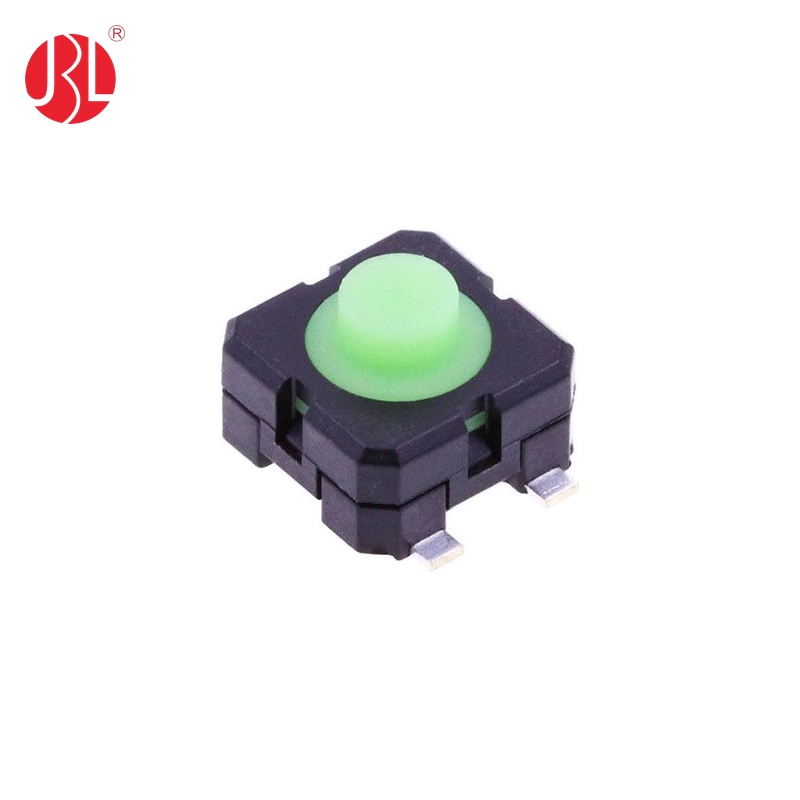

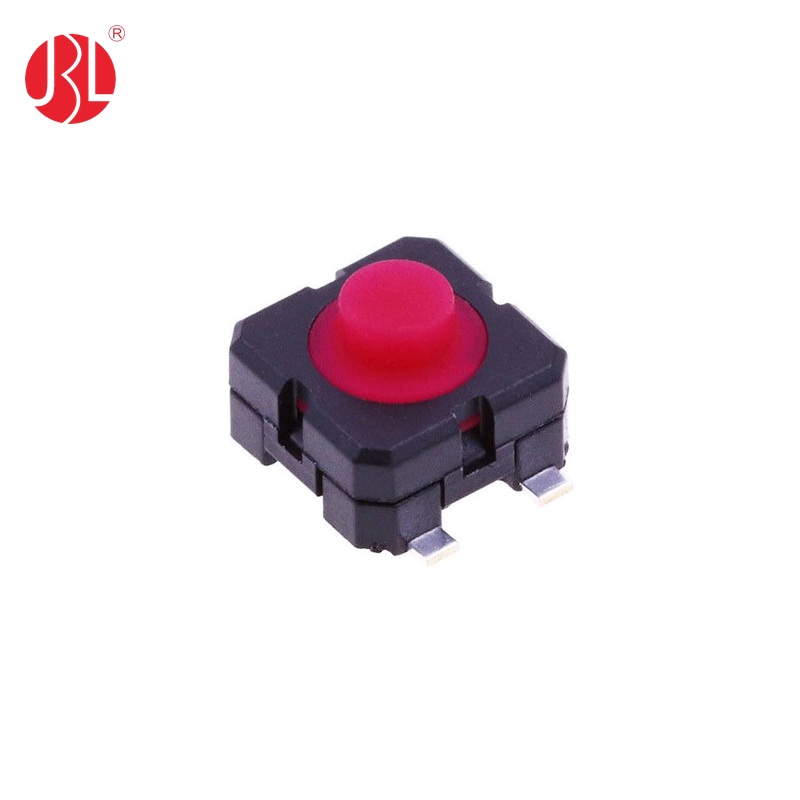

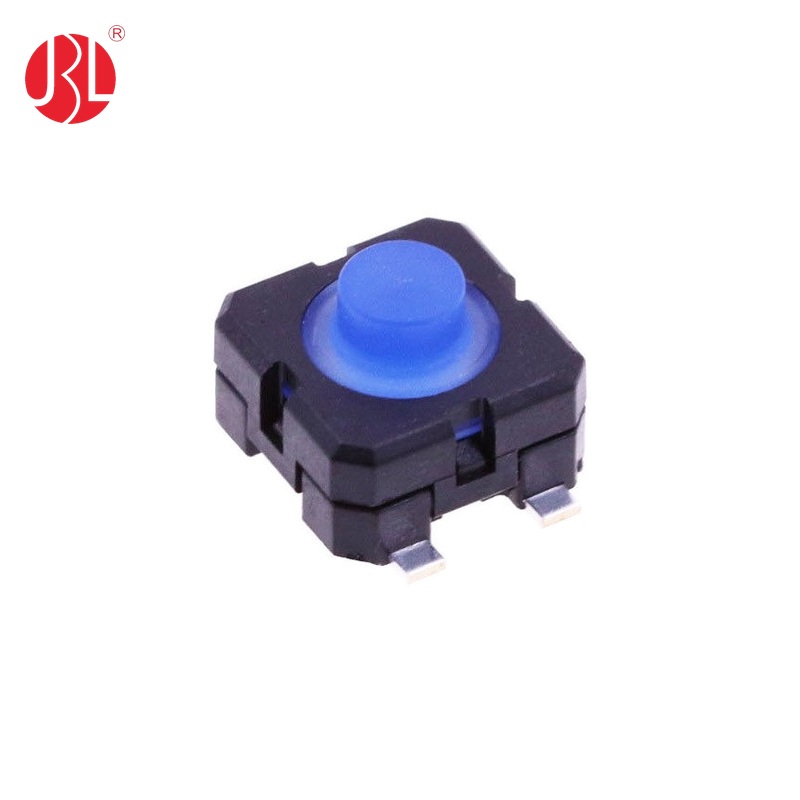

The switch features a 4.7 mm actuator height above the PCB and a soft silicone actuator for comfortable button operation. The actuator is available in green, blue, red, and orange, providing flexible options for product design and user-interface applications.
The tactile switch is rated at DC 12V, 50mA and offers three operating force options: 320 gf, 420 gf, and 620 gf. Its 0.75 mm travel provides a clear tactile response, while the rated operating life is 200,000 cycles, making it suitable for repeated switching applications.
The Jinbeili switch has identical dimensions and specifications to selected Salecom Electronics DTR-6-X-4-M-H Series switches, including DTR-6-12-4-M-H, DTR-6-13-4-M-H, and DTR-6-14-4-M-H. Therefore, it can be evaluated as an alternative or replacement for Salecom Electronics DTR-6 Series tactile switches in compatible applications. Customers are recommended to verify mechanical fit and performance through application testing before mass production.
The switch is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory, supporting consistent production quality and controlled manufacturing.
Frequently Asked Questions
Is this tactile switch IP67 rated?
Yes. The switch is IP67 rated waterproof and dustproof, making it suitable for applications requiring protection against dust and temporary water immersion when properly integrated into the finished product.
Can it work as well as a Salecom Electronics switch?
Yes. The switch has identical dimensions and specifications to the specified Salecom Electronics DTR-6-X-4-M-H Series models, including DTR-6-12-4-M-H, DTR-6-13-4-M-H, and DTR-6-14-4-M-H. It can be evaluated as an alternative or replacement.
What actuator colors are available?
The silicone actuator is available in green, blue, red, and orange.
What is the actuator height above the PCB?
The standard actuator height is 4.7 mm above the PCB.
What operating forces are available?
Three operating force options are available: 320 gf, 420 gf, and 620 gf.
What is the travel of this tactile switch?
The switch has a 0.75 mm travel and a rated operating life of 200,000 cycles.
Can you share a waterproof tactile switch catalogue?
Of course. You can view the Jinbeili waterproof tactile switch catalogue here: https://www.jbl-ec.com/waterproof-tact-switches/
Is this tactile switch RoHS compliant?
Yes. It is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory.
