12 × 12mm Dustproof Tactile Switch

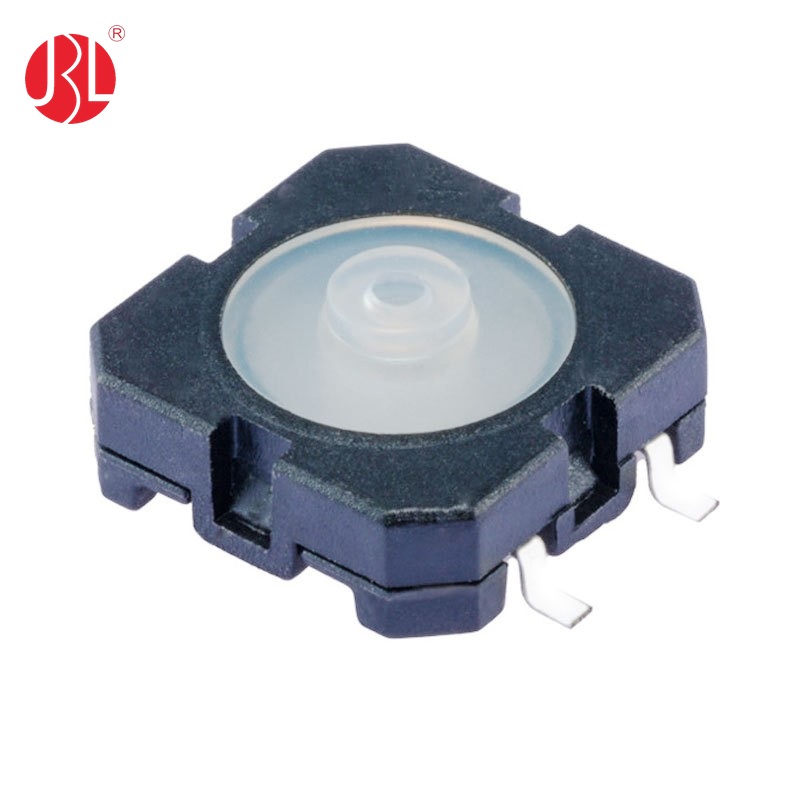

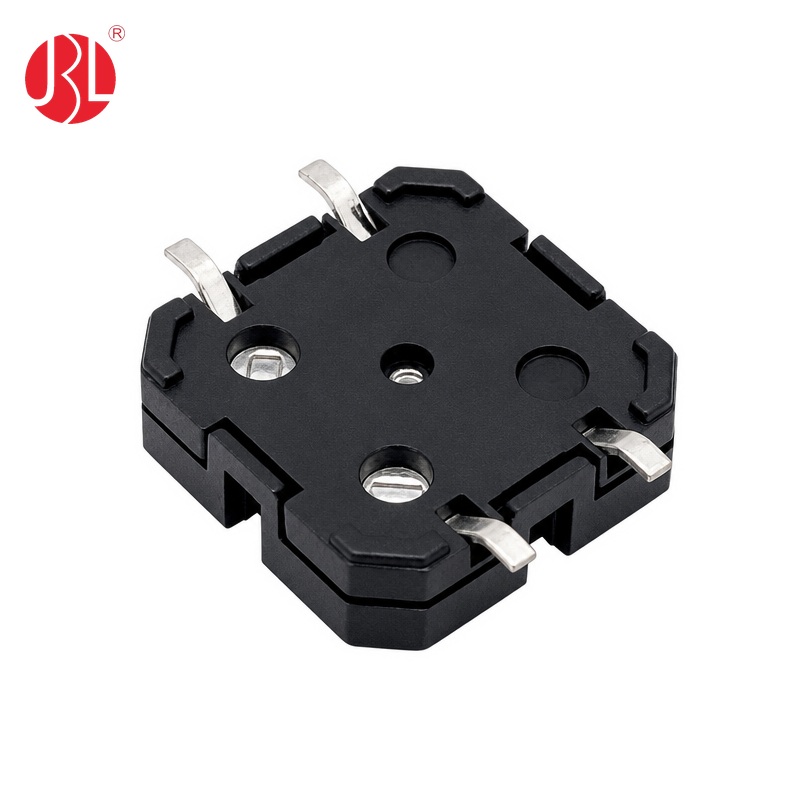

The Jinbeili 12 × 12 mm Dustproof Tactile Switch is a durable tactile push switch designed for reliable and repeated button operation in consumer electronics, automotive electronics, control panels, and other electronic equipment. With a compact 12 × 12 mm outline, this switch provides a practical solution for applications requiring a protected tactile interface.
The switch features a 5.0 mm actuator height above the PCB and a soft silicone actuator, providing a comfortable pressing surface and positive tactile feedback. Three operating force options are available: 360 gf, 680 gf, and 970 gf, allowing designers to select the appropriate operating feel for different applications.
The switch has a 0.7 mm travel and an extended operating life of 1,000,000 cycles, making it suitable for products requiring frequent and long-term button operation. Its dustproof construction provides additional protection for applications where environmental contamination may be a concern.
The Jinbeili switch has identical dimensions and specifications to the Salecom Electronics DTR-12-X-M Series, specifically DTR-12-9-M, making it an excellent candidate for evaluation as an alternative or replacement for the Salecom Electronics DTR-12-9-M tactile switch. Customers should verify mechanical fit, electrical performance, and qualification requirements before mass production.
The switch is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory, supporting consistent manufacturing quality and controlled production.
Frequently Asked Questions
Is this tactile switch dustproof rated?
Yes. This switch is designed as a dustproof tactile switch for applications requiring protection against environmental dust and contamination.
Can it work as well as the Salecom Electronics switch?
Yes. The switch has identical dimensions and specifications to the specified Salecom Electronics DTR-12-9-M, making it suitable for evaluation as an alternative or replacement. Application testing is recommended before mass production.
What is the actuator height above the PCB?
The actuator height is 5.0 mm above the PCB.
What operating forces are available?
The switch is available with 360 gf, 680 gf, and 970 gf operating force options.
What is the travel and operating life?
The switch has a 0.7 mm travel and an operating life of 1,000,000 cycles.
Do you have a waterproof tactile switch catalogue?
Of course. You can view the Jinbeili Waterproof Tactile Switch Catalogue here: https://www.jbl-ec.com/waterproof-tact-switches/
Is this tactile switch RoHS compliant?
Yes. It is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory.
