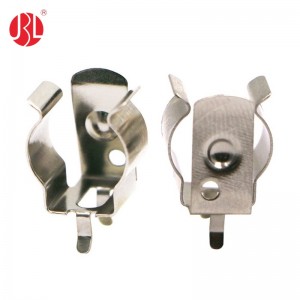

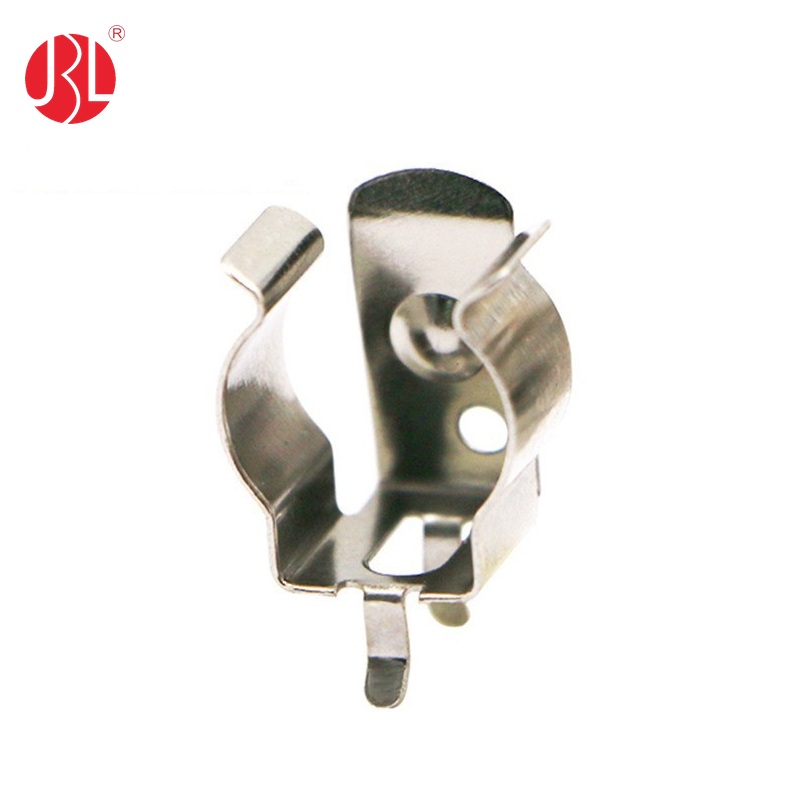

BC-AAA-8201-NI AAA Battery Retainer / Battery Contact

The Jinbeili BC-AAA-8201-NI is a AAA battery retainer, also known as a AAA battery contact, battery clip, or PCB battery holder contact, designed for reliable electrical connection between a AAA battery and a printed circuit board. This through-hole PCB battery contact is suitable for consumer electronics, industrial equipment, and other electronic devices requiring a compact and reliable AAA battery connection.
The BC-AAA-8201-NI is manufactured from 65Mn manganese steel, also known as spring steel, providing good spring properties and mechanical resilience for repeated battery insertion and removal. The contact is nickel plated to provide a durable surface finish and reliable electrical contact.
The Jinbeili BC-AAA-8201-NI has similar dimensions and specifications to the Keystone Electronics 82 AAA battery contact, making it an excellent candidate as an alternative or replacement for Keystone 82 in compatible applications. It can be evaluated for applications where a PCB-mounted AAA battery retainer is required. Customers should verify mechanical fit, contact force, battery orientation, and electrical performance before mass production.
Its through-hole mounting design allows the battery contact to be directly installed onto the PCB, providing a practical solution for compact battery-powered electronic products. The spring-steel construction also helps maintain contact pressure during normal battery installation and operation.
The BC-AAA-8201-NI is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory, supporting consistent manufacturing quality and controlled production processes.

FAQs

Is the BC-AAA-8201-NI made from manganese steel?
Yes. It is made from 65Mn manganese steel, also known as spring steel, and features a nickel-plated surface.
Can it work as an alternative to the Keystone 82 battery retainer?
Yes. The BC-AAA-8201-NI has similar dimensions and specifications to Keystone 82 and can be evaluated as an alternative or replacement. It is designed to provide comparable battery-contact functionality.
Is this AAA battery contact through-hole mounted?
Yes. The BC-AAA-8201-NI is a through-hole PCB battery contact designed for direct mounting on a printed circuit board.
Do you have a surface-mount AAA battery retainer?
Yes. We also offer surface-mount AAA battery retainer and battery contact options. You can view the battery retainer catalogue here: AAA Battery Contact & Clip Catalogue
Is the battery contact RoHS compliant?
Yes. The BC-AAA-8201-NI is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory.
