4.5 × 2.2mm Miniature Mid-Mount Tactile Switch

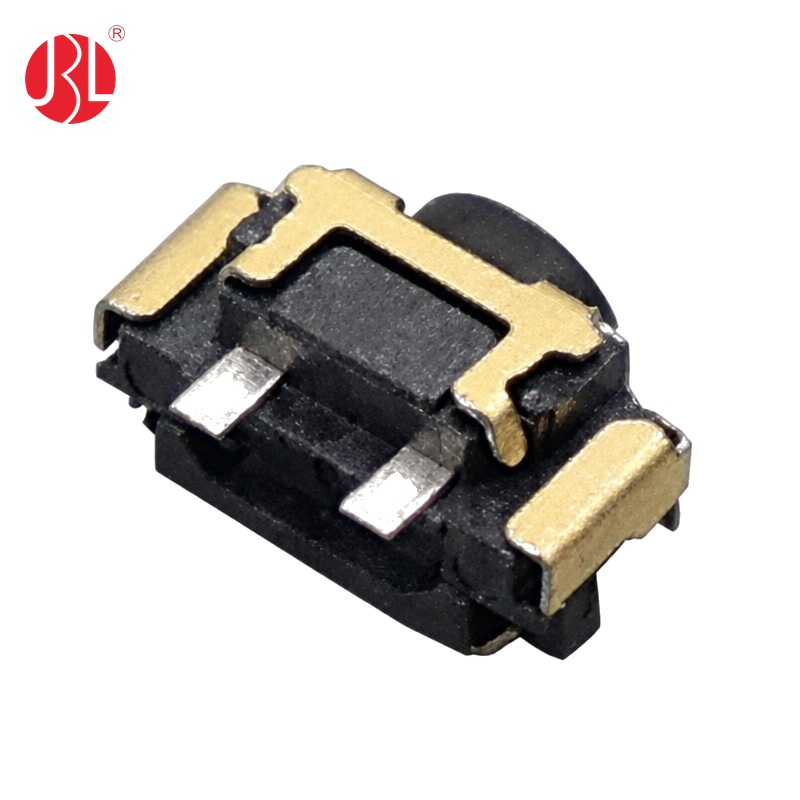

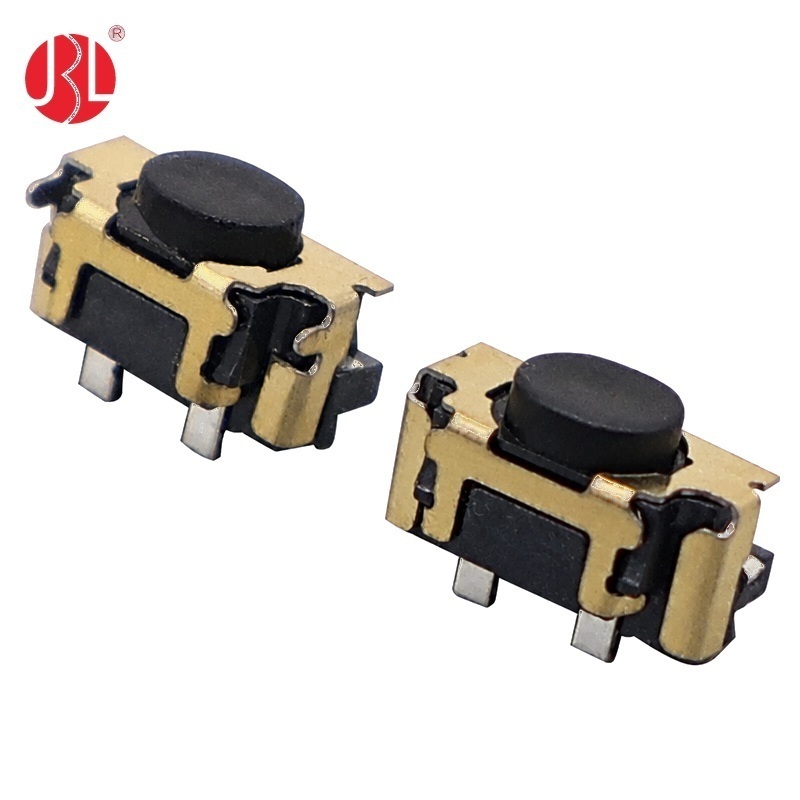

The Jinbeili TS-0165 4.5 × 2.2 mm Miniature Tactile Switch is a compact surface-mount right-angle tactile switch designed for mid-mount and board-edge PCB applications. Its miniature profile makes it ideal for space-constrained consumer electronics, industrial equipment, and compact electronic devices where a reliable tactile push switch is required.
This dustproof tactile switch features an SPST normally open (NO) contact configuration and is rated at DC 12V, 50mA. It offers two operating force options, 180 gf and 250 gf, allowing designers to select the preferred tactile response for different applications. The switch has a short 0.15 mm travel, providing a precise and responsive button feel.
The insulation housing is made from PPA material, while the electrical contacts are manufactured from phosphor bronze, providing suitable mechanical and electrical performance for miniature PCB switching applications.
The Jinbeili switch has identical dimensions and specifications to TE Connectivity 2425578-1 and selected Alps Alpine SKSLL Series switches, including SKSLLCE010, SKSLLBE010, and SKSLLAE010. It can therefore be evaluated as an alternative or replacement for TE Connectivity 2425578-1 and Alps Alpine SKSLL Series tactile switches in compatible applications. Customers should verify PCB footprint, mechanical fit, electrical characteristics, and qualification requirements before mass production.
The switch has a minimum operating life of 1,000,000 cycles, making it suitable for products requiring frequent and long-term button operation. It is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory.

FAQs

Can this switch work as well as the Alps Alpine SKSLLCE010?
Yes. It has identical dimensions and specifications to the specified Alps Alpine SKSLL Series switches, including SKSLLCE010, SKSLLBE010, and SKSLLAE010, and can be evaluated as an alternative or replacement.
What is the lifecycle of this miniature tactile switch?
The rated operating life is 1,000,000 cycles minimum.
What is the size of the tactile switch?

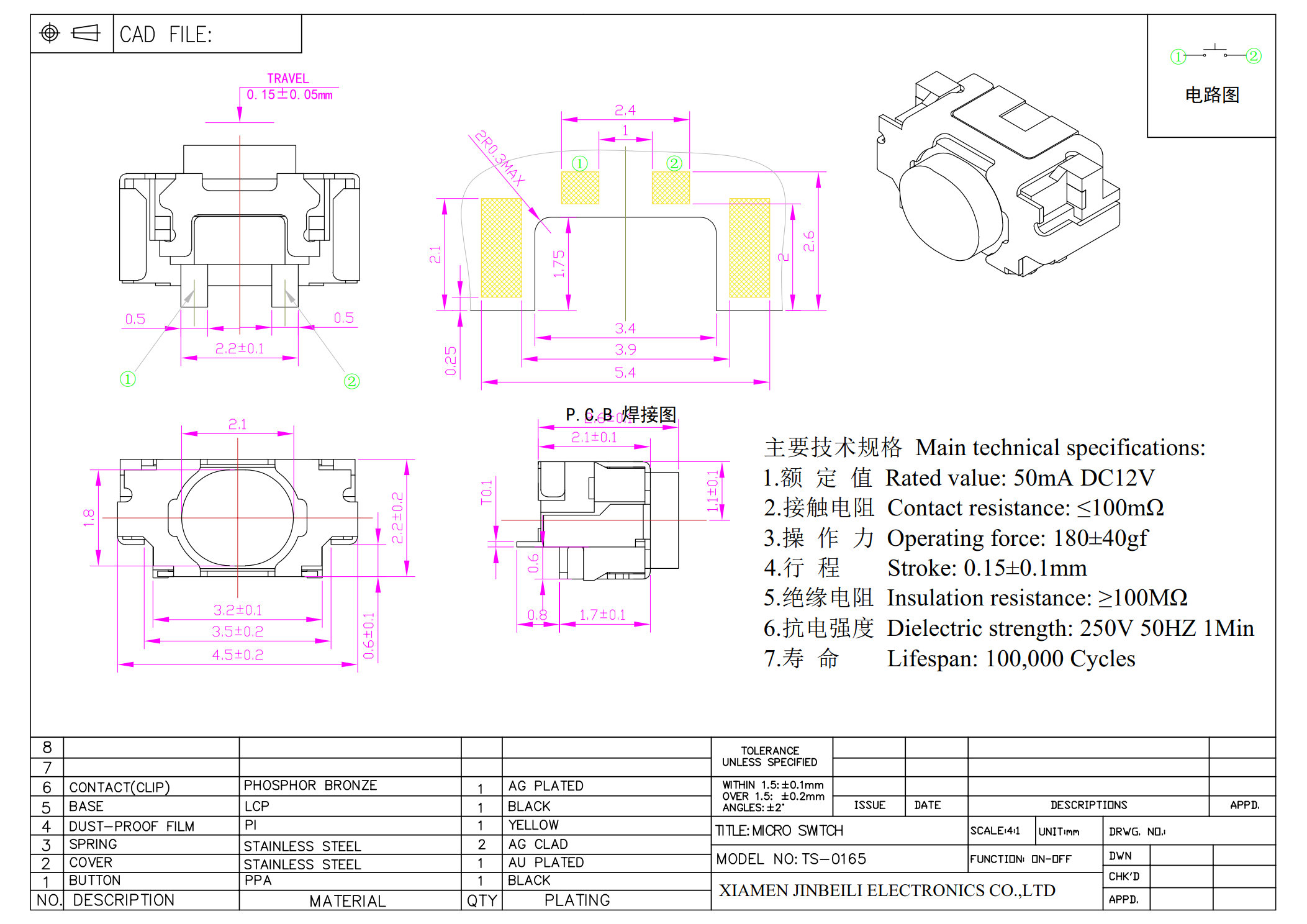

The compact switch measures 4.5 × 2.2 mm, making it suitable for miniature and space-constrained electronic products.
Is this a surface-mount right-angle tactile switch?
Yes. It is an SMT right-angle tactile switch designed for mid-mount and board-edge PCB mounting.
What operating force options are available?
The available operating forces are 180 gf and 250 gf.
Is the switch dustproof?
Yes. This model is designed as a dustproof miniature tactile switch for applications requiring additional protection from dust and environmental contamination.
What are the electrical specifications?
The switch is SPST, Normally Open (NO) and rated at DC 12V, 50mA.
Is the switch RoHS compliant?
Yes. It is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory.
