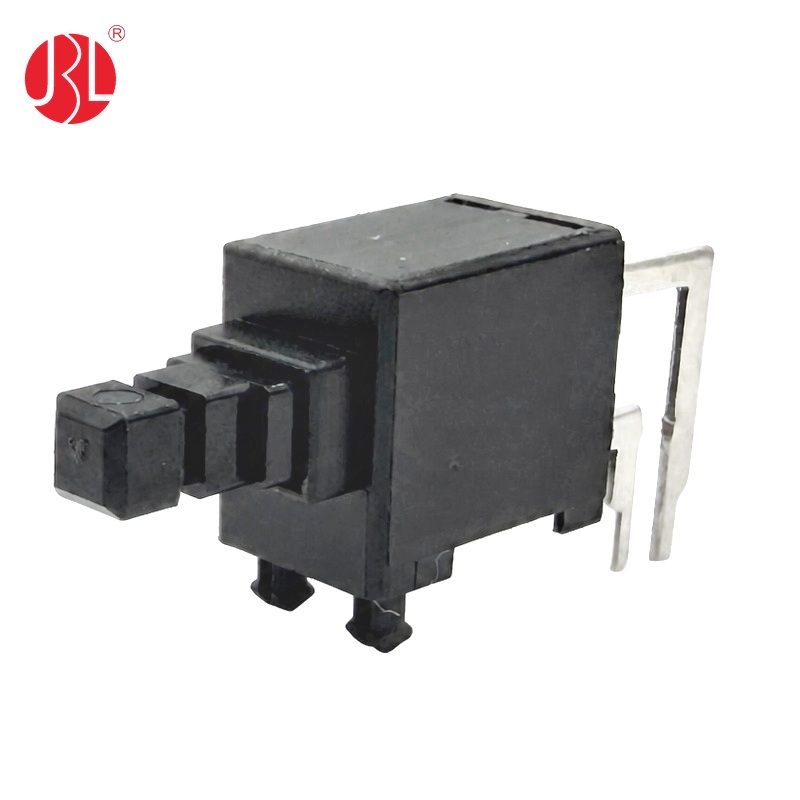

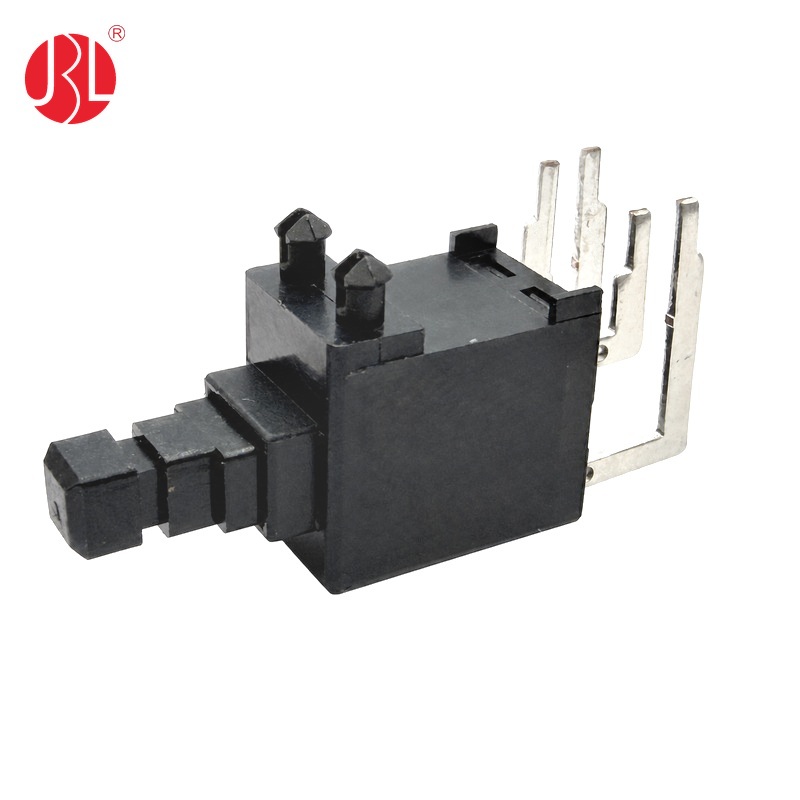

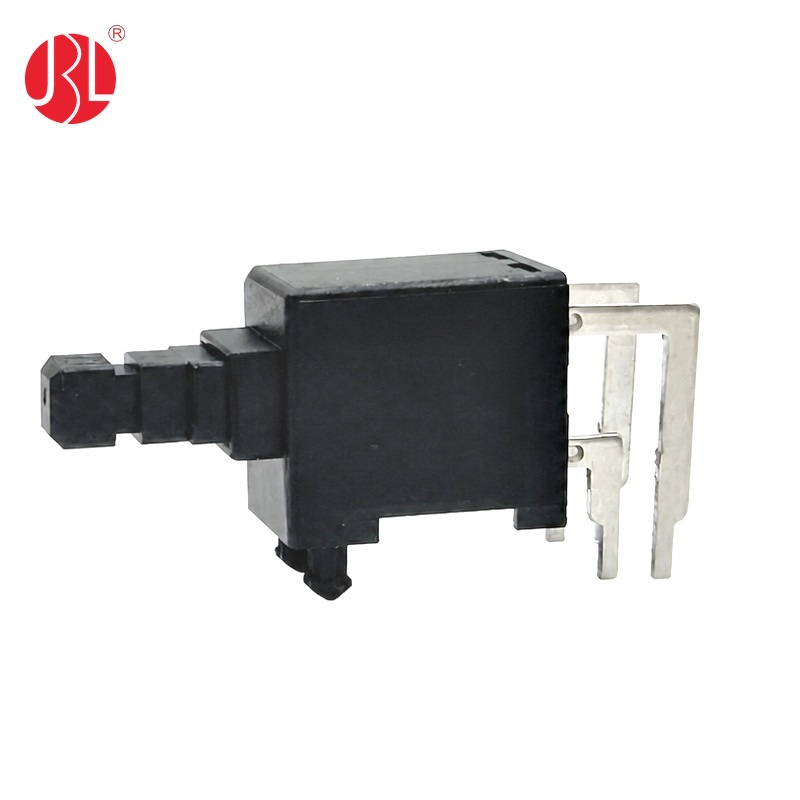

Jinbeili PB-101-B2 DPST Right-Angle Push Button Switch

Jinbeili PB-101-B2 is a DPST push button switch with a through-hole, right-angle PCB mounting design. It is a non-shorting 2P1T push button switch with a self-locking (latching) function, making it suitable for applications requiring a maintained ON/OFF switching operation.
The PB-101-B2 supports high-current switching up to DC30V 3A, providing a reliable solution for consumer electronics, industrial equipment, control panels, and other PCB-mounted electrical devices. The insulating housing is made of PA66, while the terminals are made of brass with silver (Ag) plating for reliable electrical contact and durability.
The Jinbeili PB-101-B2 has similar dimensions and specifications to selected E-Switch PB400 Series right-angle push button switches, including PB400EEQX, PB400OAQX, PB400EEQR1BLK, and PB400OAQR1BLK. Therefore, it can be considered as an alternative replacement for suitable applications using these E-Switch push button switches. Mechanical dimensions, PCB footprint, electrical ratings, and switching requirements should be verified before replacement.
This DPST latching push button switch is RoHS and REACH compliant. The Jinbeili factory is ISO 9001 and IATF 16949 certified, supporting consistent quality for OEM and industrial applications.

FAQs:

1. Is the PB-101-B2 a DPST push button switch?
Yes. Jinbeili PB-101-B2 is a DPST, 2P1T, non-shorting push button switch.
2. Is this push button switch latching or momentary?
It is a self-locking (latching) push button switch. The switch maintains its state after pressing.
3. Is the PB-101-B2 a right-angle PCB switch?
Yes. It is a through-hole right-angle push button switch designed for PCB mounting.
4. Can it handle 3A current?
Yes. The PB-101-B2 is rated for up to DC30V 3A, making it suitable for relatively high-current switching applications.
5. Can it work as an alternative to E-Switch PB400OAQX?
Yes. The PB-101-B2 has similar dimensions and specifications and can be used as an alternative to PB400OAQX in suitable applications. Please verify the PCB footprint and electrical specifications before substitution.
6. Can it replace E-Switch PB400EEQX or PB400 series switches?
It can be considered as an alternative for selected E-Switch PB400 Series models, including PB400EEQX, PB400OAQX, PB400EEQR1BLK, and PB400OAQR1BLK, subject to application compatibility.
7. What materials are used for the PB-101-B2?
The insulation housing is PA66, and the terminals are brass with Ag (silver) plating.
8. Is the PB-101-B2 RoHS and REACH compliant?
Yes. The PB-101-B2 is RoHS and REACH compliant.
9. Do you have a DPDT version of the push button switch?
Yes. Jinbeili offers additional push button switch configurations, including DPDT options. See the complete push button switch catalogue: Jinbeili Push Button Switch Catalogue
10. What are the typical applications?
Typical applications include consumer electronics, industrial equipment, electrical control systems, PCB control panels, and other equipment requiring a latching DPST push button switch.
