PB-22E69A Push Button Switch 7*7mm THT Hole Right Angle
-
-
-
Push Button Switch

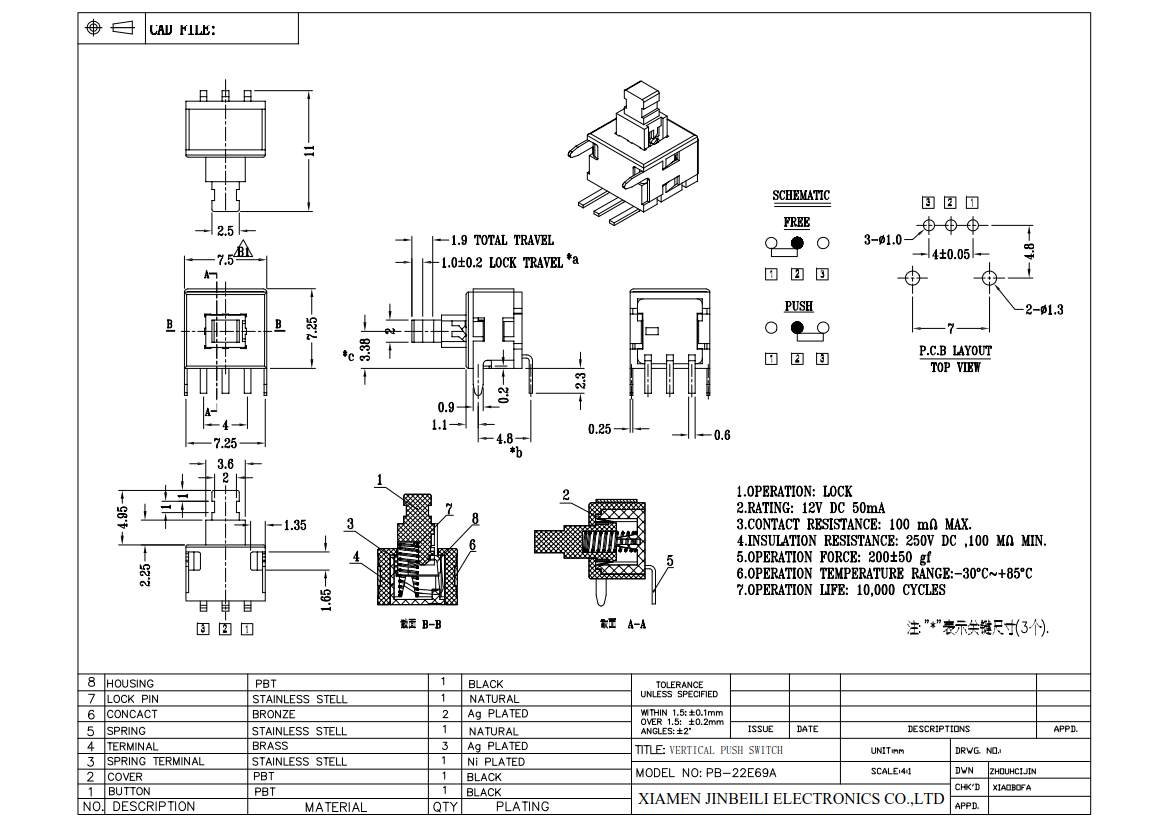

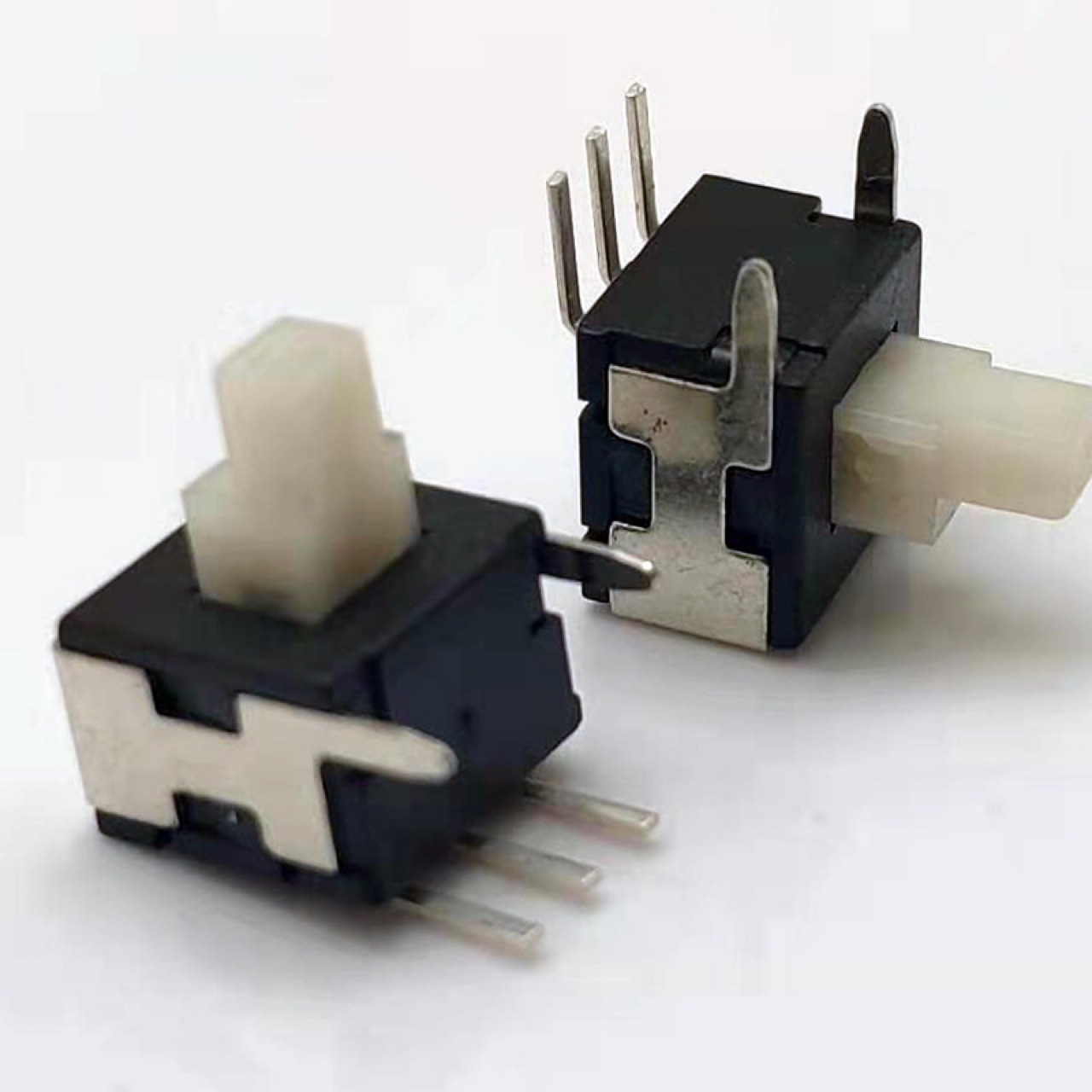

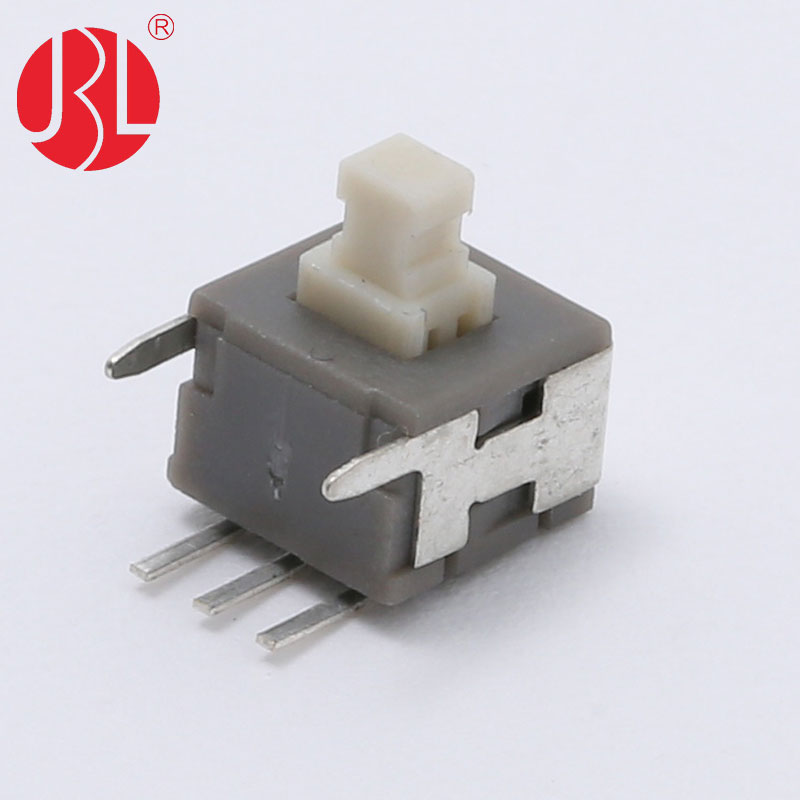

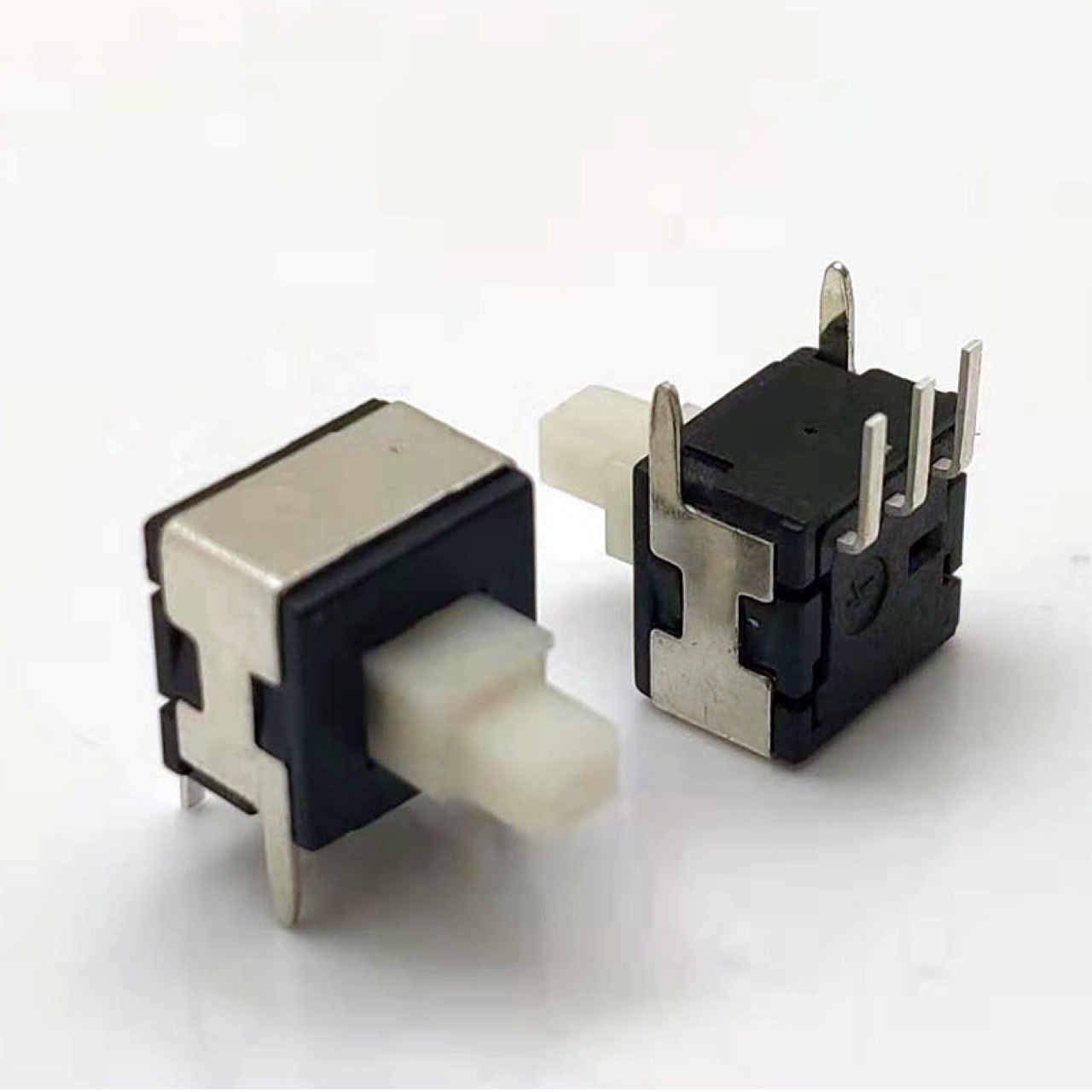

This is a through-hole, right-angle SPST tactile switch with a compact 7x7mm outline. It features both momentary and latching functions, making it versatile for various applications. The actuator’s center height from the PCBA is 3.38mm, ensuring reliable operation and easy integration into your design.
Previous:
PB-22E69 7*7mm Push Button Switch Through Hole Right Angle
Next:
BT-19 Series 5.0mm Pitch Spring Battery Connector Surface Mount Right Angle
7*7 push button switch tht hole ra 7x7 push button switch
Write your message here and send it to us
Products categories
Push Button Switch
This is a through-hole, right-angle SPST tactile switch with a compact 7x7mm outline. It features both momentary and latching functions, making it versatile for various applications. The actuator’s center height from the PCBA is 3.38mm, ensuring reliable operation and easy integration into your design.
