BT-19 Series 5.0mm Pitch Spring Battery Connector Surface Mount Right Angle
-
-
-
Spring Battery Connector – Surface Mount Right Angle (2/3/4 Pin, 5.0mm Pitch)
The Spring Battery Connector is a high-performance, surface-mount right-angle contact designed for secure and reliable battery connections in various electronic applications. Featuring a 5.0mm pitch, this connector ensures precise alignment and stable power transmission, making it ideal for PCB-mounted battery compartments, power supplies, and portable devices.
Key Features:

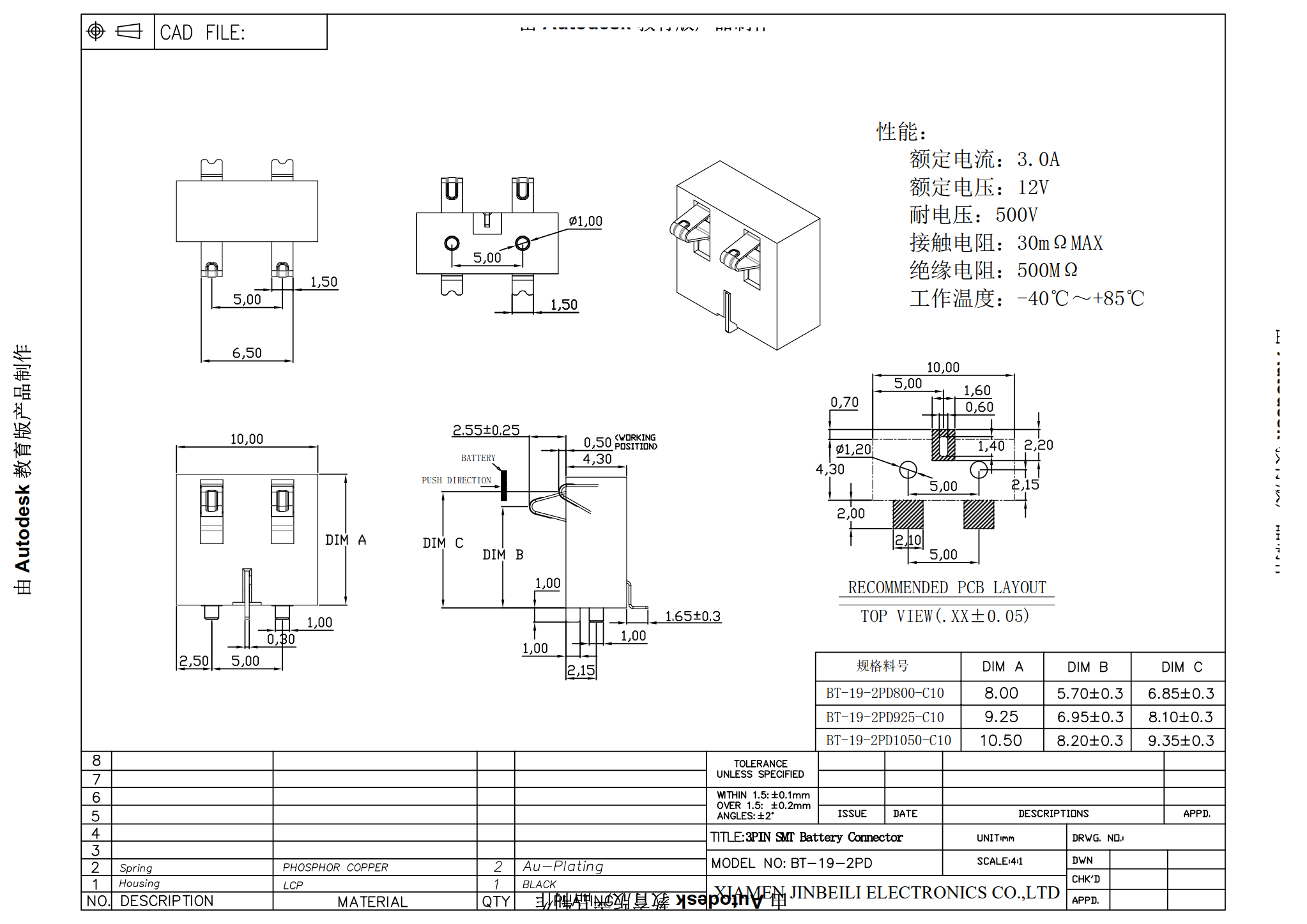

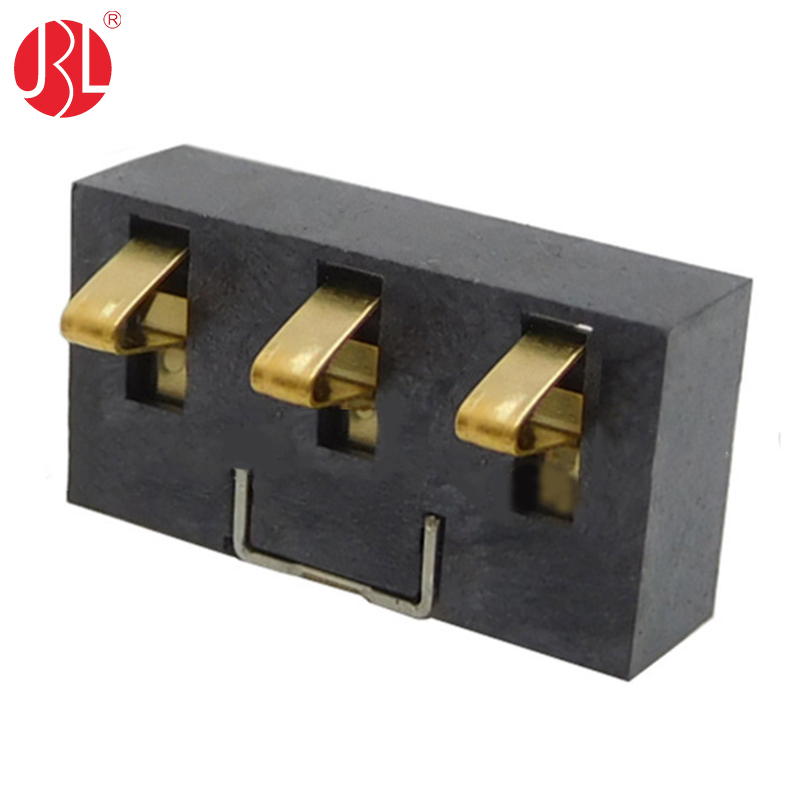

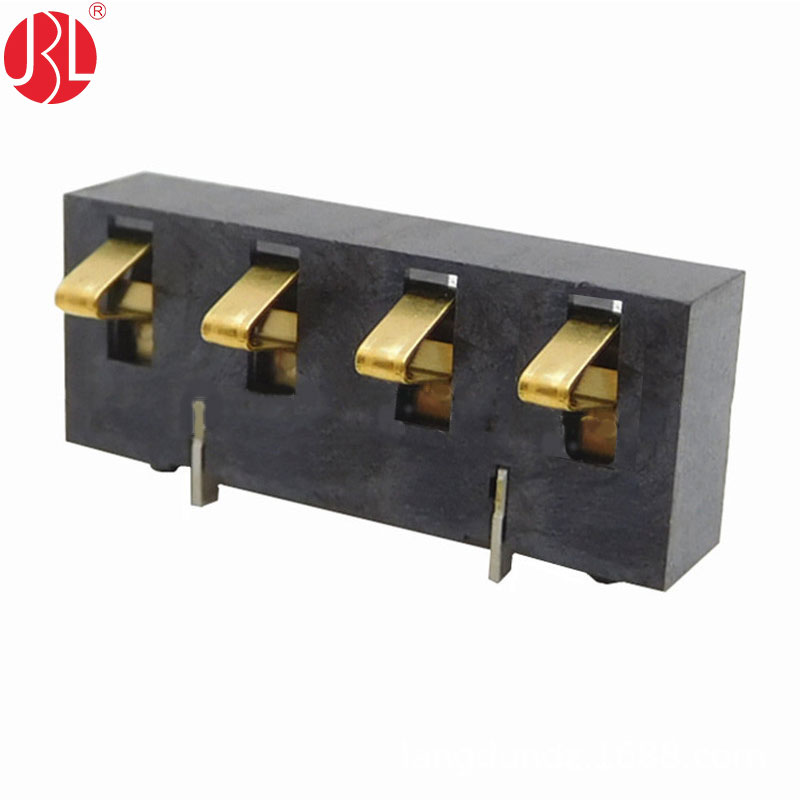

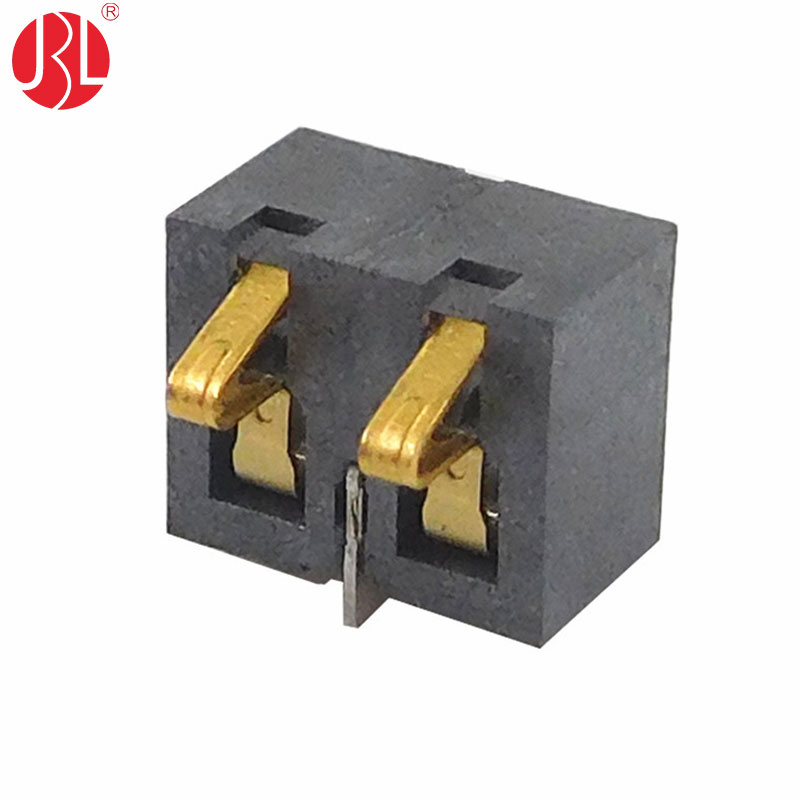

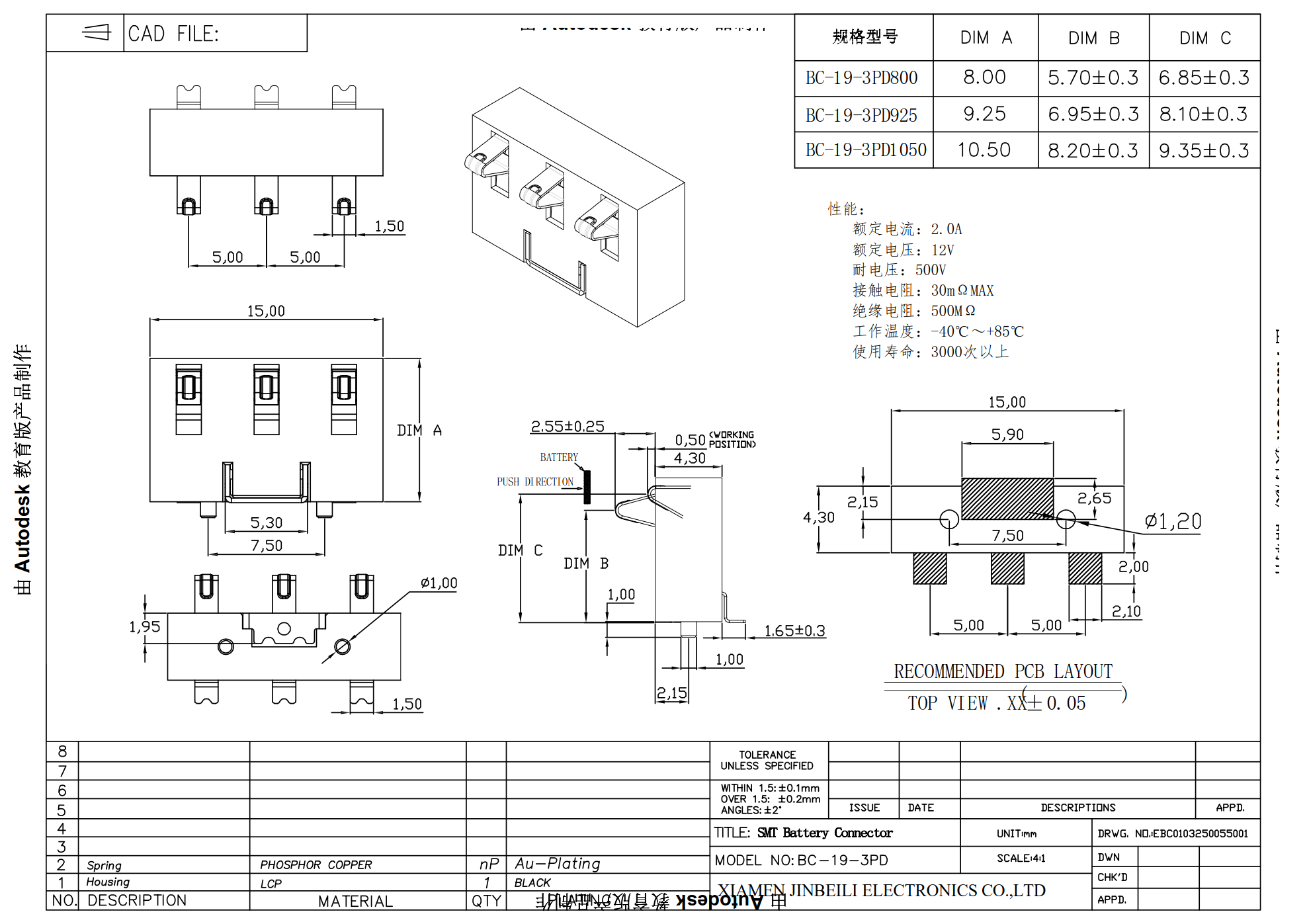

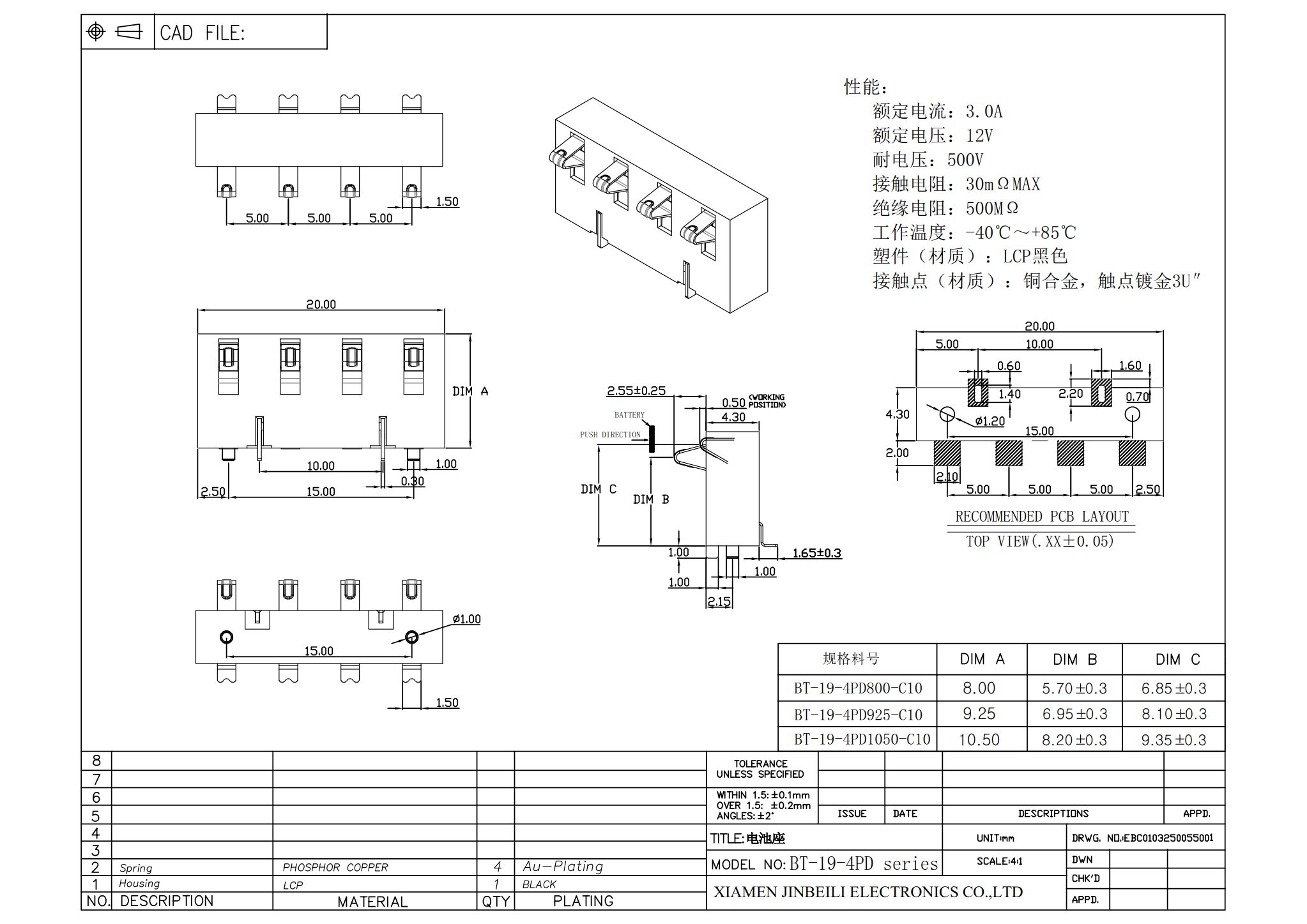

- Contacts Number Options: Available in 2-pin, 3-pin, and 4-pin configurations to accommodate different circuit requirements.
- Insulation Housing Height Options: Three height variations—8.0mm, 9.25mm, and 10.5mm—provide flexibility for diverse enclosure designs.
- Contact Height Options: Three contact heights—5.7mm, 6.95mm, and 8.2mm—ensure compatibility with various battery sizes and thicknesses.
- Surface Mount Right-Angle Design: Enables space-saving PCB mounting, optimizing board layout efficiency.
- Spring-Loaded Contacts: Ensures a firm, low-resistance connection with batteries, minimizing power loss and enhancing durability.
- Power Rating: Rated for DC 12V at 3A, making it suitable for low-to-medium power applications.
- Robust Insulation Housing: Constructed from high-temperature-resistant material for enhanced safety and longevity.
Applications:
- Battery holders for consumer electronics (remote controls, toys, LED devices).
- Power supply modules and backup battery systems.
- Medical devices, IoT gadgets, and industrial control systems.
This Spring Battery Connector offers a reliable, compact, and versatile solution for battery-powered devices, ensuring stable electrical performance and easy integration into various designs.
Previous:
PB-22E69A Push Button Switch 7*7mm THT Hole Right Angle
Next:
BT-21 Series 1.27mm Pitch Spring Battery Connector SMT
3 way spring battery connector 5.0mm pitch 5.0mm pitch spring battery contact surface mount right angle spring battery contact 5.0mm pitch
