PB-22E85S 8.5×8.5mm Push Button Switch SMD DPDT
-
-
-

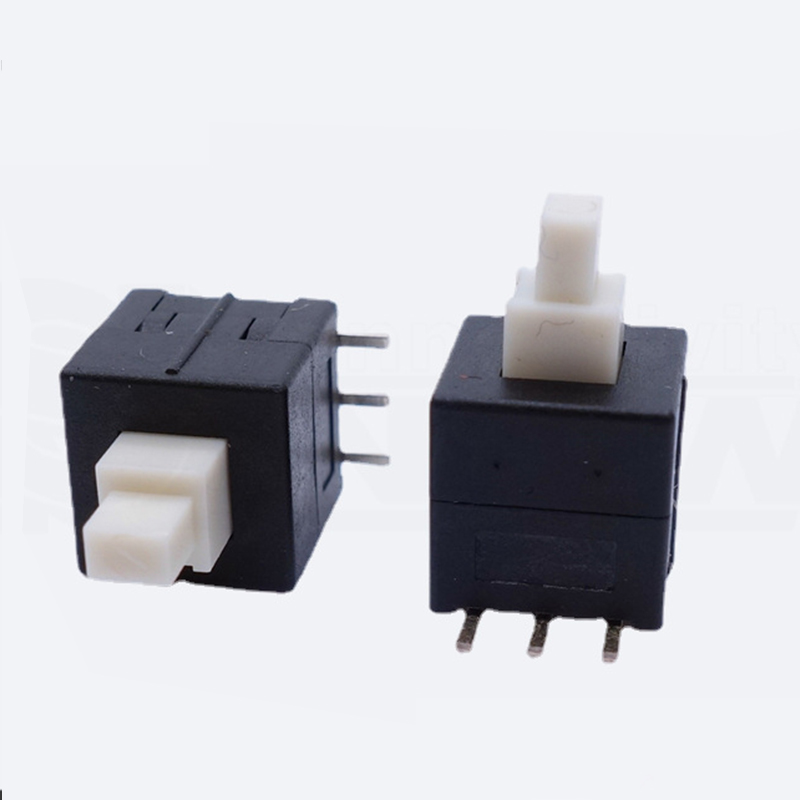

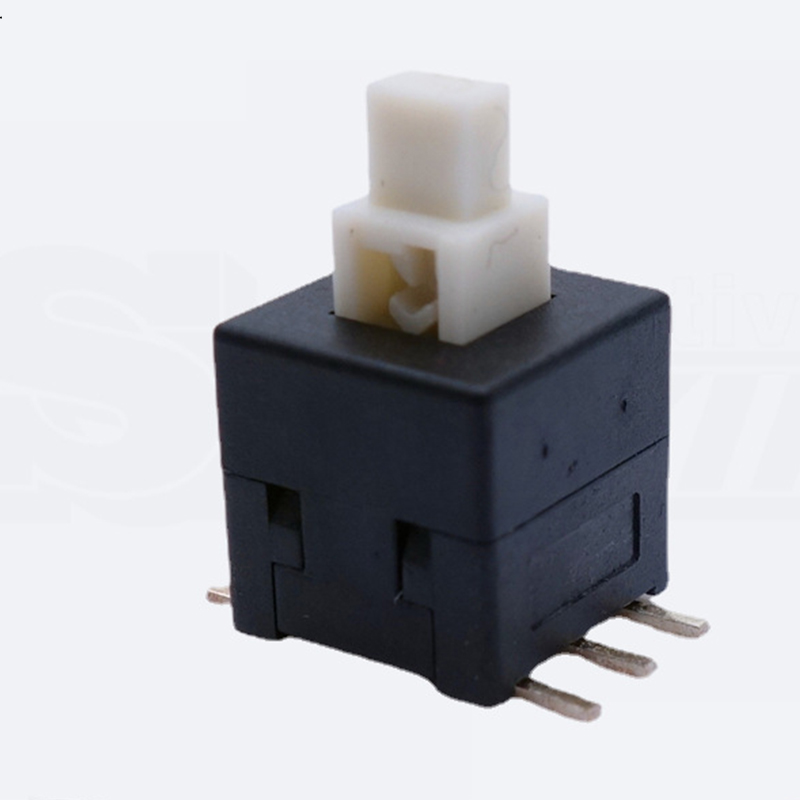

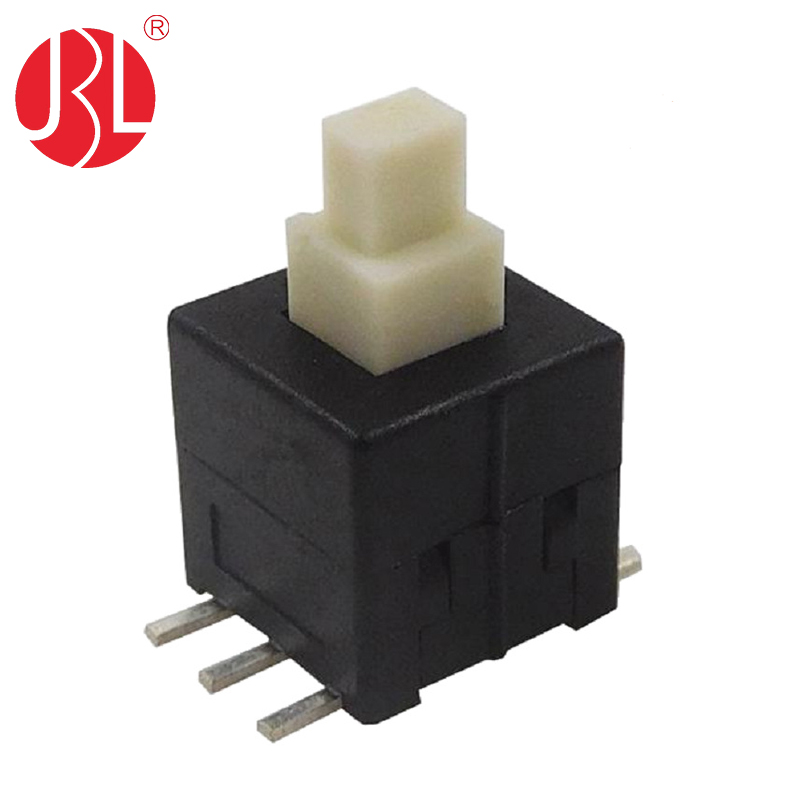

SMD Push Button Switch (DPDT, Momentary & Self-Lock, 8.5×8.5mm)
This surface-mount push button switch features a robust DPDT (Double Pole Double Throw) configuration with a compact 8.5×8.5mm outline. It offers dual function options: momentary for temporary contact and self-lock for a secure, maintained position. Rated for DC12V and 0.2A, this switch is well-suited for various electronic applications requiring reliable switching and versatility. Its SMD design ensures easy integration into modern, space-efficient PCB layouts.
Datasheets :
