PB-22E64NLS1.9 DPDT Push Button Switch Surface Mount
-
-

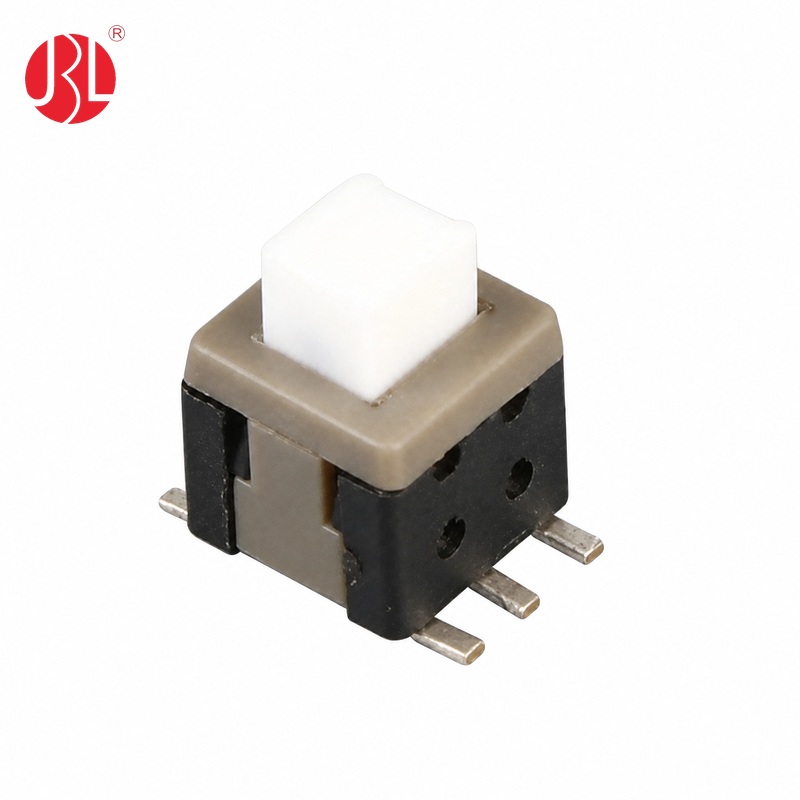

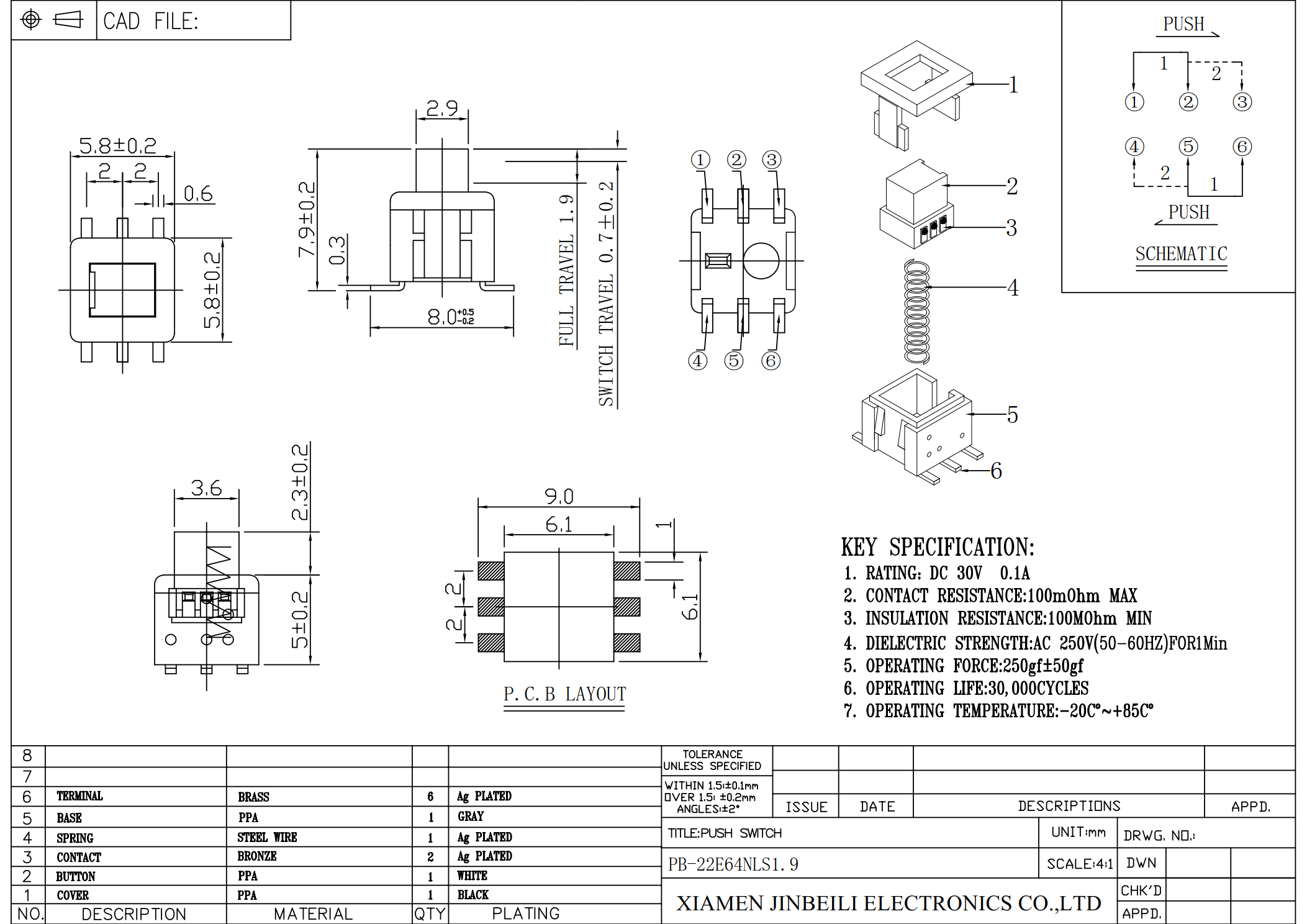

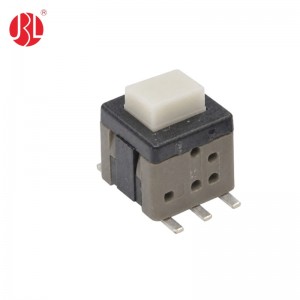

Jinbeili PB-22E64NLS1.9 is a 5.8 × 5.8 mm DPDT SMD push button switch designed for compact consumer electronics and industrial equipment. It features a surface-mount design, DC30V 0.3A rating, 7.9 mm actuator height above PCB, and 30,000-cycle electrical/mechanical life. Two operating-force options, 180gf and 250gf, are available for different tactile requirements.
This miniature DPDT push button switch supports two function options: Momentary (ON-MOM) and Latching (ON-OFF). The latching version provides a self-locking function, while the momentary version returns to its original position after release.
The switch uses a PPA housing, bronze contacts, and brass terminals for reliable electrical connection and mechanical durability. With its compact 5.8 × 5.8 mm footprint and SMD mounting configuration, PB-22E64NLS1.9 is suitable for space-constrained PCB applications.
PB-22E64NLS1.9 has identical dimensions and specifications to the E-Switch TL2233OA, making it a suitable alternative for customers looking for a compatible replacement or second-source solution. Jinbeili can also provide customization and a through-hole DIP version for applications requiring THT assembly.
The switch is RoHS and REACH compliant, and Jinbeili’s factory is ISO 9001 and IATF 16949 certified.
FAQs
1. Can PB-22E64NLS1.9 work as an alternative to E-Switch TL2233OA?
Yes. PB-22E64NLS1.9 has identical dimensions and specifications to the E-Switch TL2233OA and can serve as an excellent alternative for compatible applications.
2. Is this push button switch momentary or latching?
Both options are available. Choose ON-MOM for momentary operation or ON-OFF for latching/self-locking operation.
3. Can you make the switch self-locking instead of momentary?
Yes. Jinbeili offers a latching ON-OFF version with a self-locking function.
4. Do you have a through-hole version instead of the SMD version?
Yes. Jinbeili also offers a 5.8 × 5.8 mm DPDT through-hole DIP push button switch:
https://www.jbl-ec.com/pb-22e60h7-3-5-8×5-8mm-push-button-switch-dpdt-through-hole-dip-product/
5. What are the available operating forces?
The standard operating-force options are 180gf and 250gf.
6. What is the switch rated for?
The electrical rating is DC30V 0.3A.
7. What is the actuator height?
The actuator height is 7.9 mm above the PCB.
8. What is the switch life?
PB-22E64NLS1.9 is rated for 30,000 cycles.
9. What materials are used?
The switch uses a PPA housing, bronze contacts, and brass terminals.
10. Is the switch suitable for industrial applications?
Yes. It is designed for consumer electronics and industrial equipment, especially applications requiring a compact DPDT SMD push button switch.
