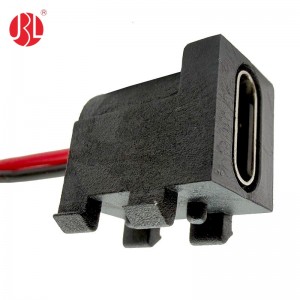

Jinbeili USB-C-005-24-2C Overmolded Snap-Fit USB Type-C Jack

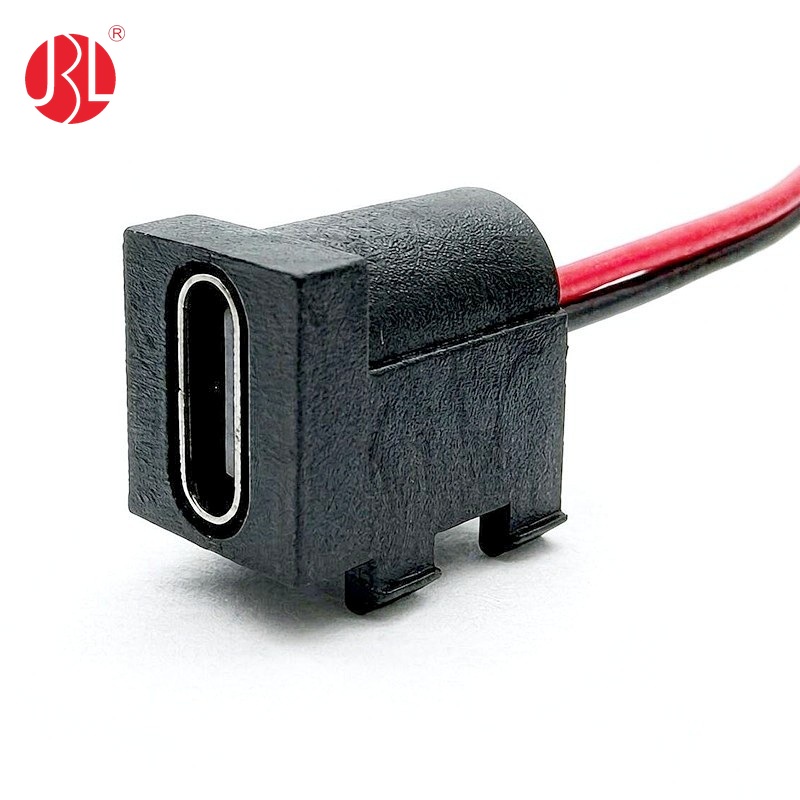

Jinbeili USB-C-005-24-2C is an overmolded snap-fit USB Type-C female connector designed for DC power input applications. Rated up to DC30V 5A maximum, this USB-C jack provides a high-current alternative to traditional DC barrel power jacks while maintaining a compact and easy-to-assemble design.

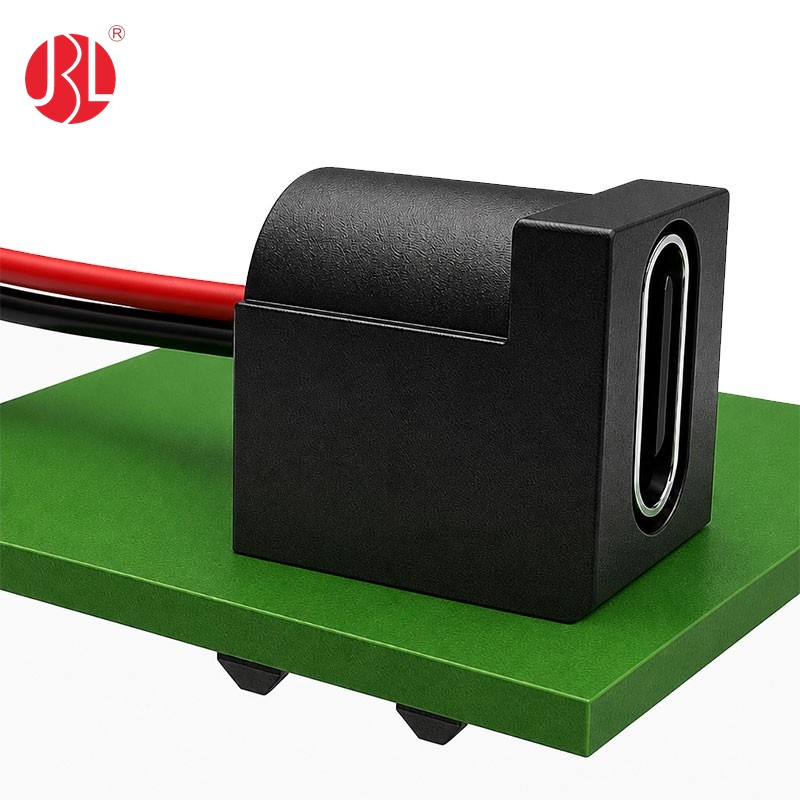

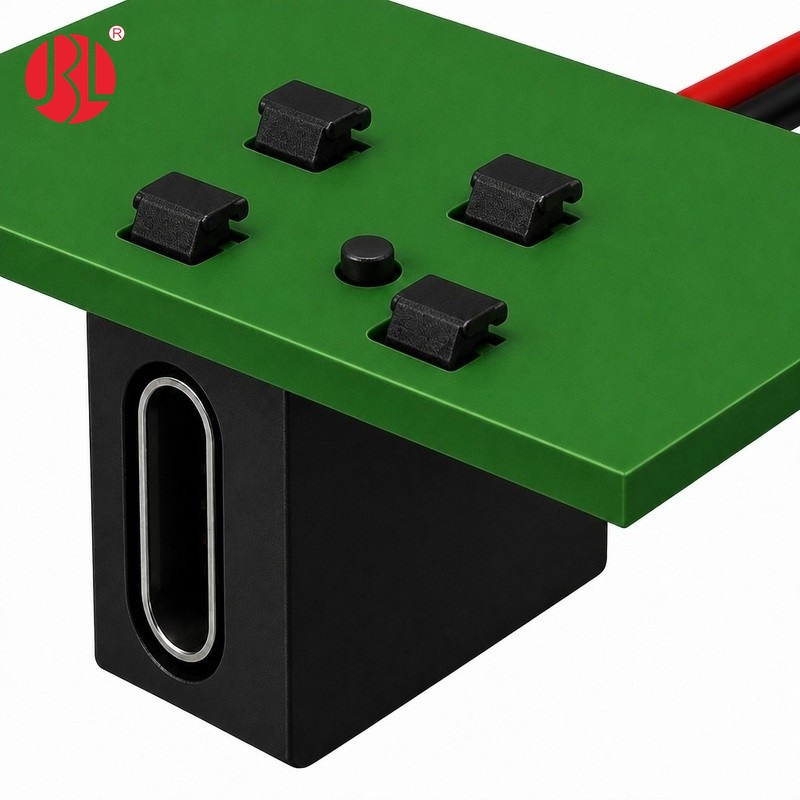

The connector features four cantilever snap-fit joints that securely lock the USB-C jack into the PCB, simplifying assembly without additional screws or mounting hardware. Wire options include 26AWG, 24AWG, and 22AWG, with customizable wire lengths from 50mm to 1000mm.

A major advantage of the USB-C-005-24-2C overmolded USB-C power connector is its identical dimensions to several popular DC barrel jacks, including Würth Elektronik 694106301002 and 694108301002, Kycon KLDX-0202-A and KLDX-0202-B, Tensility 54-00167, and CLIFF Electronic FC68149. This enables designers to convert an existing DC barrel power connector to a USB-C female jack without changing the existing enclosure cutout or PCB layout, subject to mechanical and electrical verification.

Jinbeili can also customize the USB-C circuit according to application requirements. Available configurations can include a 5.1KΩ pull-down resistor from CC1/CC2 to GND, 56KΩ pull-up resistors from VBUS to CC lines, and USB-C PD trigger circuits. Other USB-C configurations can be evaluated according to customer requirements.

The USB-C-005-24-2C is suitable for consumer electronics, industrial equipment, embedded devices, DC power input interfaces, and other applications requiring a USB-C power connector.

The connector is RoHS and REACH compliant, and the Jinbeili factory is ISO 9001 and IATF 16949 certified.

Frequently Asked Questions

1. Does the USB-C-005-24-2C have the same dimensions as Würth 694106301002?
Yes. It has identical dimensions, allowing designers to use the USB-C jack without changing the existing enclosure cutout, subject to final mechanical verification.

2. Can I replace a DC barrel jack with this USB-C connector?
Yes. It is specifically designed to make DC barrel jack to USB-C conversion easier while retaining the existing enclosure cutout and PCB layout.

3. Can it handle DC30V 3A?
Yes. The maximum rating is DC30V 5A, so DC30V 3A is within the stated maximum rating.

4. What wire gauges are available?
The available wire options are 26AWG, 24AWG, and 22AWG.

5. What wire lengths can be customized?
Wire lengths can be customized from 50mm to 1000mm.

6. Can the USB-C circuit be customized?
Yes. Jinbeili can customize the circuit, including 5.1KΩ CC-to-GND pull-down resistors, 56KΩ VBUS-to-CC pull-up resistors, and PD trigger circuits according to application requirements.

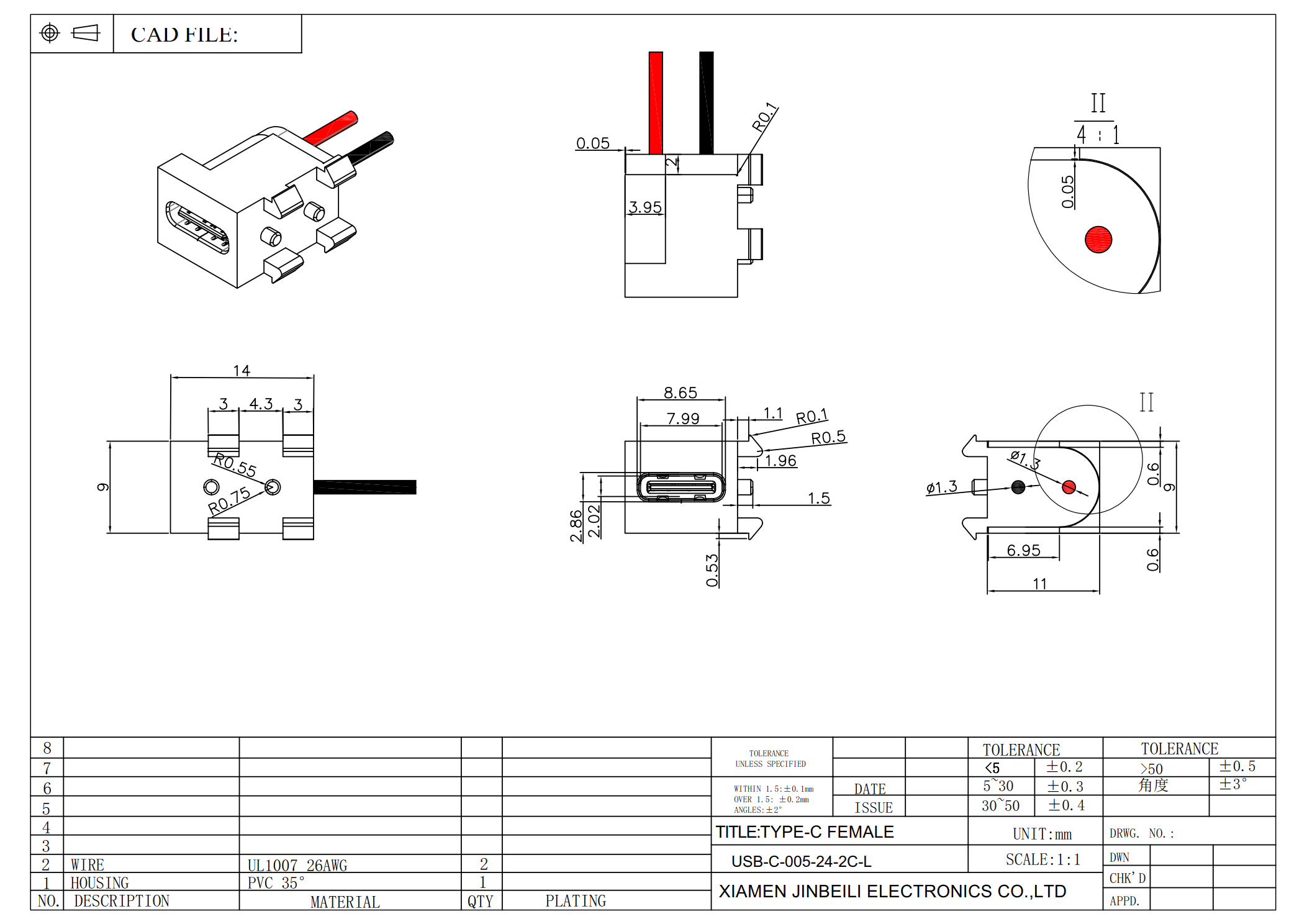

7. Can you provide a STEP file?
Yes. Jinbeili can provide a STEP 3D CAD file for mechanical design and enclosure integration. Please contact jbl09@jblec.com to request the file.

8. Is this USB-C jack RoHS and REACH compliant?
Yes. The USB-C-005-24-2C is RoHS and REACH compliant.

9. What are the typical applications?
Typical applications include consumer electronics, industrial equipment, DC power input interfaces, embedded electronic devices, and products being converted from DC barrel power connectors to USB-C power connectors.
