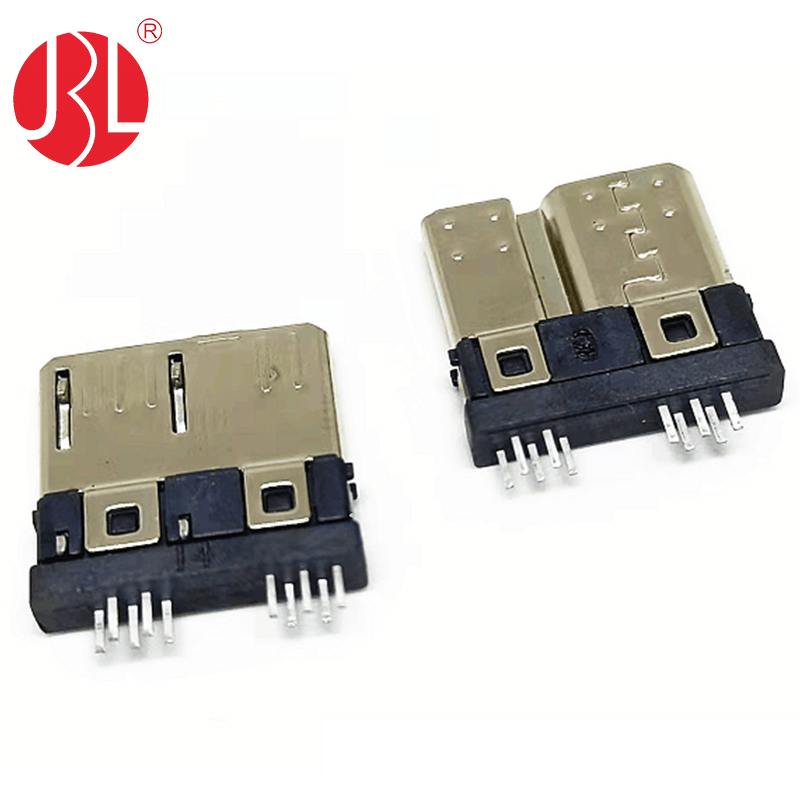

The Jinbeili USB-M-10M-3.0 Micro USB 3.0 Male Connector Plug is a 10-position, through-hole vertical USB connector designed for reliable PCB mounting in consumer electronics and industrial equipment. Rated for DC 30V and 1.8A, this Micro USB 3.0 male plug features bronze terminals for electrical connectivity and an LCP insulation housing for dependable performance.

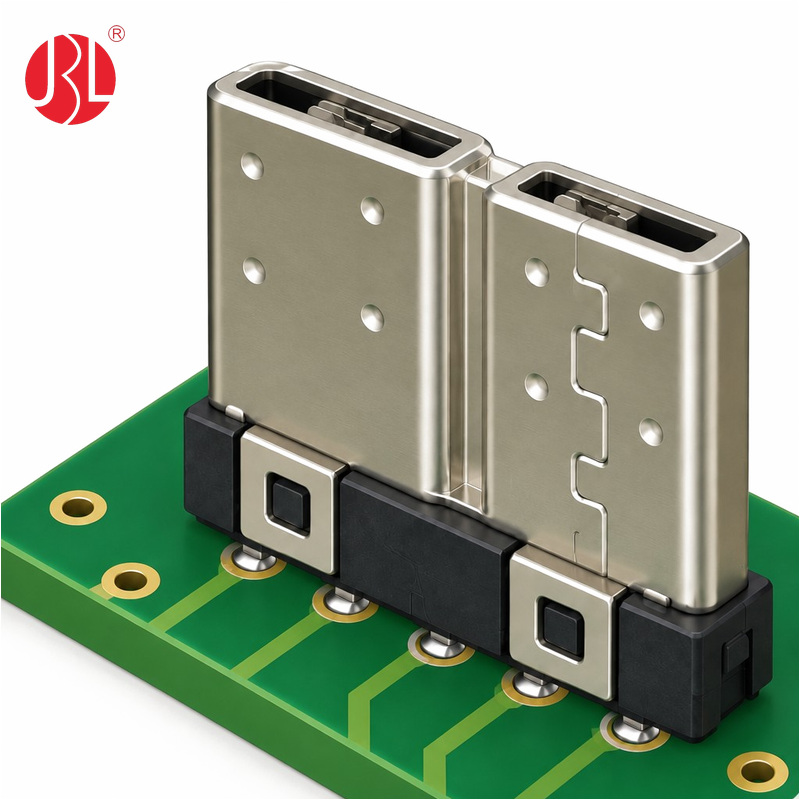

With its vertical PCB mounting design, this connector is suitable for electronic devices requiring a compact, board-mounted Micro USB 3.0 interface. Jinbeili provides customized USB connector solutions to meet different PCB layouts and mounting requirements.
The USB-M-10M-3.0 Micro USB 3.0 male connector is RoHS and REACH compliant. It is manufactured by a factory certified to ISO 9001 and IATF 16949 quality management standards, supporting consistent quality for OEM and industrial applications.
Frequently Asked Questions (FAQs)
Q1: Can the USB-M-10M-3.0 Micro USB 3.0 connector be used for board-edge straddle mounting?
No. We do not recommend this model for board-edge straddle mounting because its terminals are thinner and are not designed for this mounting method. Jinbeili offers another Micro USB connector model with wider terminals specifically designed for straddle mounting.
Q2: Can this connector replace the CUI Devices UP3-MIBV-4-CM USB connector?
No. The CUI Devices UP3-MIBV-4-CM is a free-hanging connector, whereas the Jinbeili USB-M-10M-3.0 is a vertical through-hole PCB-mounted connector. Jinbeili offers another model designed for free-hanging applications. Please contact us for a suitable alternative.
Q3: What are the electrical ratings of this Micro USB 3.0 male connector?
The rated voltage is DC 30V, and the rated current is 1.8A.
Q4: Is the USB-M-10M-3.0 compliant with RoHS and REACH?
Yes. This connector is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory.
