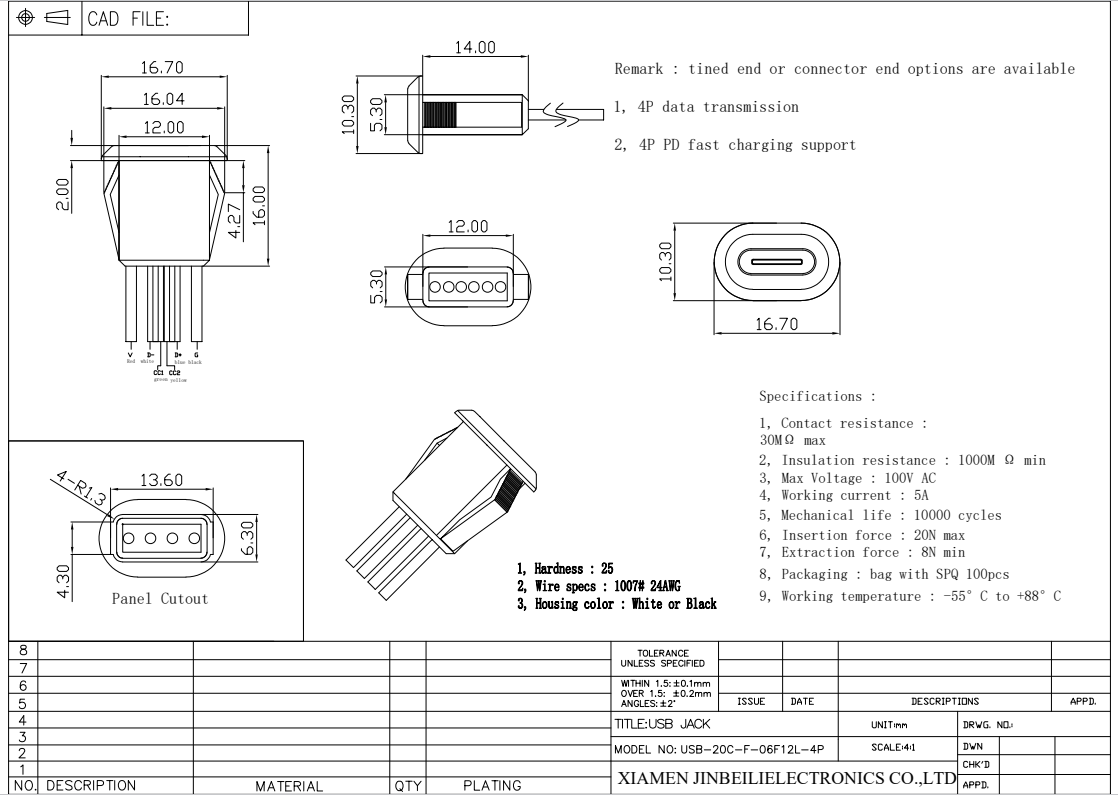

This snap-in panel mount USB Type-C female connector is a versatile and reliable solution designed for a wide range of power and data applications. With a rated capacity of DC 30V and 3A, it is suitable for low- to medium-power devices requiring stable and secure connectivity. The snap-in panel design allows for quick and easy installation, making it ideal for enclosures, control panels, and custom electronic assemblies.

To meet diverse application needs, this USB Type-C jack is available in multiple pin configuration options. Option 1 provides a simple power interface with VBUS and GND. Option 2 (4-pin) adds USB 2.0 data functionality with VBUS, GND, D+, and D-. Option 3 (6-pin) includes VBUS, GND, D+, D-, and CC1/CC2 pins for USB Type-C configuration channel support. Option 4 (6-pin) offers VBUS, GND, D+, D-, and SUB1/SUB2, while Option 5 (6-pin) combines VBUS, GND, D+, D-, with merged SUB and CC signal lines for customized applications.

This connector can be manufactured with or without integrated resistors. For designs requiring USB Type-C standard detection, it can include dual 5.1kΩ pull-down resistors. For specific charging protocols, pull-up resistor options of 10kΩ, 22kΩ, or 56kΩ (CC to VBUS) are available, enabling compatibility with devices such as newer smartphone models. Additionally, an integrated Power Delivery (PD) trigger circuit can be incorporated to provide selectable output voltages, including 9V, 12V, or 24V.

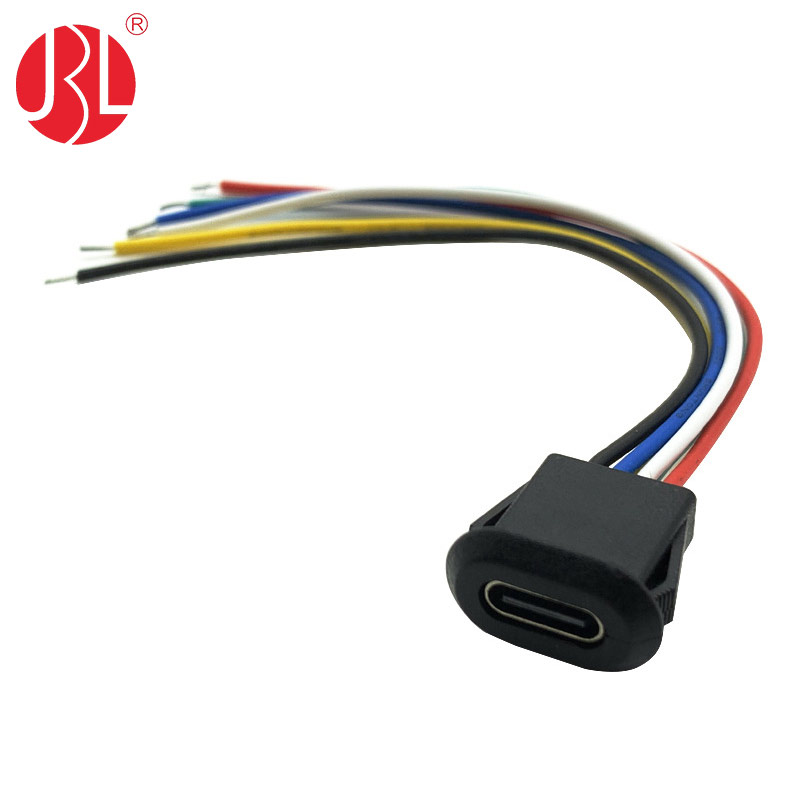

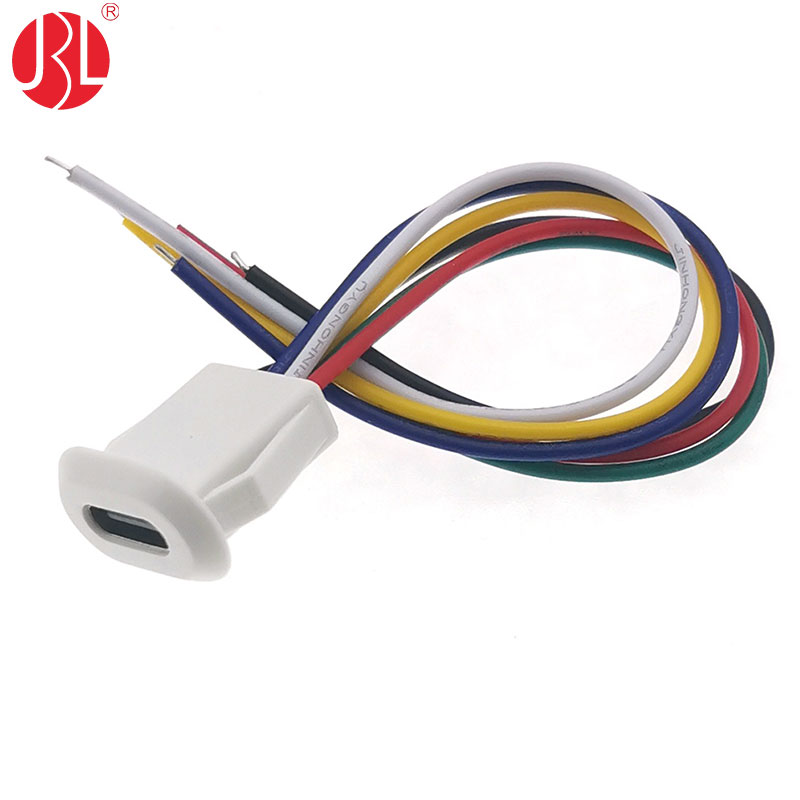

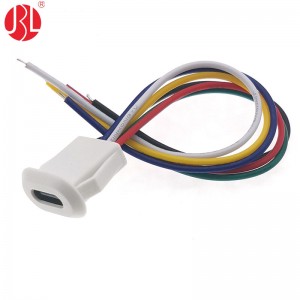

Flexible wiring options further enhance adaptability. Cable lengths can be customized from 50mm to 1000mm, with wire gauge options including 22AWG, 24AWG, and 26AWG to suit different current and space requirements. The assembly can also be configured as a USB Type-C female-to-male cable by adding a USB Type-C plug on the opposite end.

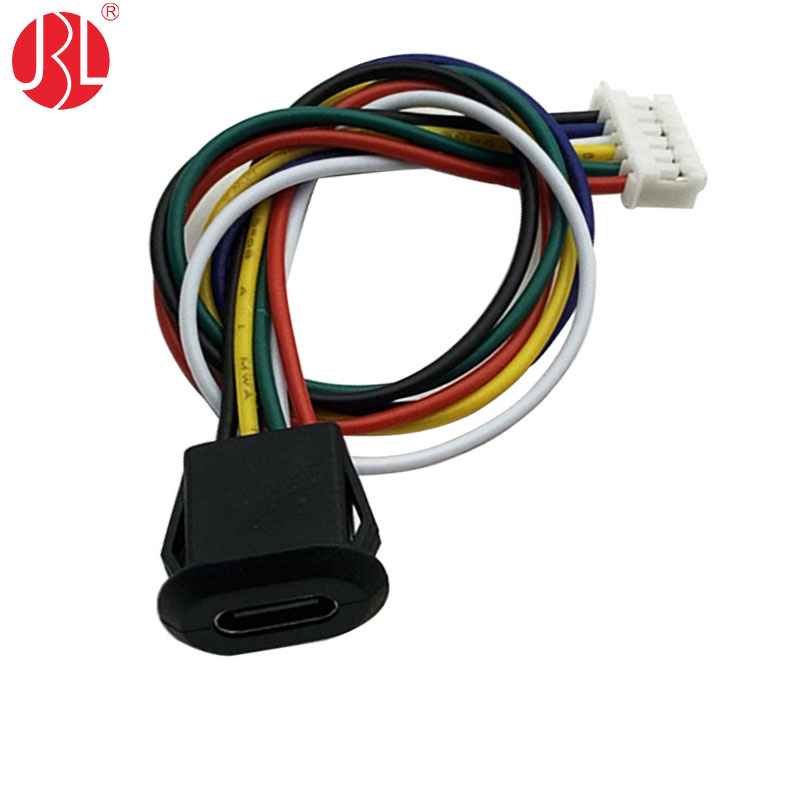

For seamless integration with PCBA systems, the connector can be terminated with various crimp connectors, such as JST PH, JST XH, or Molex 2.0mm pitch connectors. This makes it an excellent choice for OEM and custom electronic design projects requiring flexibility, reliability, and ease of installation.

FAQs:

Q1: Can you make this snap fit panel mounting USB C 4 wires with JST XH connector?

A1: Yes, we can.  we are able to make it with different crimp connectors including JST and molex

Q2: Can you please share STEP file of the USB C female connector?

A2: Of course, kindly contact me : sales08@jblec.com

Q3: Is 20AWG wire available for this USB C Jack

A3:  I am sorry, it isn’t.  20AWG wire would be too thick to doing overmolding.

Q4: what would be the lead time of samples

A4:  Normally 7 days

Q5: Can you make this USB C jack with a USB Plug?

A5:  yes, we can make a USB C Female to male cable .

Q6: Can you make this USB C jack CC1 & CC2 connected together with a 5.1K resitor?

A6:  yes, we can combine with a 5.1K resitor
