DC Power Jack Socket – Jinbeili DC-022P Round Snap-Fit Panel Mount

This DC power jack socket DC-022P  is a round, snap-fit panel mount DC barrel jack designed for reliable DC power input in electronic equipment, control panels, power supplies, audio equipment, LED lighting, and other low-voltage applications. It features 3 solder terminals with a normally closed (NC) switching contact on GND.

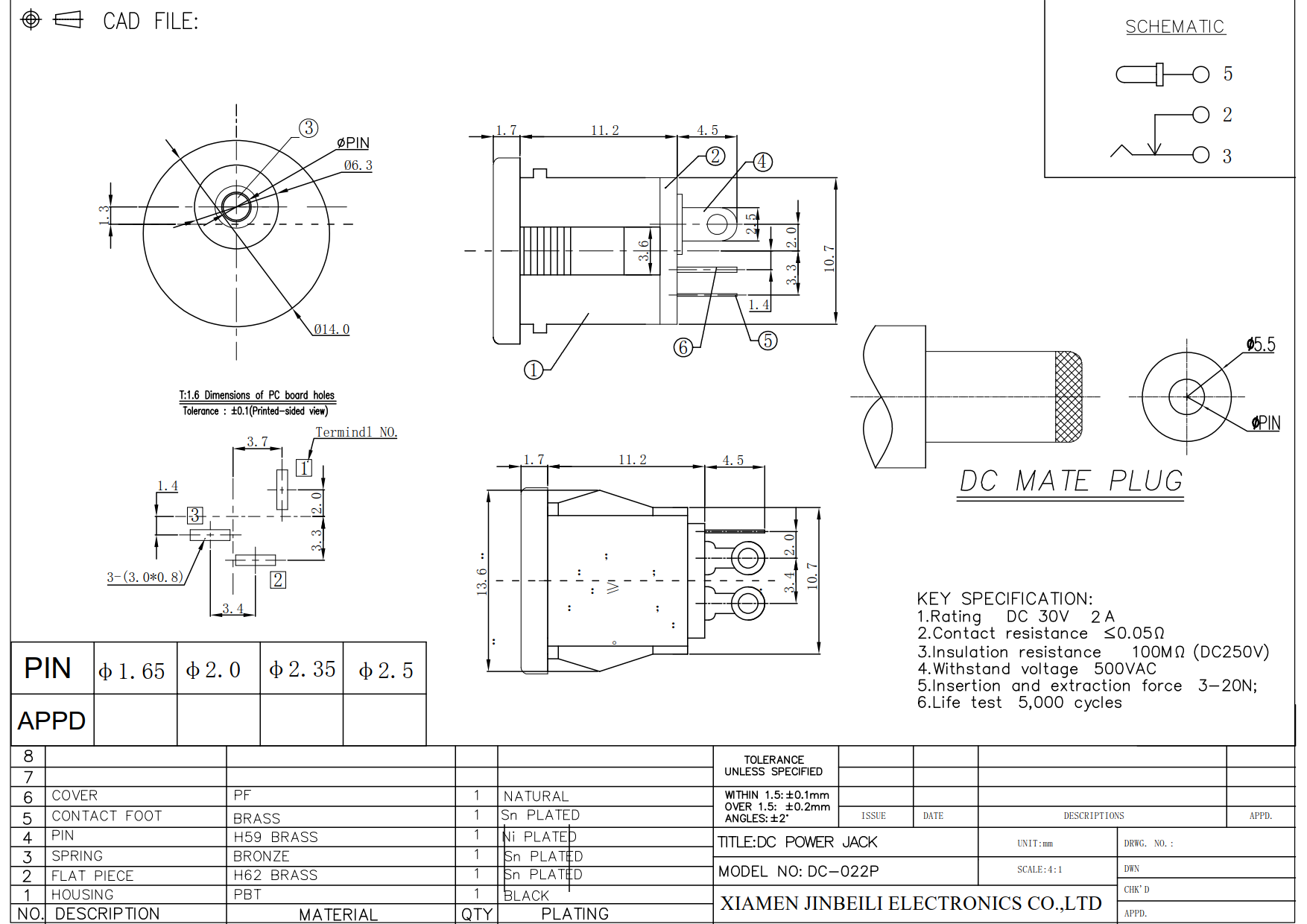

The DC power jack is rated for DC 30V, 2A and is available with four center pin sizes: 1.65mm, 2.0mm, 2.35mm, and 2.5mm. The housing is made from durable PBT material, and the terminals are made from brass for good electrical conductivity and mechanical strength.

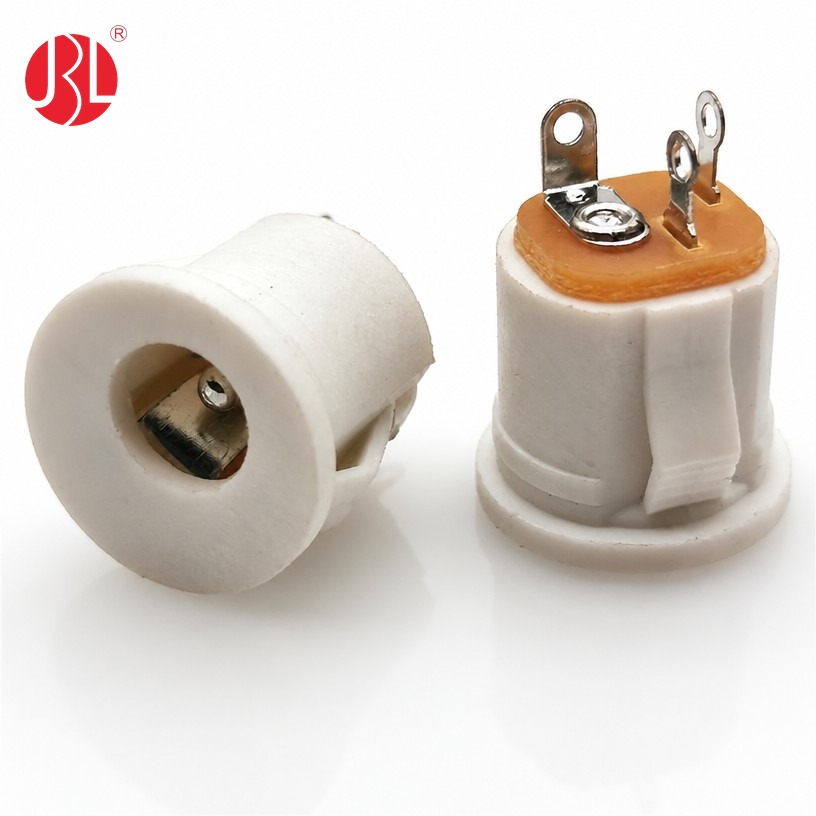

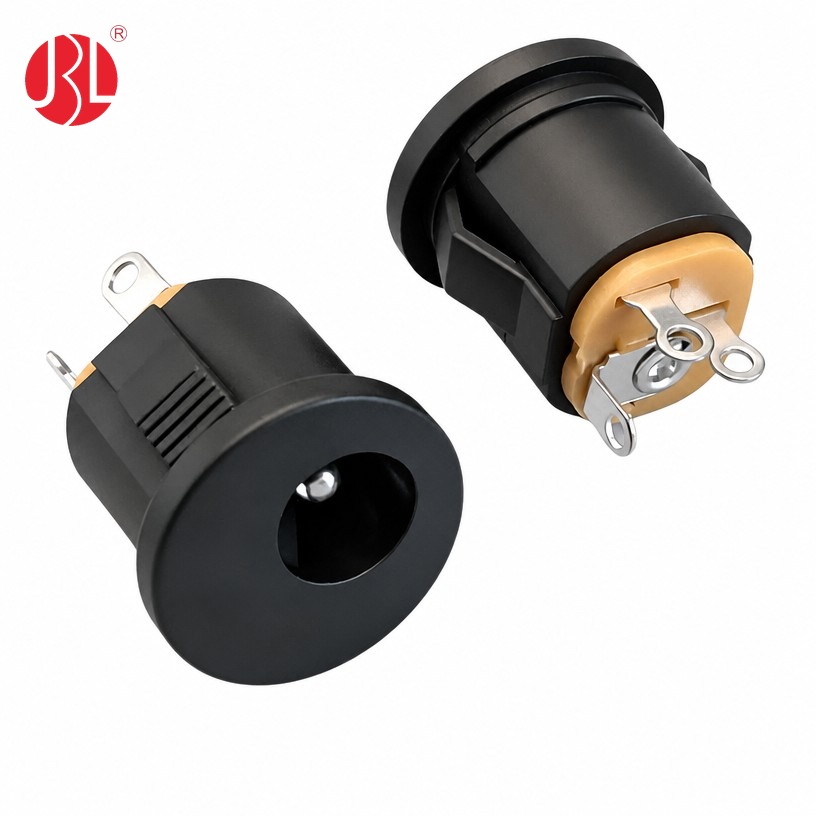

The round snap-in panel mount design allows fast and convenient installation into a compatible panel. The DC jack socket is available in black or white to match different product designs and enclosures.

The product is RoHS and REACH compliant, supporting environmental and regulatory requirements for electronic components. It is manufactured by an ISO 9001 and IATF 16949 certified factory, providing quality management and automotive-industry quality assurance.

RFQ / Buyer Questions

What is the power rating?
The DC power jack is rated at DC 30V, 2A.

What center pin sizes are available?
Available center pin options are 1.65mm, 2.0mm, 2.35mm, and 2.5mm.

How many terminals does the DC jack have?
It has 3 solder terminals.

Does it have a switching function?
Yes. It has a normally closed (NC) switch on the GND terminal.

What is the mounting type?
It is a round snap-fit panel mount DC power jack socket.

What material is the housing?
The housing is made from PBT.

What material are the terminals?
The terminals are made from brass.

What colors are available?
The jack housing is available in black and white.

Is the DC power jack RoHS and REACH compliant?
Yes. The product is RoHS and REACH compliant.

Is the factory ISO certified?
Yes. The product is manufactured by a factory certified to ISO 9001 and IATF 16949 quality management standards.

Can this DC power jack be customized?
Customization can be discussed according to mounting dimensions, terminal configuration, electrical requirements, color, and other application-specific requirements.
