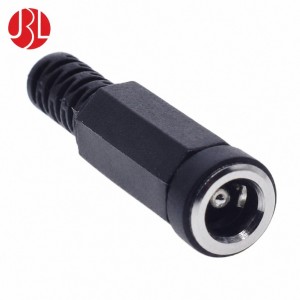

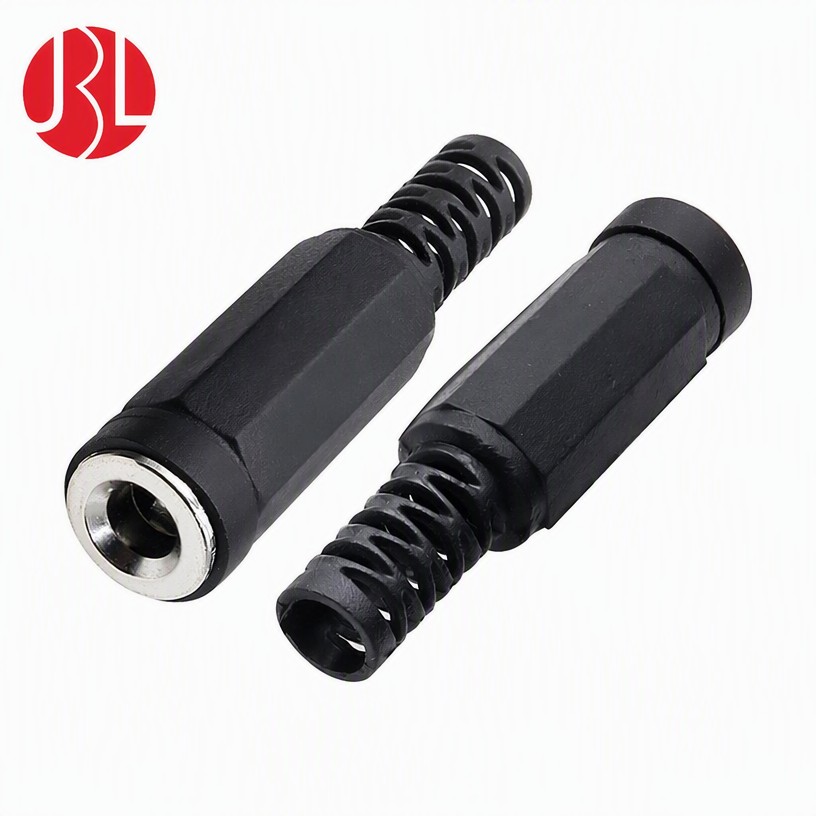

Jinbeili DC5521-F-L40 DC Power Jack Cable Mount
Q: What is the product?
A: The Jinbeili DC5521-F-L40 is a free-hanging, in-line DC power jack, also called a DC power socket, DC barrel jack, or DC receptacle. It is designed for in-line wire connection and easy soldering.
Q: What is the Jinbeili part number?
A: The part number is DC5521-F-L40.
Q: What type of DC jack is it?
A: It is a free-hanging, cable mounted DC power socket with wire leads, designed for cable assembly and direct soldering.
Q: What is the electrical rating?
A: The DC power jack is rated at DC 30V, 2A.
Q: What center-pin dimensions are available?
A: Available center-pin options are 5.5 × 2.1 mm, 5.5 × 2.5 mm, and 3.5 × 1.3 mm.
Q: What is the wire length?
A: The standard wire length is 40 mm.
Q: Is this DC jack suitable for soldering?
A: Yes. The free-hanging in-line design is suitable for easy soldering, wire connection, cable assembly, replacement, repair, and prototype applications.
Q: What applications can use this DC power socket?
A: Typical applications include LED lighting, CCTV equipment, consumer electronics, power cables, electronic devices, control equipment, battery-powered equipment, and other low-voltage DC applications.
Q: Is the DC5521-F-L40 compatible with the Samesky CUI PR-002A?
A: The Jinbeili DC5521-F-L40 has the same dimensions and specifications as the Samesky CUI PR-002A, making it an equivalent option for applications requiring the same connector specifications.
