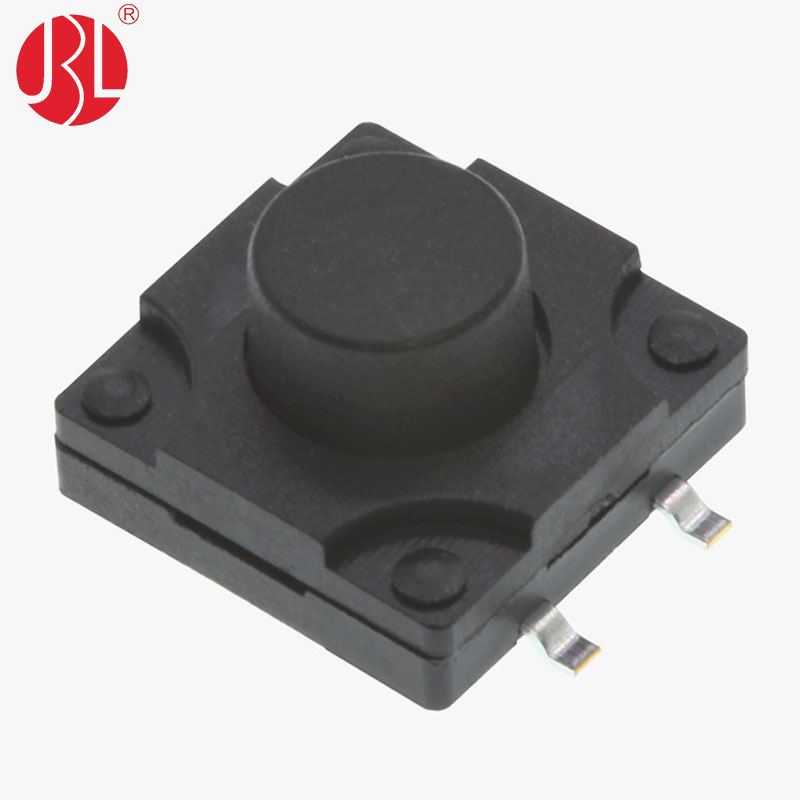

TS-00120 IP67 Waterproof Tactile Switch 12*12 mm SMT
-
-
This tactile switch is a surface mount technology (SMT) component featuring a robust 12x12mm footprint. It boasts an IP67 rating, ensuring a high level of waterproof protection, making it suitable for outdoor and harsh environment applications.
The switch features a single-pole, single-throw (SPST) configuration for straightforward on/off switching. Its actuator height can be customized, ranging from 4.3mm to 14mm above the printed circuit board (PCB), offering flexibility in design and installation.
Furthermore, the switch offers multiple operation force options: 120gf, 180gf, and 250gf. This allows designers to choose the right tactile feedback and activation force for their specific application needs.
Overall, this tactile switch combines reliability, versatility, and a high level of waterproof protection in a compact SMT package, making it an excellent choice for electronic projects requiring robust and dependable switching performance in challenging environments.
Previous:
TCF-062 6.3*6.4mm IP67 Tactile Switch Through Hole
Next:
TC-00180 8.0*8.0mm Waterproof Tactile Switch Through Hole
12*12 tactile switch 12mm ip67 tact switch waterproof 12*12mm tact switch smd
