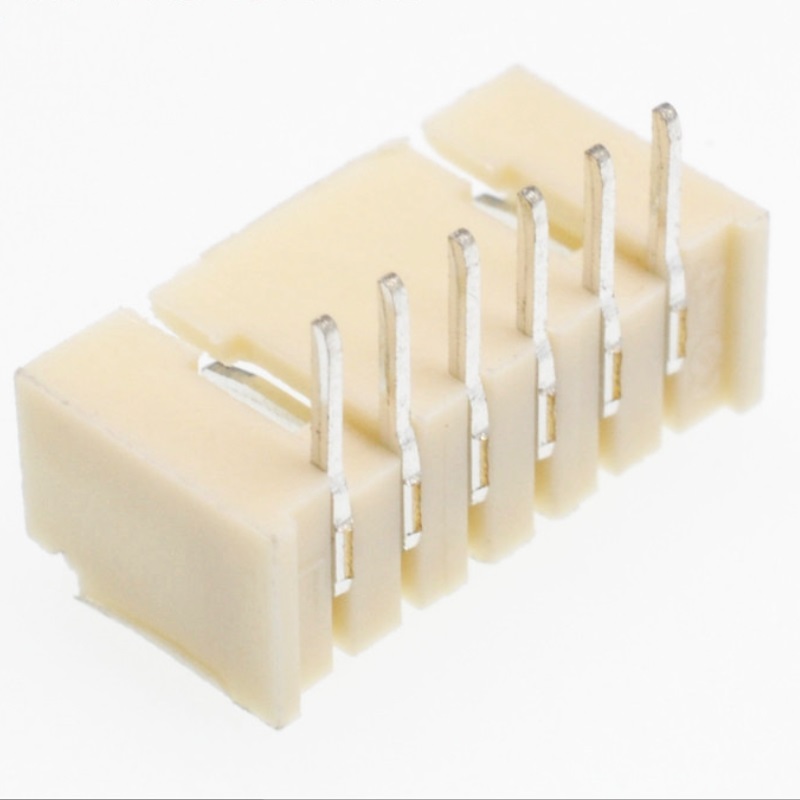

MX1.25 1251 series wire to board connector header 1.25mm Horizontal type 1251S through hole DIP

Product Descriptions :

Product name : Connector Header Through Hole, Right Angle 7 position 0.049″ (1.25mm)
1.25mm Pitch Miniature Crimping Connector

Model: MX1.25-nA

Features : Horizontal type through hole

Applicable wire : 2630 : 26 to 30 AWG

3032 : 30 to 32 AWG

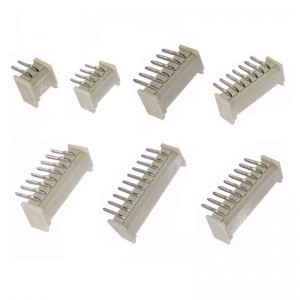

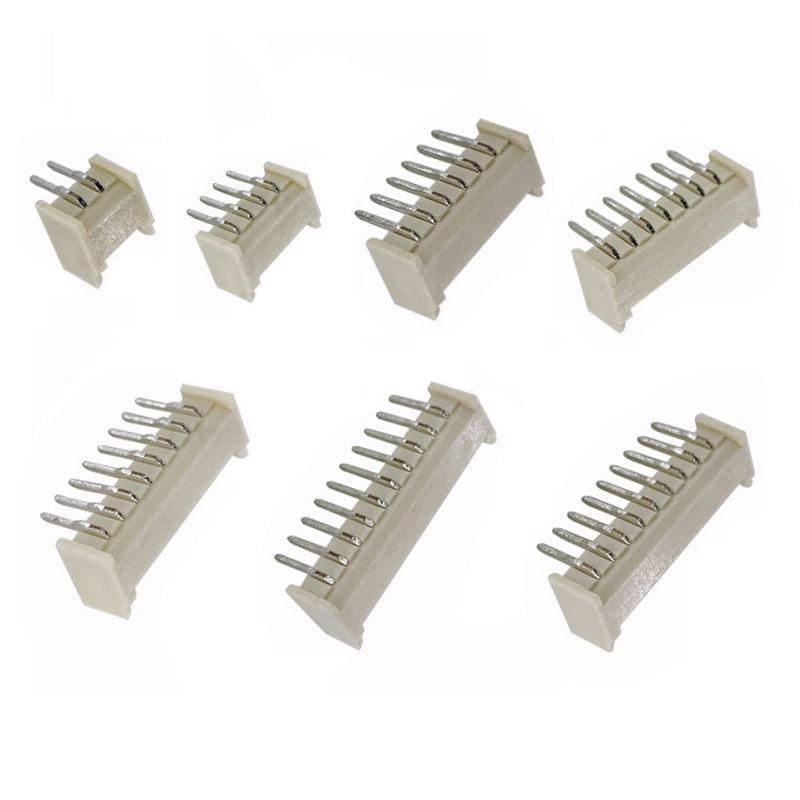

Position Numbers : 02pin to 16pin customized as buyer’s request

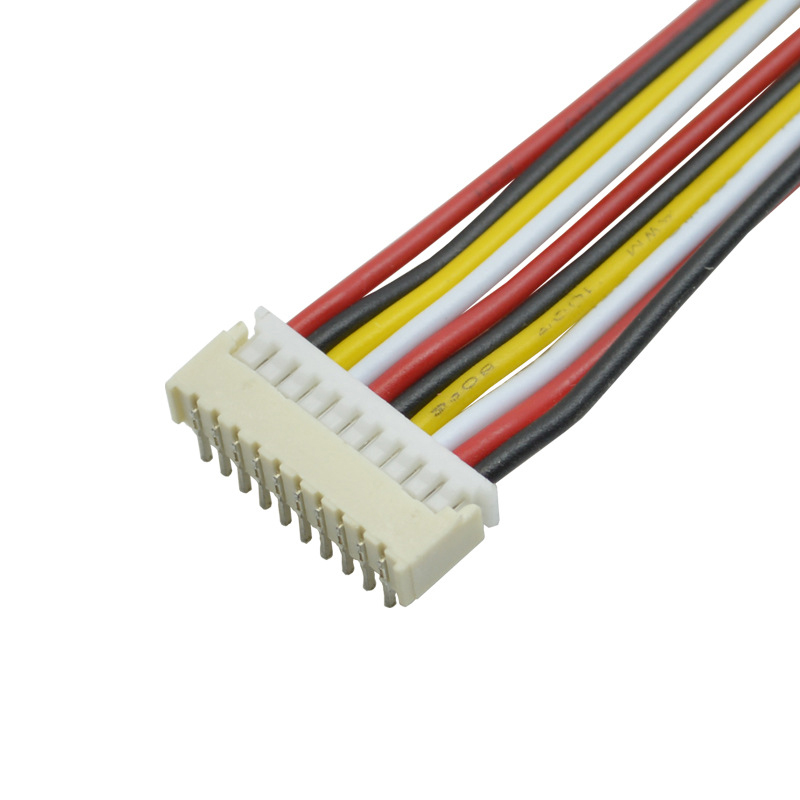

Style : Board to Cable/Wire

Contact Type : Outer Shroud Contact

Fastening Type: Push-Pull

Current Rating (Amps) : 1A AC DC (AWG #32)

Voltage Rating: 150V AC/DC, 29.9V AC/DC

Contact Resistance: Initial Value 30mΩ Max

Insulation Resistance: 500MΩMin

Dielectric Strength: AC 500V for 1min

Working Temp : -25°C~+85°C

Package : Tape & Reel (TR)

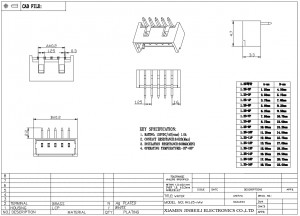

Datasheets :
