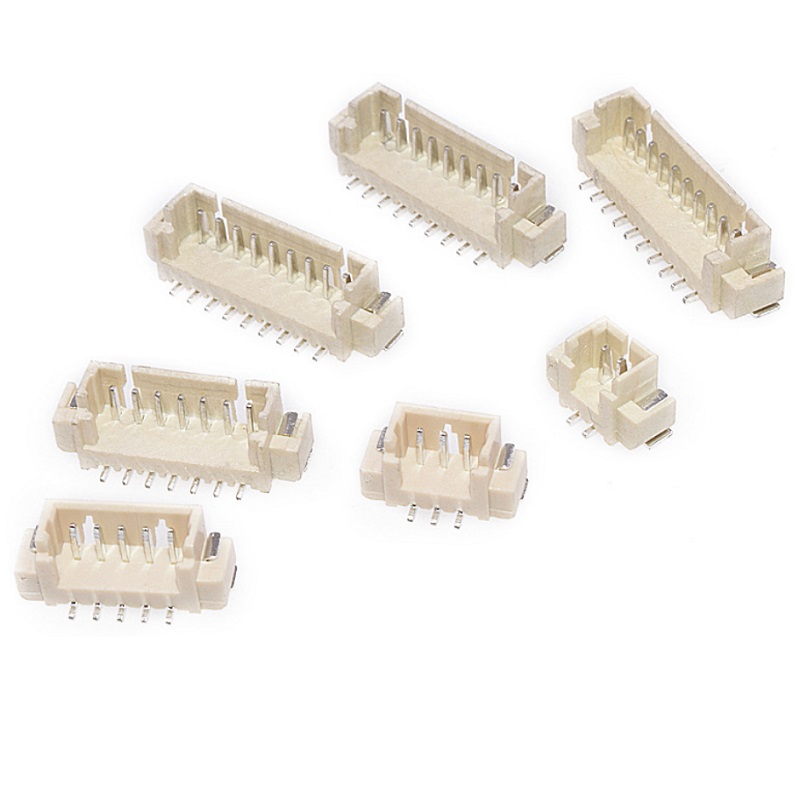

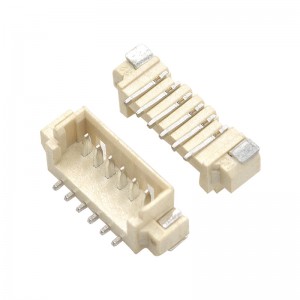

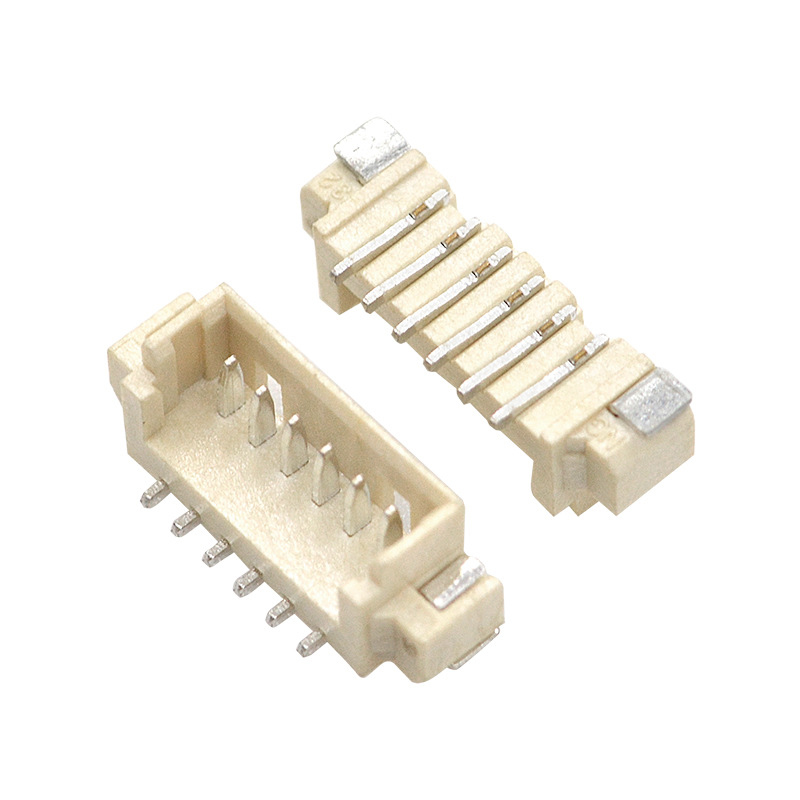

MX1.25 Connector Header Surface Mount vertical SMT

Product Descriptions :

Product name : Connector Header Through Hole, Right Angle 7 position 0.049″ (1.25mm)
1.25mm Pitch Miniature Crimping Connector

Model: 1.25T-1-LT-nA

Features : Horizontal type through hole

Applicable wire : 2630 : 26 to 30 AWG

3032 : 30 to 32 AWG

Position Numbers : 02pin to 16pin customized as buyer’s request

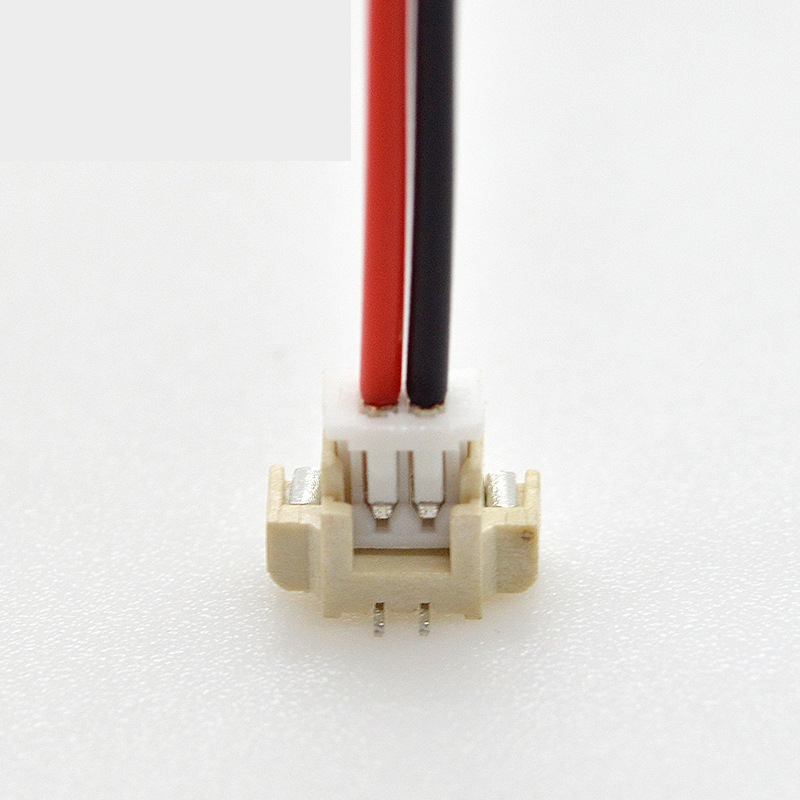

Style : Board to Cable/Wire

Contact Type : Outer Shroud Contact

Fastening Type: Push-Pull

Current Rating (Amps) : 1A AC DC (AWG #32)

Voltage Rating: 150V AC/DC, 29.9V AC/DC

Contact Resistance: Initial Value 30mΩ Max

Insulation Resistance: 500MΩMin

Dielectric Strength: AC 500V for 1min

Working Temp : -25°C~+85°C

Package : Tape & Reel (TR)

Replacement part :125SH-A-02-TS-SMT,125SH-A-05-TS-SMT,125SH-A-03-TS-SMT,DF13-10P-1.25V(75),DF13B-5P-1.25V(75),DF13-6P-1.25V(76),DF13B-6P-1.25V(76),DF13C-8P-1.25V(76),DF13C-10P-1.25V(76),

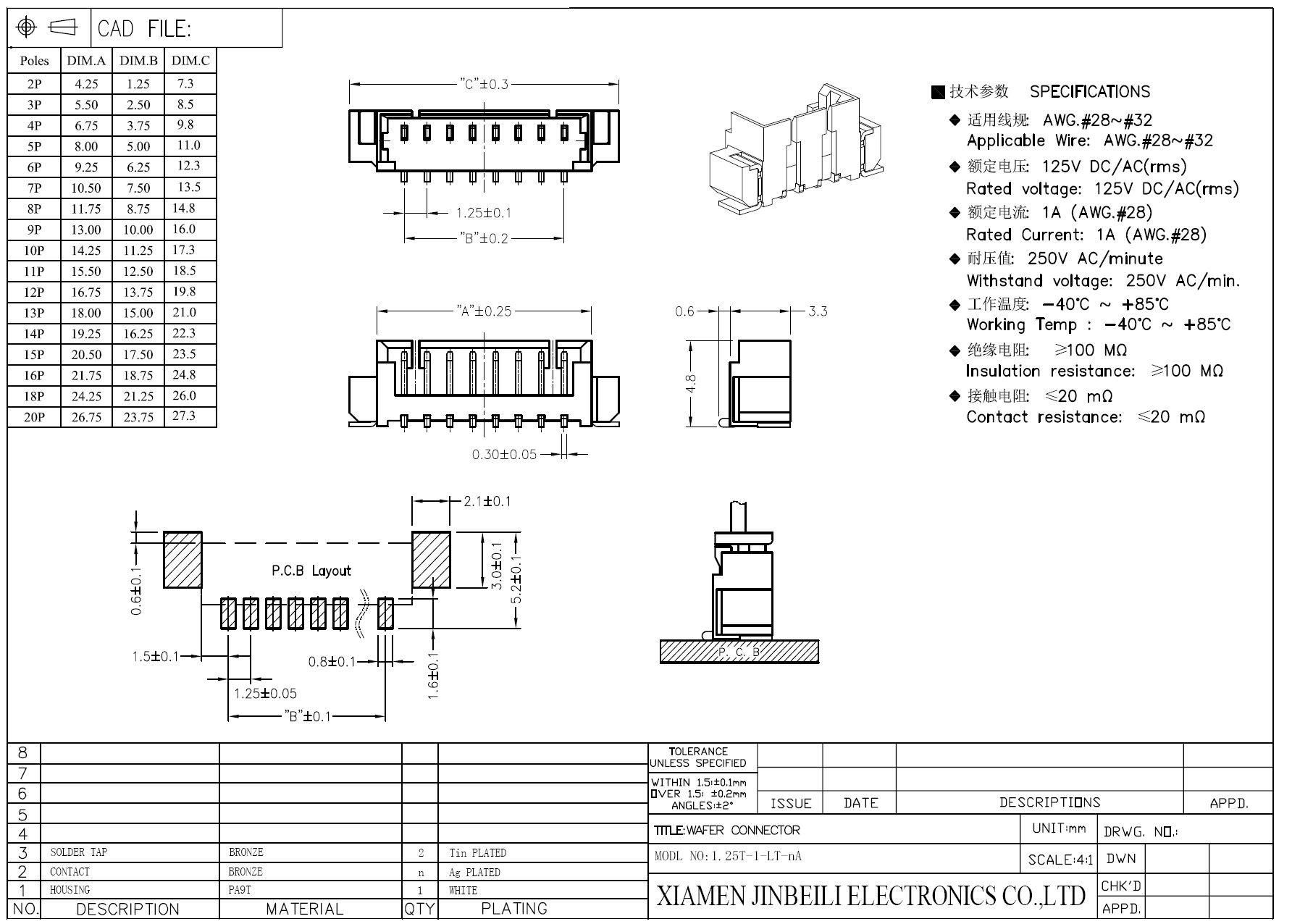

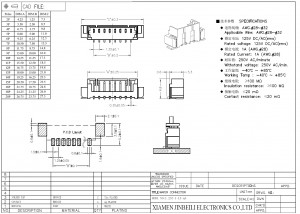

Datasheets :
