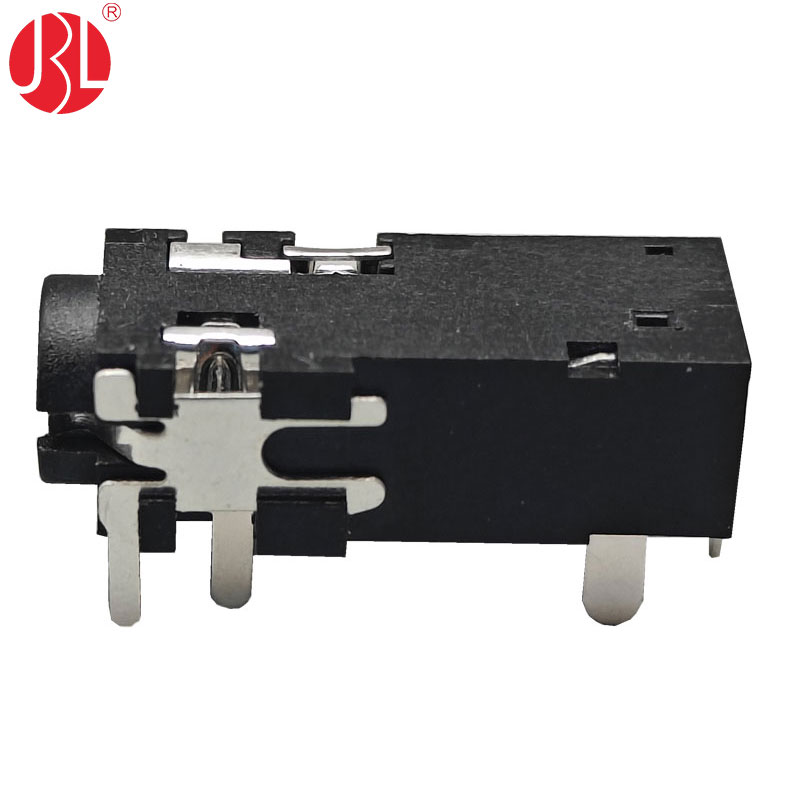

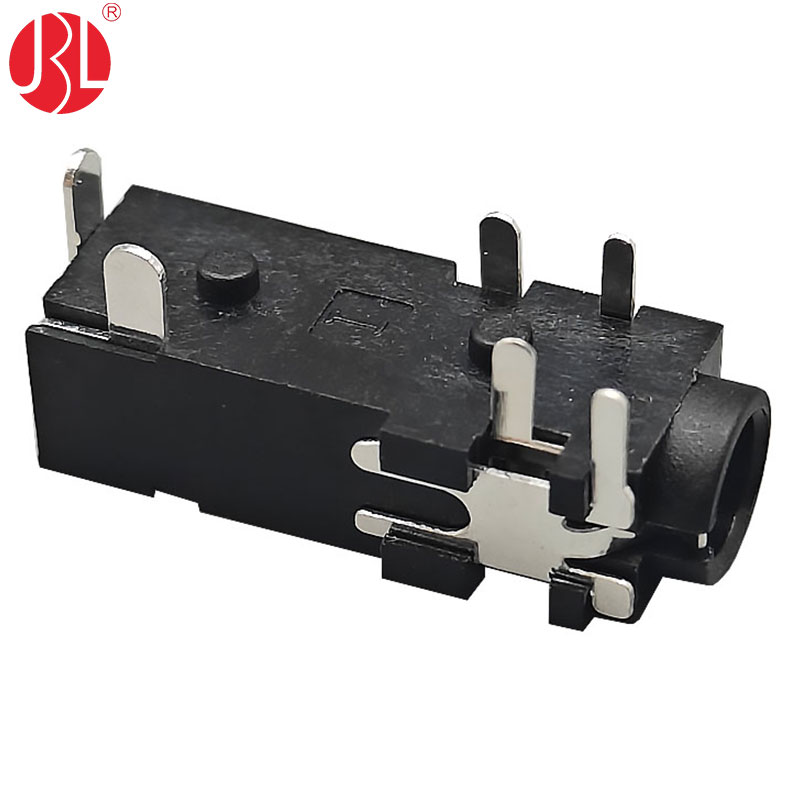

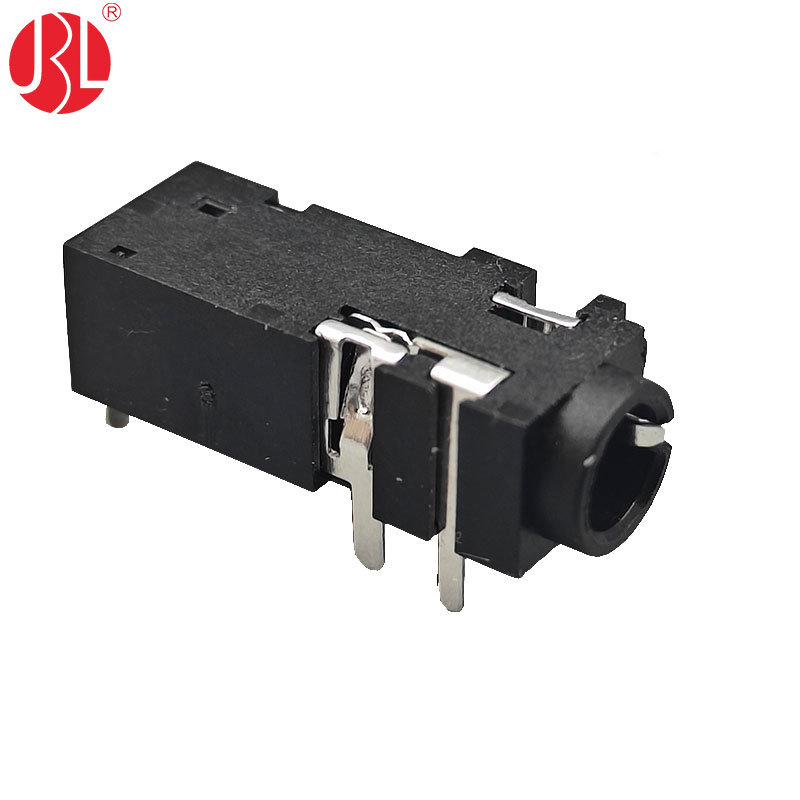

PJ-328C-2 TRRS 3.5mm Audio Jack Through Hole Right Angle
-
-
-
This 3.5mm TRRS (4-pole) audio jack features a through-hole right-angle design, ensuring secure PCB mounting for robust audio applications. It is available in three switch configurations: 2-switch (dual detection), 1-switch (single detection), and 0-switch (no switch), providing flexibility for different circuit needs.

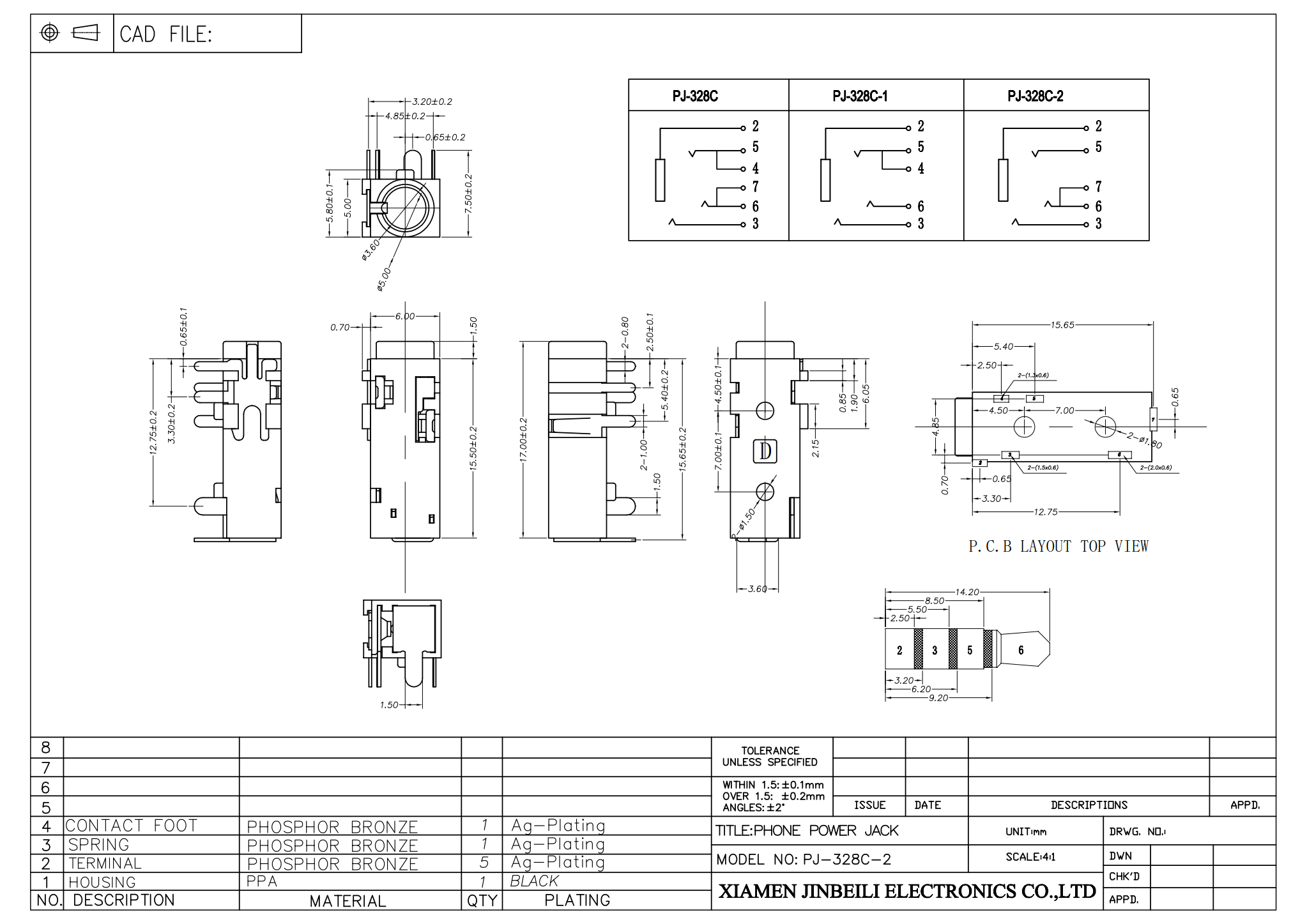

With identical dimensions and PCB layout, this connector serves as a direct replacement for the CLIFF Electronic Components FC68126 (2-switch) and FC68127 (1-switch), ensuring seamless compatibility without design changes.
Key Features:
TRRS (Tip-Ring-Ring-Sleeve) 4-pole compatibility for stereo audio + microphone signals
Through-hole right-angle mounting for mechanical stability
2-switch, 1-switch, or 0-switch options for plug detection or passthrough use
Durable construction for reliable signal transmission and long-term use
Ideal for headsets, audio interfaces, and communication devices, this connector offers a cost-effective alternative to CLIFF FC68126/FC68127 while maintaining the same footprint and functionality.
