PJ-307 Series Audio Jack 3.5mm Through Hole Right Angle
-
-
The 3.5mm audio jack is a through-hole right-angle connector designed for easy installation and secure connections. It offers two position options: a 2-conductor (TS) jack for mono audio signals and a 3-conductor (TRS) jack for stereo audio signals and microphone input.
Compatible with the Same Sky CUI jacks SJ1-3523N, SJ1-3524N, and SJ1-3525N, this audio jack provides similar electrical specifications and form factor. The right-angle design allows for efficient space utilization and easier access to the audio port.
Overall, this 3.5mm audio jack is a versatile and reliable option for connecting audio devices, offering both TS and TRS configurations in a compact and robust package. It is suitable for a wide range of applications, making it an excellent choice for replacing or upgrading existing audio connectors.

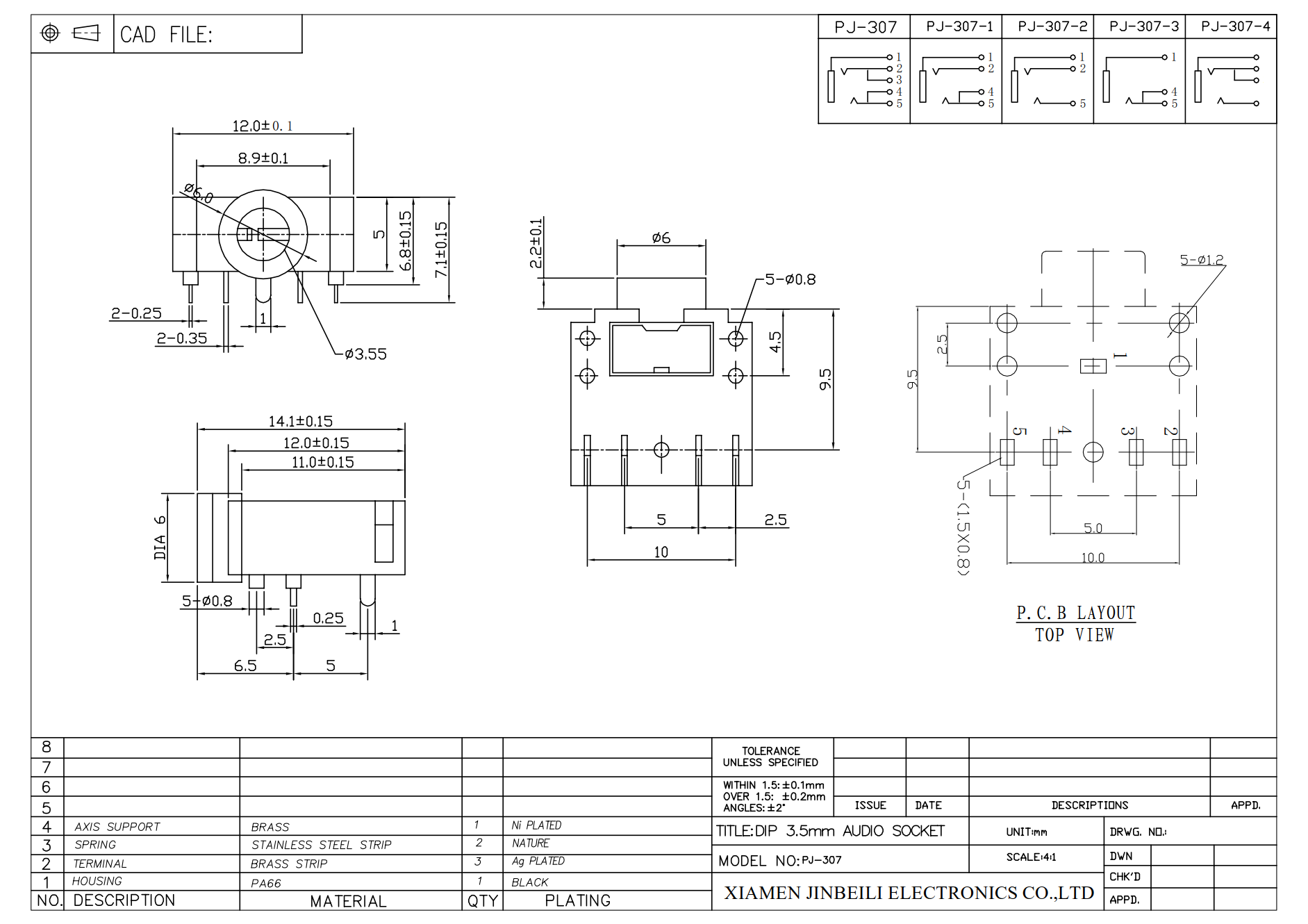

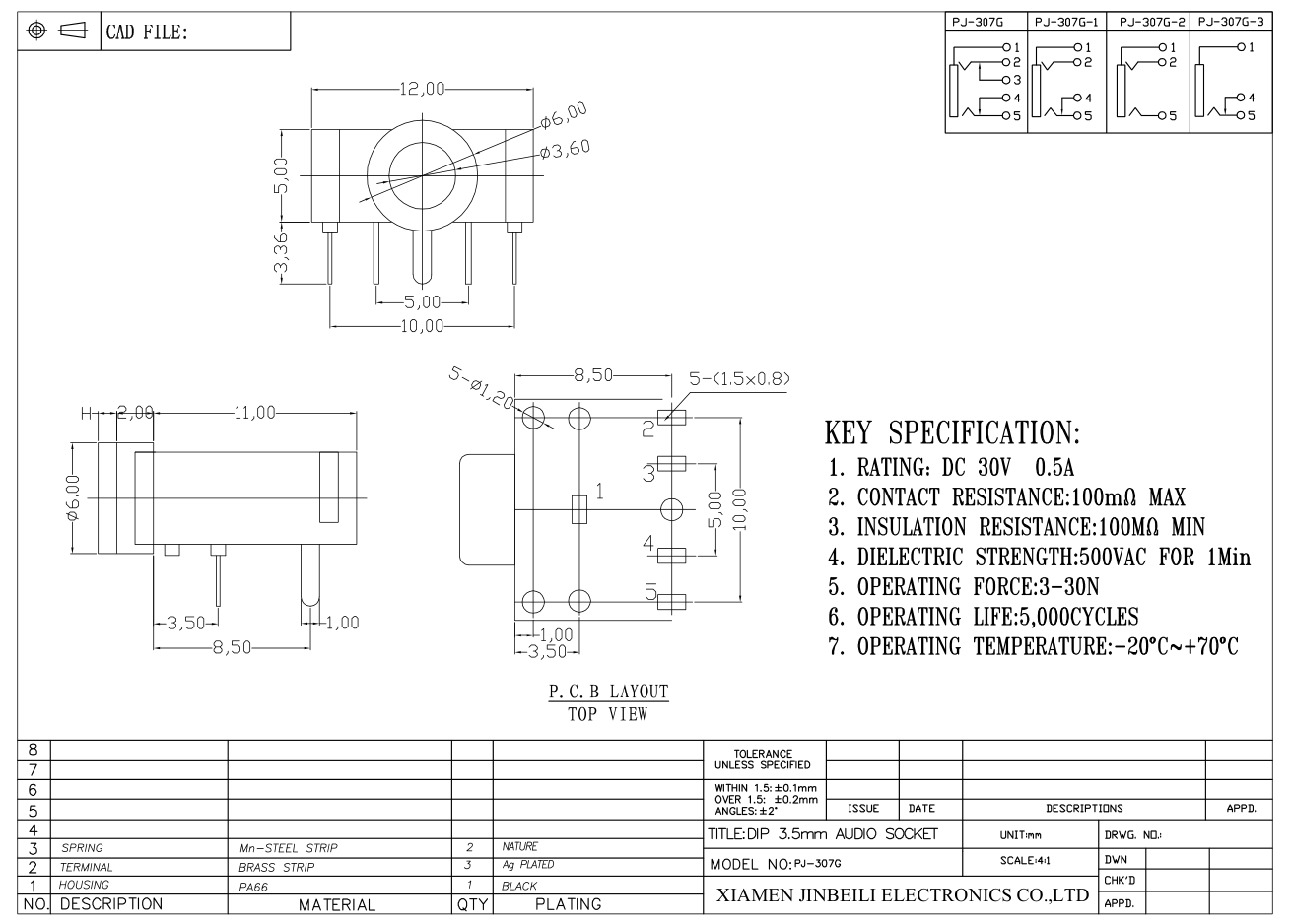

Datasheets :
