PJ-324 Phone Jack 3.5mm Through Hole Right Angle
-
-

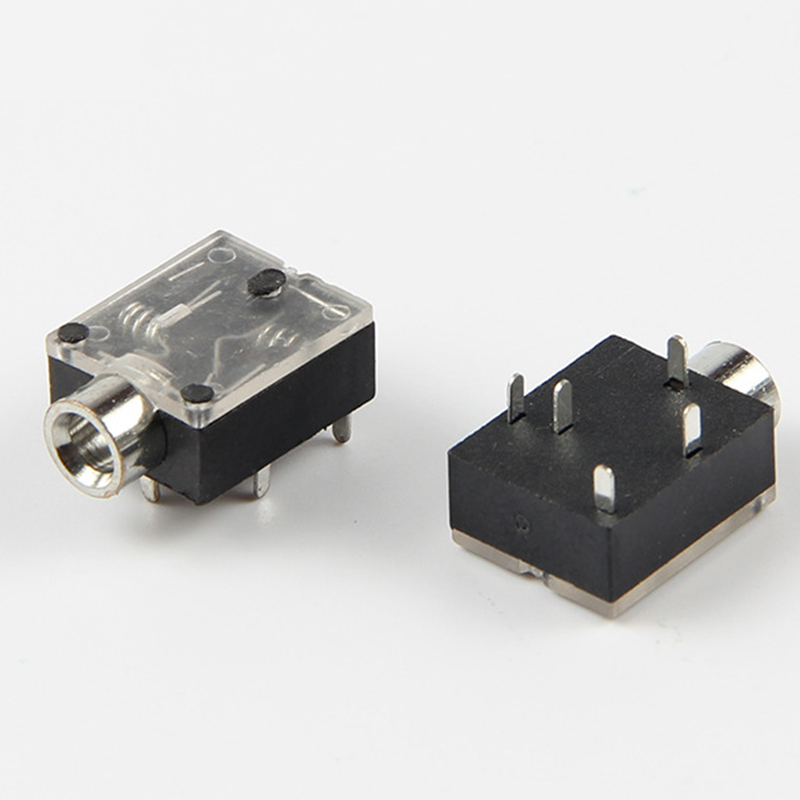

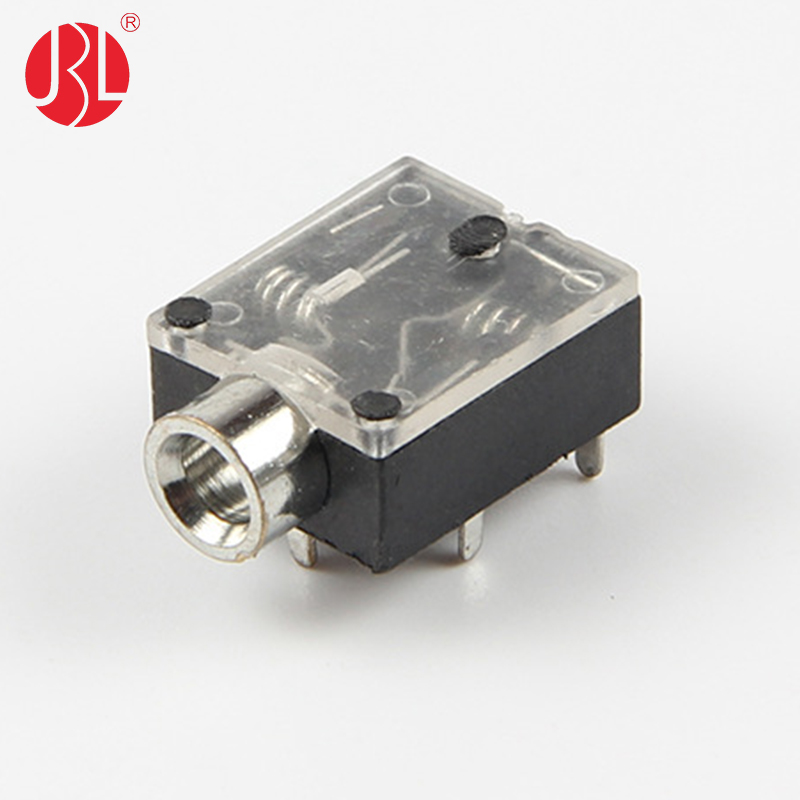

The 3.5mm Through Hole Right Angle Audio Jack offers flexible options for phone connections, featuring either 2 poles (TS Jack) for mono audio or 3 poles (TRS Jack) for stereo audio with an additional function, such as a microphone. This jack is designed with through-hole mounting for secure installation in electronic devices, and its right-angle design provides a low-profile appearance.
The jack also comes with various switch options, including 0 switches for a simple, no-frills connection, 1 switch for basic control functionalities, and 2 switches for more complex applications. This versatility makes it a suitable alternative to Switchcraft Inc audio jacks, including the 35RAPC4BHN3, 35RAPC3BHN3, 35RAPC2BHN3, and 35RAPC2AHN3.
Whether you’re building a new audio device or upgrading an existing one, the 3.5mm Through Hole Right Angle Audio Jack offers reliable performance and compatibility with a wide range of audio accessories, making it a great choice for high-quality audio connections.

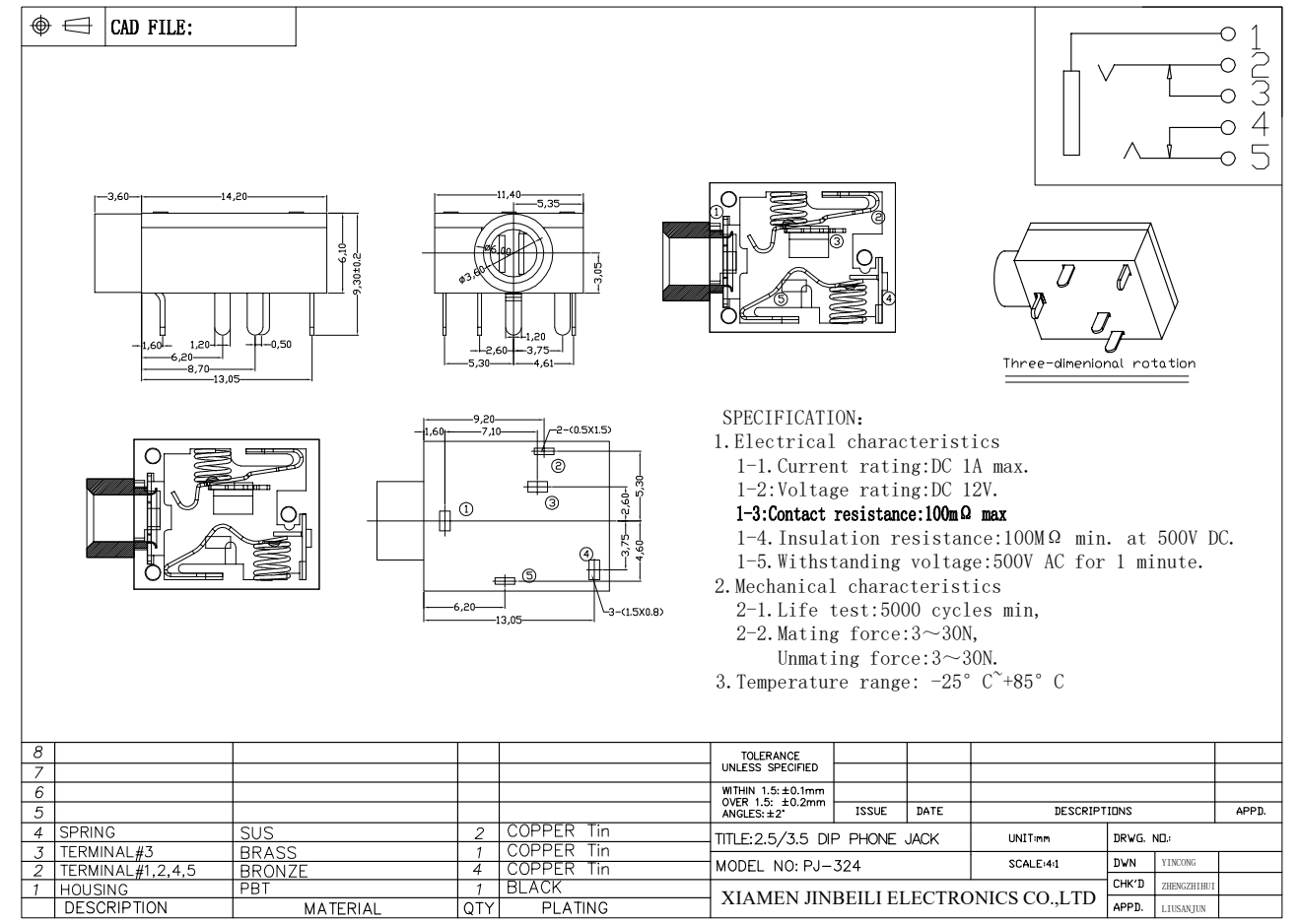

Datasheets :
Product design & development, Tooling ,Moulding and Manufacturing :
