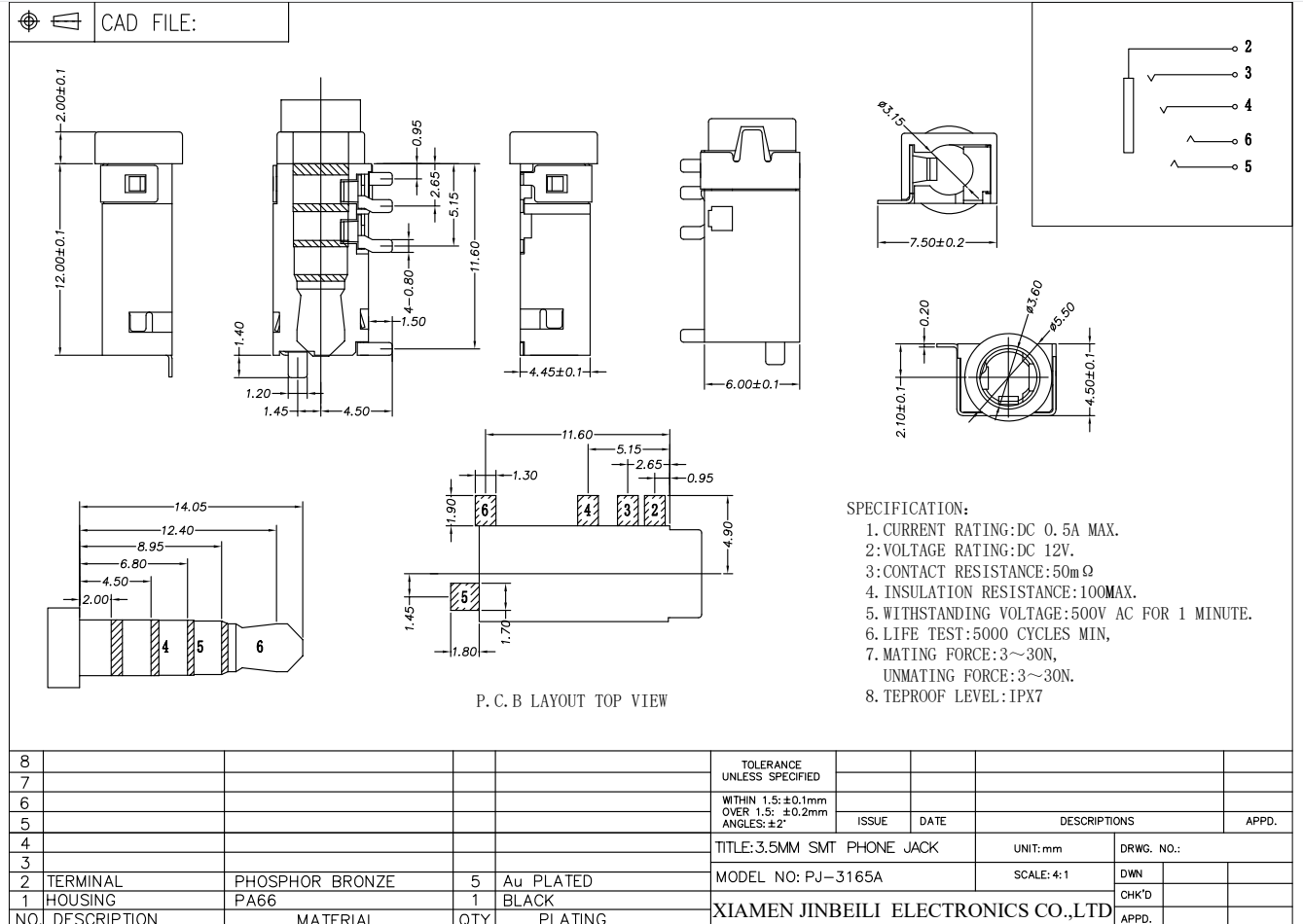

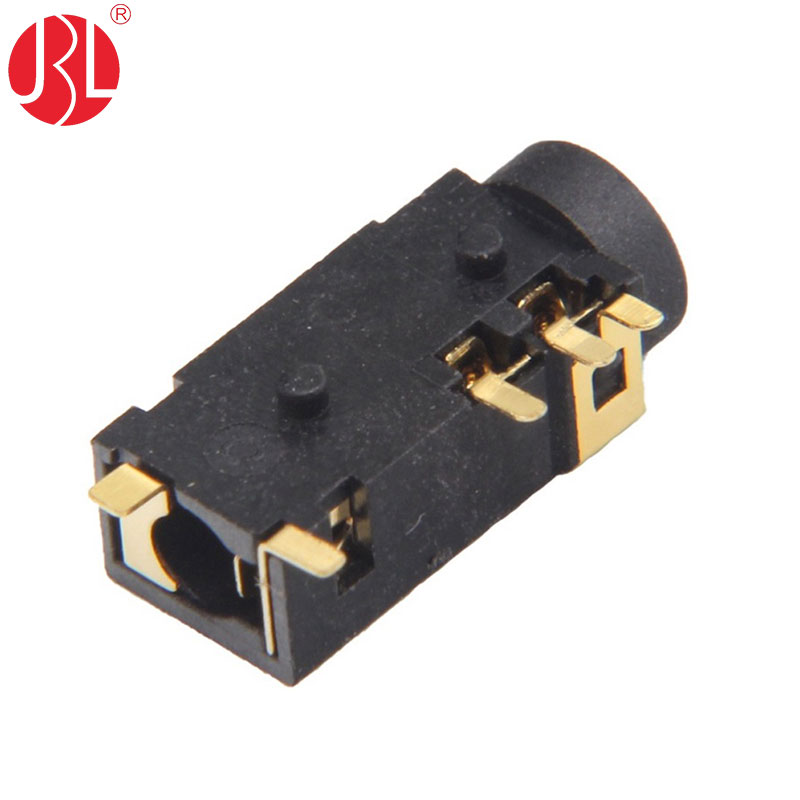

PJ-3165A 3.5mm Audio Jack – 5-Pole TRRRS Surface Mount Right Angle

The Jinbeili PJ-3165A is a compact 3.5mm audio jack phone connector featuring a surface-mount, right-angle PCB design. This 5-pole TRRRS (Tip-Ring-Ring-Sleeve) audio jack is designed without switches, providing a straightforward audio connection solution for consumer electronics and other compact electronic devices.

The PJ-3165A is rated at DC 12V, 0.5A and uses phosphor bronze contacts for reliable electrical conductivity and mechanical durability. The connector housing is made from PA66, providing good insulation and mechanical stability for PCB assembly applications.

With its surface-mount right-angle configuration, the 3.5mm TRRRS jack is suitable for space-constrained PCB designs and automated SMT production. The 5-pole TRRRS configuration can support applications requiring additional audio or signal connections compared with standard 3-pole TRS or 4-pole TRRS connectors.

The Jinbeili PJ-3165A has identical dimensions and specifications to selected CUI Same Sky and Adam Tech audio jack models, including CUI Same Sky STX-3542-5N-G-TR and Adam Tech ASJ-196-K-T/R. Therefore, the PJ-3165A can be evaluated as an alternative or replacement 3.5mm TRRRS audio connector for compatible applications.

The PJ-3165A is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory, supporting consistent production quality and controlled manufacturing processes.

FAQs

Is the PJ-3165A IP67 waterproof?
No. The standard PJ-3165A is not IP67 rated. But we have another 5 poles TRRRS Audio jack with IP67 Rated , here is link : https://www.jbl-ec.com/pj-35080af-waterproof-5-poles-trrrs-audio-jack-3-5mm-product/

Can the PJ-3165A be an alternative to CUI Same Sky STX-3542-5N-G-TR?
Yes. The PJ-3165A has identical dimensions and specifications to the specified CUI Same Sky model and can be evaluated as an alternative connector or replacement source.

Do you have a TRRRS audio jack with a tip switch or sleeve switch?
The standard PJ-3165A does not have switches. However, we can customize a 3.5mm TRRRS audio jack with a tip switch, sleeve switch, or other switching configuration according to your requirements.

Do you have a through-hole TRRRS audio jack instead of a surface-mount version?
Yes , we have. Here is link : https://www.jbl-ec.com/pj-35112a-5-poles-trrrs-audio-jack-3-5mm-product/

Is the PJ-3165A RoHS compliant?
Yes. The PJ-3165A is RoHS and REACH compliant.
