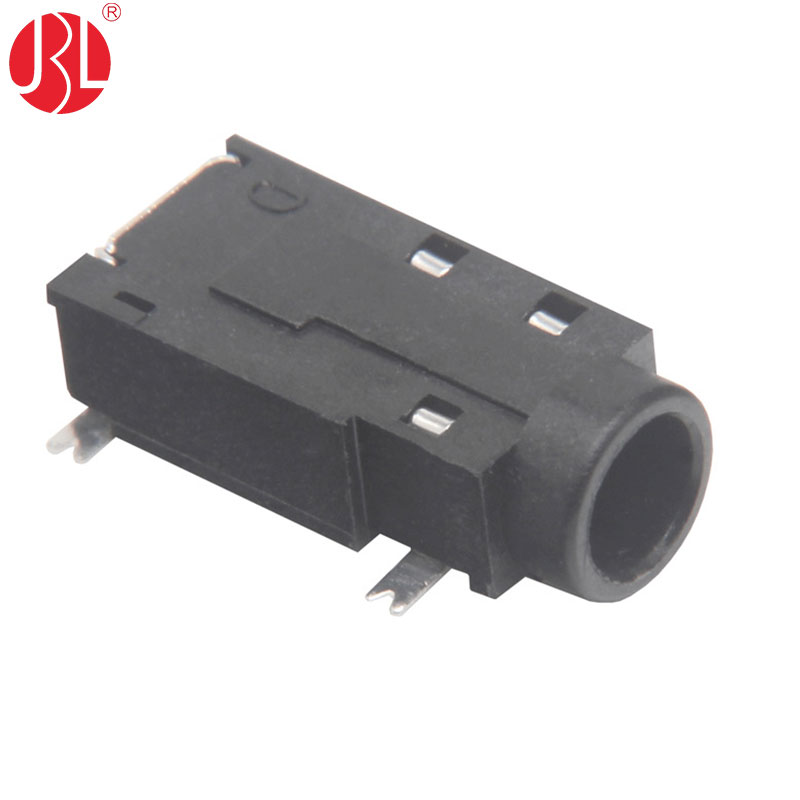

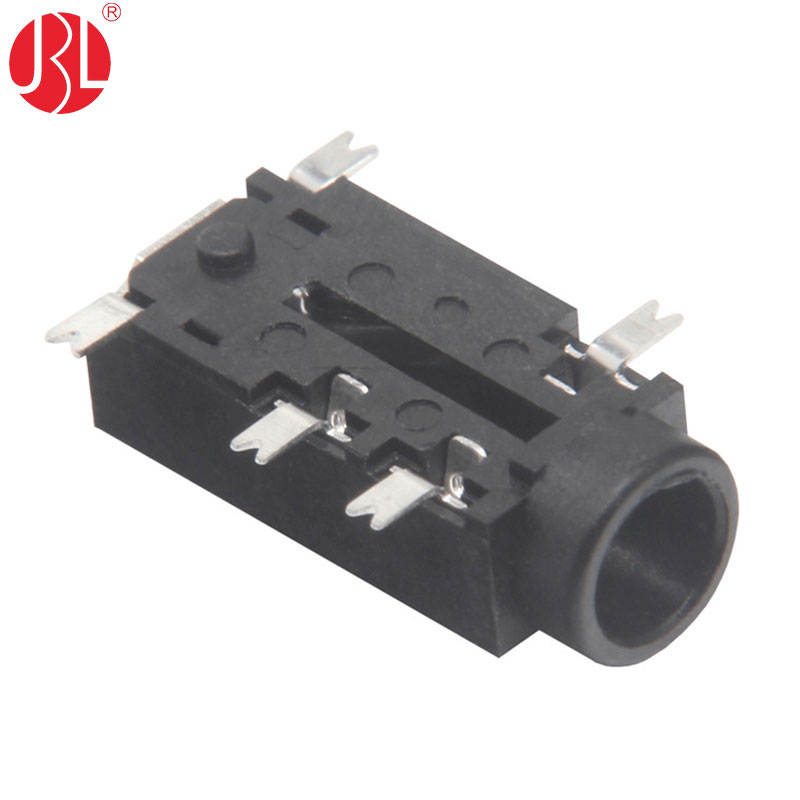

PJ-381 TRS Audio Jack Surface Mount Right Angle
-
-
This 3.5mm TRS (3-pole) audio jack features a surface-mount right-angle design, making it ideal for compact PCB applications. It is available in two switch configurations: 1-switch (normally closed) and 0-switch (no switch) versions, providing flexibility for different circuit requirements.

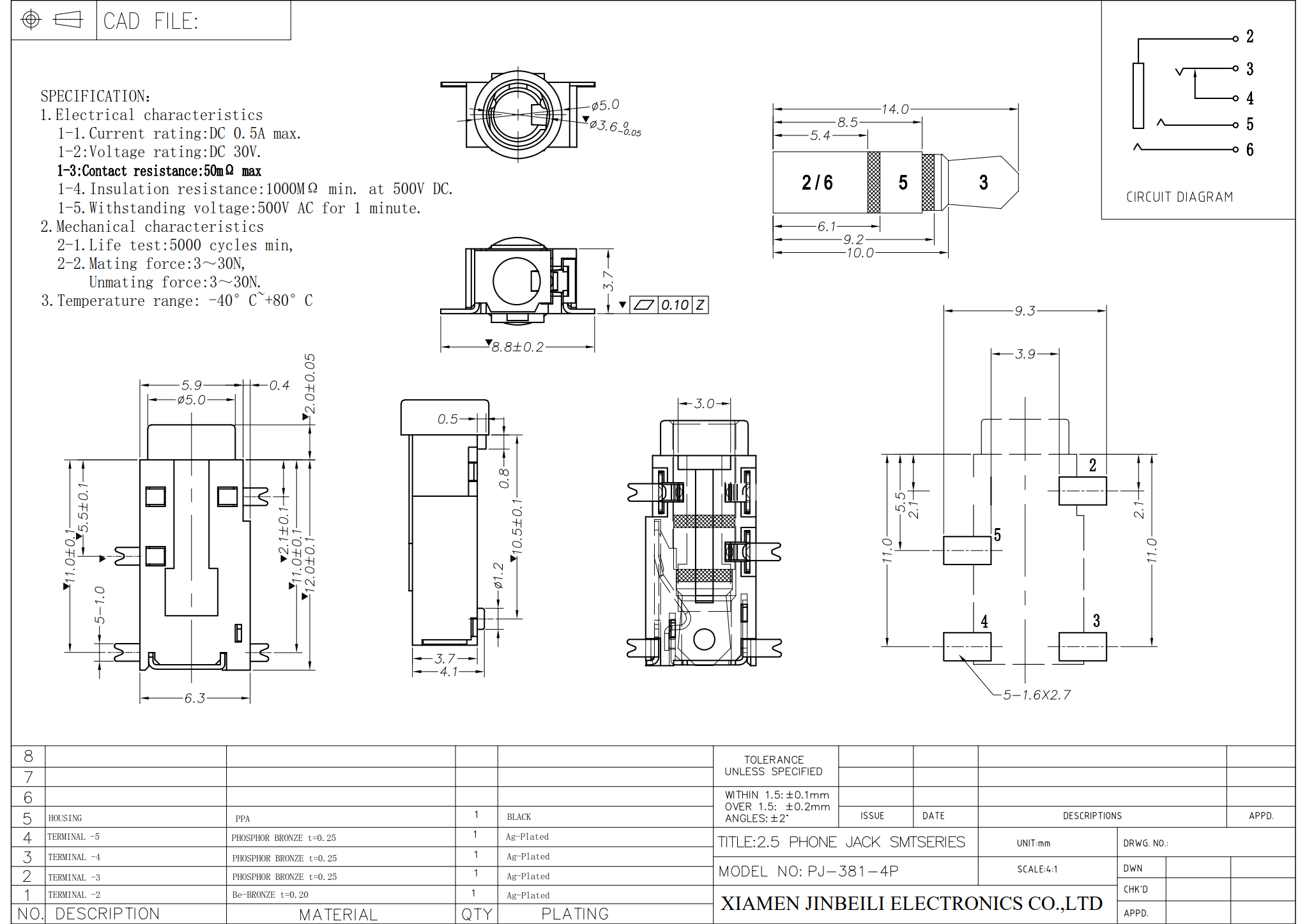

With compatible dimensions and PCB layout, this connector serves as a direct alternative to the CUI Devices SJ2-35853A-SMT-TR (1-switch) and SJ2-35853B-SMT-TR (0-switch), as well as the Tensility International Corp 54-00178. It ensures seamless replacement without design modifications.
Key features include:
- 3.5mm stereo (TRS) plug compatibility
- Right-angle SMT mounting for space-saving installations
- Durable construction for reliable signal transmission
- 1-switch or 0-switch options for detection or passthrough use
Ideal for headphone jacks, audio interfaces, and portable devices, this connector offers a cost-effective, drop-in solution for designs originally using the CUI or Tensility equivalents.
