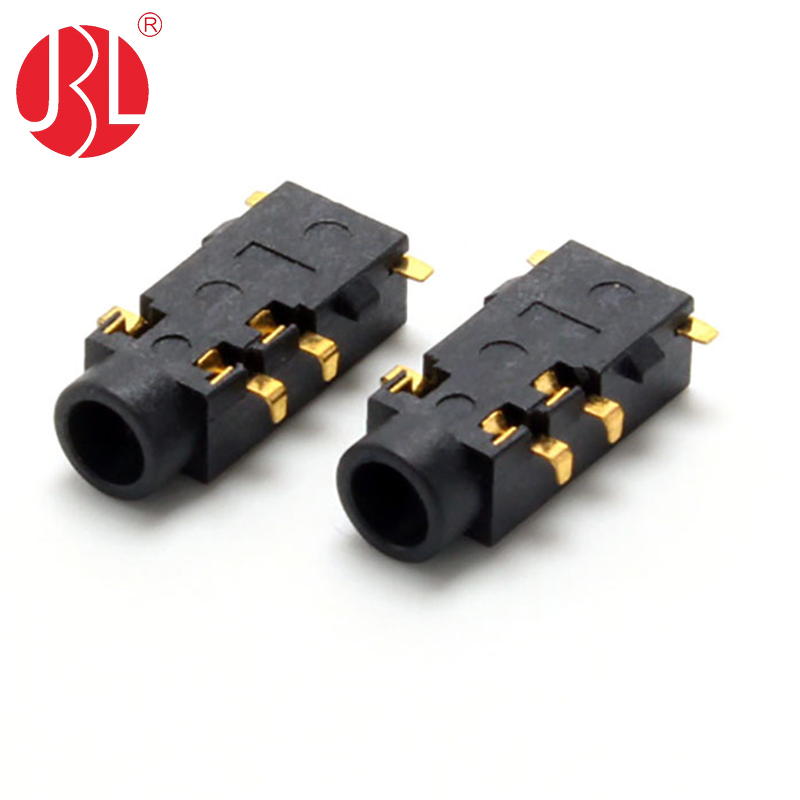

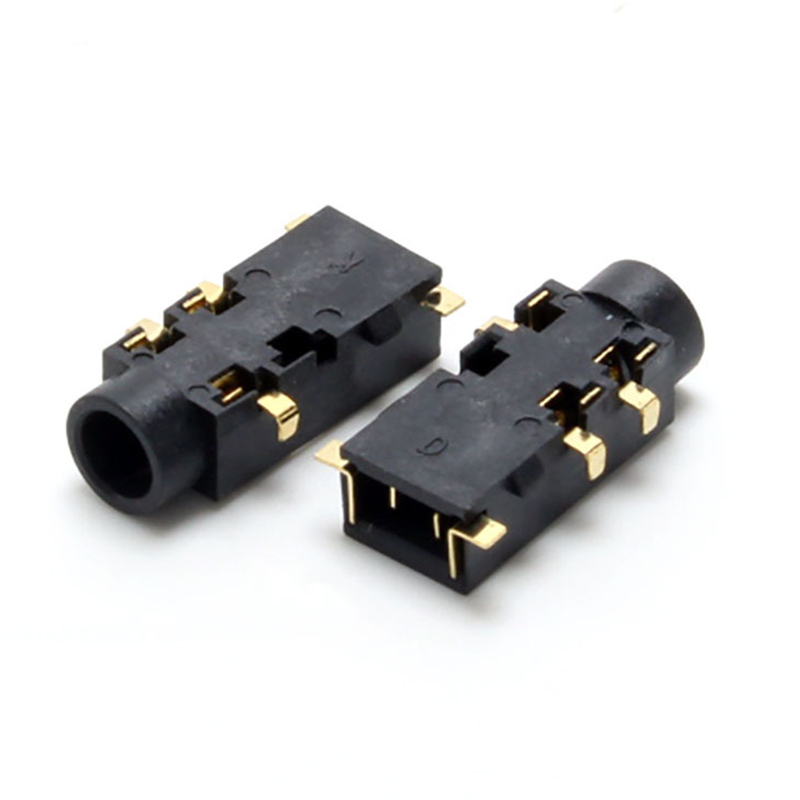

PJ-381C 3.5mm Mid Mount Phone Jack TRS
-
-
The 3.5mm Audio Jack is a compact and versatile audio connector designed for use in a variety of electronic devices. This particular jack features a mid-mount board cutout, making it easy to install on circuit boards. It is available in an SMD through-hole right-angle configuration, allowing for a secure and reliable connection while saving space.
The jack has 3 conductors and is a TRS (Tip, Ring, Sleeve) type, making it suitable for stereo audio applications. It can serve as an alternative to popular phone jacks like the CUI Device SJ-3501-SMT-TR and the Kycon STX-35398E-5N-TR.
With its robust design and high-quality construction, this 3.5mm audio jack is capable of providing clear and distortion-free audio transmission. It is ideal for use in smartphones, tablets, laptops, headphones, and other audio-related devices. Its compact size and easy installation make it a convenient choice for designers and engineers working on space-constrained projects.

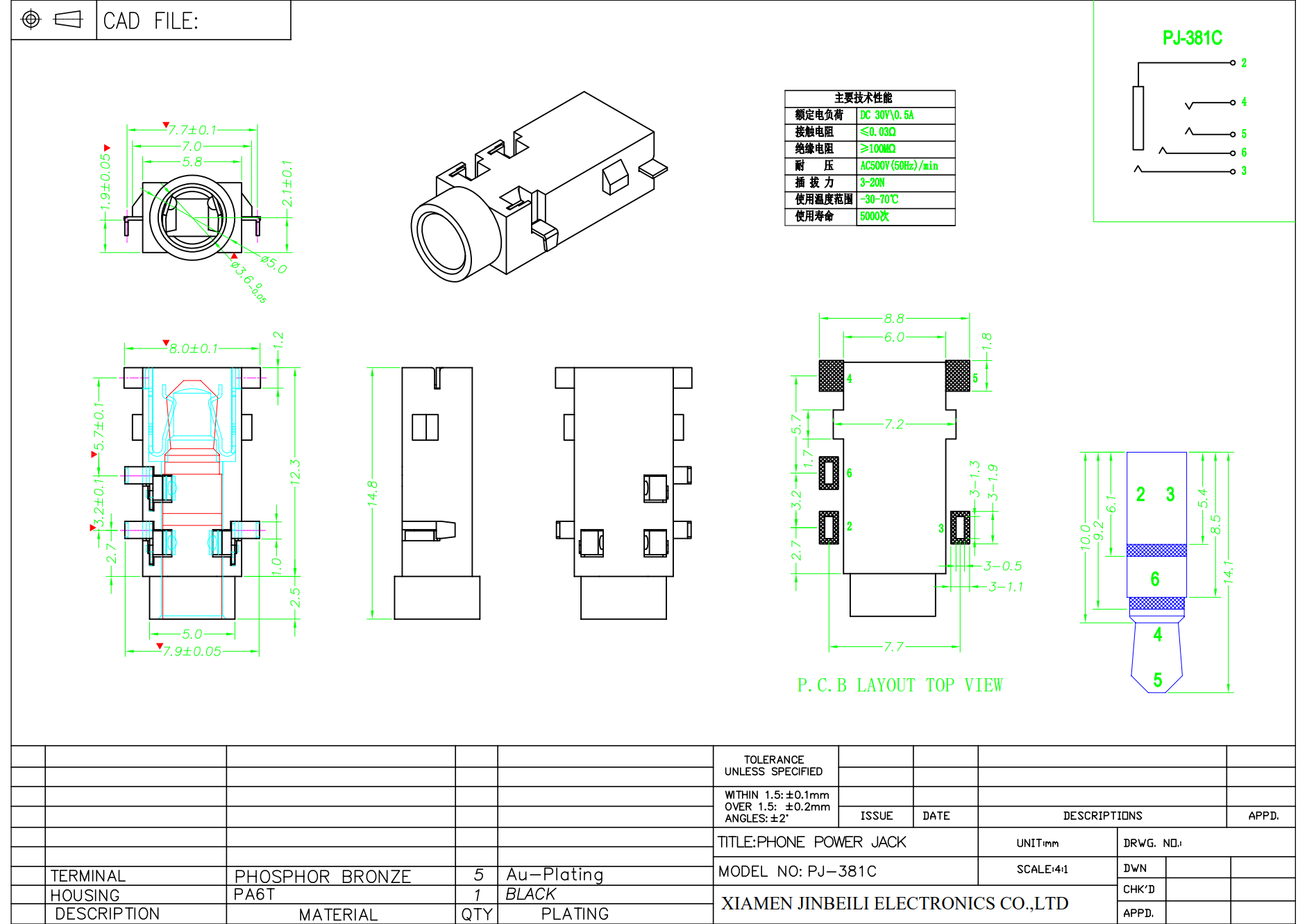

Datasheets :
