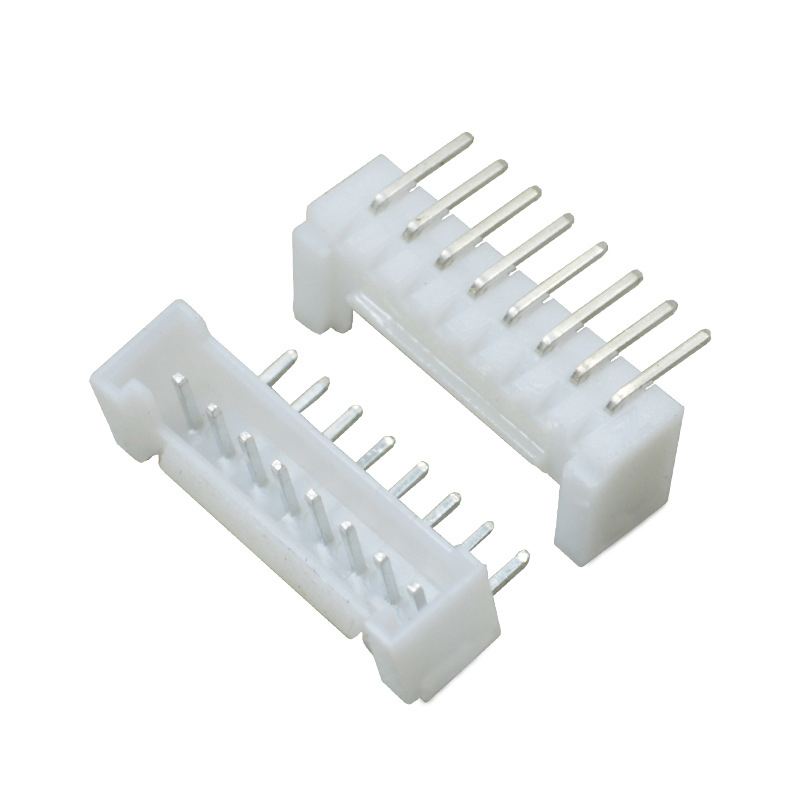

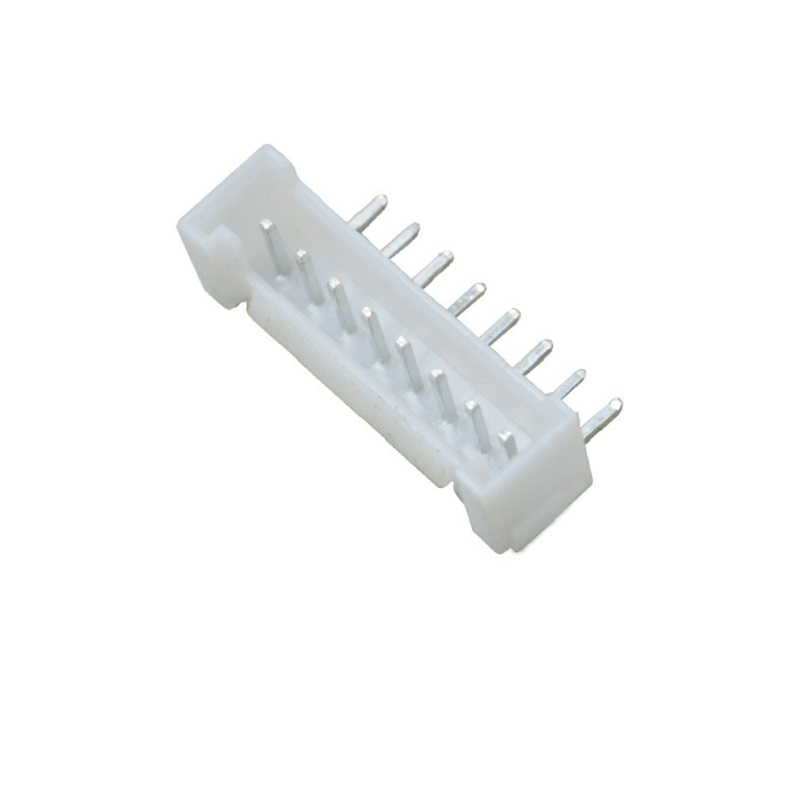

PHB2.0mm Board to wire connector with lock right angle through hole DIP

Product Descriptions :

Product name : PA PAF PAL CONNECTOR 2.0 mm pitch wire to board
2.0 W/B WAFER R/A ASS’Y -LEAD FREE-
MICRO-LATCH 2.0 WTB tight angle HEADER ASSY
2.0 mm pitch disconnectable crimp style connectors
post header ass’y right angle type
140 SERIES WIRE TO BOARD CONNECTOR

Model: PHB2.0-nAW

Features : Through hole right angle DIP with lock
Secure locking device
Interchangable between crimp and IDC socket
Secondary retainers

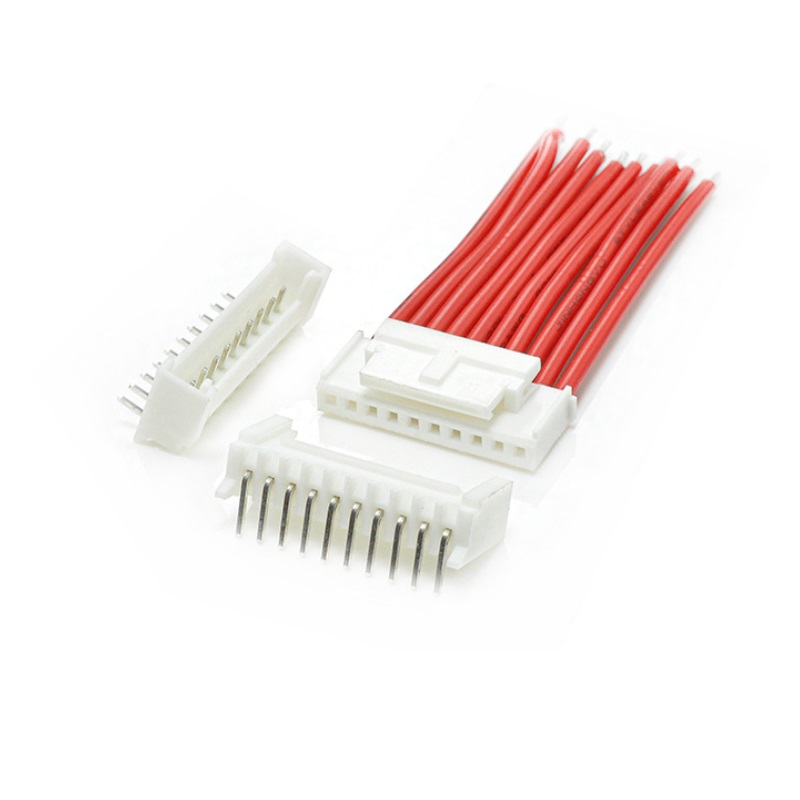

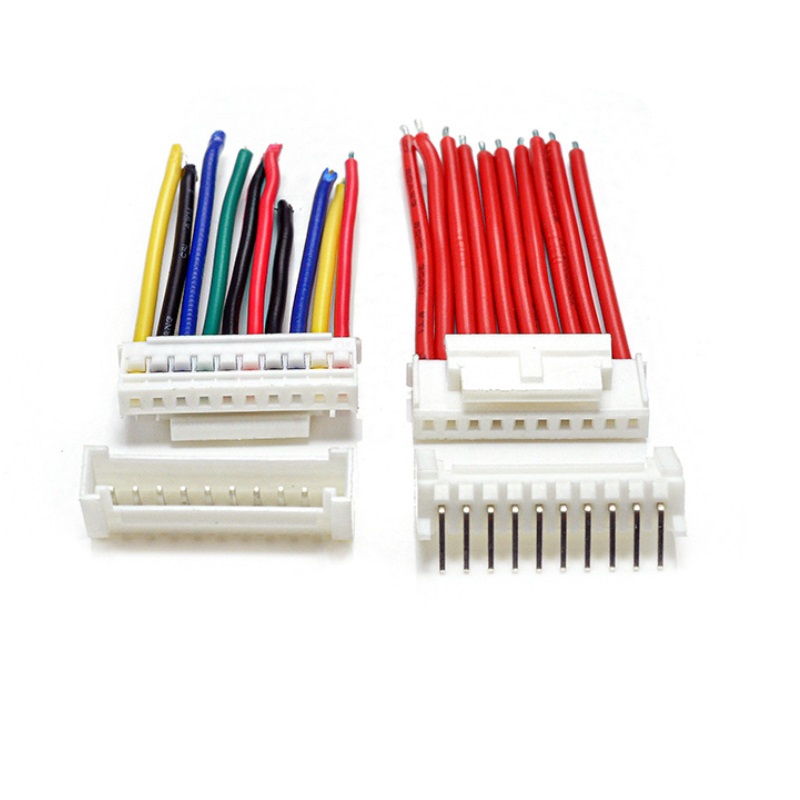

Harness variation

Applicable wire : AWG #32 to #24

Position Numbers : 02pin to 16pin customized as buyer’s request

Style : Board to Cable/Wire

Contact Type : Outer Shroud Contact

Fastening Type: Push-Pull

Current Rating (Amps) : 2A AC DC (AWG #24)

Contact Resistance: Initial Value 30 mΩ Max

Insulation Resistance: 1000 MΩ Min

Dielectric Strength: AC 800 V for 1 min

Working Temp : -25°C~+85°C

Package : Bulk

Replacement part: 0353631360，0353630860,0353630560,0353631210,

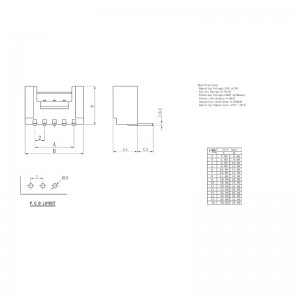

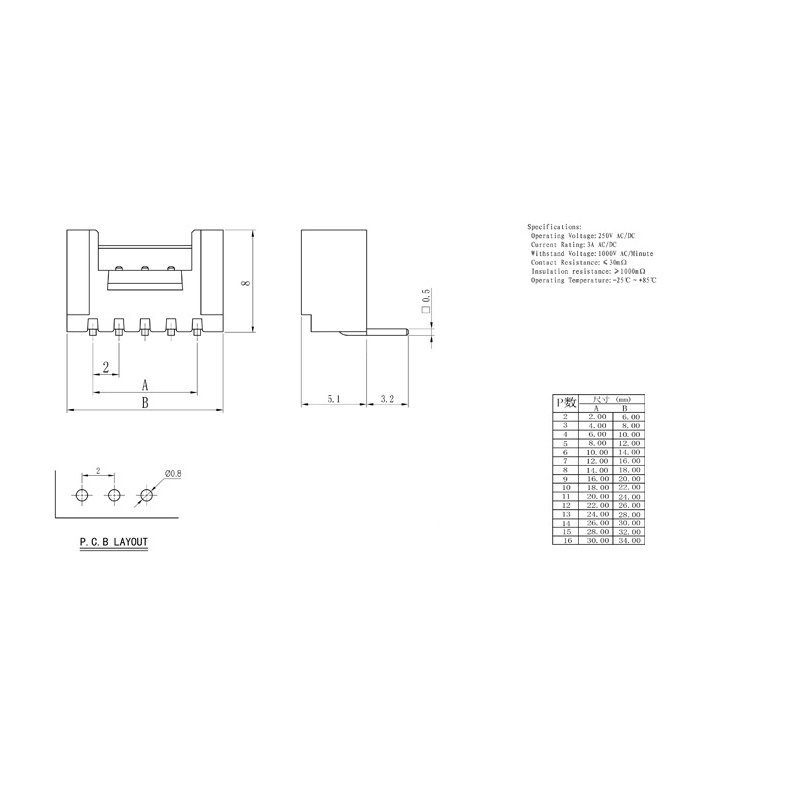

Datasheets :

This is a thin,low-profile 2.0 mm pitch connector 8.0 mm in height after mounting and 4.5 mm in width. it’s designed to meet the demand for high-density connection of internal wires to printed circuit boards. it’s compact,highly reliable and low in cost.
