PH 2.0mm Pitch Horizontal 2-20P SMT Wire to board connector header

Product Descriptions :

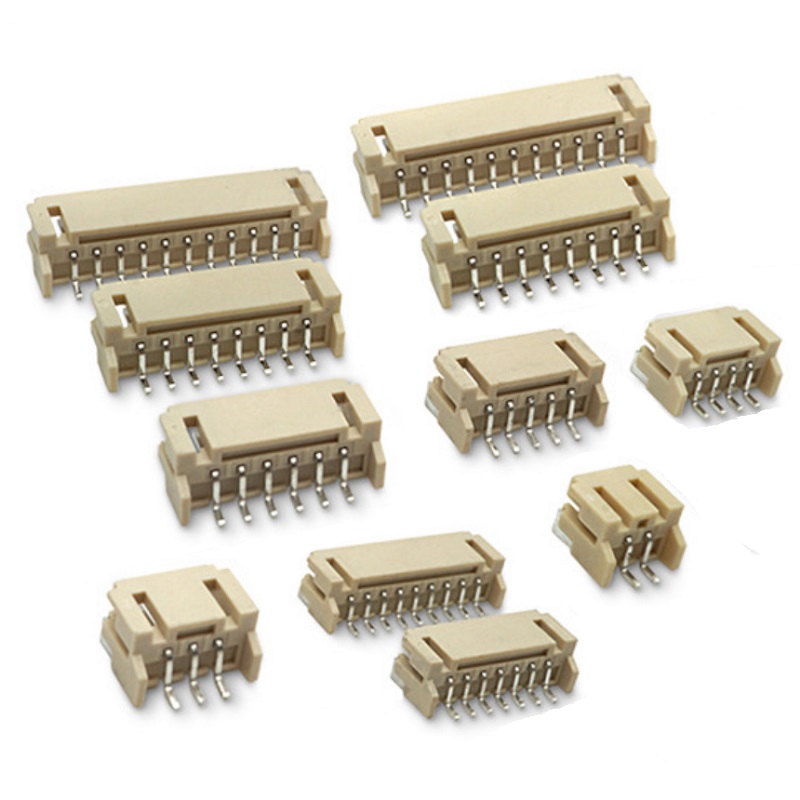

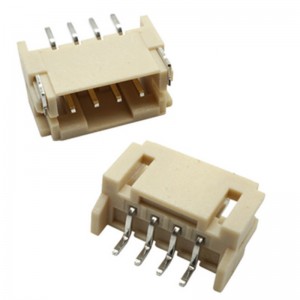

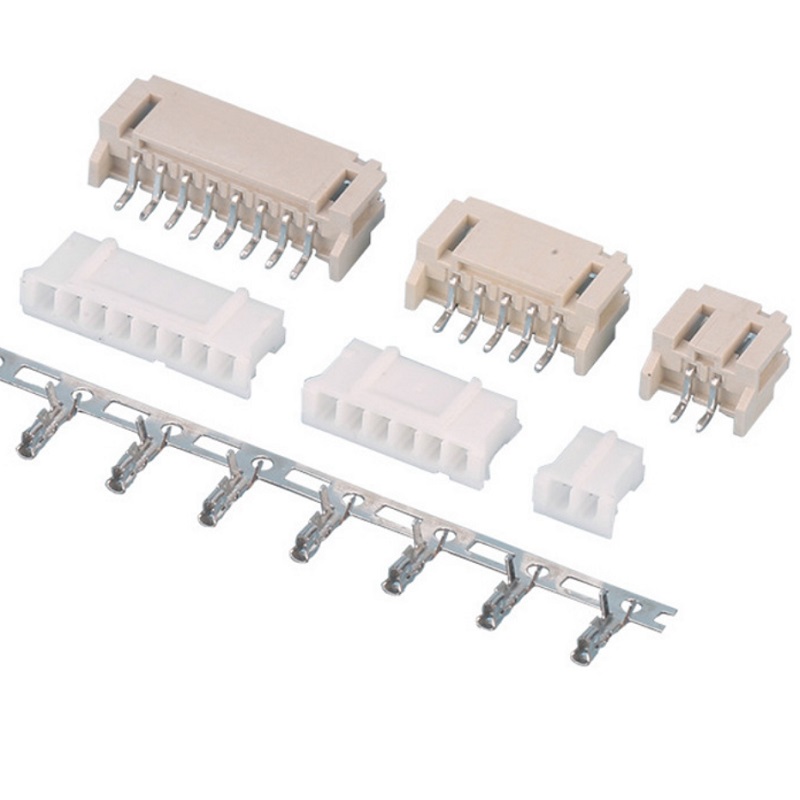

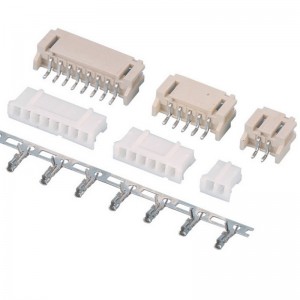

Product name : Connector Header Horizontal type Surface Mount 9 position 0.079″ (2.00mm)
2.0mm pitch disconnectable crimp style connector

Model: PH2.0-WT-nA

Features : Sure face mount right angle SMT

Applicable wire : AWG #32 to #24

Position Numbers : 02pin to 16pin customized as buyer’s request

Style : Board to Cable/Wire

Contact Type : Outer Shroud Contact

Fastening Type: Push-Pull

Current Rating (Amps) : 2A AC DC (AWG #24)

Contact Resistance: Initial Value 30 mΩ Max

Insulation Resistance: 1000 MΩ Min

Dielectric Strength: AC 800 V for 1 min

Working Temp : -25°C~+85°C

Package : Tape & Reel (TR)

Replacement part: S8B-PH-SM4-TB(LF)(SN),S11B-PH-SM4-TB(LF)(SN),S9B-PH-SM4-TB(LF)(SN),S6B-PH-SM4-TB(LF)(SN),1775469-8,1775469-3,S4B-PH-SM4-TB(LF)(SN),1-1775469-4,1-1775469-0,620102131822,1775469-6,1775469-4,620104131822,1775469-2,1-1775469-5,140-505-417-060,140-503-417-060,140-508-417-060,CI0103M1HR0-NH,140-502-417-060,CI0108M1HR0-NH

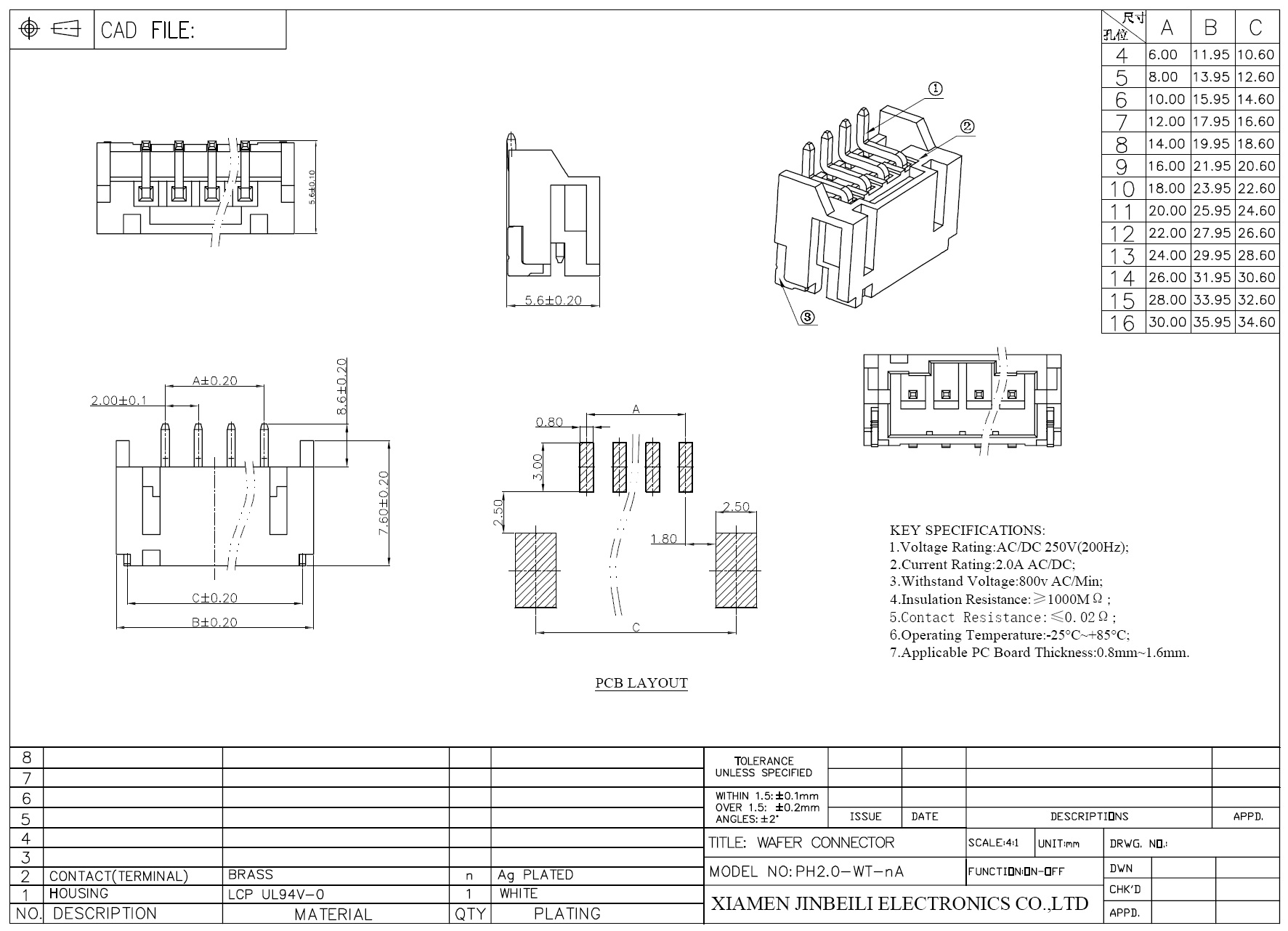

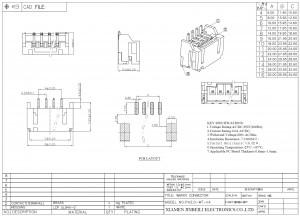

Datasheets :

This is a thin,low-profile 2.0 mm pitch connector 8.0 mm in height after mounting and 4.5 mm in width. it’s designed to meet the demand for high-density connection of internal wires to printed circuit boards. it’s compact,highly reliable and low in cost.
