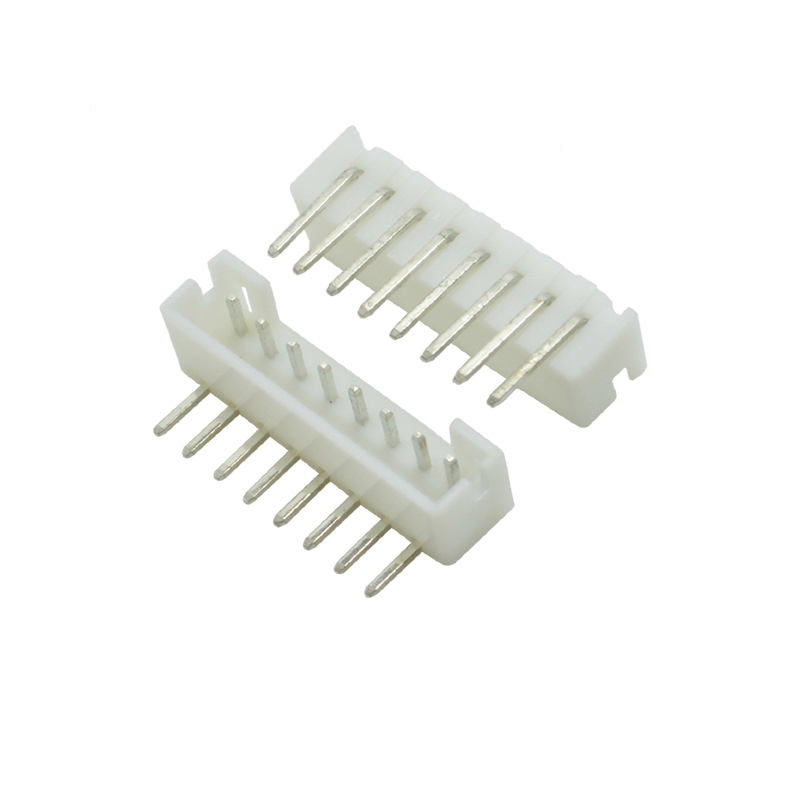

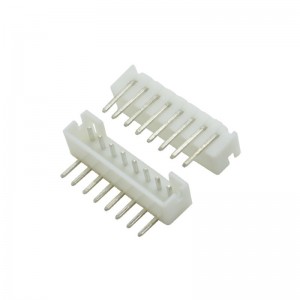

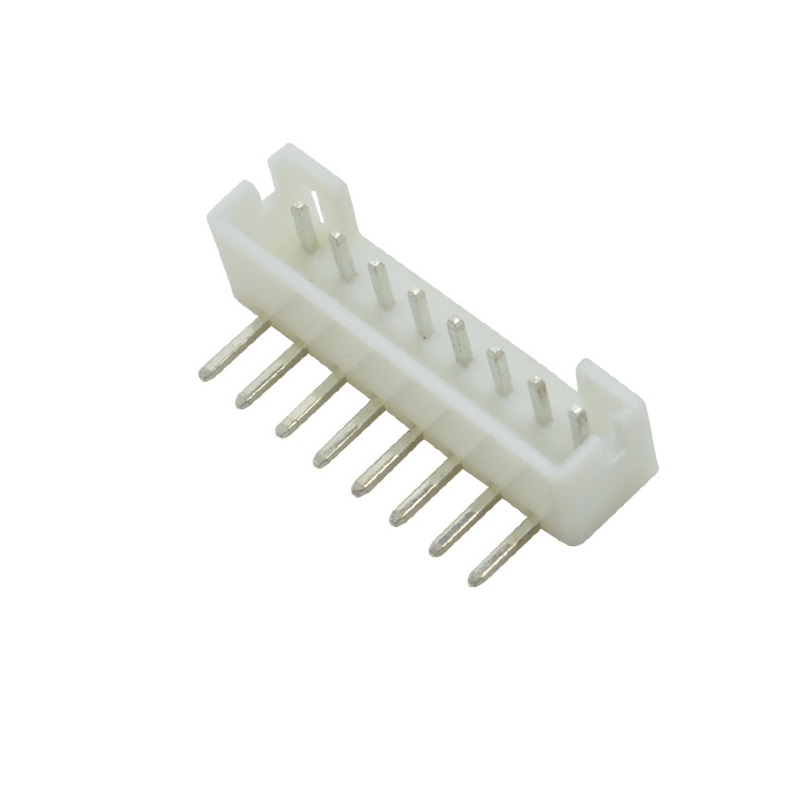

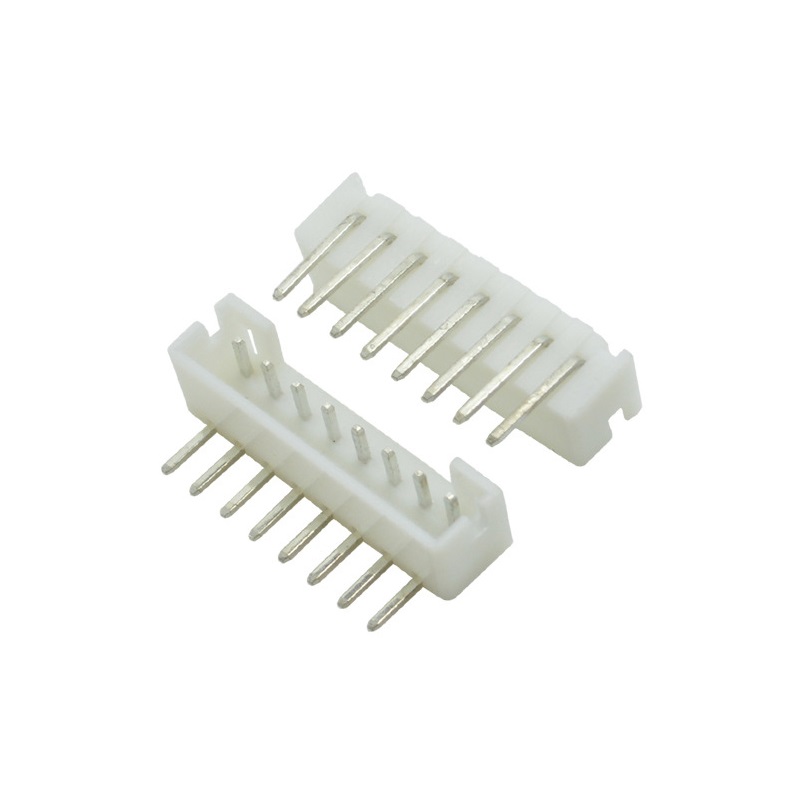

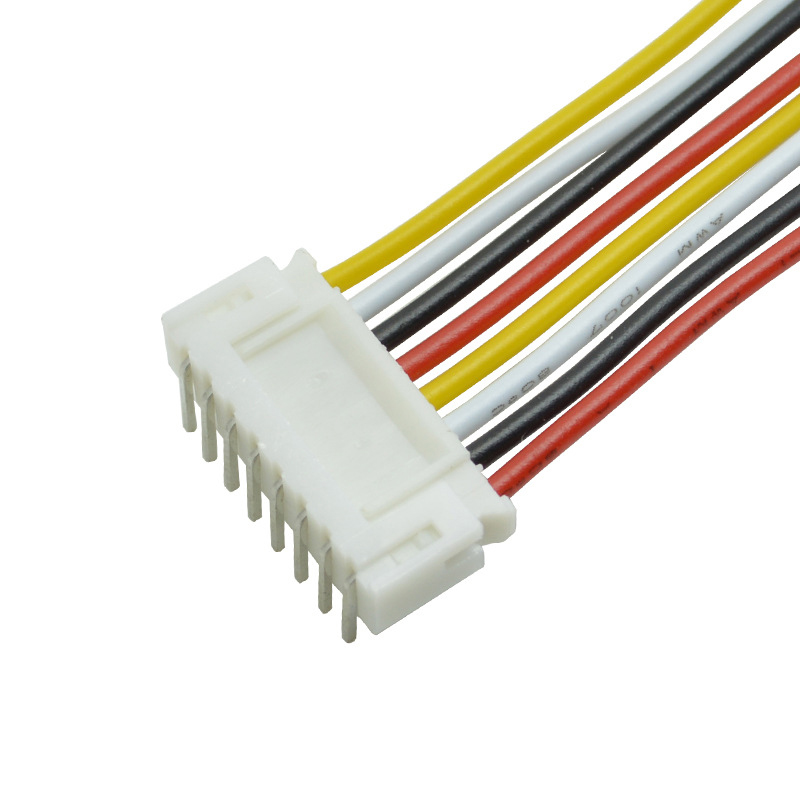

PH 2.0 board to wire Connector Header Through Hole Right angle DIP

Product Descriptions :

Product name : Connector Header through hole 3 position 0.079″ (2.00mm)
2.0mm pitch disconnectable crimp style connector
MICRO-LATCH 2.0 WTB tight angle HEADER ASSY
2.0 mm pitch disconnectable crimp style connectors
post header ass’y right angle type
AMP CT CONNECTOR 2mm PITCH

Model: PH2.0-nAW

Features : through hole right angle DIP

Applicable wire : AWG #32 to #24

Position Numbers : 02pin to 16pin customized as buyer’s request

Style : Board to Cable/Wire

Contact Type : Outer Shroud Contact

Fastening Type: Push-Pull

Current Rating (Amps) : 2A AC DC (AWG #24)

Contact Resistance: Initial Value 30 mΩ Max

Insulation Resistance: 1000 MΩ Min

Dielectric Strength: AC 800 V for 1 min

Working Temp : -25°C~+85°C

Package : bulk

Replacement part: 2SH-C-04-TR,2SH-C-08-TR,2SH-C-09-TR,292250-7,292253-4,0532540670,0532541270,2SH-C-07-TR,292250-8,1-292253-2,0532540770,292253-6,292253-8,0353630660,1-292250-2,1-292253-1,

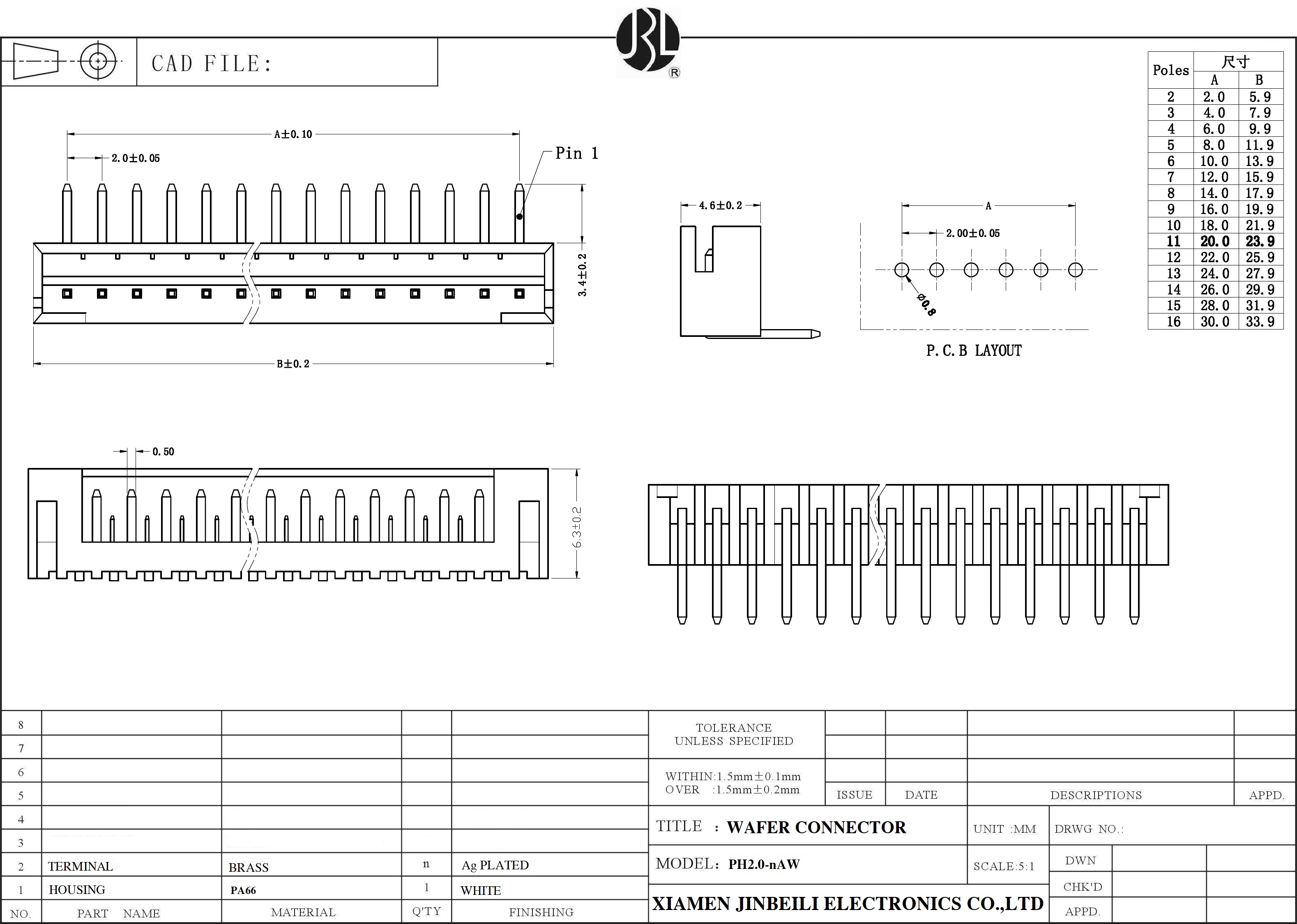

Datasheets :

This is a thin,low-profile 2.0 mm pitch connector 8.0 mm in height after mounting and 4.5 mm in width. it’s designed to meet the demand for high-density connection of internal wires to printed circuit boards. it’s compact,highly reliable and low in cost.
