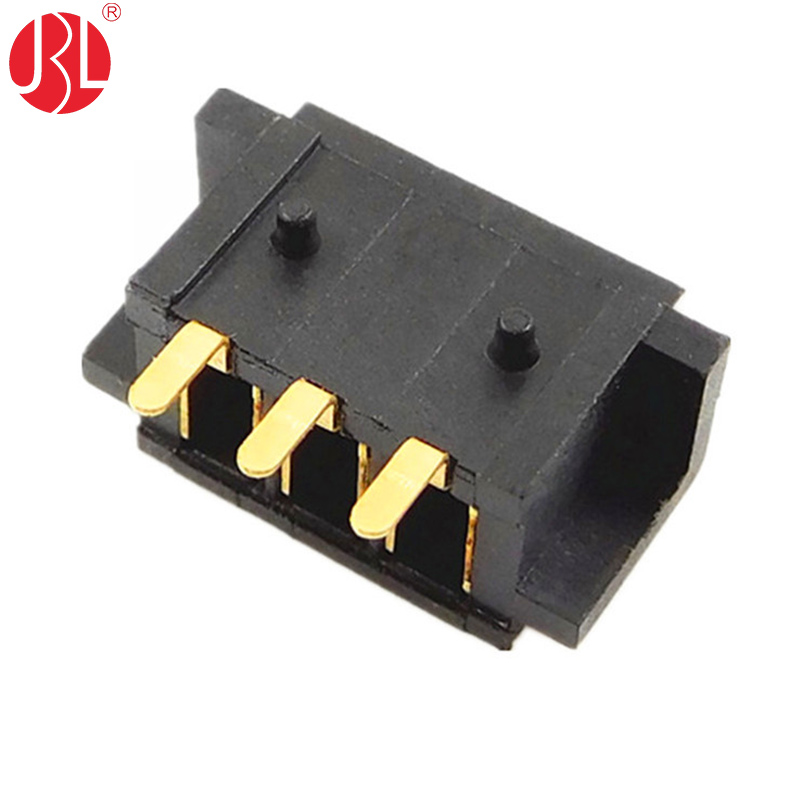

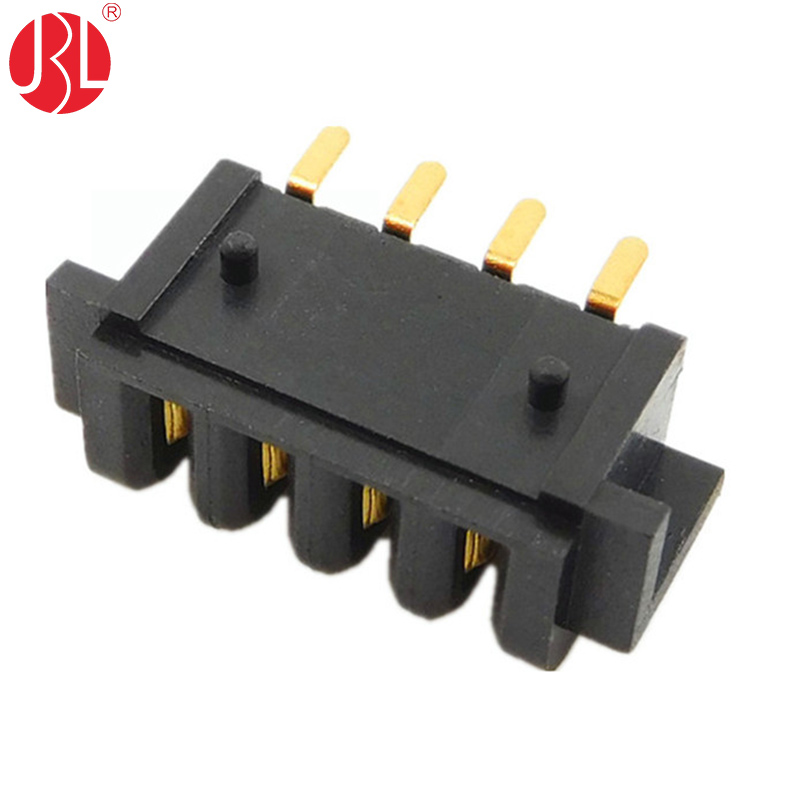

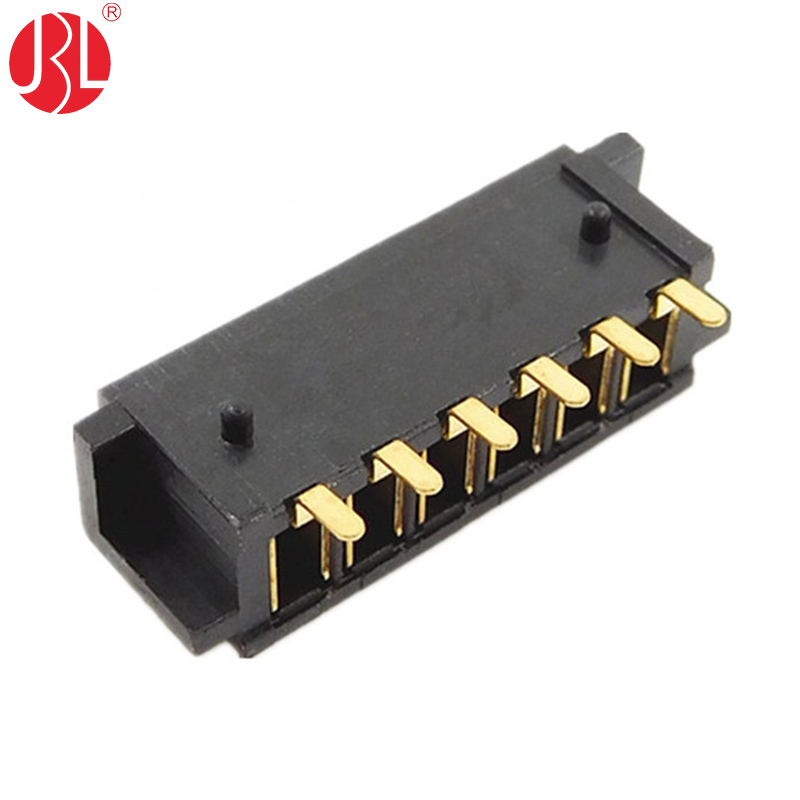

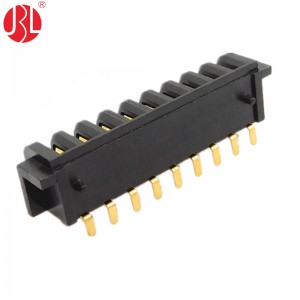

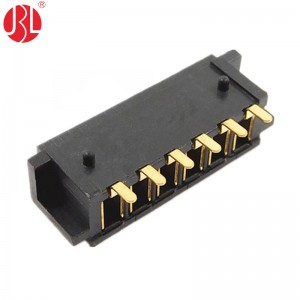

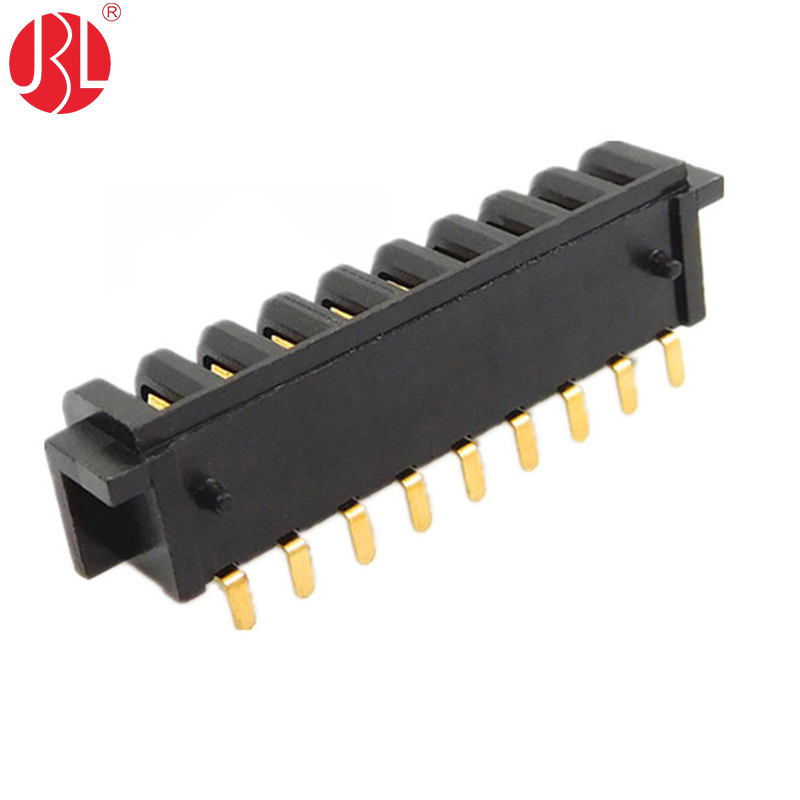

BT-250S-F-nP 2.5mm Pitch Blade Type Female Battery Connector
-
-
-
-
-
-

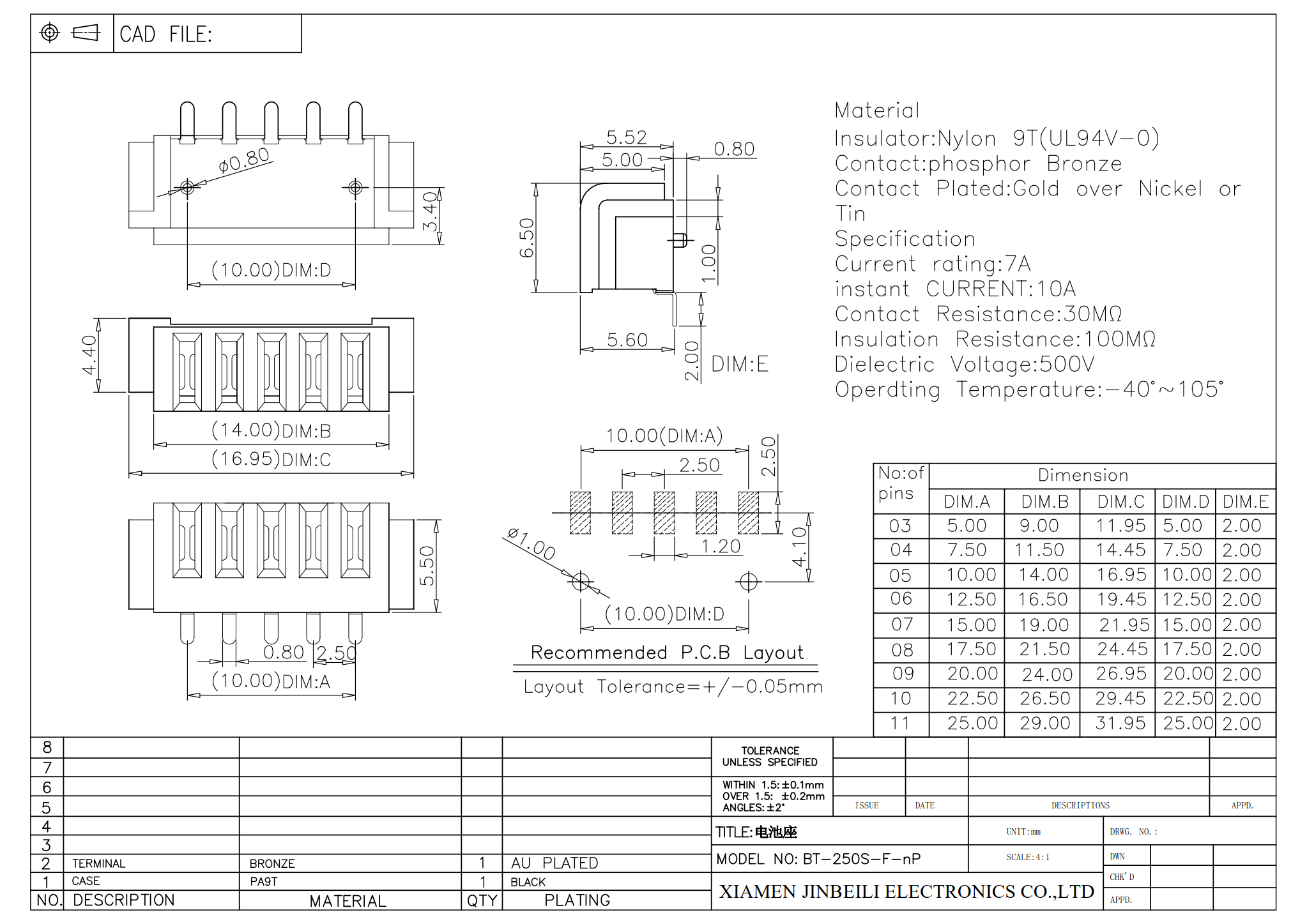

Blade-Type Female Battery Power Connector (Surface-Mount Right Angle, 2.5mm Pitch, Dual Board Guides)
This right-angle surface-mount female blade connector is engineered for compact, high-current power integration in PCB designs, featuring a 2.5mm pitch, dual board guides, and an optimized DC24V/7A power rating per contact. Available in 2-way to 11-way configurations, it balances space efficiency with robust power delivery for consumer electronics, industrial equipment, and automotive applications.
Key Features:
Power Capacity: Rated for 7A at DC24V, supporting high-draw devices like power tools, robotics, or electric mobility accessories, while maintaining thermal stability.
Right-Angle Surface-Mount Design: The 90° orientation and SMD pins enable low-profile PCB mounting, ideal for stacked boards or enclosures with height constraints.
Dual Board Guides: Integrated alignment pins ensure precise soldering and mechanical stability, preventing misalignment during assembly or under mechanical stress.
High-Retention Contact System: Phosphor bronze contacts with selective gold-over-nickel plating provide low-resistance mating (≤5mΩ) and 1,000+ mating cycles, ensuring long-term reliability.
Applications:
High-current battery interfaces for e-bikes, drones, or UPS systems.
Modular power distribution in industrial controllers, medical devices, or smart grid infrastructure.
Compact electronics requiring future-proof power pathways (e.g., rapid prototyping, OEM upgrades).
Benefits:
Dual board guides streamline automated assembly and reduce rework.
Right-angle orientation and 7A capacity enable high-density, high-power routing.
RoHS-compliant and UL 94V-0 rated for safety and global market use.
A versatile, industrial-grade solution for engineers prioritizing precision, power density, and longevity in battery-powered systems.
