BT-250W-F-nP 2.5mm Pitch Female Blade Type Power Connector Thru Hole RA
-
-
-
-
-
-
-
-
-
2.5mm Pitch Female Blade Type Power Connector

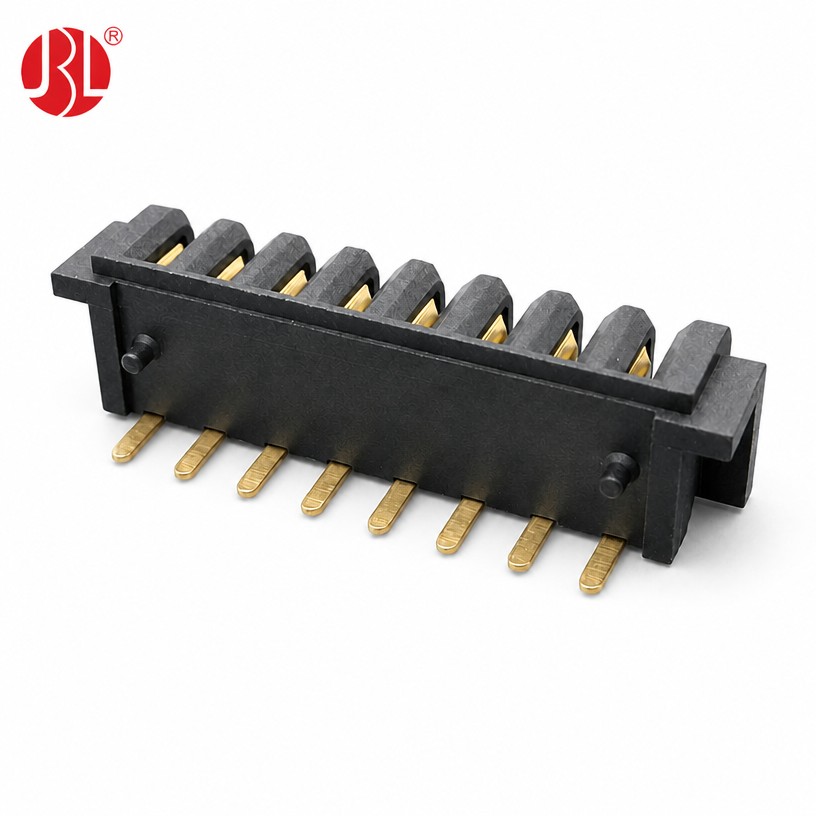

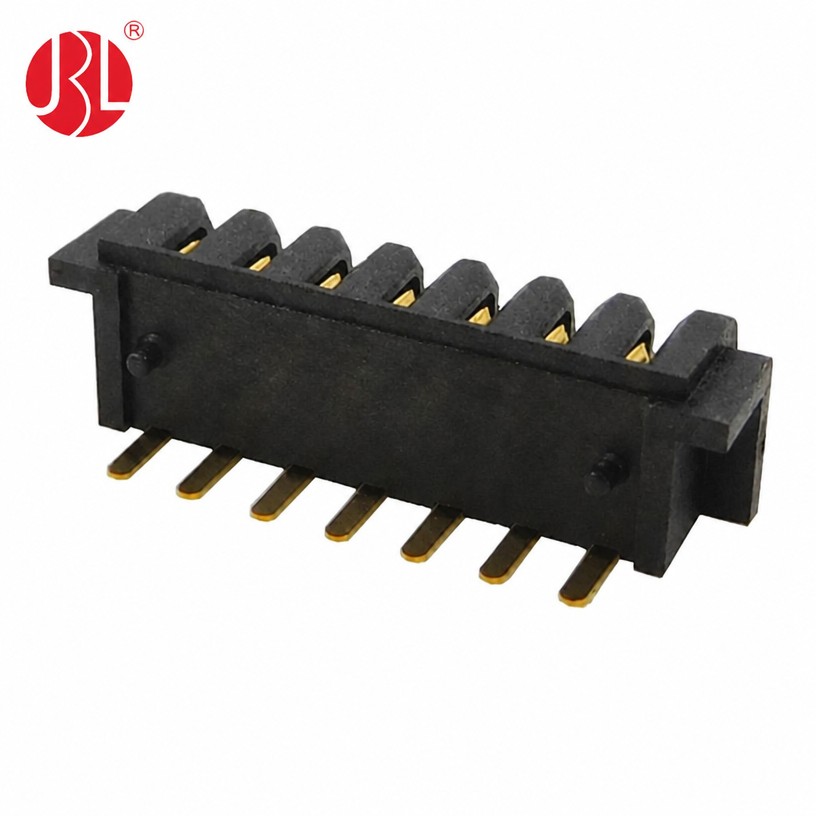

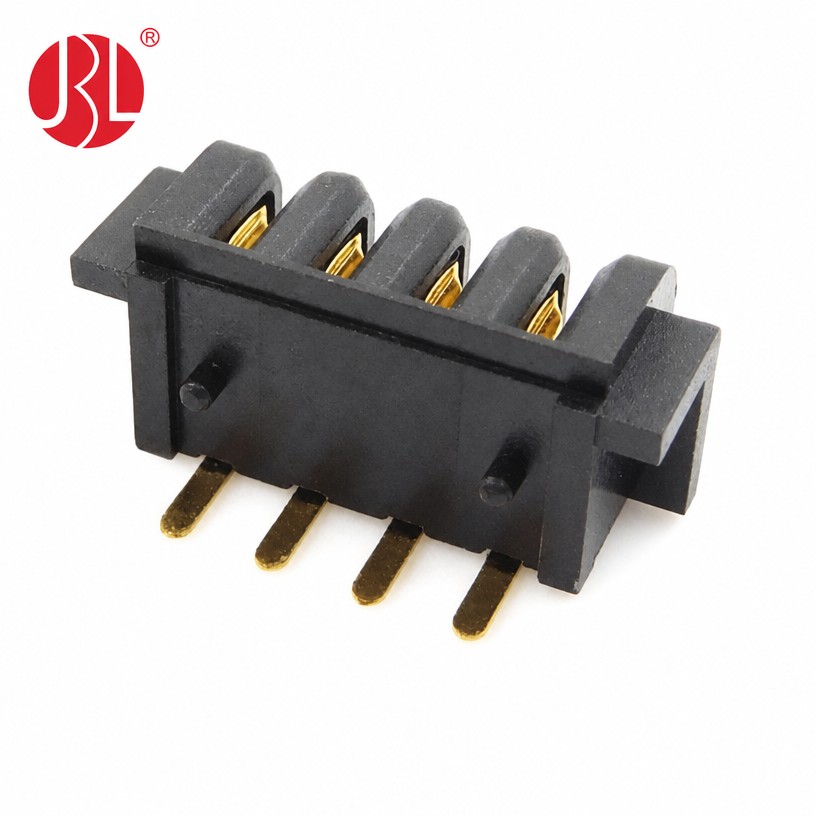

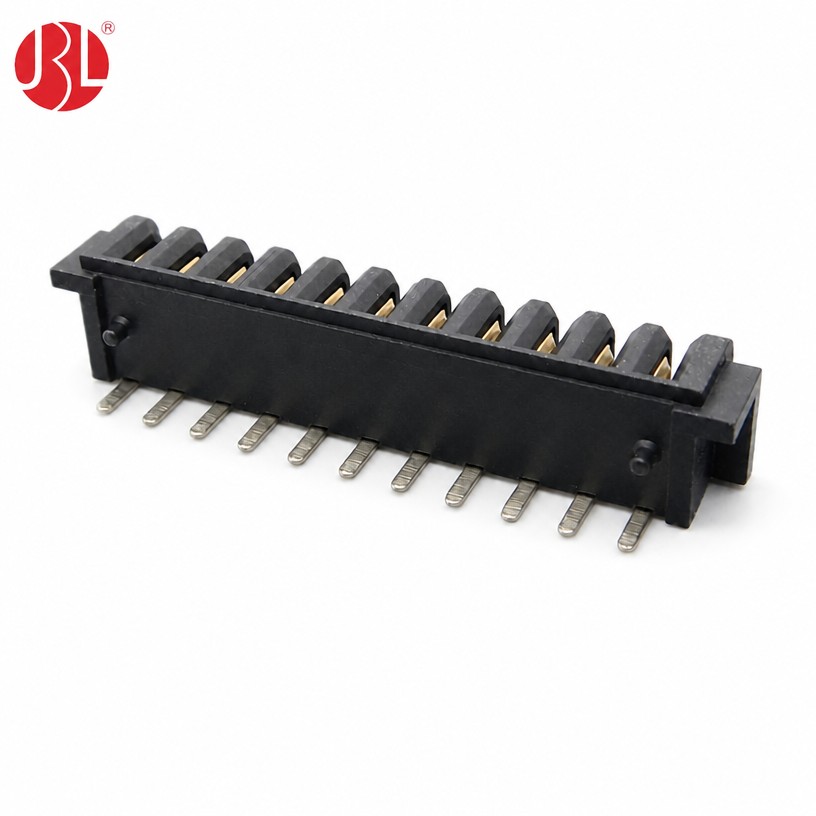

The Jinbeili Female Blade Type Power Connector BT-250W-F-nP, also called a blade battery connector or blade-type power socket, is a compact 2.5 mm pitch female power connector designed for reliable power connection in consumer electronics, equipment power systems, and other electronic devices. Its through-hole right-angle mounting design includes two board guides to help provide stable PCB positioning and mechanical installation.
The connector is available with multiple contact positions, including 2-pin, 3-pin, 4-pin, 5-pin, 6-pin, 7-pin, 8-pin, 9-pin, 10-pin, and 11-pin configurations. This wide range of contact options allows designers to select the appropriate connector according to their power and signal connection requirements.
The housing is made from PA9T material, while the terminals are manufactured from bronze. The connector is rated at DC 30V, 7A, making it suitable for power connection applications requiring a compact, multi-position blade-style connector.
The Jinbeili 2.5 mm pitch female blade connector has very similar dimensions and identical specifications to selected TE Connectivity female blade-type socket power connectors, including 6-6447143-6, 6-6447141-1, 6-6447141-2, 3900088-03, 3900088-04, 3900088-035, and 3900088-06. It can therefore be evaluated as an alternative or replacement connector for compatible applications. Customers should verify mechanical fit, electrical performance, and qualification requirements before mass production.
The connector is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory, supporting consistent production quality and controlled manufacturing processes.
FAQs
Can you make this blade connector with 12 pins?
Yes. We can customize the 2.5 mm pitch female blade connector with 12 pins. However, a new tooling cost is required for this customized configuration.
Can you provide a STEP file of the 4-pin blade connector?
Yes. We can provide a 3D STEP file of the 4-pin connector. Please share your email address and we can send the file to you.
Do you have a 2.0 mm pitch version?
Yes. We also offer 2.0 mm pitch female blade-type power connectors. You can view the product range here: 2.0mm Female Blade Power Connectors
How many contact positions are available?
Standard options include 2-pin through 11-pin configurations. Other pin counts can be evaluated for customization.
Can this connector be used for equipment power applications?
Yes. The connector is designed for equipment power, consumer electronics, and other electronic power connection applications, subject to the specified electrical and mechanical requirements.
Is this blade-type power connector RoHS compliant?
Yes. The connector is RoHS and REACH compliant and manufactured in an ISO 9001 and IATF 16949 certified factory.
