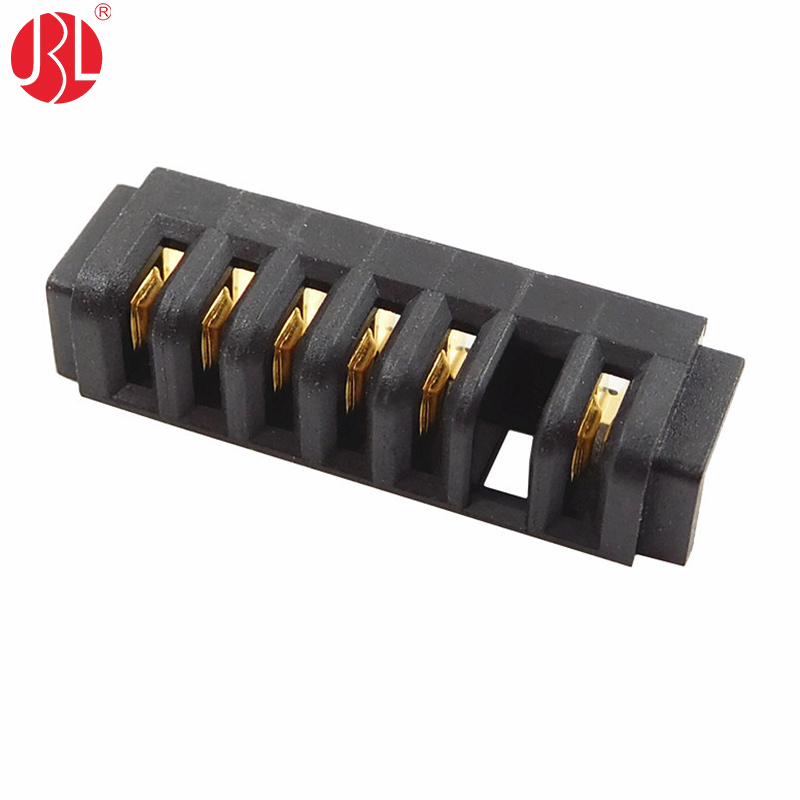

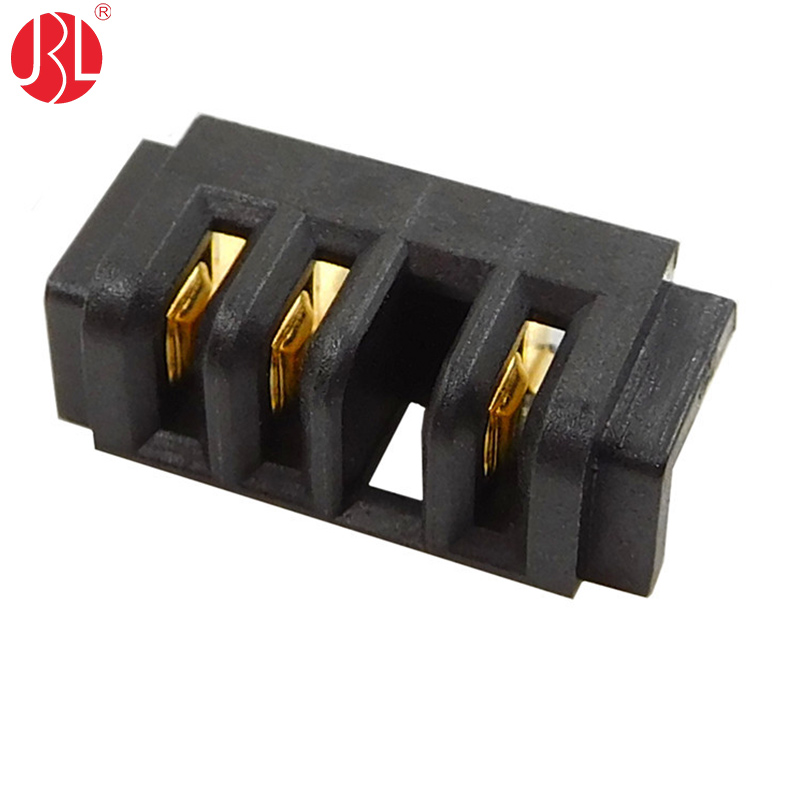

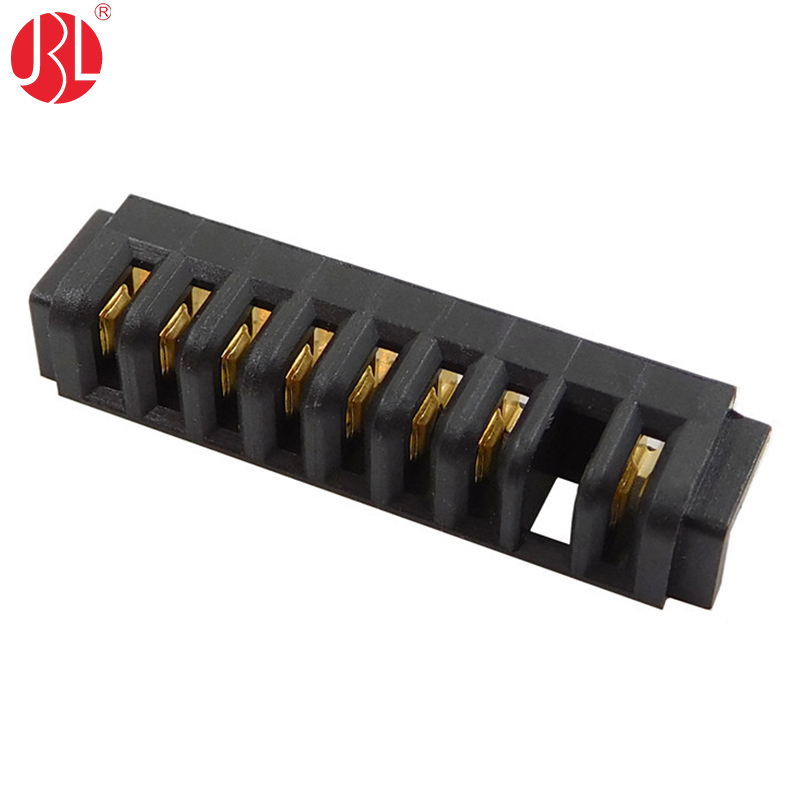

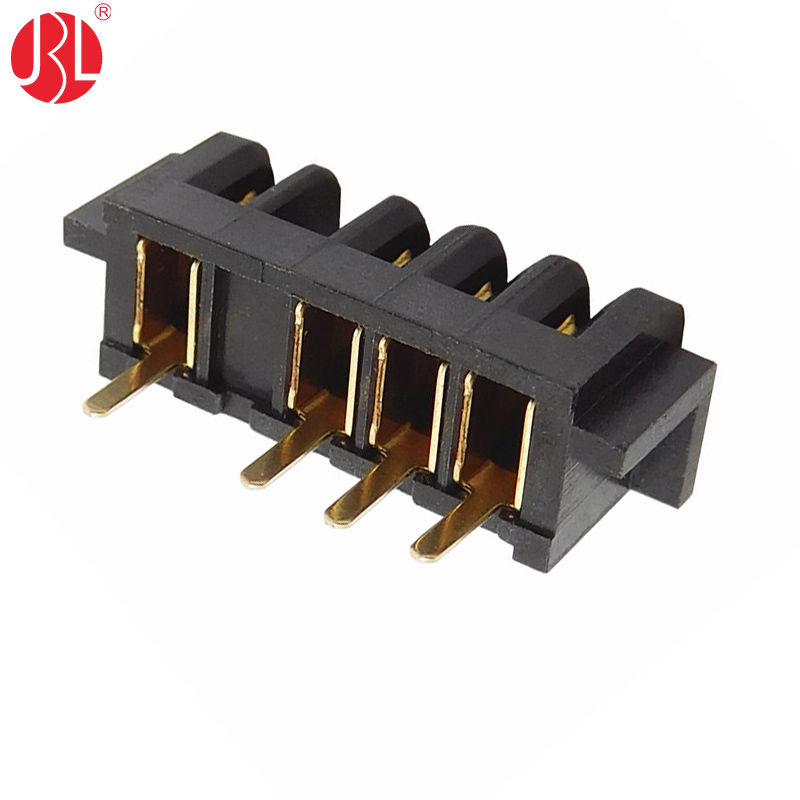

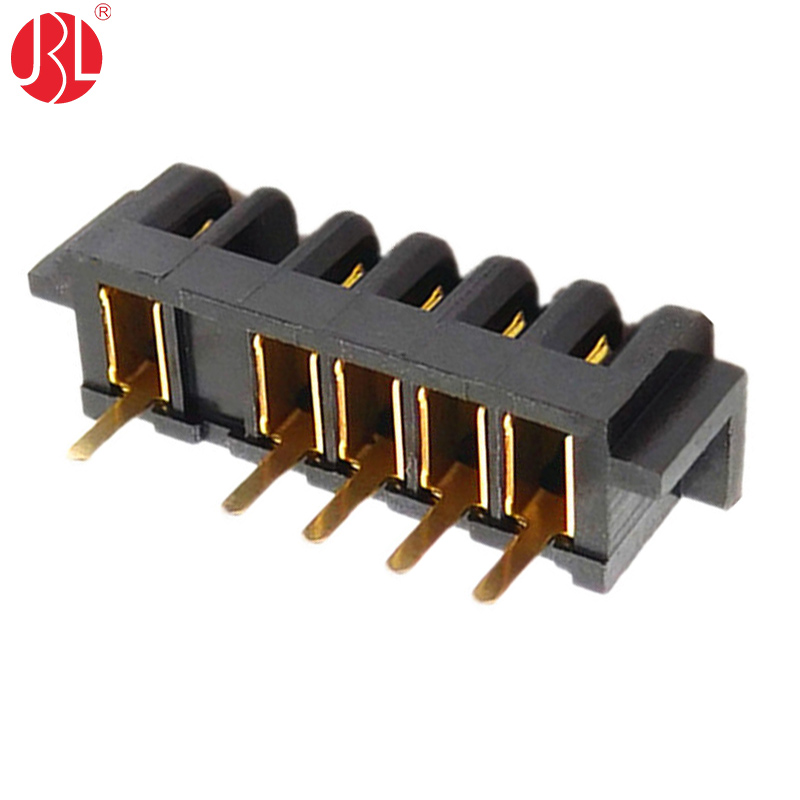

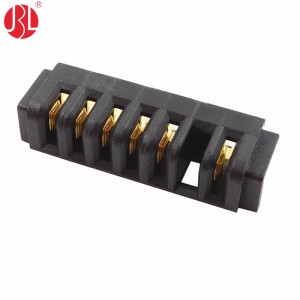

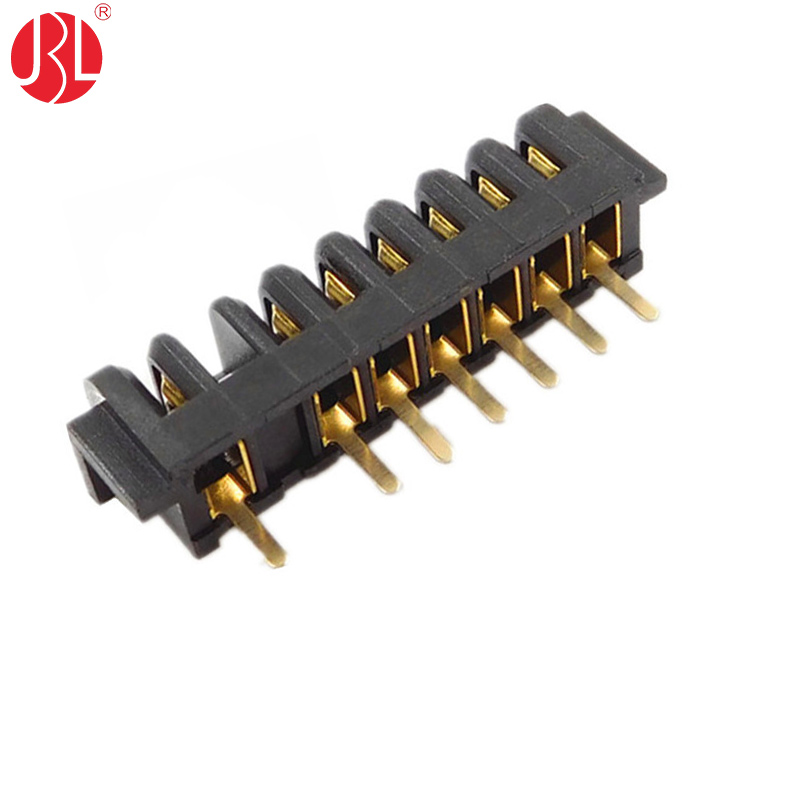

BT-250-B02F-S1-nP 2.5mm Mistake Proofing Female Blade Type Power Connector Thru Hole
-
-
-
-
-
-
-
The 2.5mm Pitch Female Blade Type Power Connector Socket is a robust and reliable component engineered for secure power connections in electronic devices. Acting as a female battery connector, it ensures stable and efficient power transfer between a power source and the connected device.
Designed with a 2.5mm pitch, this connector offers a compact yet functional solution for applications where space is constrained. Its through-hole mounting style provides enhanced mechanical stability, making it ideal for applications that may experience vibration or mechanical stress. This mounting method ensures a durable connection that can withstand environmental challenges over time.
The connector is available in a range of position options, from 2-way up to 10-way configurations, offering flexibility to meet diverse power distribution needs. Whether for a simple power input or a more complex multi-channel setup, this connector can be tailored to specific requirements.
Rated for DC 30V and capable of handling up to 7A of current, it is suitable for a variety of applications, including consumer electronics, automotive systems, and industrial equipment.
A notable feature of this connector is its specific mistake-proofing design, often referred to as Poka Yoke. This design prevents incorrect mating by ensuring that the connector can only be inserted in the correct orientation, reducing the risk of damage or malfunction due to improper connections. This feature enhances both safety and reliability in critical applications.
Overall, the 2.5mm Pitch Female Blade Type Power Connector Socket combines versatility, durability, and safety to provide an optimal power connection solution.
