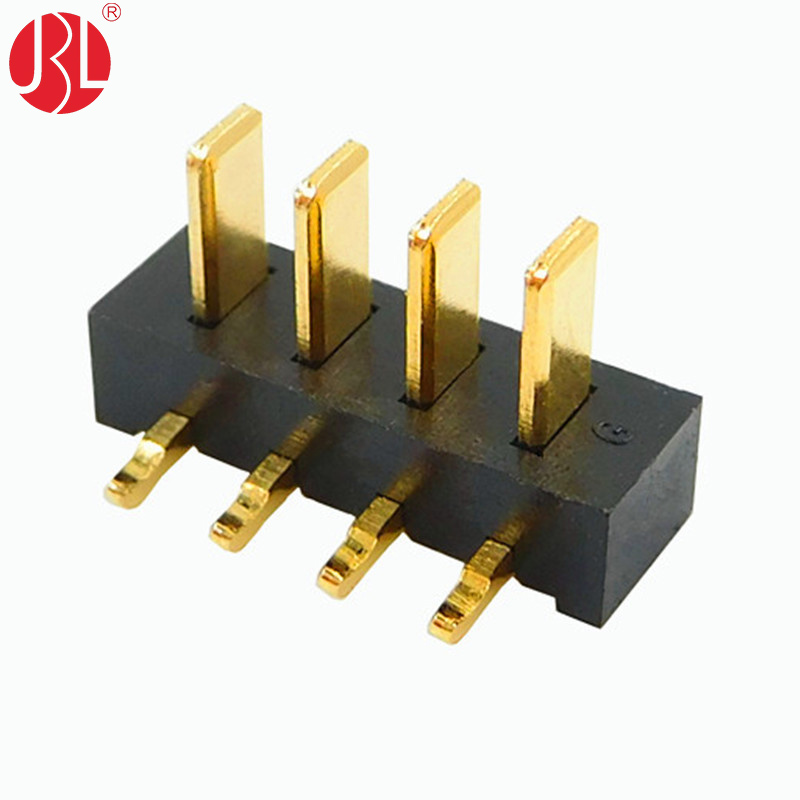

BT-250D-M-nPW-5.8 2.5mm Pitch Blade Type Male Battery Connector
-
-
-
-
-
-
-
-
-

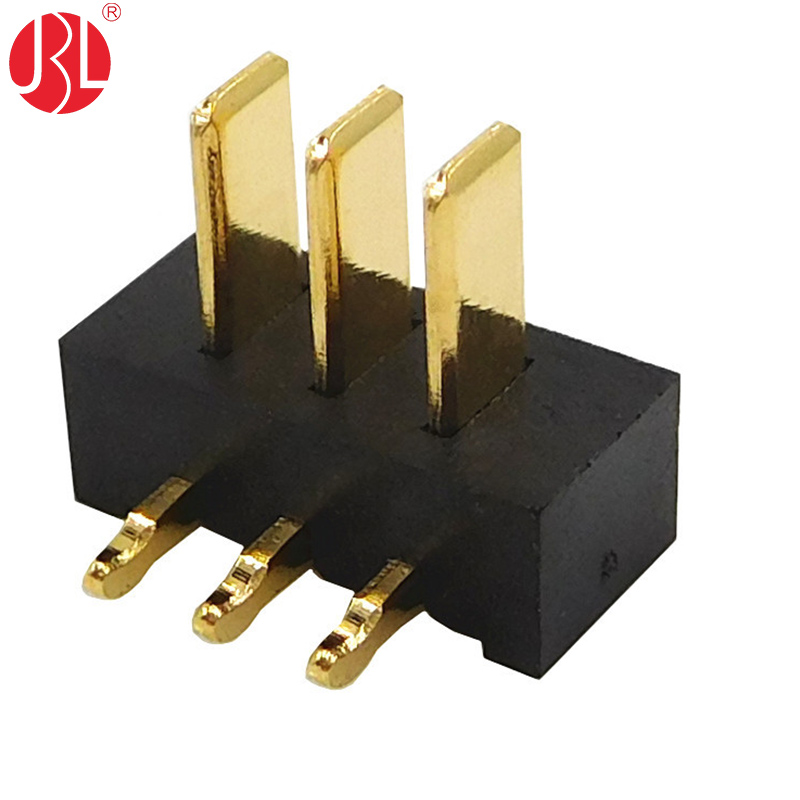

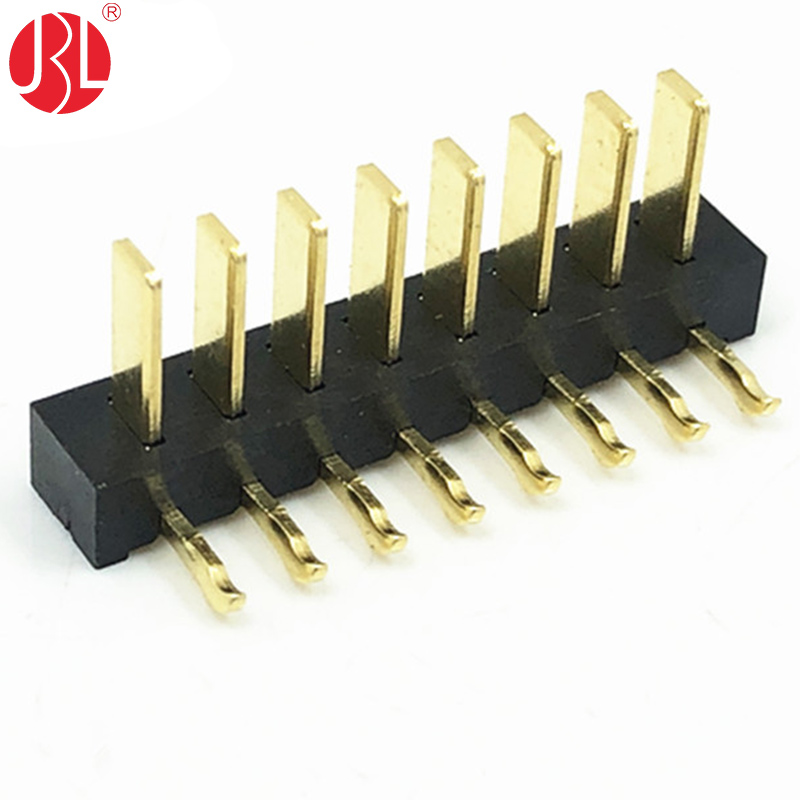

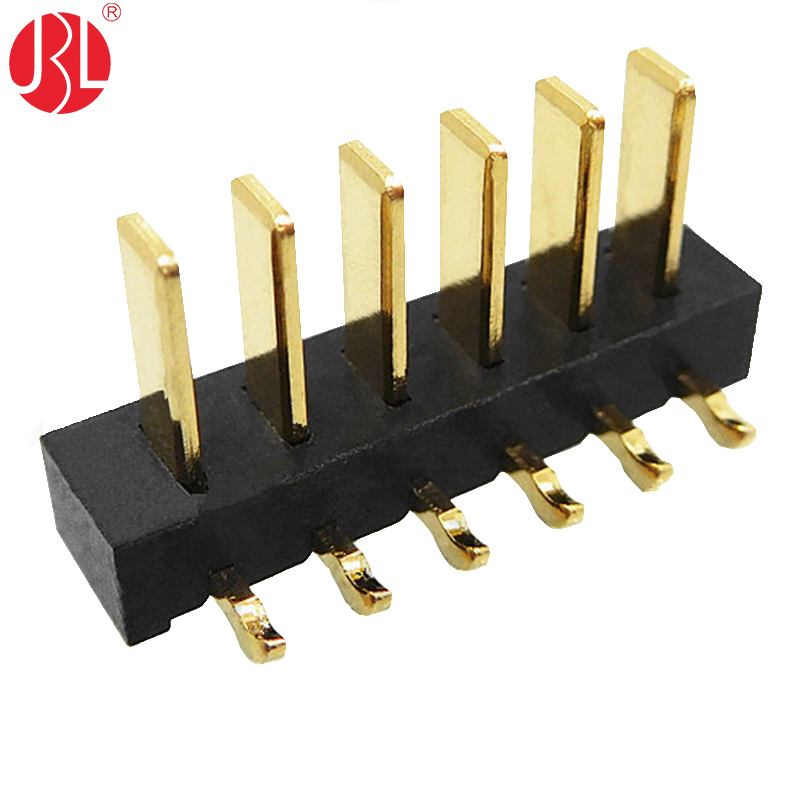

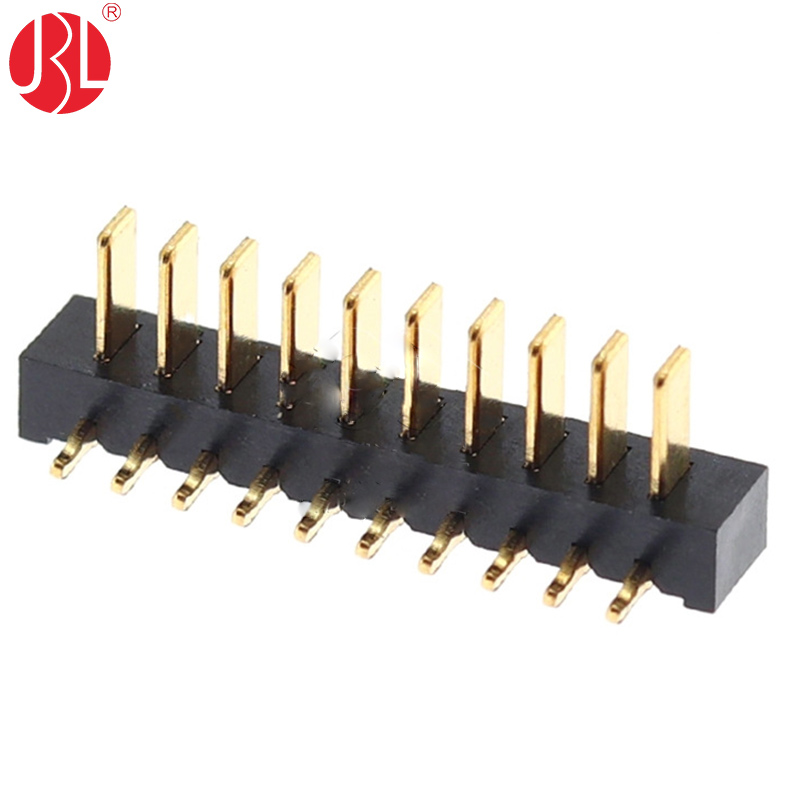

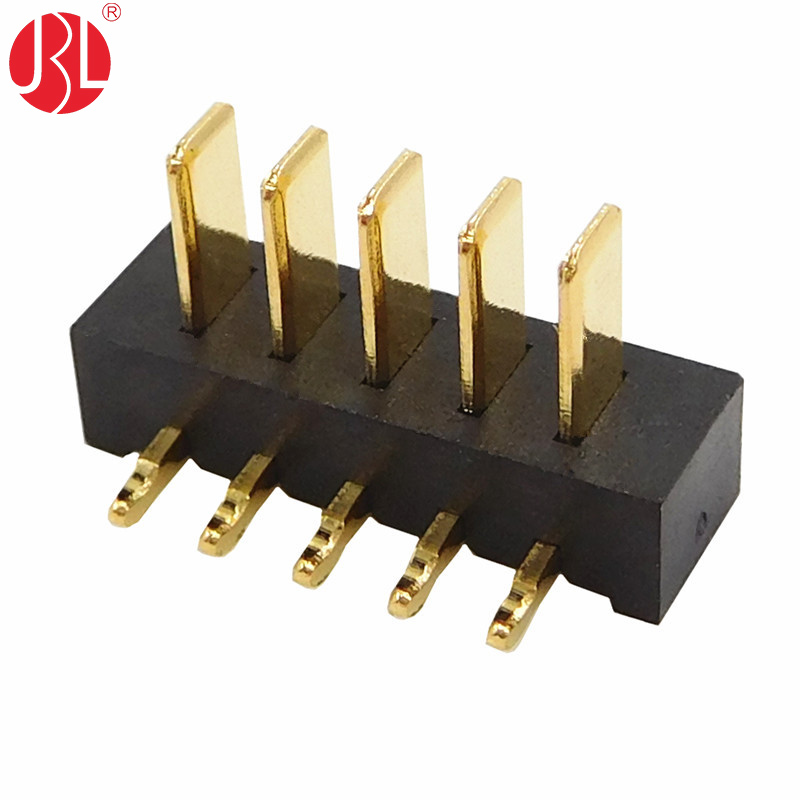

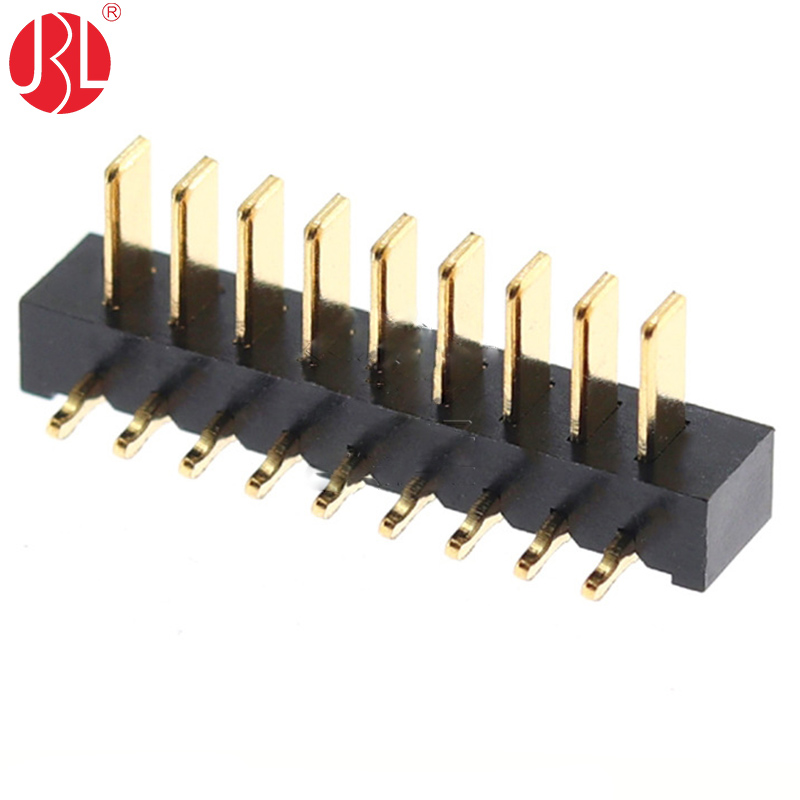

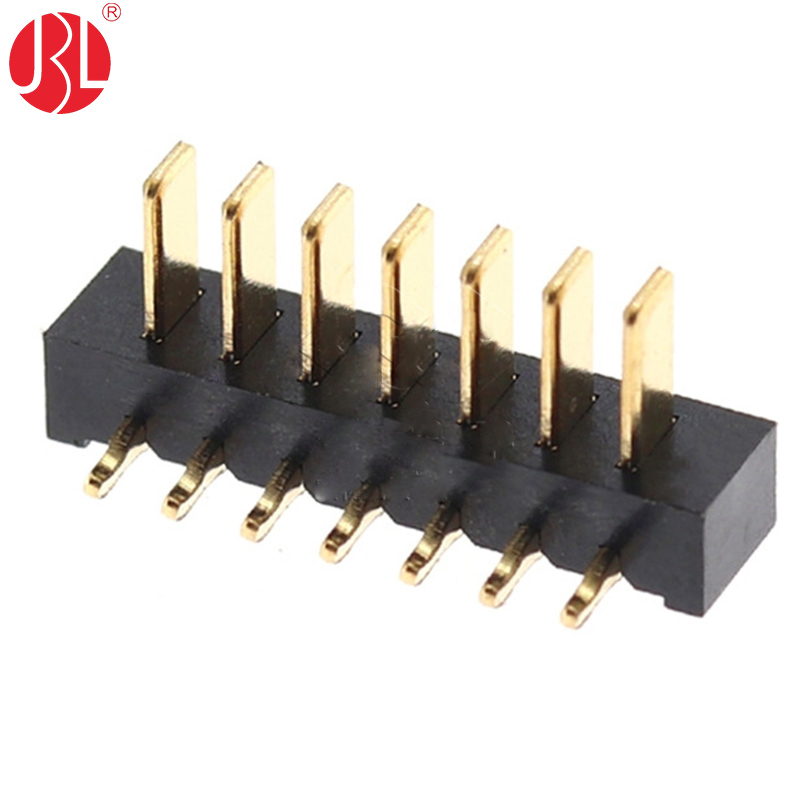

Blade-Type Male Battery Power Contact (Through-Hole Right Angle, 2.5mm Pitch, 5.8mm Header)
This right-angle blade-type male battery contact is engineered for space-efficient, high-reliability power connections in through-hole PCB designs, featuring a 2.5mm pitch and an extended 5.8mm contact header to ensure stable electrical engagement. Available in 2-way to 10-way configurations, it delivers scalable power routing for compact electronics, battery modules, and industrial devices.
Key Features:
Power Rating: Rated for DC24V/5A per contact, optimized for low- to moderate-current applications such as electric scooters, portable power stations, or smart sensors.
Right-Angle Design: The 90° mounting orientation reduces PCB footprint and enables parallel-to-board routing, ideal for crowded enclosures or layered circuit designs.
Extended Header Durability: The 5.8mm contact length ensures secure mating with female counterparts, minimizing resistance and arc risks under vibration or thermal stress.
Through-Hole Robustness: Threaded solder pins and a flame-retardant PA66 nylon housing withstand mechanical strain, while tin-plated brass contacts resist oxidation and support 500+ mating cycles.
Applications:
Compact battery interfaces for IoT devices, wearable tech, or consumer drones.
Modular power distribution in robotics, automation controllers, or telecom backup systems.
Prototyping and OEM solutions requiring flexible, right-angle power pathways.
Benefits:
The 5.8mm header enhances contact reliability in dynamic environments.
Right-angle orientation simplifies PCB layout in tight spaces.
RoHS-compliant and UL 94V-0 rated for safety and global market compatibility.
A cost-effective, space-saving solution for engineers seeking durable, right-angle battery contacts with scalable power capacity.
